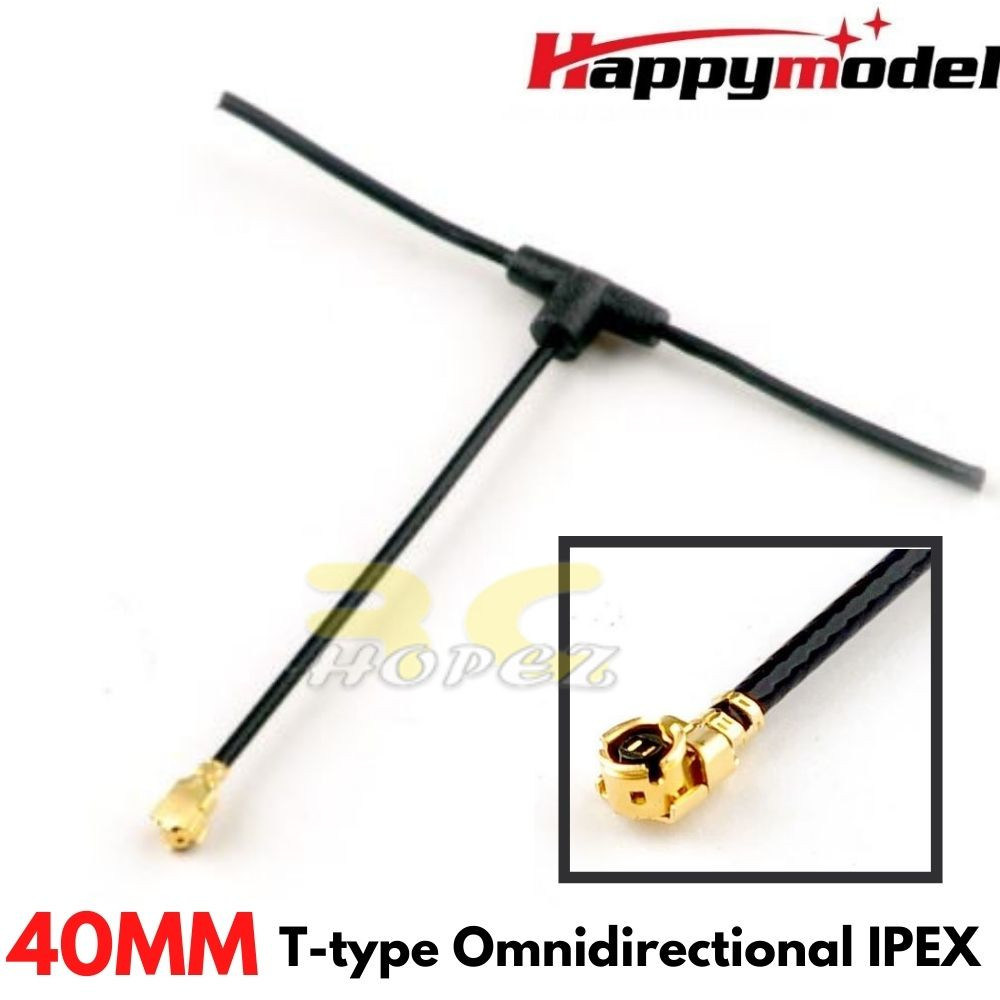

Happymodel 2.4g 40mm Omnidirectional T-type Antenna for ELRS EP1 RX IPEX/IPX/U.FL Compatible with TBS Tracer HP-T40MM

Happymodel 2.4g 40mm Omnidirectional T-type Antenna for ELRS EP1 RX IPEX/IPX/U.FL Compatible with TBS Tracer HP-T40MM

Specification:
Item Name: T-type RC Antenna

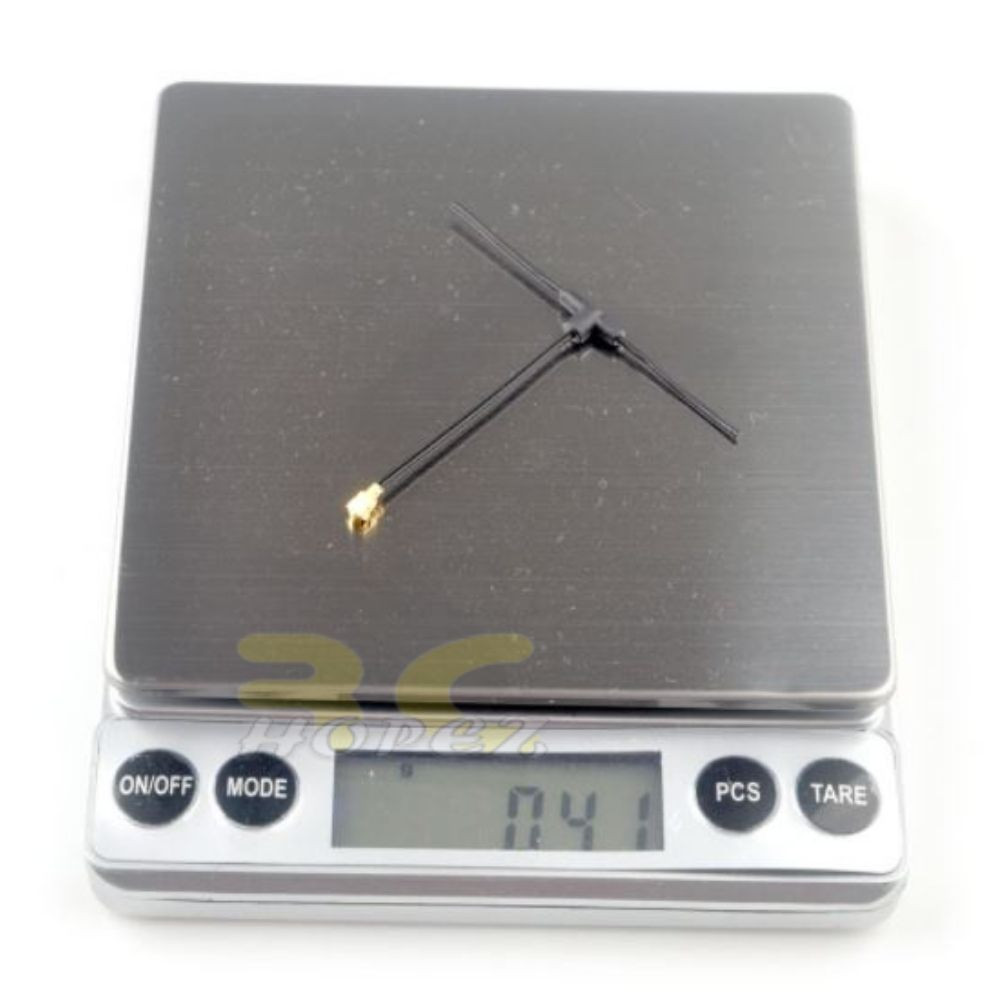

Weight: 40mm-0.41g
Frequency: 2400.0 MHz
Efficiency: -0.89 dBi

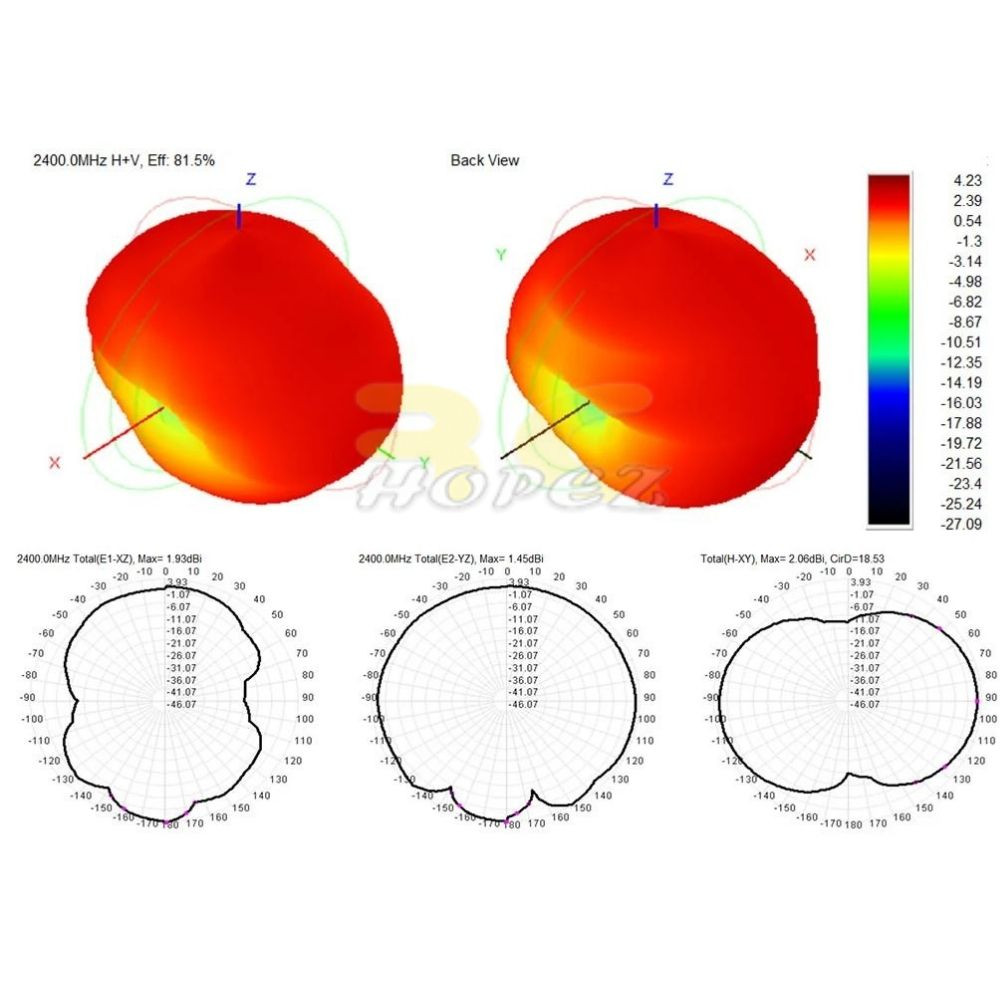

Gain: 2.23 dBi
Efficiency: 81.46 %
Directivity: 5.12 dB
Peak Gain Position: 180.00 Theta
Peak Gain Position: 330.00 Phi
Efficiency ThetaPol: 20.90 %
Efficiency PhiPol: 60.56 %
UppeHem. Efficiency: 39.93 %
Lower Hem. Efficiency: 41.54 %
Connector: IPEX/IPX/U.FL
Antenna Length: 40 mm
Antenna width: 52mm

Package Included: (Optional)
1 x RC Antenna 40mm
