OVERVIEW:

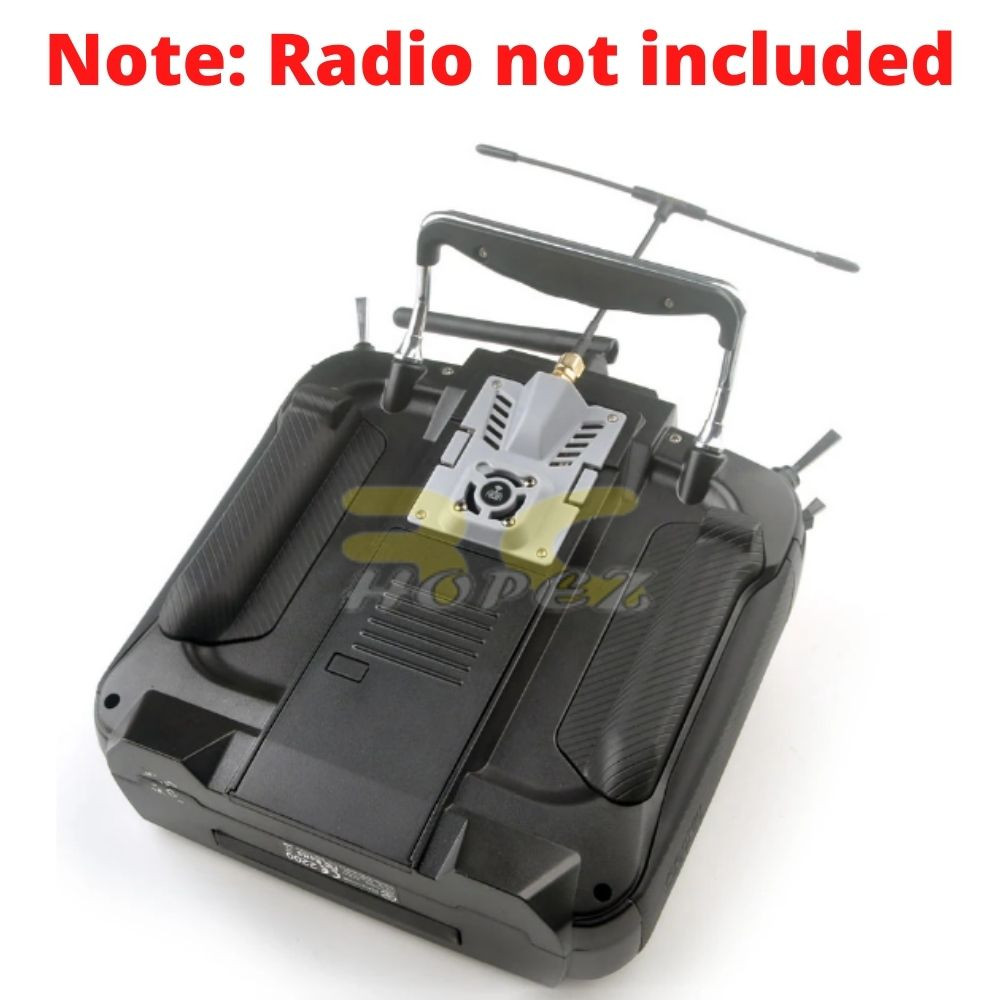

ES900TX and ES900RX modules are a set of Long Range 915MHz wireless transmission equipment developed and designed based on the open source software ExpressLRS. This set of modules is characterized by ultra-long range, stable operation and low latency. The module is compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play. We have specially customized the heat sink for the transmitter module, and also reserve the installation position of the 2006 fan which can help the transmitter module to operate stably under high power conditions.

New ES900TX module coming with a 2006 Fan, it would working automatically when the TX power is 250mw.

Specifications:

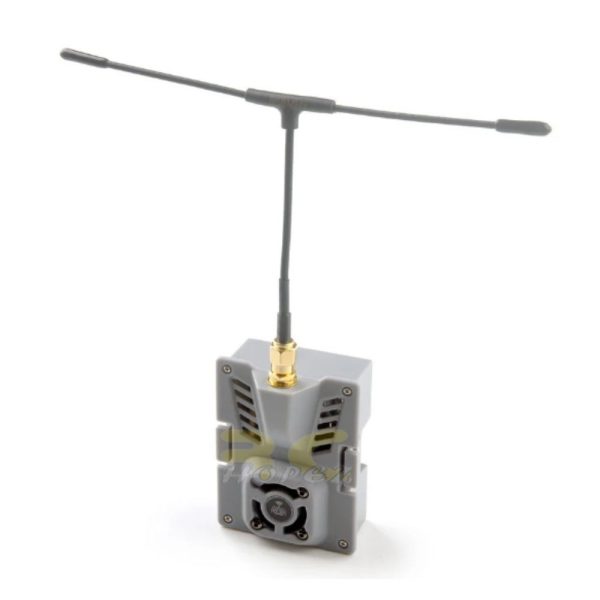

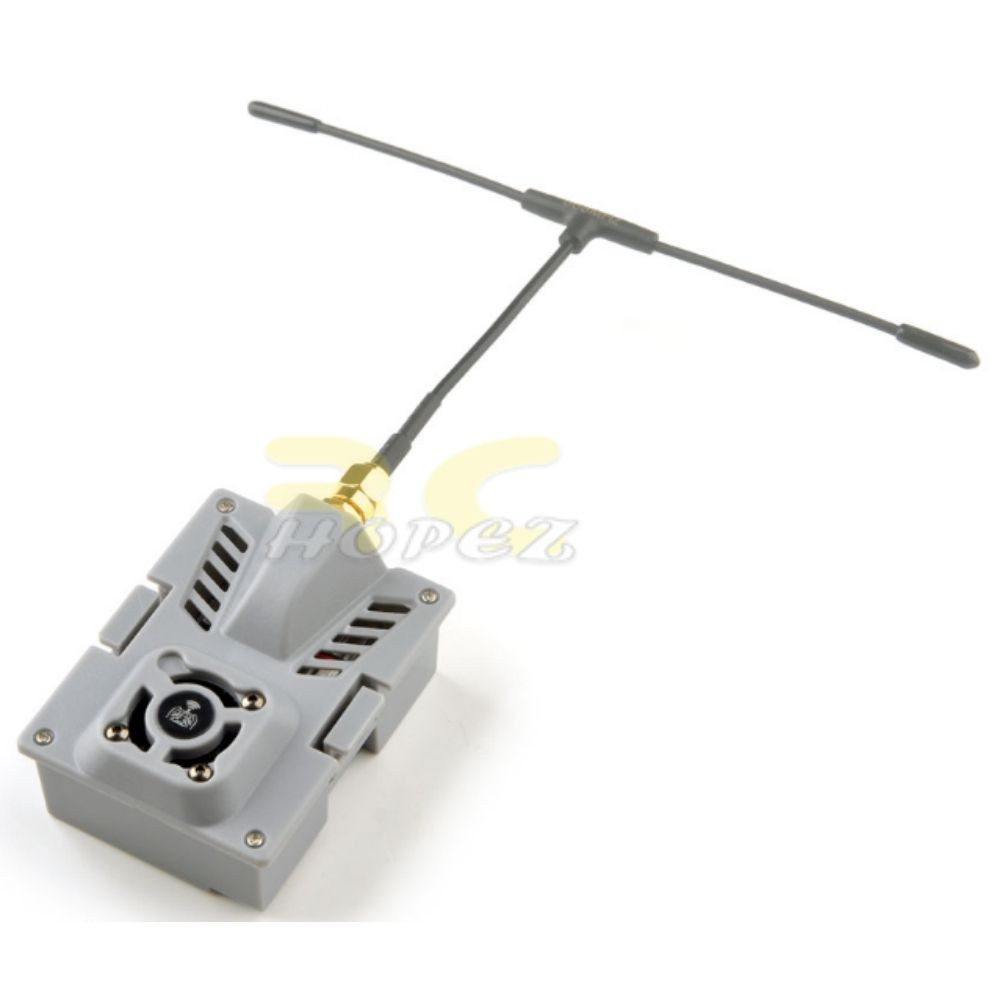

ES900TX:
MCU:ESP32+ESP8285
Dimension: 55mm*39mm*11mm
Weight: 9.2gram (only the TX module)
Antenna connector: SMA
VCC input: 5~13v, Recommend 5v~9v
RF Frequency optional: 915mhz
Maximum Output Power: <33dBm(For >27dBm operation, we recommend add a fan for force cooling)
Wifi update firmware function for ES900TX would be available in a short time.

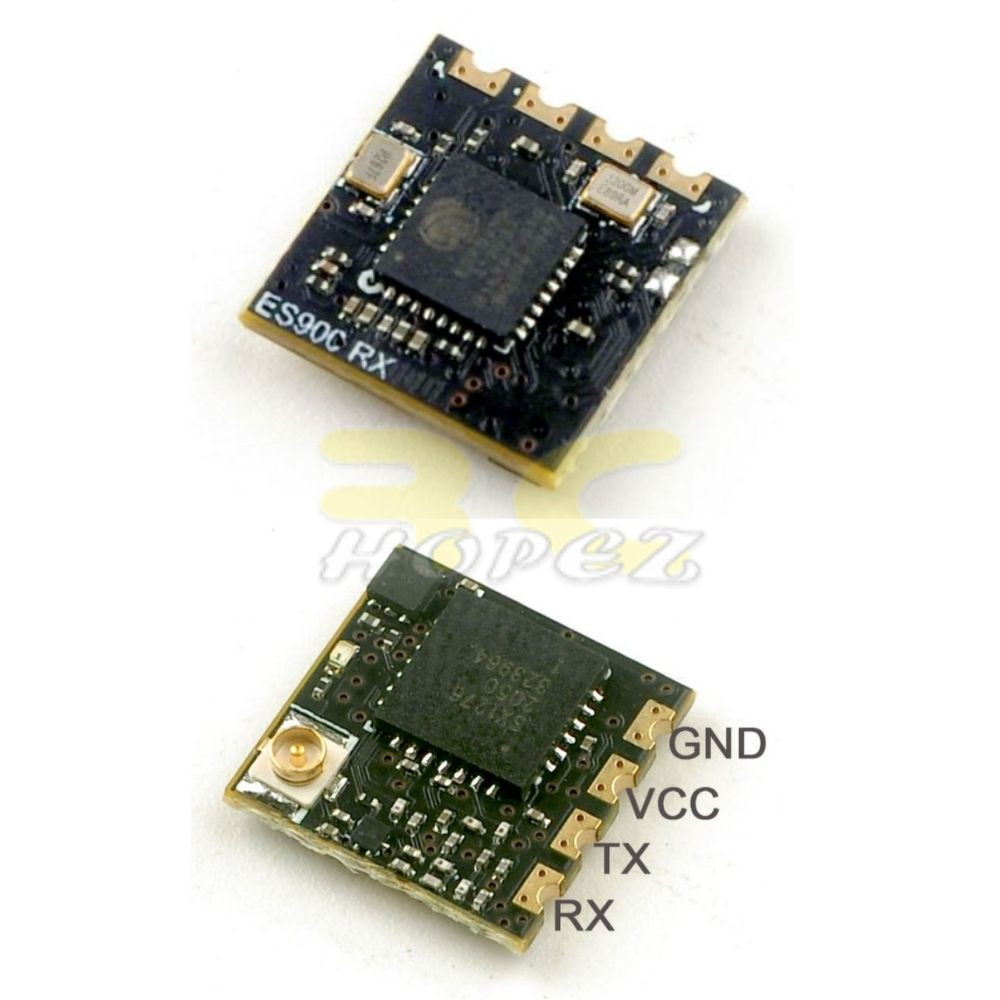

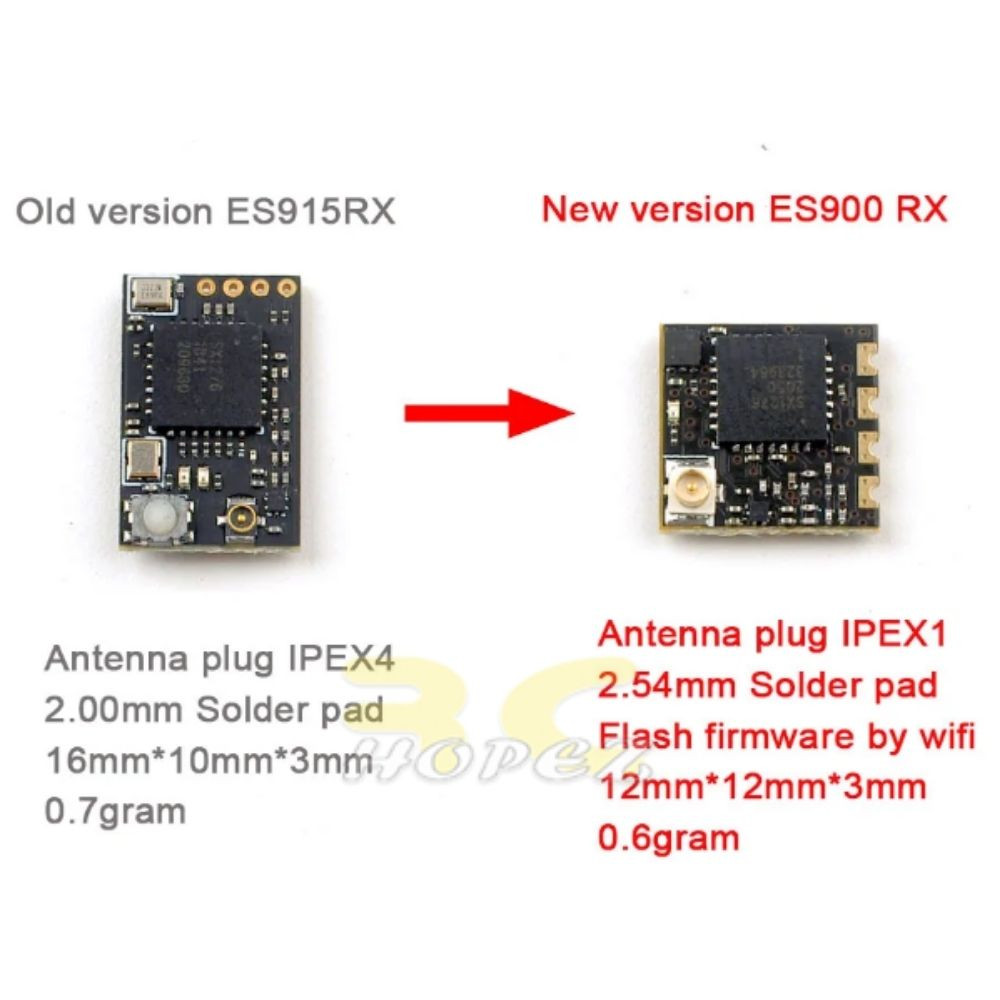

ES900RX:
MCU: ESP8285
VCC input: 5v
Operation current: ~100Ma
Rx To FC protocol: CRSF
RF Frequency optional: 915mhz
Dimension: 12mm*12mm*3mm

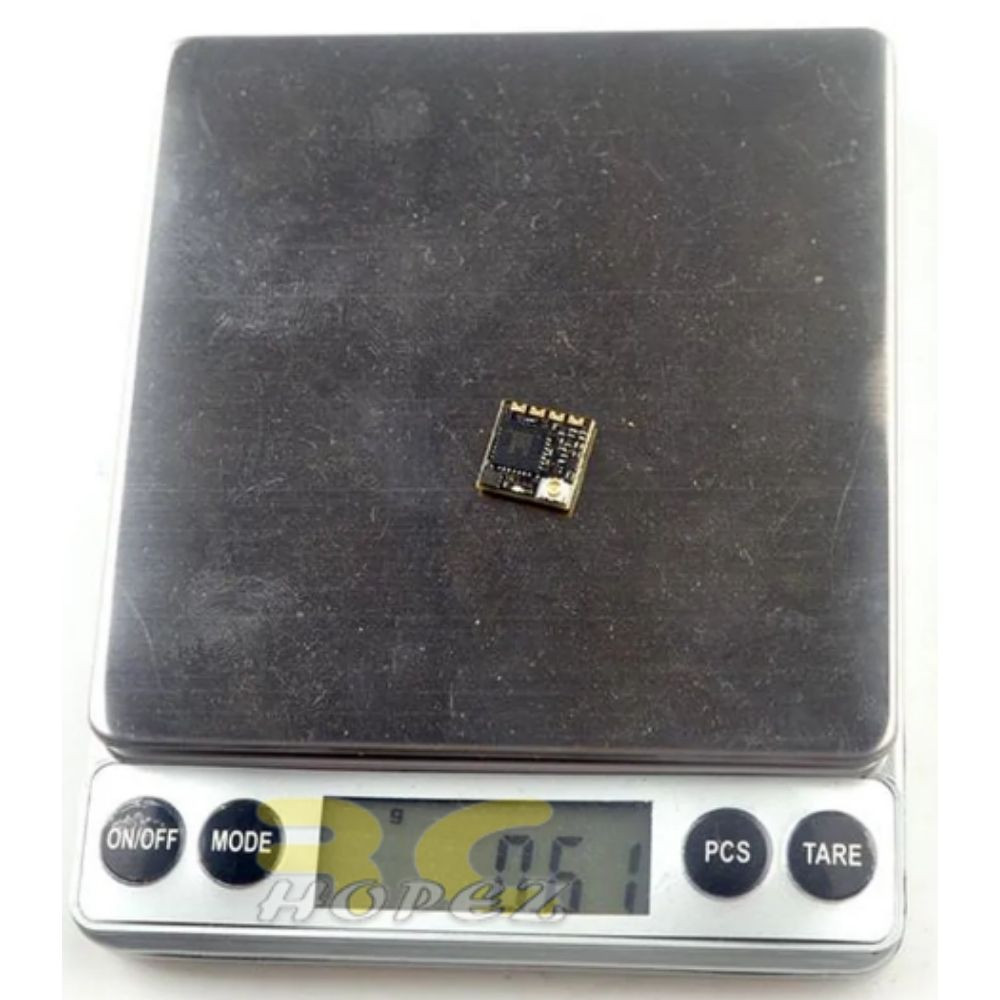

Weight: 0.60 gram (exclude antenna)
Antenna connector:  IPEX1
Telemetry output Power: <17dBm
RC7 Firmware for ES900RX download:
ExpressLRS RC7 firmware for ES900 RX 915MHz [update by wifi]

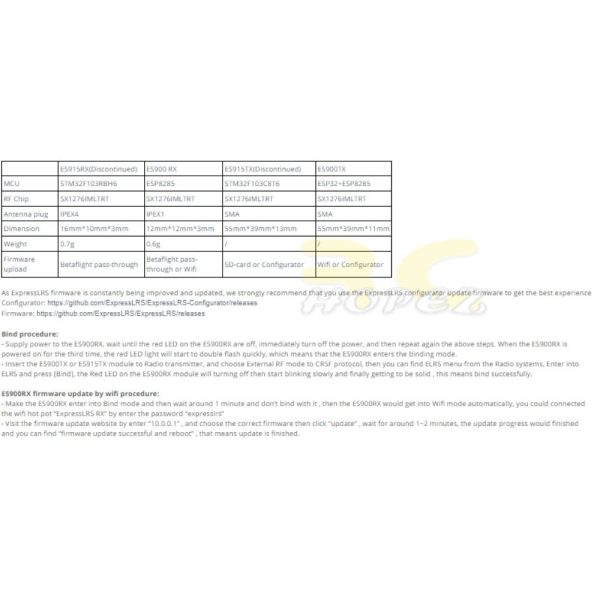

ES900RX firmware update by wifi procedure:
– Make the ES900RX enter into Bind mode and then wait around 1 minute and don’t bind with it , then the ES900RX would get into Wifi mode automatically, you could connected the wifi hot pot “ExpressLRS RX” by enter the password “expresslrs”

– Visit the firmware update website by enter “10.0.0.1” , and choose the correct firmware then click “update” , wait for around 1~2 minutes, the update progress would finished and you can find “firmware update successful and reboot” , that means update is finished.

Package Include (Optional) :

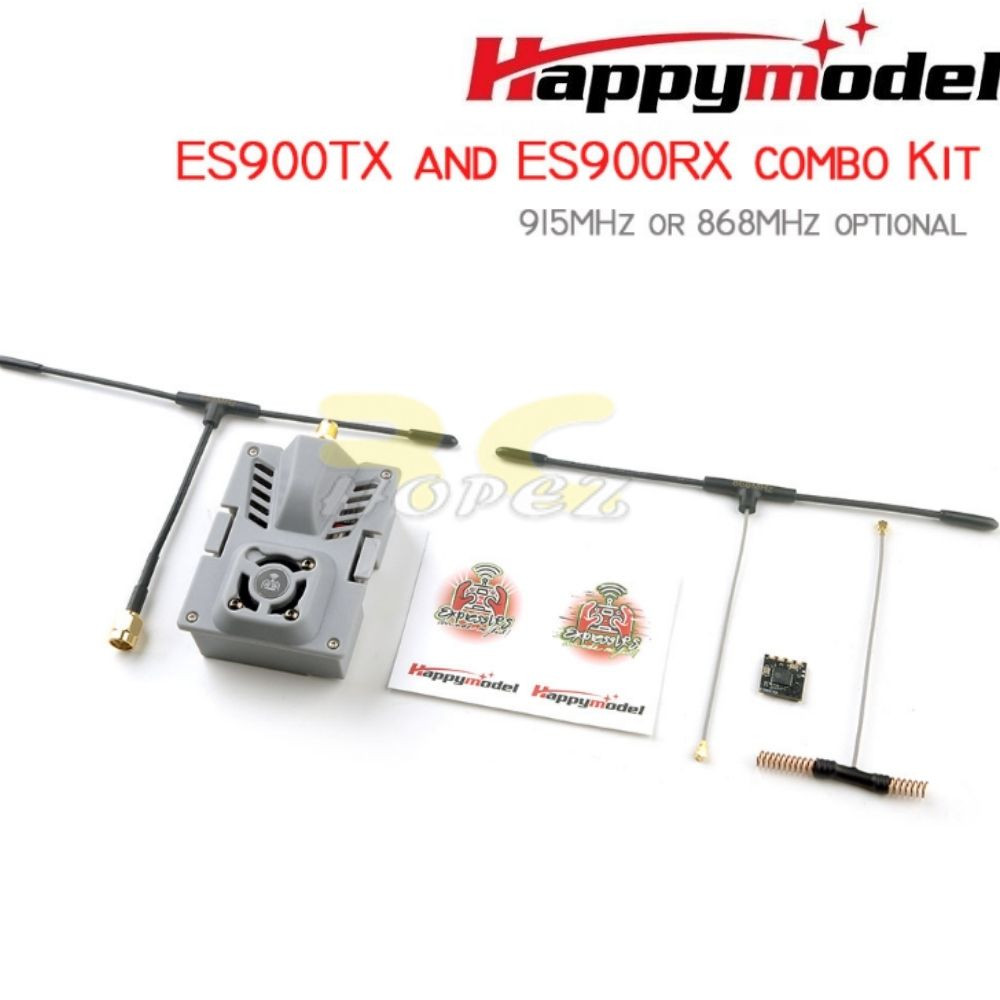

ES900TX & ES900RX 915MHz Kit:
1 x ES900TX 915MHz Module
1 x ES900RX 915MHz Receiver
1 x TX 915MHz Antenna
2 x RX 915MHz Antenna
1 x Molding JR Bay mounted case for TX module
1 x Heat sink
1 x Adapter wire
1 x 2006 Fan

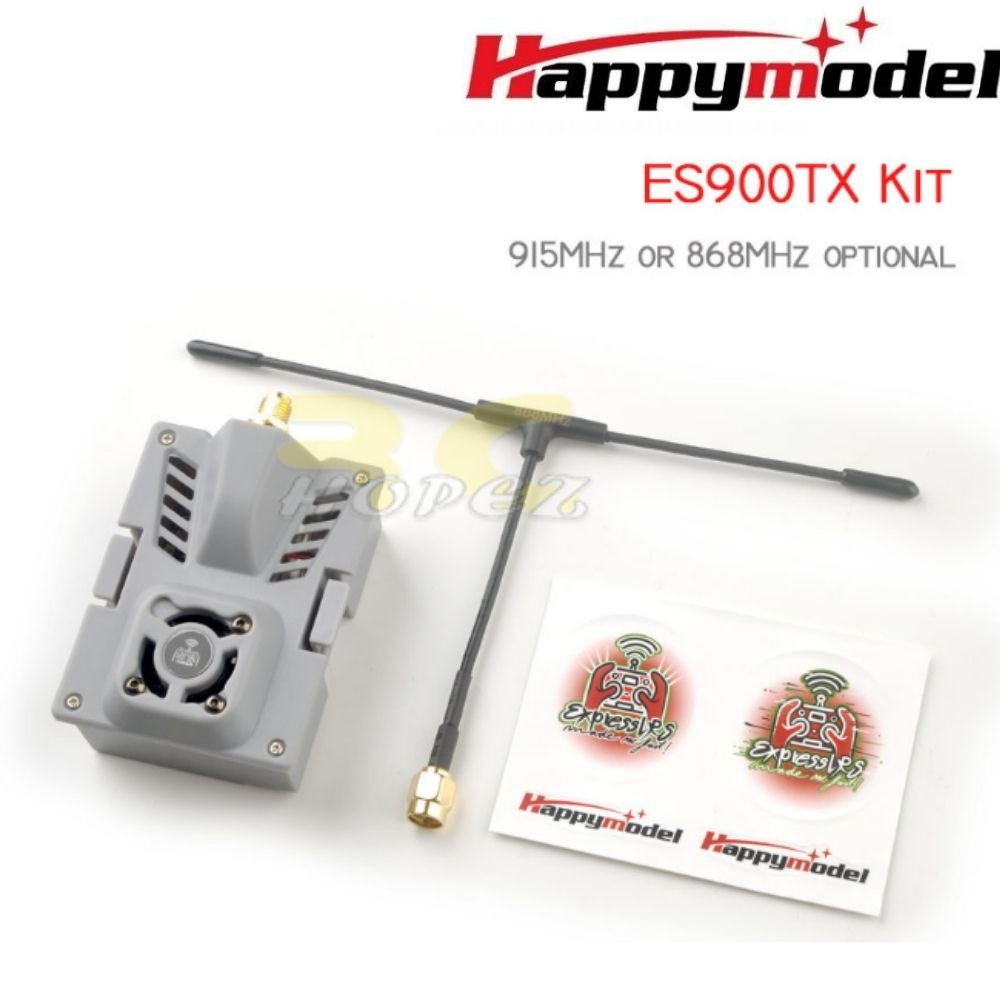

ES900TX 915MHz:
1 x ES900TX 915MHz Module
1 x TX 915MHz Antenna
1 x Molding JR Bay mounted case for TX module
1 x Heat sink
1 x Adapter wire
1 x 2006 Fan

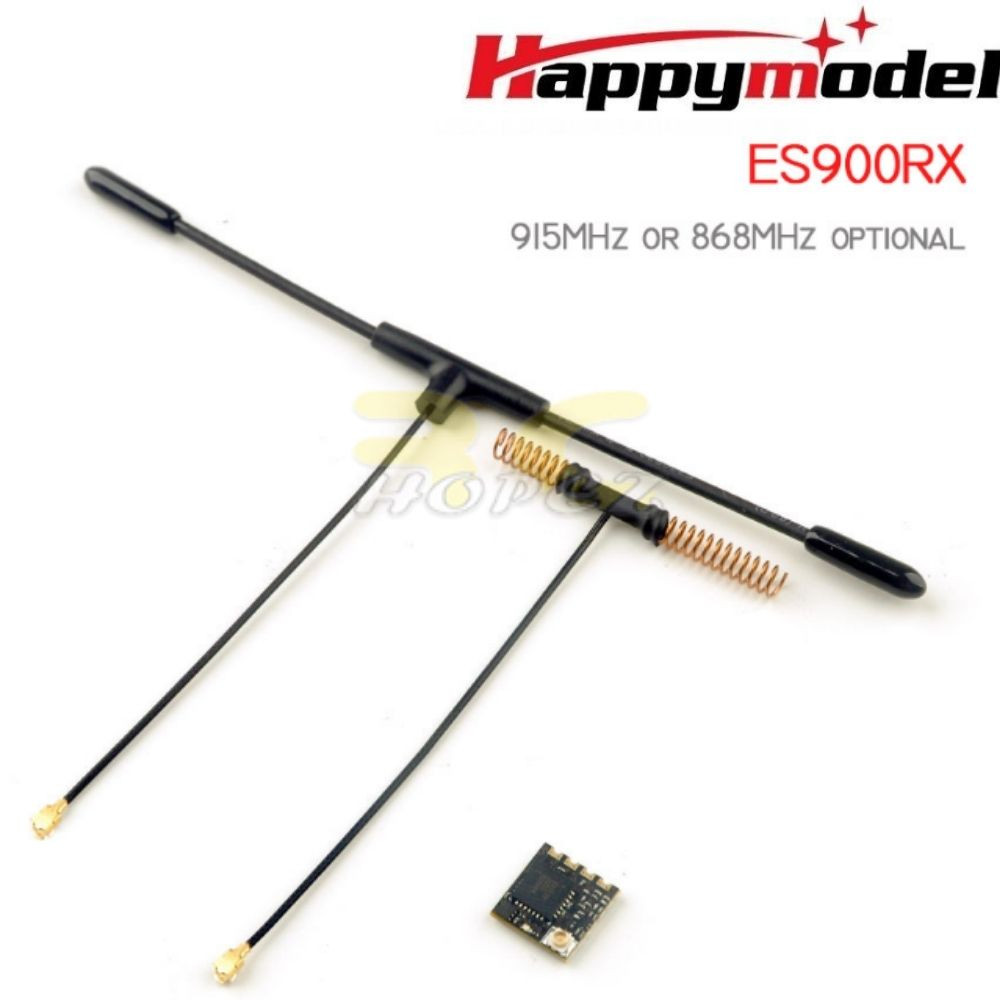

ES900RX 915MHz:
1 x ES900RX 915MHz Receiver
2 x RX 915MHz Antenna
