Happymodel Moblite6 Ultralight 18.5g 1S 65mm Diamond F4 AIO w/ Runcam Nano 3 800TVL Camera – Frsky Moblite6-FR

Happymodel Moblite6 Ultralight 18.5g 1S 65mm Diamond F4 AIO w/ Runcam Nano 3 800TVL Camera – Frsky Moblite6-FR

Specification:

Brand: Happymodel
Item Name: Moblite6 1S 65mm ultra light brushless whoop
Wheelbase: 65mm
Size: 80x80x25mm
Weight: 18.5g (without battery)
Weight: 26g (with Original 1S 300mAh Lipo battery )

Spare parts specifications:
Motor:
Model: EX 0802 19000KV (Unibell Version)
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Weight(g): 1.7g
No.of Cells(Lipo): 1S only

Flight Controller：
(Frsky SPI RX Version) DiamondF4 FR FC Firmware
Target: CrazybeeF4FR
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC：
MCU Upgraded to EFM8BB21
Power Supply: 1S LiPo/LiPo HV
Current: 5A continuous, peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory Firmware: O_H_50_REV16_8.HEX
Default Protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version：
SPI BUS Receiver Frsky D8 Compatible
Compatible Non EU transmitter D8 model
Channels: 8CH
Failsafe Support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8G 40CH 25-200mW VTX：
Output Power: 25mw~200mw switchable
Frequency: 40CH
Input Voltage: 3.3-5.5V
Current Consumption: 300mA (type)
Frequency: 5.8GHz 5bands 40 channels (include Race band)
Smartaudio Ready

Runcam Nano 3 FPV Camera：
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: [email protected]
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V [email protected]
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery ：
Capacity: 300mAh
Voltage: 3.8V
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 7.5g
Connector: PH2.0
Quantity: 2 PCS

Features:
– The lightest 1s 65mm brushless whoop
– Powerful and efficiency
– The lightest 1s AIO 5IN1 F4 flight controller
– New Unibell EX0802 brushless motors
– VTX power switchable 25mw~200mw
– Low profile Canopy design

Package Included:
1x Happymodel Moblite6 65mm Whoop RC FPV Racing Drone
1x DiamondF4 FR built-in SPI Frsky Receiver
4x EX0802 KV19000 Unibell Brushless Motor
1x Gemfan 1219 31mm Propeller (4cw+4ccw)
1x Runcam Nano 3 FPV Camera
1x Built-in 5.8Ghz 40CH 25mw-200mw VTX
2x 1S 300mAh Lipo Battery
1x 1S USB charger
1x 65mm Frame (Mobula6 frame)
1x Propeller Disassemble Tool
1x Screwdriver

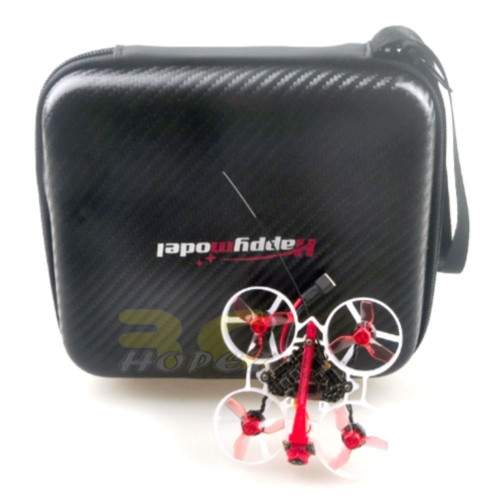

1x Happymodel Carry Case
