Notice Before Buy: According to DJI’s warranty policy, if there is a problem with the DJI O4 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed.

NOTE :

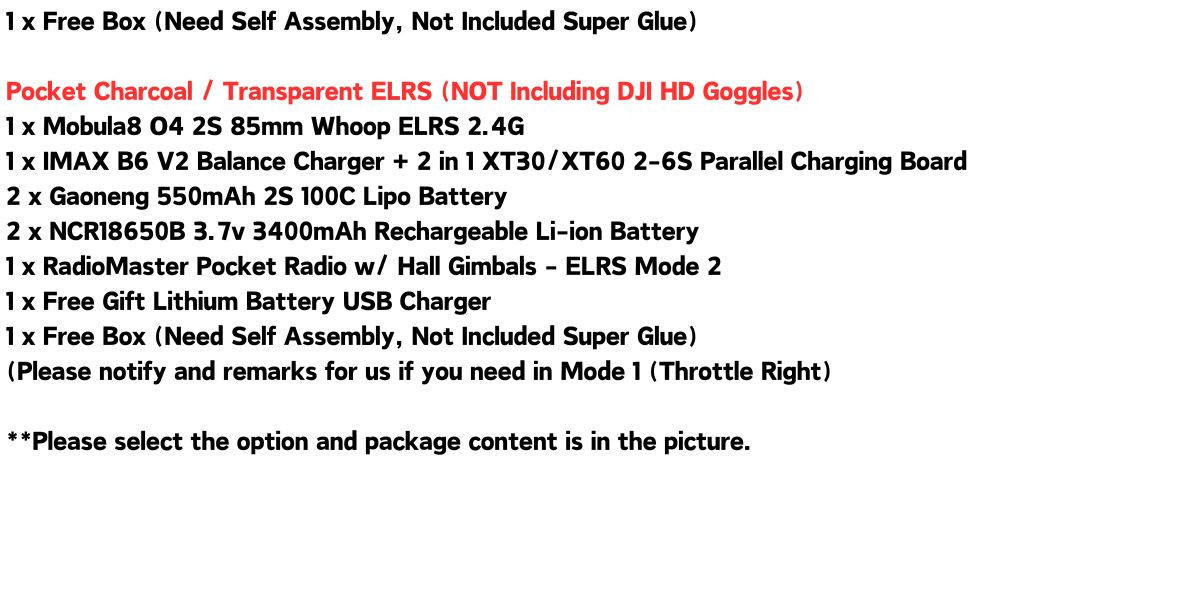

– For RadioMaster Pocket , please notify and remarks for us if you need in Mode 1 (Throttle Right)

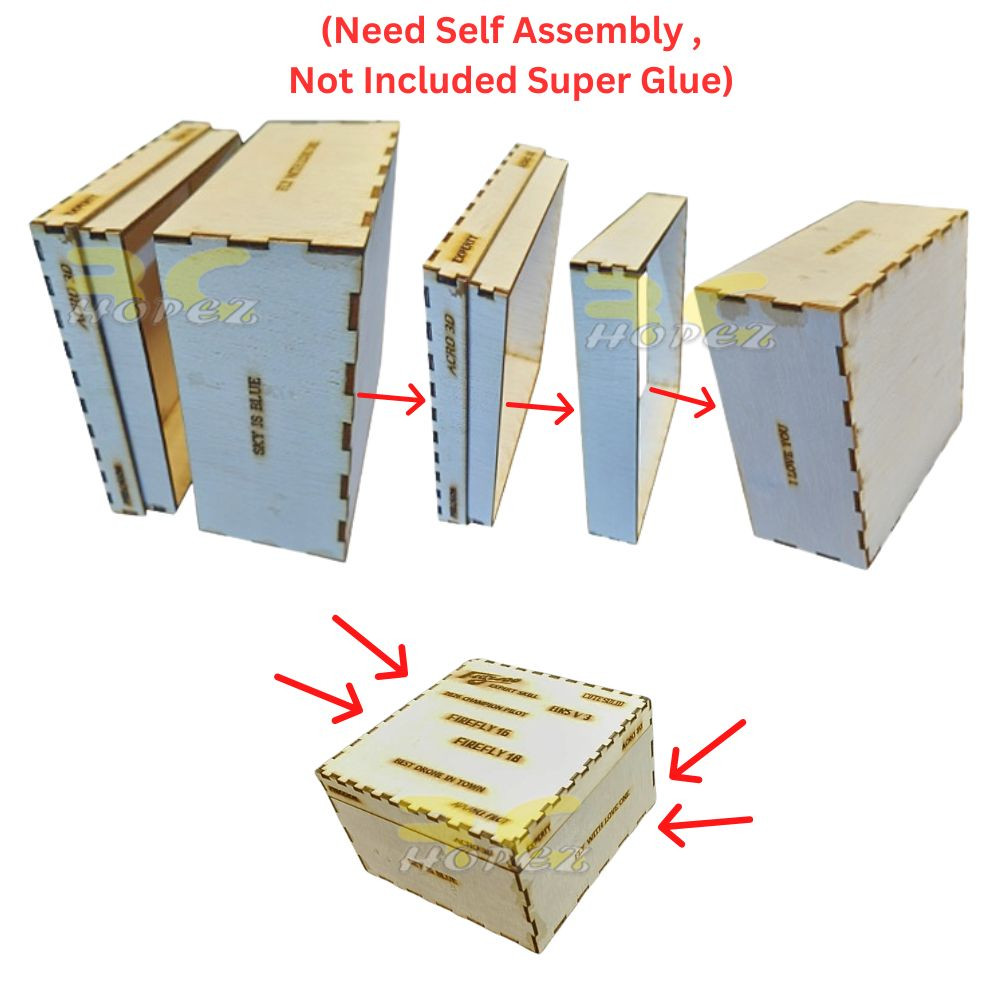

– Box need self assembly. Not Inclduded Super Glue
– Without DJI HD Goggles

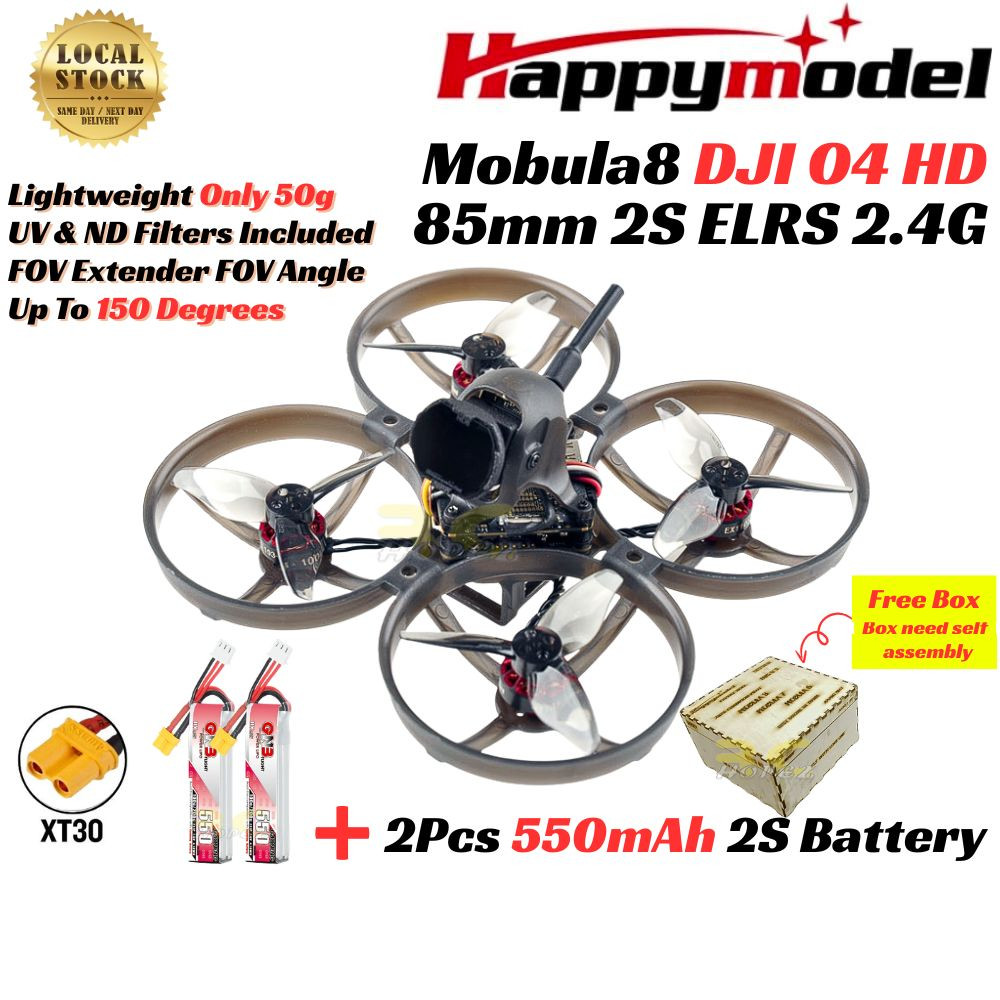

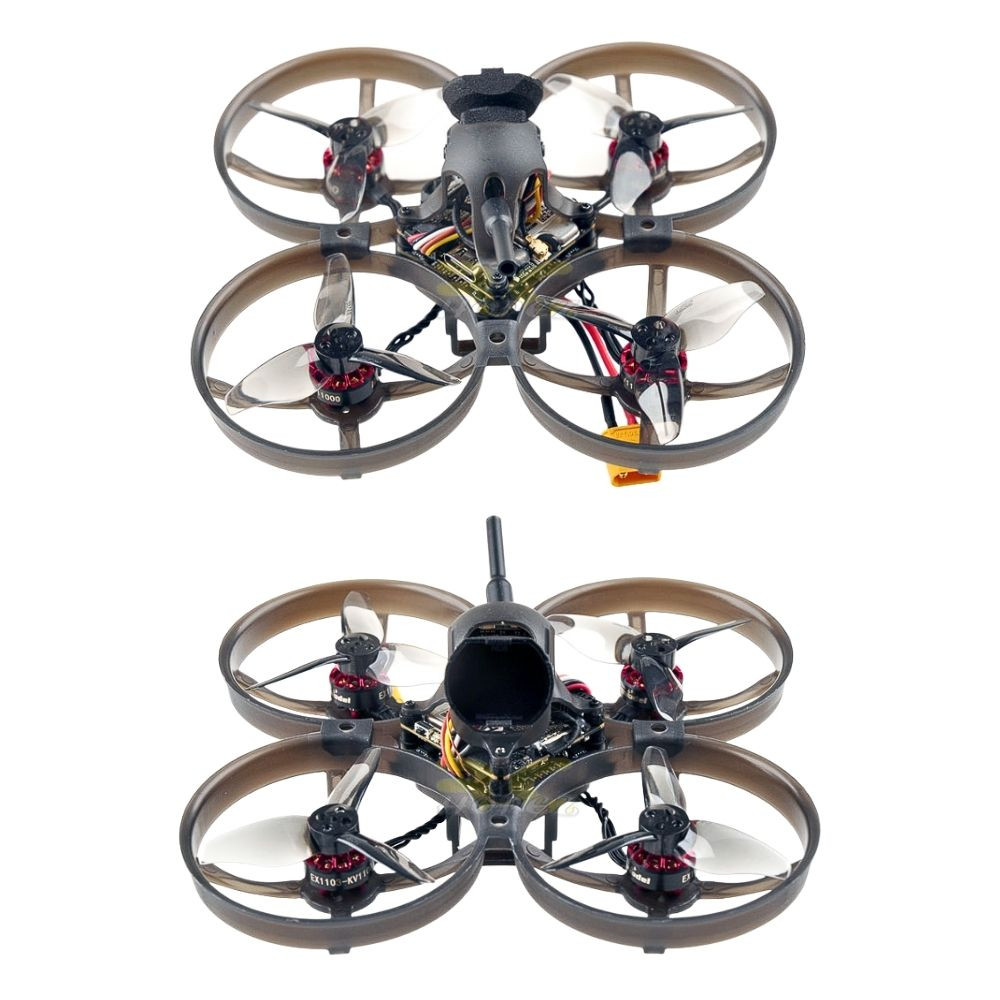

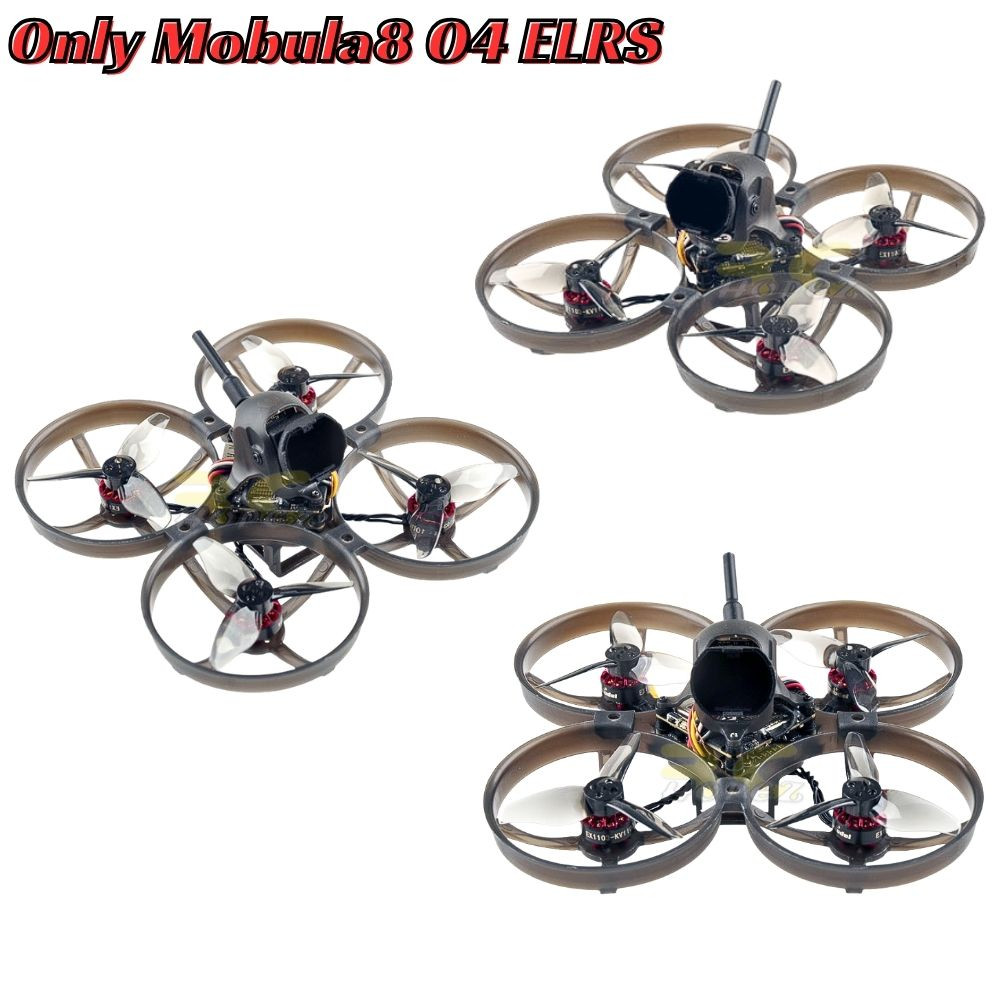

The Happymodel Mobula8 O4 micro FPV whoop comes out now . It comes with DJI O4 air unit which would provide excellent and unbelievable FPV footage. We added FOV Extender for the O4 camera on Mobula8, this would be a great improvement for FPV flying.

Features:
Equipment with DJI O4 air unit and external FOV Extender
ND Filters ready
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link
Lighter and small for indoor FPV

Specifications:
Brand Name: Happymodel
Item Name: Mobula8 O4 2S 85mm Digital HD Micro FPV whoop
Wheelbase: 85mm
Size: 120mm*120mm*53mm

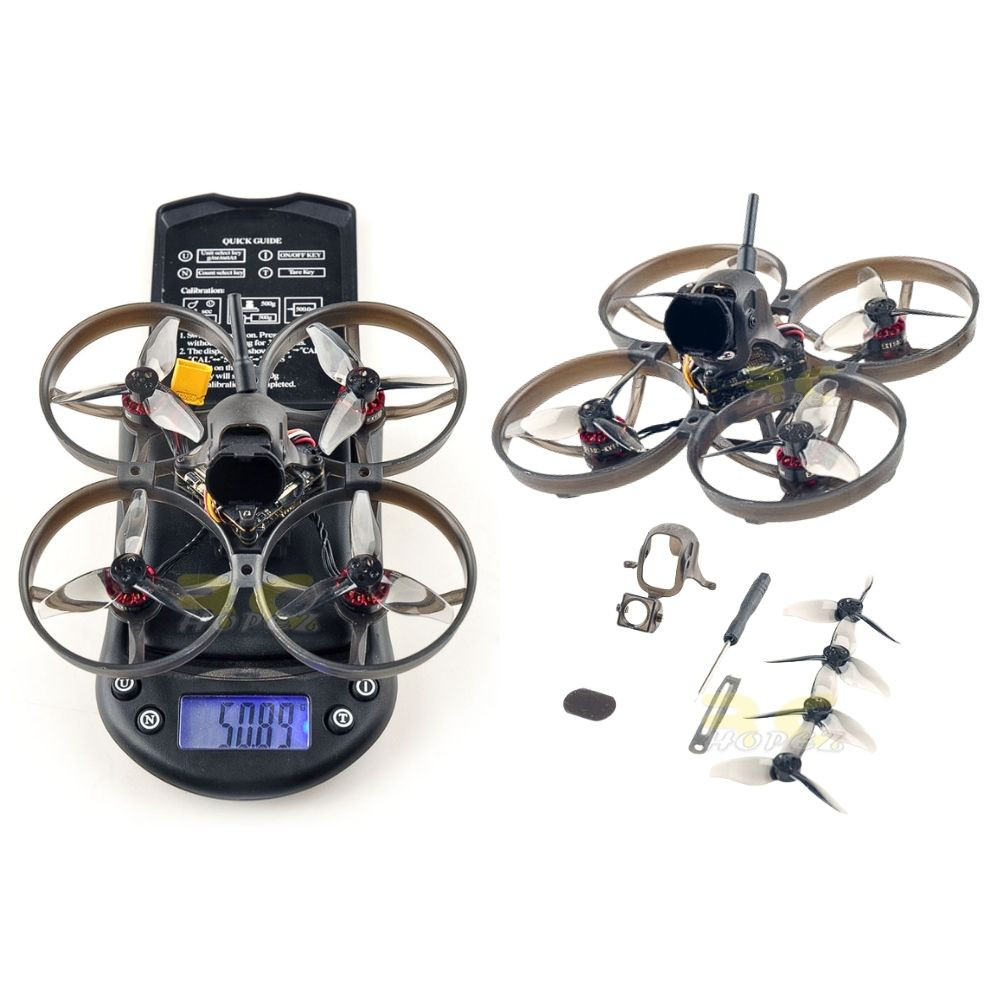

Weight: 50g

Motor
Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers
Gemfan Hurricane 2023 1.5mm
Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

HQProp Durable T2X2X3 1.5mm
Propeller Diameter : 2inch
Pitch : 2
Blades : 3
Material : Poly Carbonate
Weight : 0.75g
Hub Diameter : 10mm
Hub Thickness : 4.5mm
Shaft : 1.9/1.5/1.9 mm

Flight controller (Happymodel CrazyF405HD ELRS)
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270  (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4GBuilt-in BMP280 BarometerBuilt-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19Firmware target: Z-H-30
Default protocol: DSHOT300

Onboard UART ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

.
