Happymodel Molding JR Bay Mounting Case with Cooling Fan For ES24TX And ES915TX ExpessLRS ELRS TX Module HP024

RM13.00RM26.00

SKU: HP024 Category:

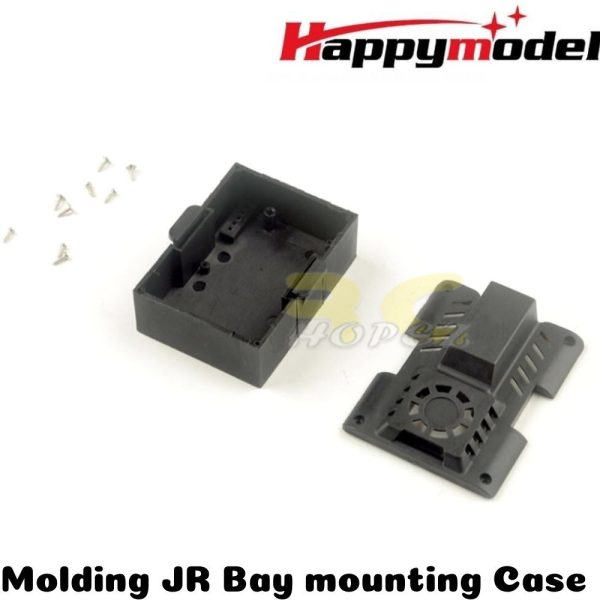

Happymodel Molding JR Bay Mounting Case with Cooling Fan For ES24TX And ES915TX ExpessLRS ELRS TX Module HP024

Specifications:
Brand Name: Happymodel
Materials: Nylon
Color: Black
Standard JR Bay dimension
Weight: 28gram

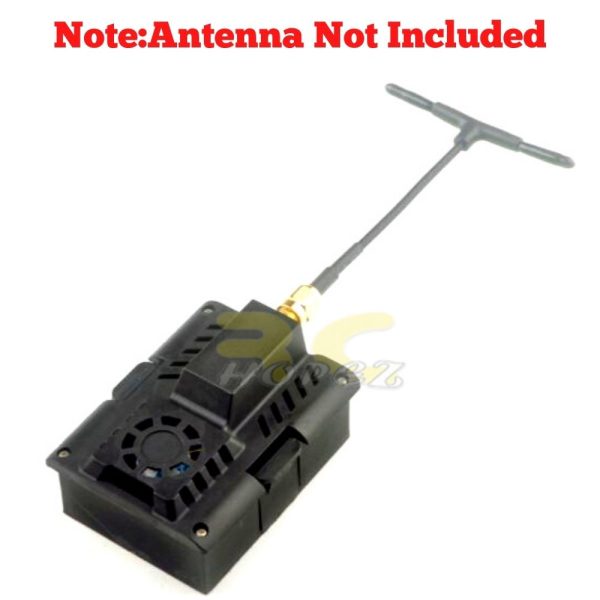

Available for ES24TX ES915TX.

Need a bit mod to the aluminum alloy heat sink while use with ES915TX module.

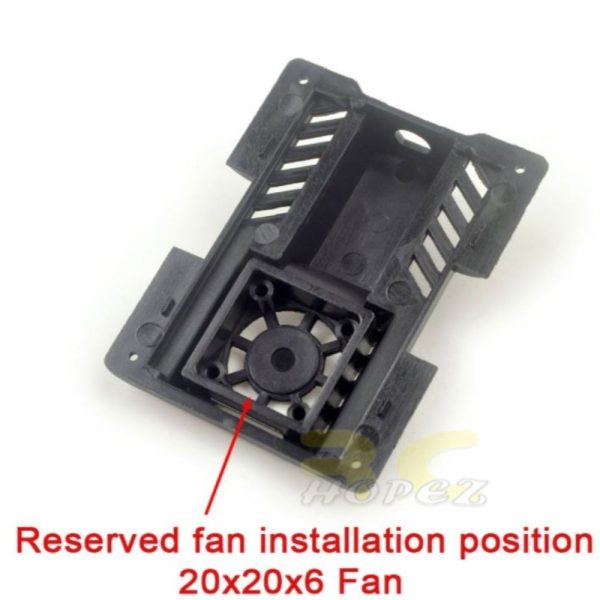

Reserved cooling fan installation position, support 20x20x6mm fan.

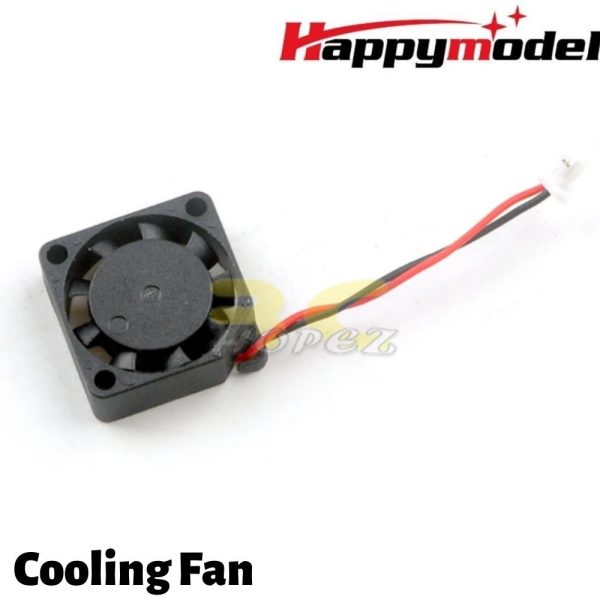

Cooling Fan (Optional)
Size: 20mmx20mmx6mm
Working voltage: DC 5V
Working current: <80ma @DC5V
Speed: 1300RPM
Plug: SH 1.0 2pin
Hydraulic bearings, quiet during operation

Optional Fan:
1 x Cooling Fan (with screw and nut)

Optional Case:
1 x Mounting Case (with screw)

Optional Case+Fan:
1 x Mounting Case (with screw)
1 x Cooling Fan (with screw and nut)

Weight 0.05 kg
Dimensions 5 × 5 × 5 cm
Model:

Mounting Case+Fan, Mounting Case, Cooling Fan
