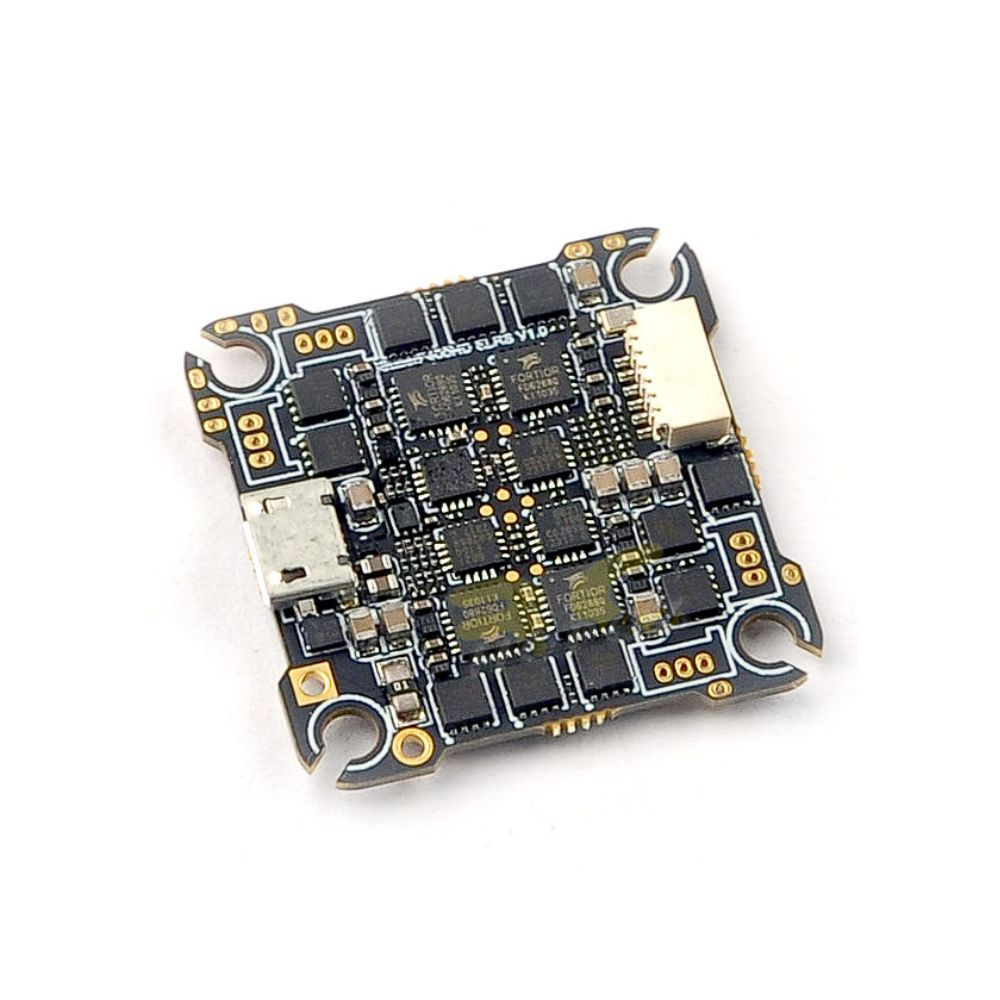

Happymodel Super F405HD ELRS 2-4S AIO 3in1 FC 25.5×25.5mm built-in UART 2.4G ELRS and 20A ESC for HD Whoops HP-SuperF405

Happymodel Super F405HD ELRS 2-4S AIO 3in1 FC 25.5×25.5mm built-in UART 2.4G ELRS and 20A ESC for HD Whoops HP-SuperF405

The Super F405HD ELRS AIO flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 2-4s battery. Bigger Mosfet could support high to 20A currents and reserved 6 pin socket for DJI HD equipment plug and play. It’s a great solution of build 2-4S HD digital FPV whoop.

Specifications:

Flight controller

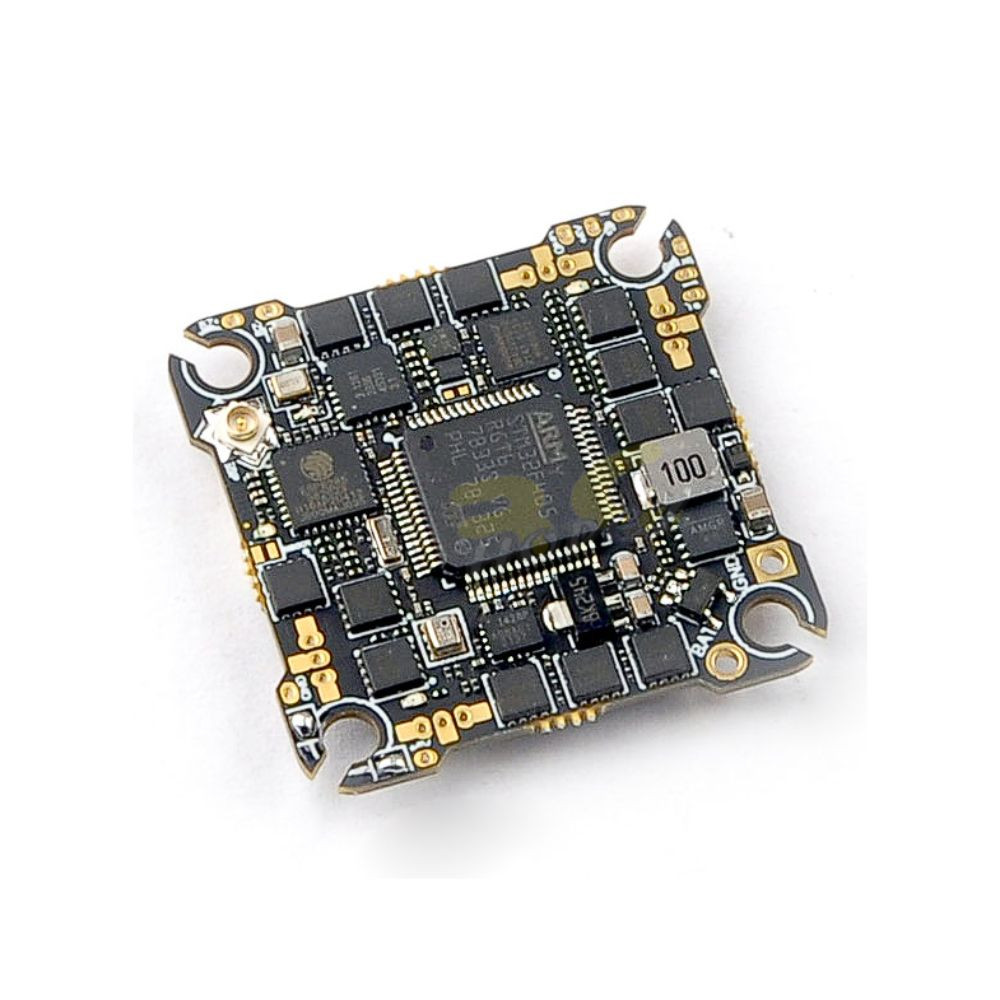

MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: ICM42688  (SPI connection)
Mount hole size: 25mm*25mm
Power supply: 2~4S battery input (DC 8.7V-17.4V)
Built-in 20A(each) Blheli_S 4in1 ESC

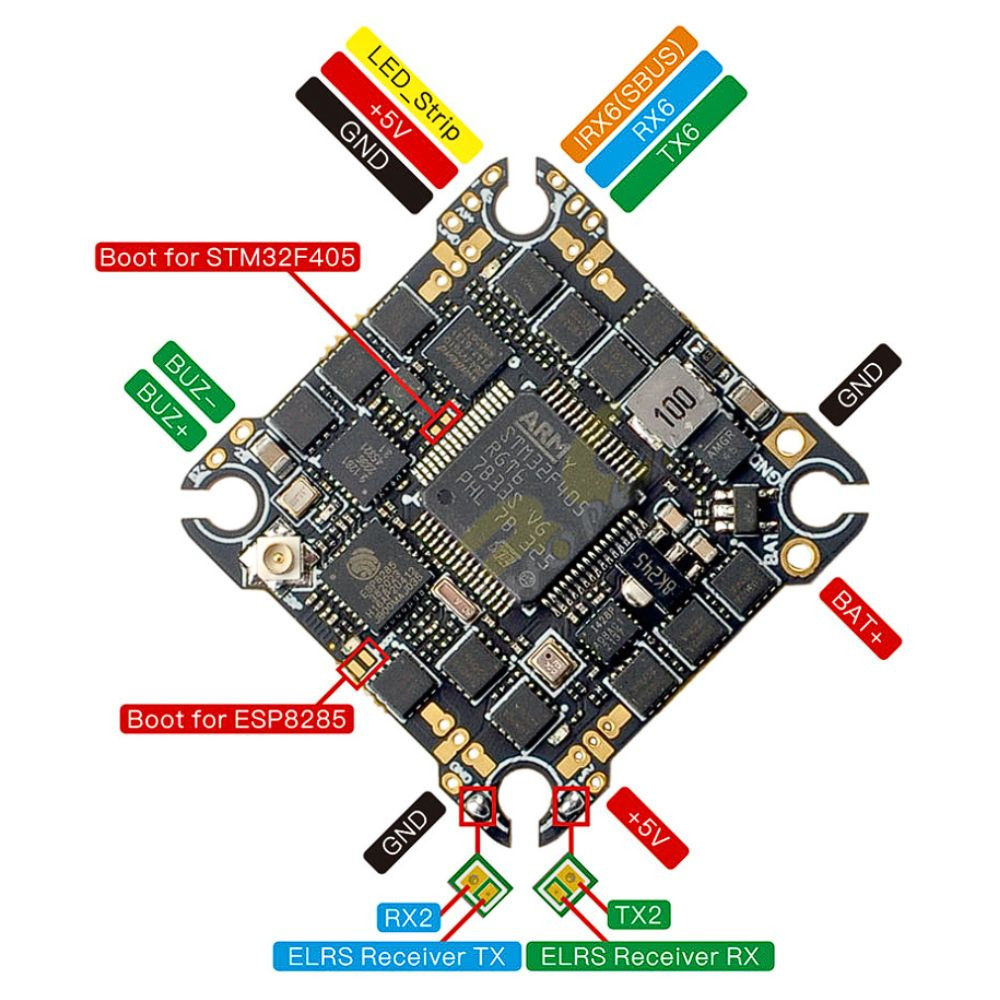

Built-in Serial ExpressLRS 2.4G (Default connected to UART2)
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Flight controller firmware target: BETAFLIGHTF4

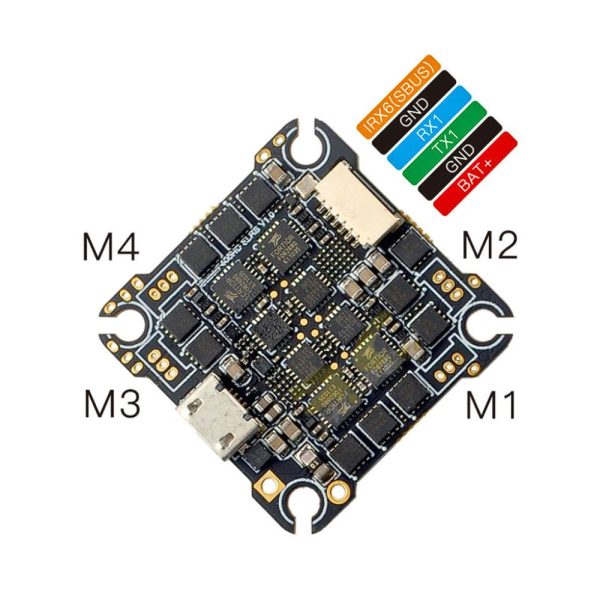

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Currents: 20A continuous peak 25A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: Bluejay 0.19.2
Firmware target: F_H_40_48_v0.19.2
Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard UART ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna plug: IPEX
Telemetry output Power: <12dBm
Receiver protocol:  CRSF
Default firmware version: ExpressLRS V3.0.1

Onboard voltage and Amperage meters  settings
Voltage meter scale setting 110
Amperage meter scale setting 470

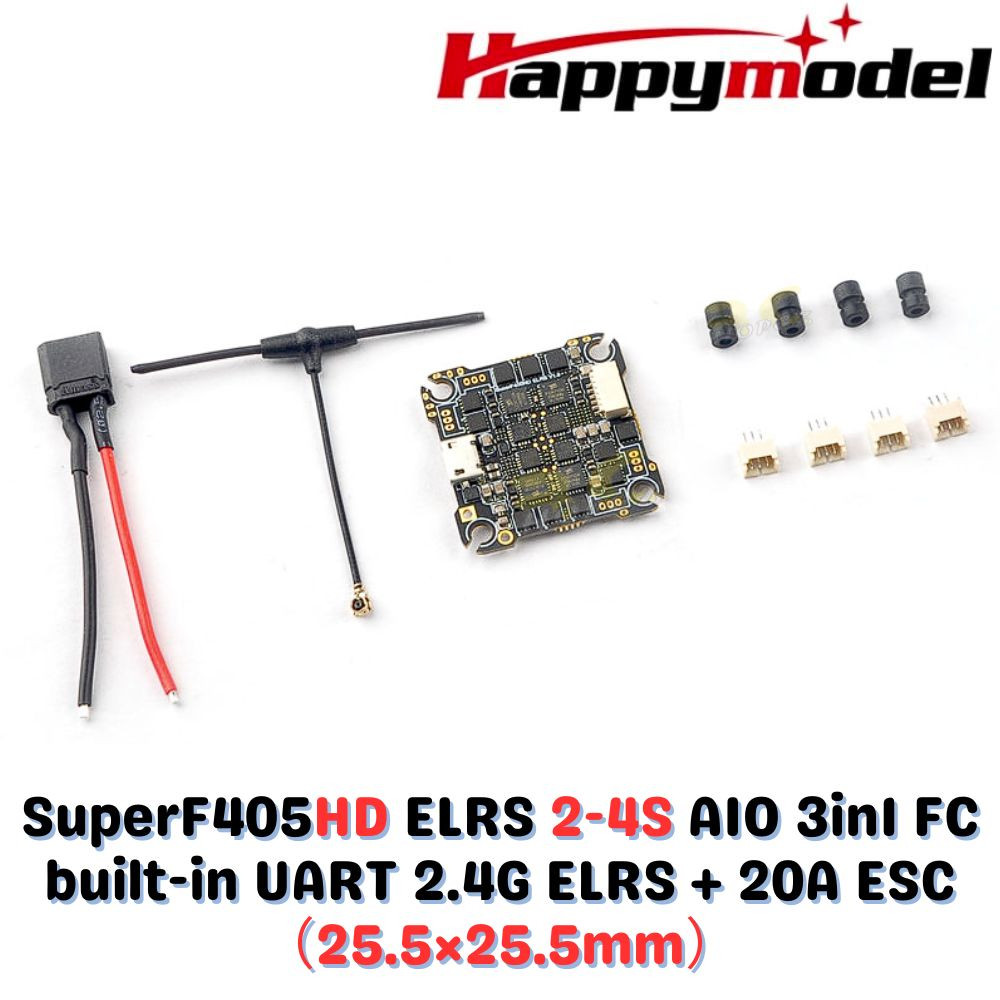

Package Included:
1x Happymodel SuperF405HD Board
1x Cable Connector (XT30)
1x T Antenna (UFL/Ipex 1)
4x Anti-vibration Ball
4x Motor Pin Connectors
