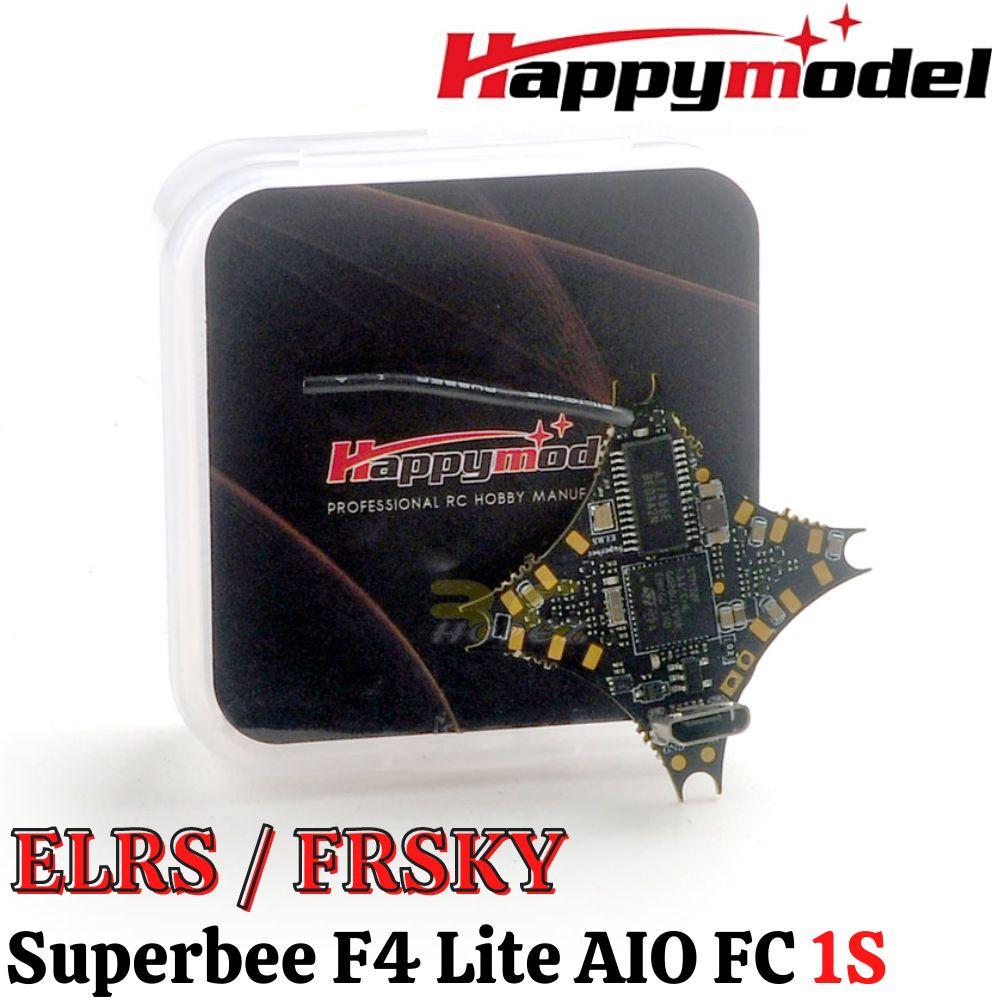

Happymodel Superbee F4 Lite AIO FC 1S for Mobula6/7 HDZERO ELRS/FRSKY (Optional) HP-Superbee

Happymodel Superbee F4 Lite AIO FC 1S for Mobula6/7 HDZERO ELRS/FRSKY (Optional) HP-Superbee

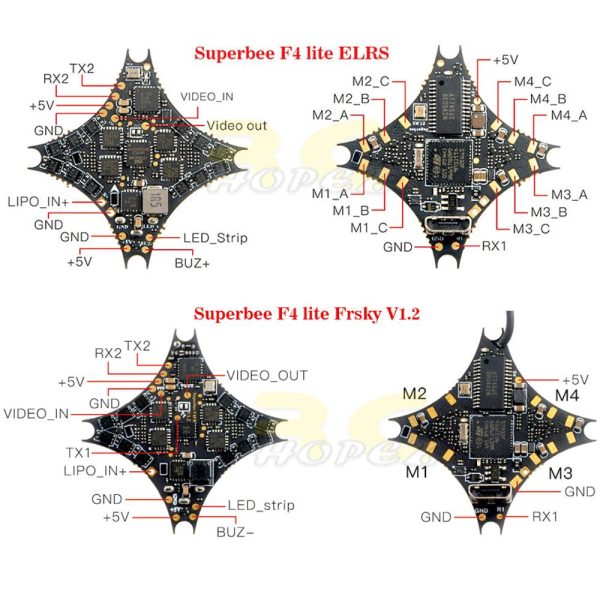

Specification:

Flight Controller
SuperbeeF4 Lite ELRS/FRSKY (Optional)
-SPI ELRS version Firmware target: CrazybeeF4SX1280
-SPI FRSKY version Firmware target: CrazybeeF4FR
-MCU:STM32F411CEU6 (100MHz, 512K FLASH)

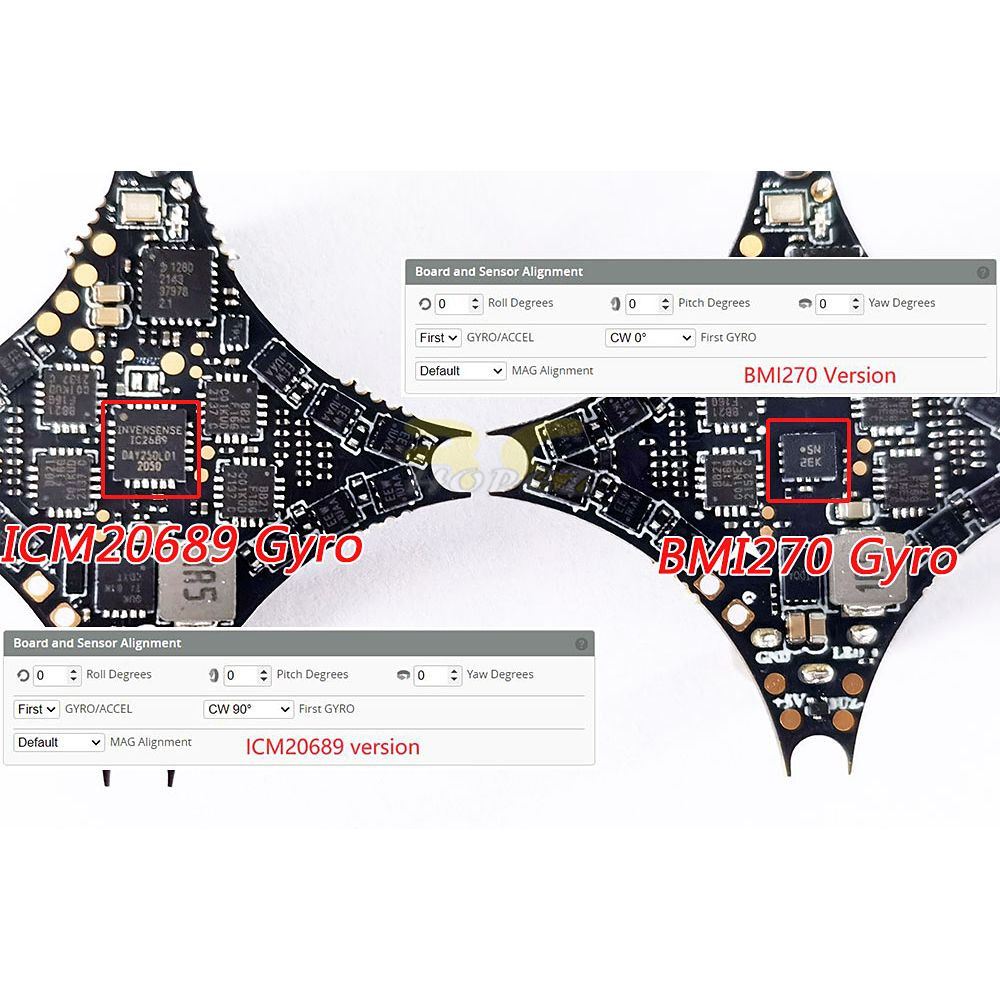

-Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
-Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
-Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

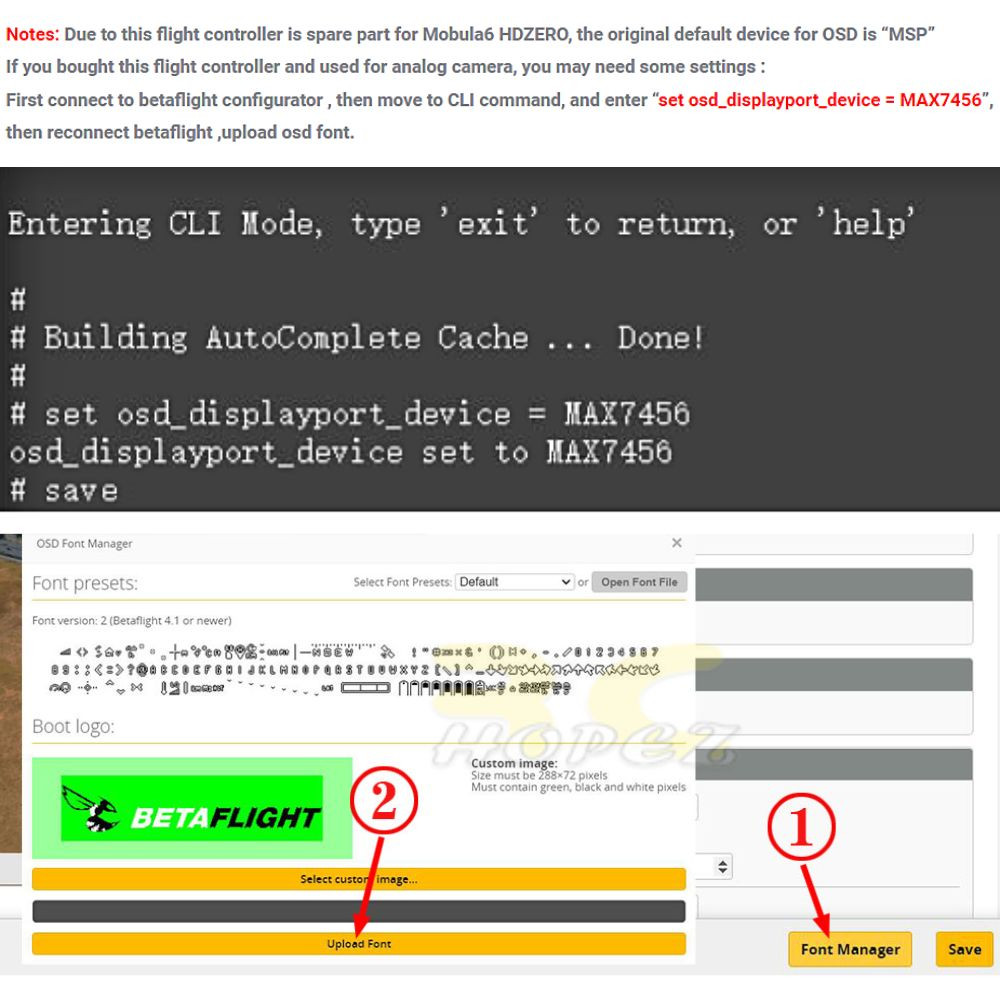

-Built-in Betaflight OSD(SPI Control)
-Built-in SPI Frsky/ExpressLRS receiver
-Built-in 5V 1A BEC
-Built-in voltage detection

Onboard 4in1 ESC
-MCU upgraded to EFM8BB21
-Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
-Currents: 5A continuous peak 6A (5 seconds)
-Support BLHeliSuite programmable
-Factory firmware: S_H_50_REV16_8.HEX
-Default protocol: DSHOT150/DSHOT300/DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver
-Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
-RF Frequency: 2.4GHzAntenna plug: IPEX
-Telemetry output Power: <12dBm
-Receiver protocol:  SPI ExpressLRS
-Could bind with ELRS V2.0 firmware TX module

Onboard Frsky SPI D8 /D16 2.4GHz Receiver
SPI BUS receiver Frsky D8/D16 compatible
-Compatible Non EU transmitter D8 model and EU–LBT(Frsky_x_lbt)Channels: 8ch or 16ch
-Failsafe support
-No ground interference ( Transmitter and receiver 1 m from the -ground): 100m~200m
-Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol

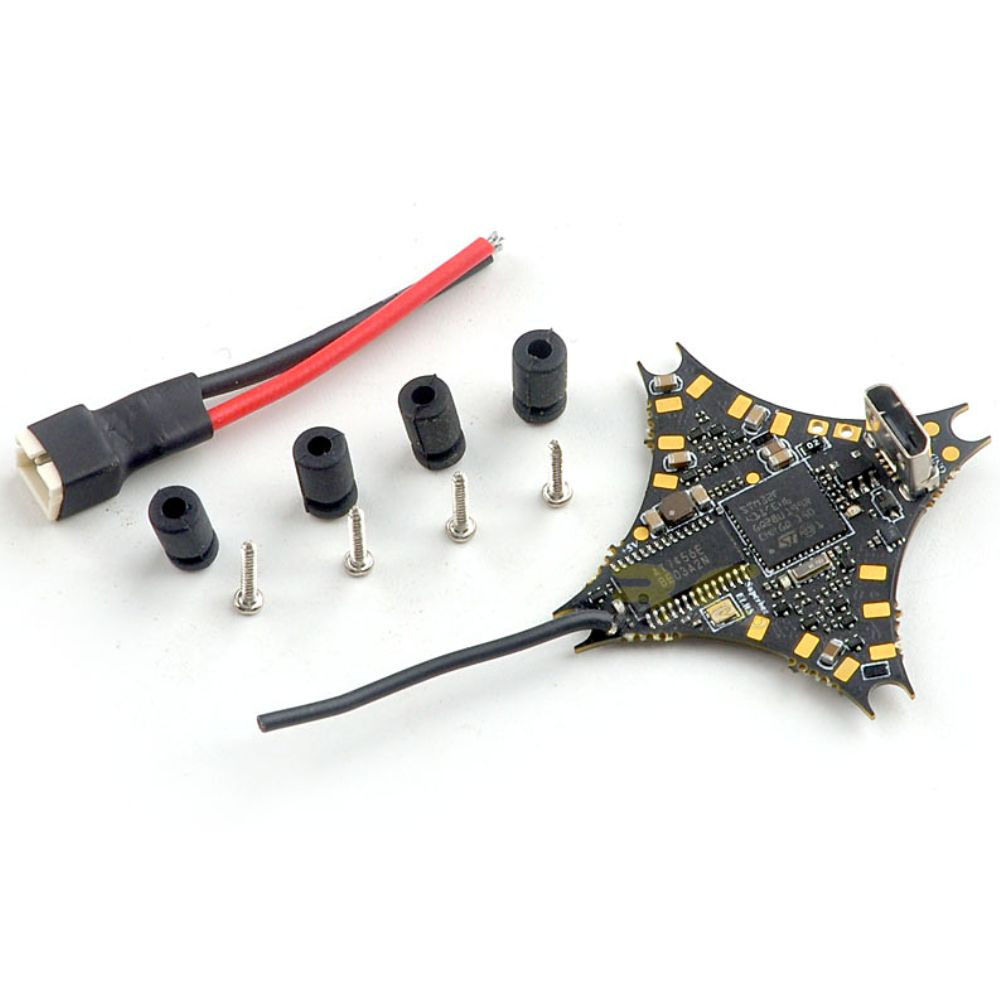

Package Included:
1 x Happymodel Superbee F4 Lite AIO ELRS/FRSKY (Optional)
1x Connecting Wire
4x Anti-Vibration Ball
4x Screws
