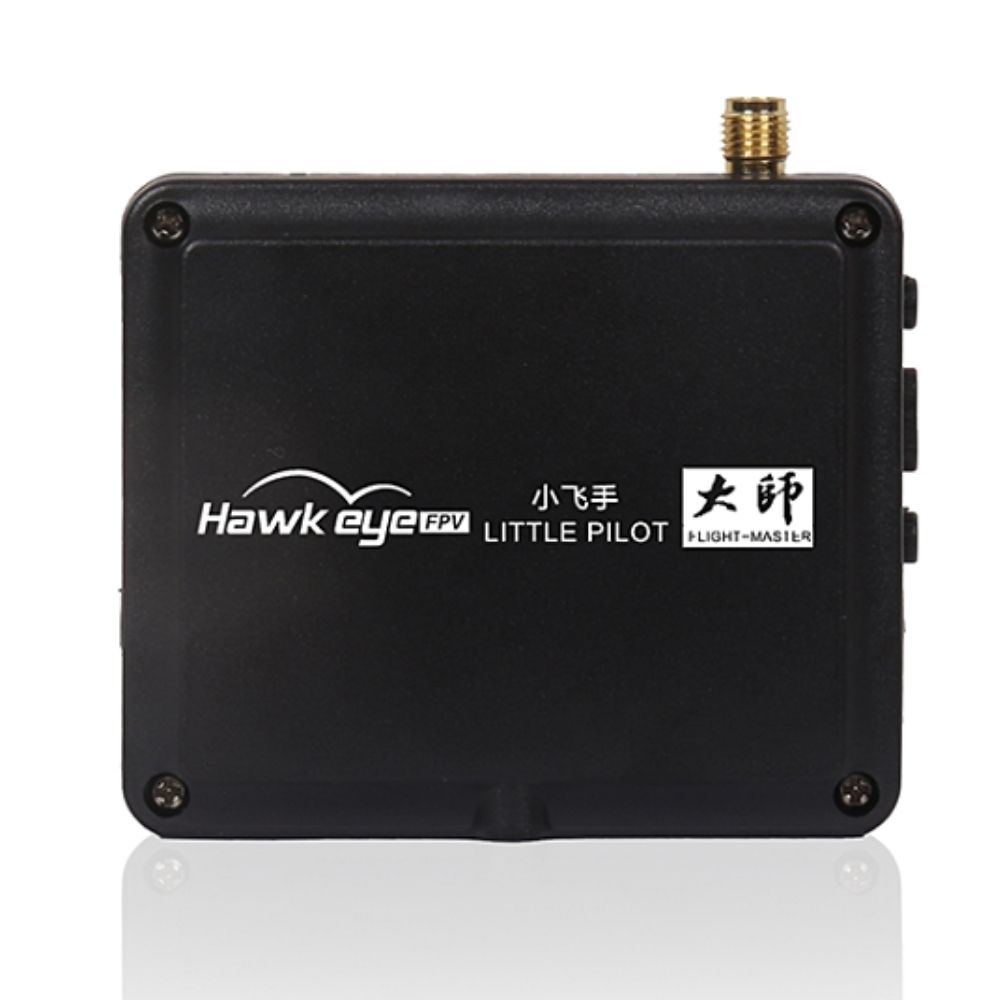

Hawkeye Little Pilot Master Edition 2.5Inch LED Display 5.8G 48CH Dual Receiver HD Monitor with DJI AV Output XJ395

Hawkeye Little Pilot Master Edition 2.5Inch LED Display 5.8G 48CH Dual Receiver HD Monitor with DJI AV Output XJ395



–





Master Edition Specification:





Display resolution : 960×240





Backlight :  LED





Size : 2.5 Inch





Brightness : 350 Lux





Aspect ratio : 16:9





Response time : <10ms





Color system : PAL/NTSC





Battery life : About 1.5-2 hours





Signal : Video(PAL/NTSC/Auto)

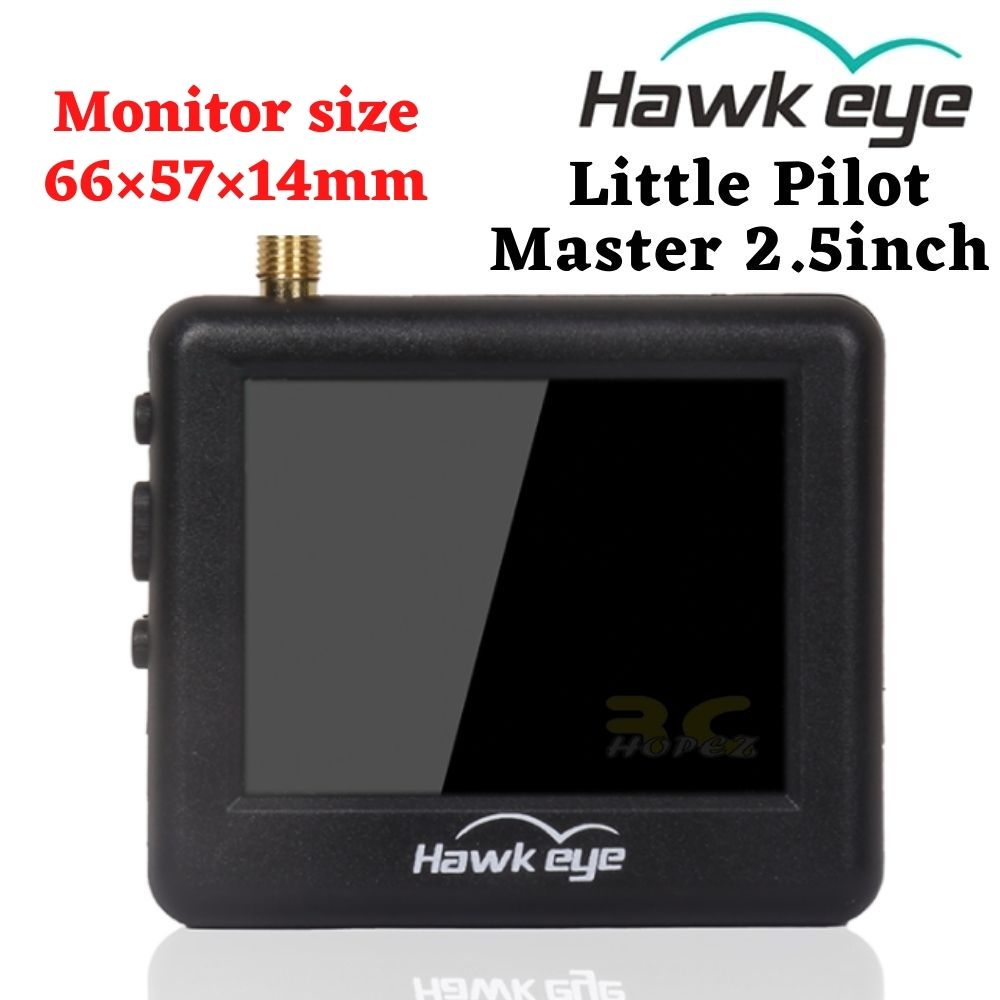

Monitor size : 66×57×14mm





Gross weight : 55g





5.8G Sensitivity :  -94dB

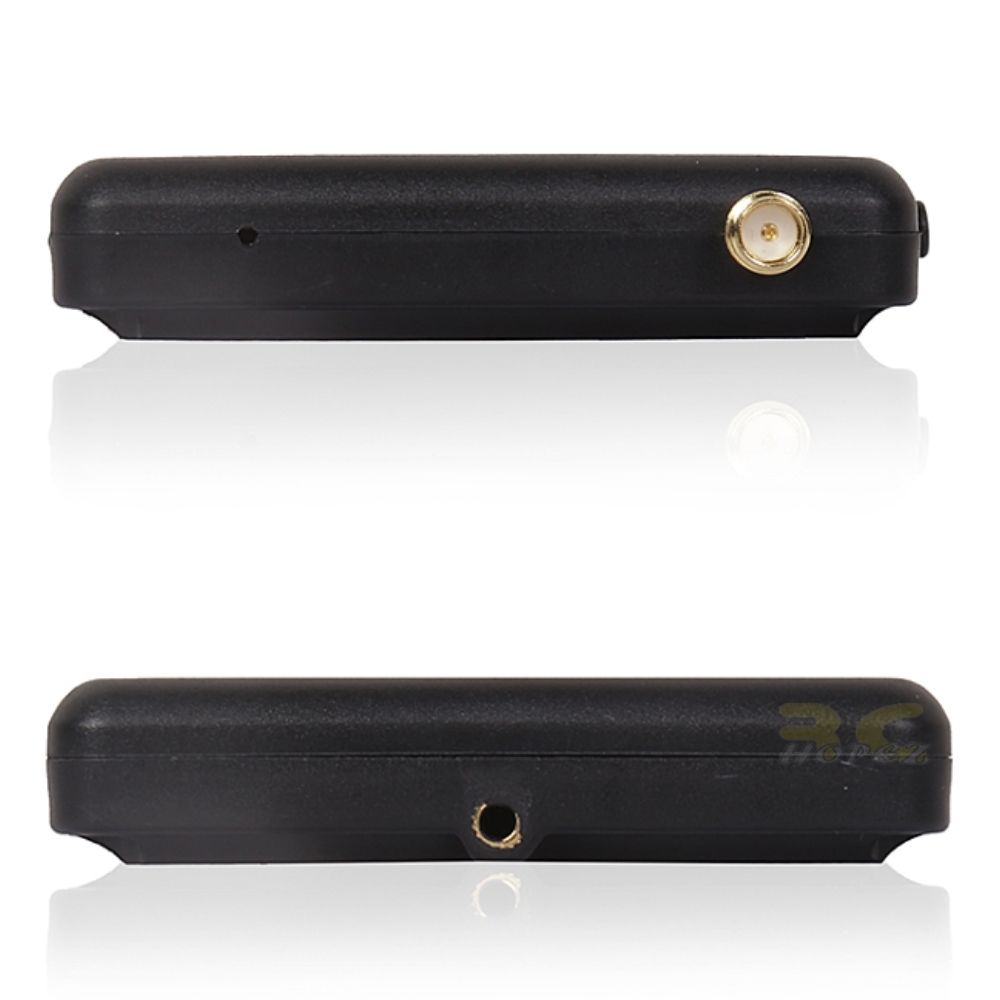

Matching antenna :  SMA





Video Input/Output : 3.5mm interface, can be inserted into DJI Goggles directly.





LHCP/RHCP : LHCP





Channel : 48CH





Voltage : Micro USB, 5V





Color: Black





–





Frequency Group Selection:





You can select the desired frequency from 6 groups: A,B,C,D,E and F:





        A              B             C            D             E              F





1  5.645G    5.740G    5.725G    5.733G    5.658G    5.362G





2  5.665G    5.760G    5.745G    5.752G    5.695G    5.399G





3  5.865G    5.780G    5.765G    5.771G    5.732G    5.436G





4  5.705G    5.800G    5.785G    5.790G    5.769G    5.473G





5  5.885G    5.820G    5.805G    5.809G    5.806G    5.510G





6  5.905G    5.840G    5.825G    5.828G    5.843G    5.547G





7  5.925G    5.860G    5.845G    5.847G    5.880G    5.584G





8  5.945G    5.880G    5.865G    5.866G    5.917G    5.621G





–

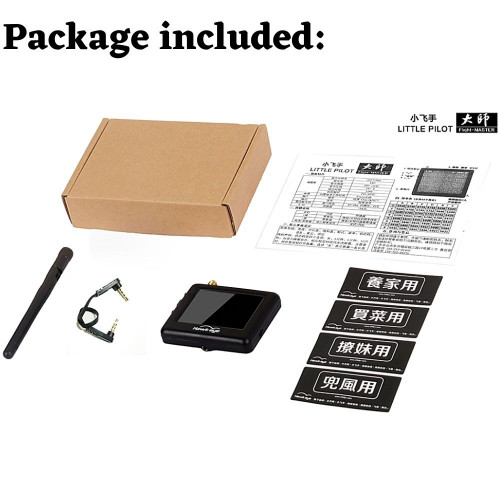

Package included:





1x Hawkeye Little Pilot Master Edition 2.5Inch HD Monitor





1x Antenna





1x 3.5mm video cable





1x Manual





1x Sticker
