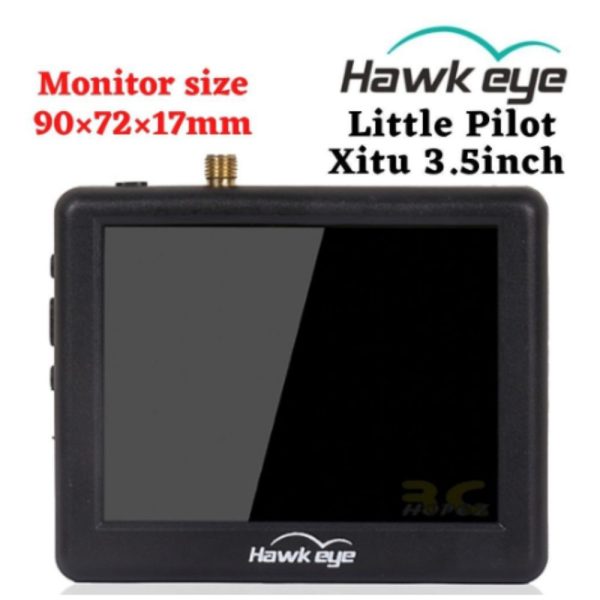

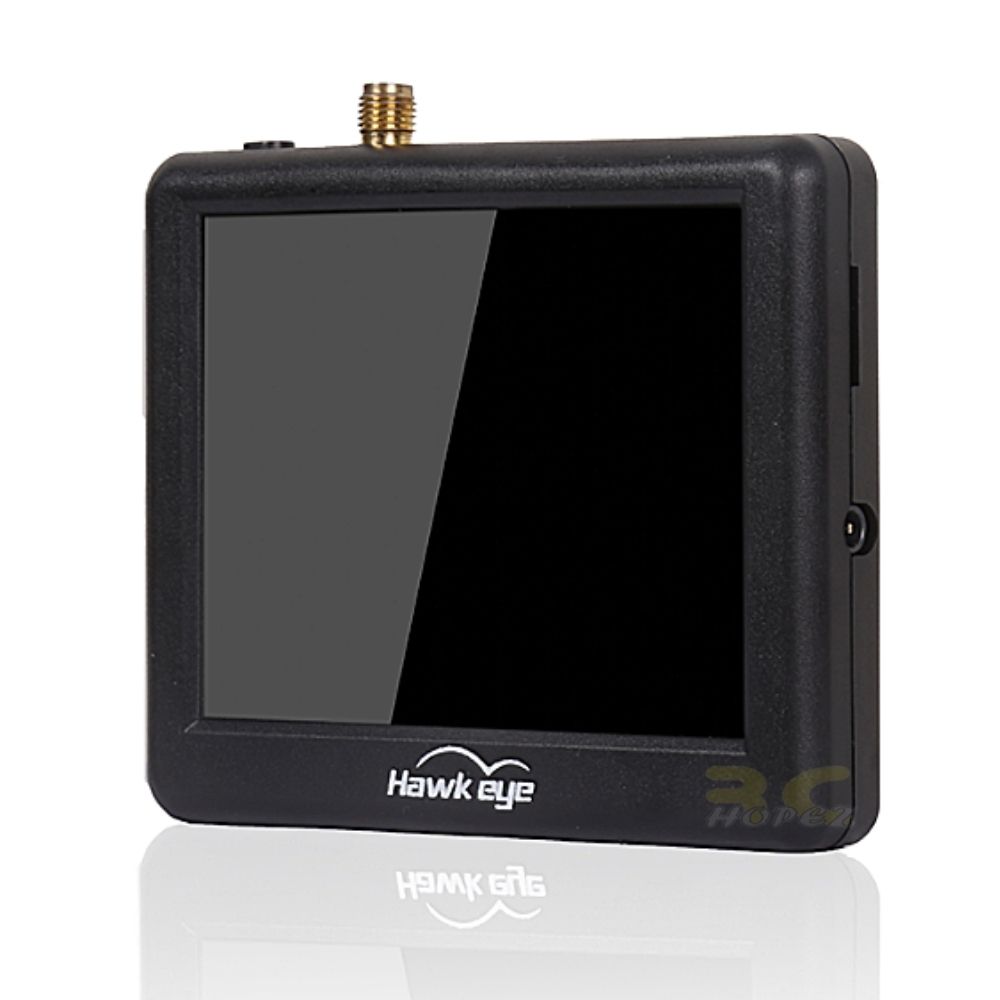

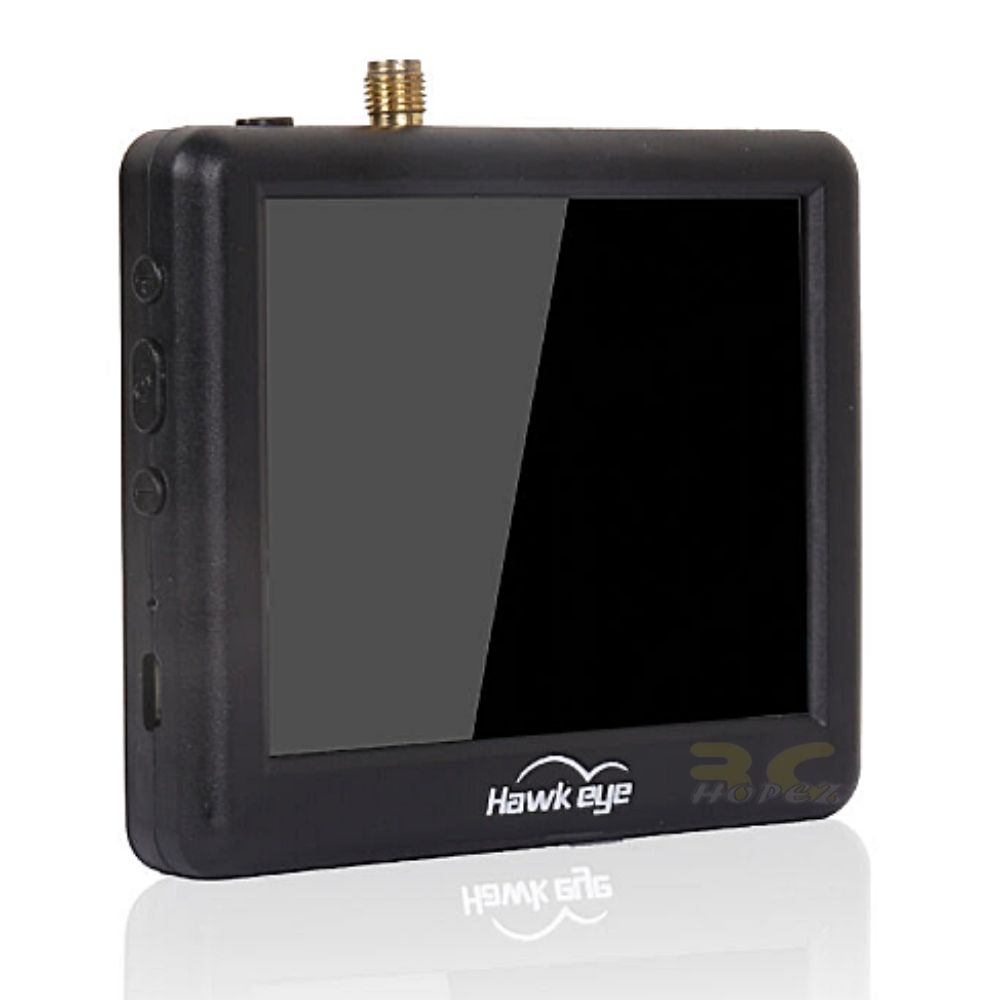

Hawkeye Little Pilot Xitu Edition 3.5Inch LED Display 5.8G 48CH Dual Receiver HD FPV Monitor with DJI AV Output XJ396

Hawkeye Little Pilot Xitu Edition 3.5Inch LED Display 5.8G 48CH Dual Receiver HD FPV Monitor with DJI AV Output XJ396

–

Master Edition Specification:

Xitu Edition Specification:

Display resolution : 960×240

Backlight :  LED

Size : 3.5 Inch

Brightness : 350 Lux

Aspect ratio : 16:9

Response time : <10ms

Color system : PAL/NTSC

Battery life : About 2.5 hours

Signal : Video(PAL/NTSC/Auto)

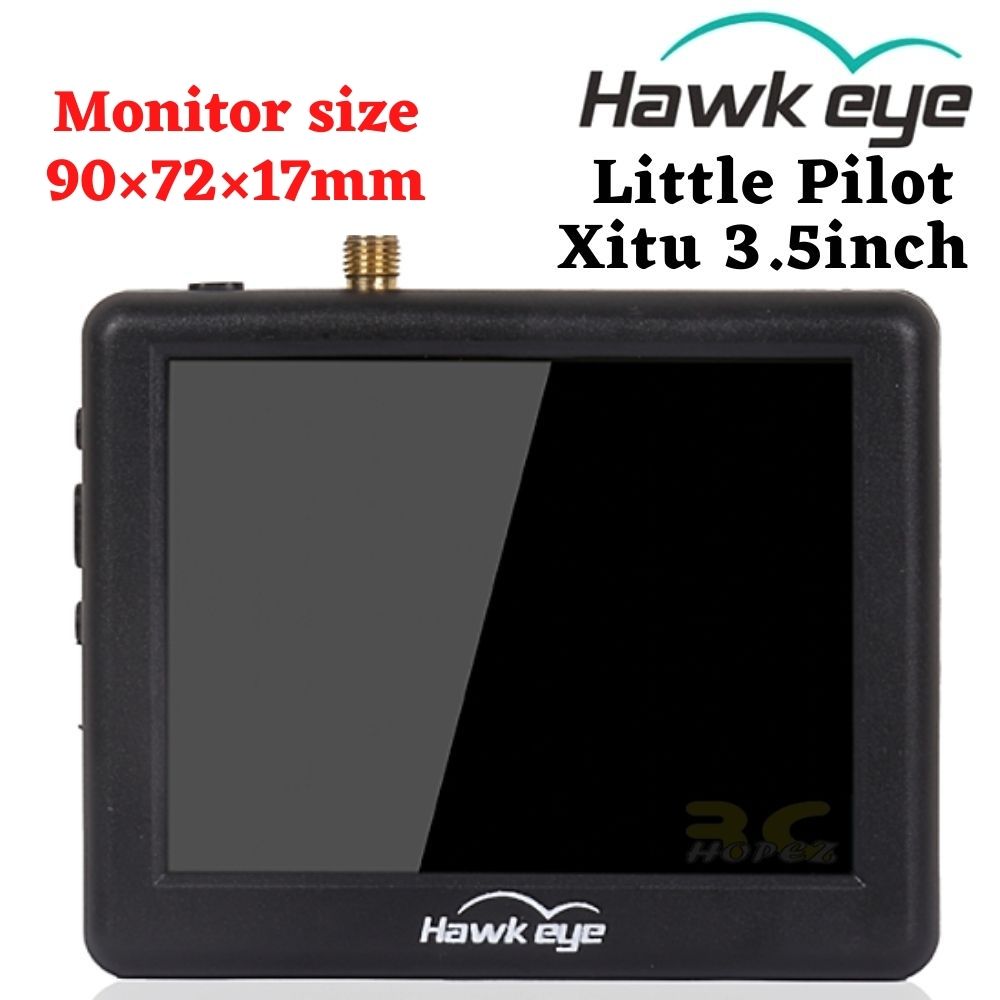

Monitor size : 90×71.5×17mm

Gross weight : 110g

5.8G Sensitivity :  -94dB

Matching antenna :  MA

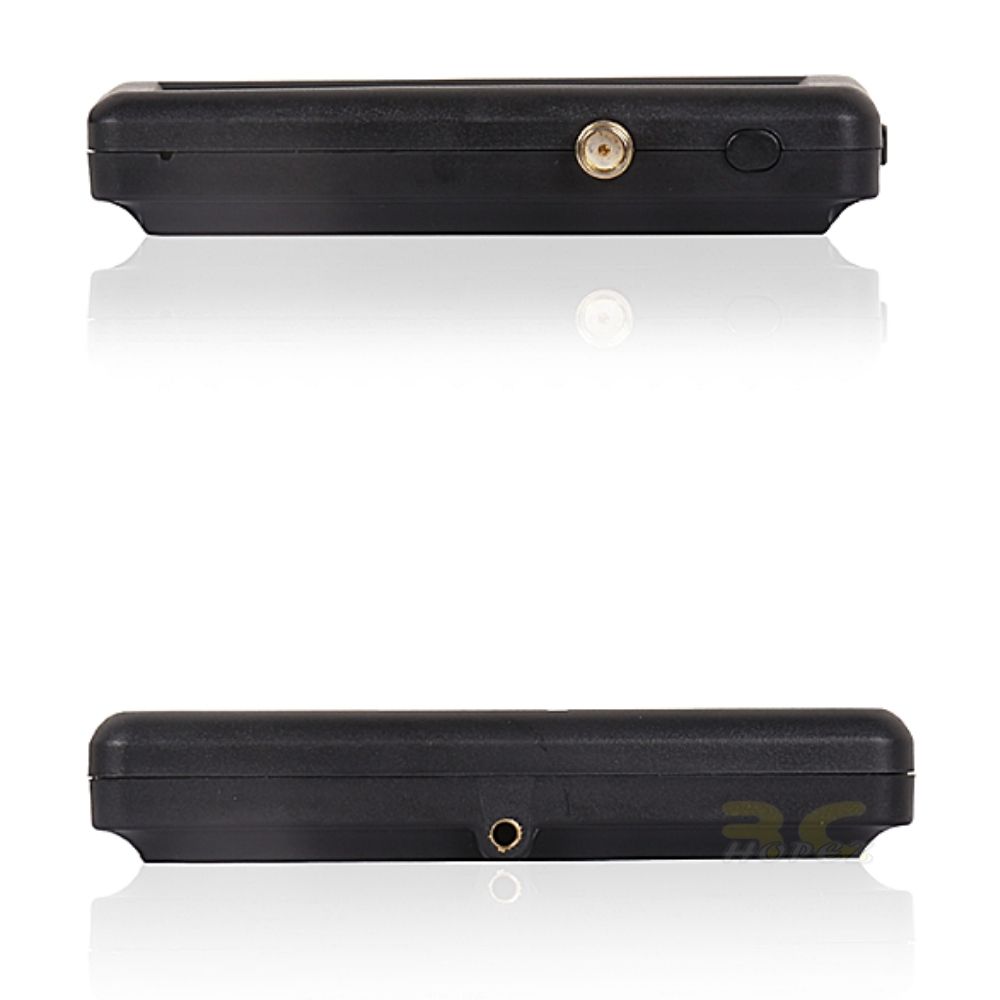

Video Input/Output : 3.5mm interface, can be inserted into DJI Goggles directly.

LHCP/RHCP : LHCP

Channel : 48CH

Voltage : Micro USB, 5V

Color: Black

Frequency Group Selection:

You can select the desired frequency from 6 groups: A,B,C,D,E and F:

        A              B             C            D             E              F

1  5.645G    5.740G    5.725G    5.733G    5.658G    5.362G

2  5.665G    5.760G    5.745G    5.752G    5.695G    5.399G

3  5.865G    5.780G    5.765G    5.771G    5.732G    5.436G

4  5.705G    5.800G    5.785G    5.790G    5.769G    5.473G

5  5.885G    5.820G    5.805G    5.809G    5.806G    5.510G

6  5.905G    5.840G    5.825G    5.828G    5.843G    5.547G

7  5.925G    5.860G    5.845G    5.847G    5.880G    5.584G

8  5.945G    5.880G    5.865G    5.866G    5.917G    5.621G

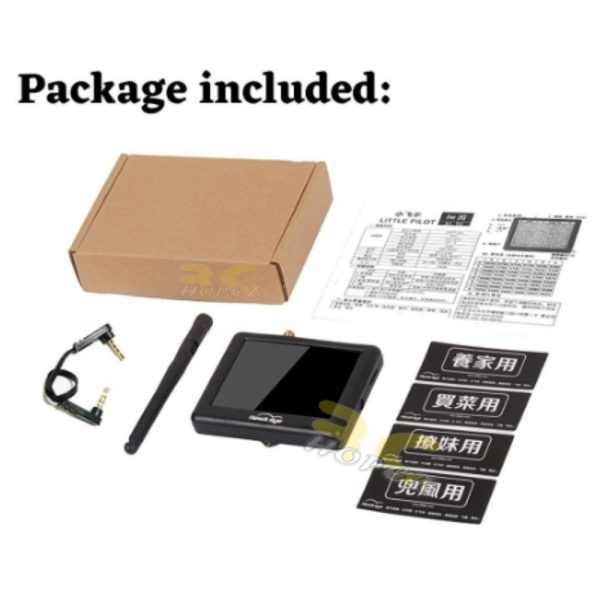

Package included:

1x Hawkeye Little Pilot Xitu Edition 3.5Inch HD Monitor

1x Antenna

1x 3.5mm video cable

1x Manual

1x Sticker
