Hobbywing 3A UBEC 5V 6V Max 5A Lowest RF Noise BEC02

Hobbywing 3A UBEC 5V 6V Max 5A Lowest RF Noise BEC02

Specification:

Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )

Continuous output current: 3 Amps

Input: 5.5V-23V (2-5 cells lithium battery pack or 5-15 cells NiMh /NiCd battery)

Size: 42mm*17mm*7mm (length*width*height)

Weight: 11g

 Features:

Designed with an advanced switch mode DC-DC regulator IC

The output is powerful.

With the output short-circuit protection function.

A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce electromagnetic interference.

Shows the working status with an indicator (LED), lights when the output is in normal range.

Description:

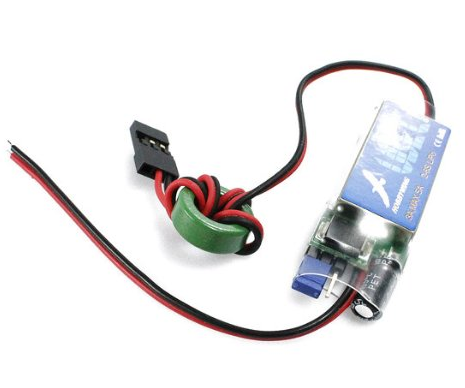

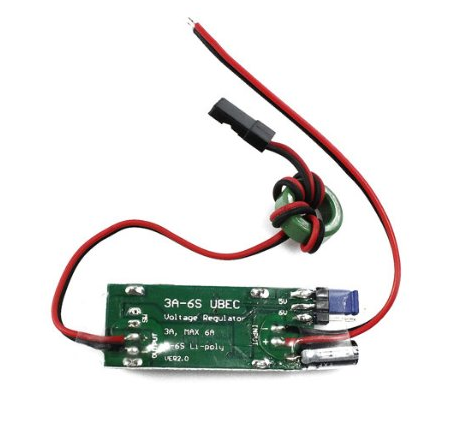

The 3A-UBEC is a switch-mode DC-DC regulator supplied with a 2-5 cells lithium battery pack (or 5-15 cells NiMh /NiCd battery) and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for RC helicopter.

Compared with the linear mode UBEC, the overall efficiency of the switch-mode UBEC is higher.
