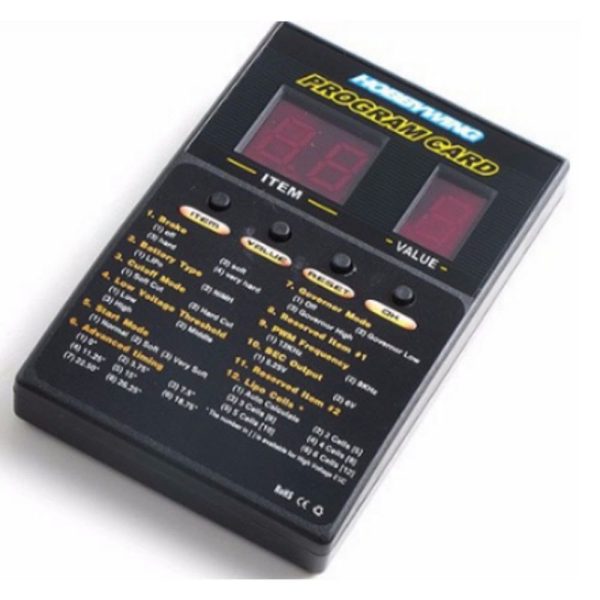

Hobbywing LED Program Card For PLATINUM Series Aircraft / Heli ESC EM-006

Features:

-This program card is used to set the programmable parameters of brushless ESC, it has a friendly user interface to set the programmable parameters very easily. It is pocket-sized, so you can bring it to the racing or flying field conveniently.

-Product Number:EM-006
This is available for PLATINUM series aircraft/heli ESC

Product Details:

-Size:  88mm (L) x 58mm (W) x 14mm (H)

-Weight:  40g.

-Input Voltage:  4.8-6V ( If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program card )

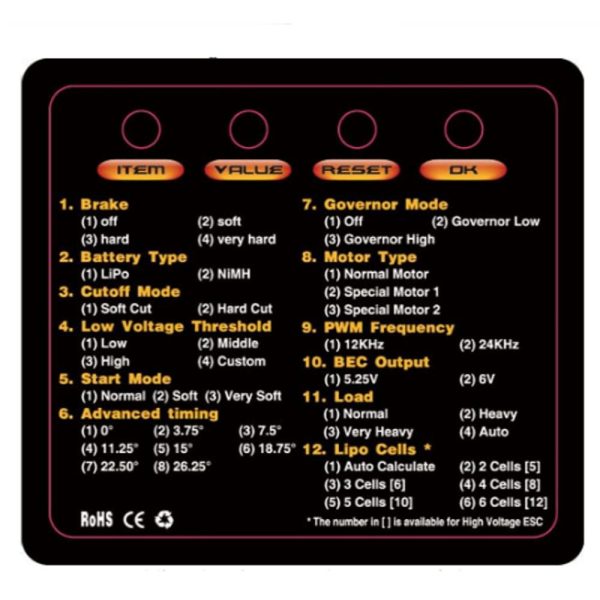

1. Brake Setting

2. Battery Type

3. Low Voltage Protection Mode (Cutoff Mode)

4. Low Voltage Protection Threshold (Cutoff Threshold)

5. Start Mode

6. Timing

7. Governor Mode

8. Motor Type

9. PWM Frequency

10. Built-In BEC Output

11. Motor Load

12. Lipo Cells

Package Included:

1 x Hobbywing LED Program Card For PLATINUM Series Aircraft / Heli ESC EM-006
