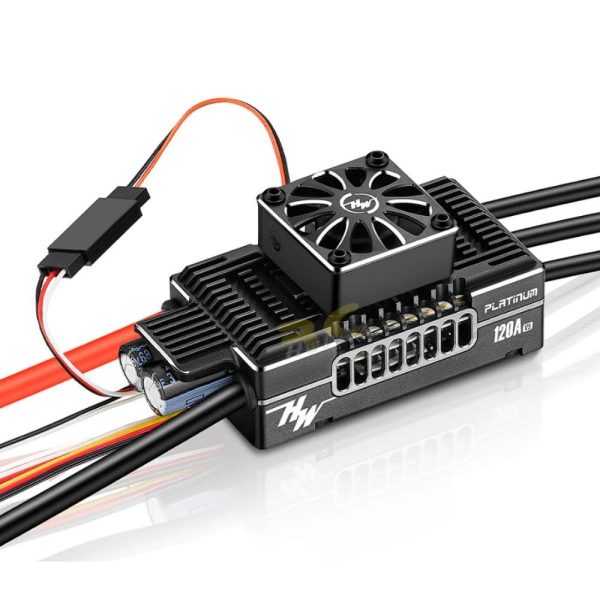

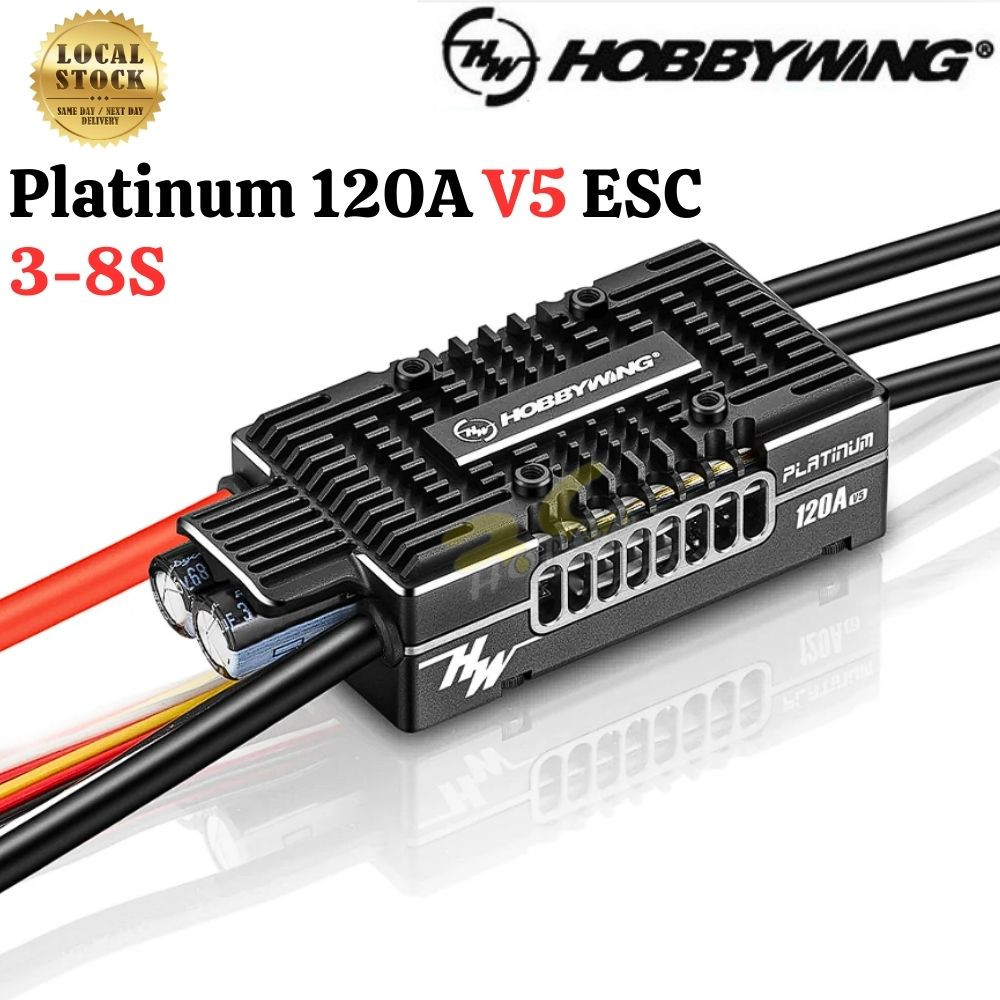

Hobbywing Platinum 120A V5 3-8S ESC for RC Drone Aircraft Helicopter HW120A

Hobbywing Platinum 120A V5 3-8S ESC for RC Drone Aircraft Helicopter HW120A

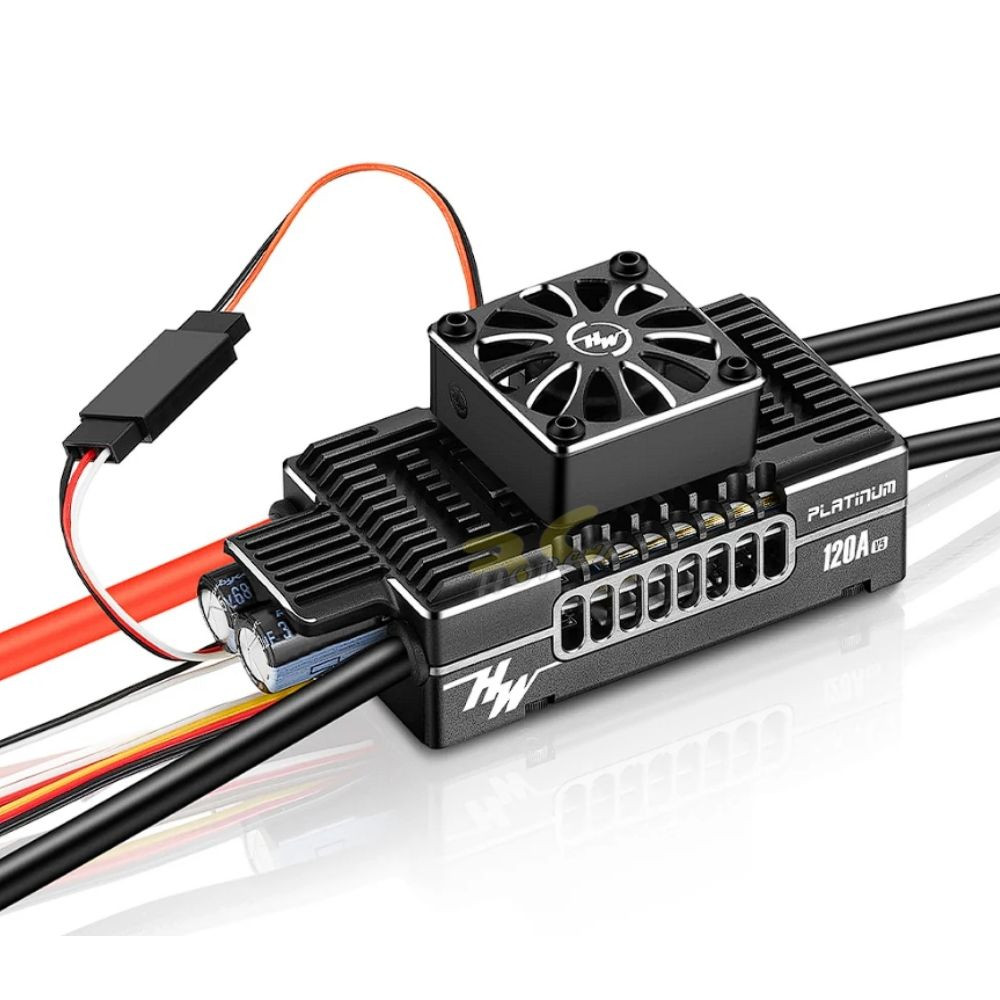

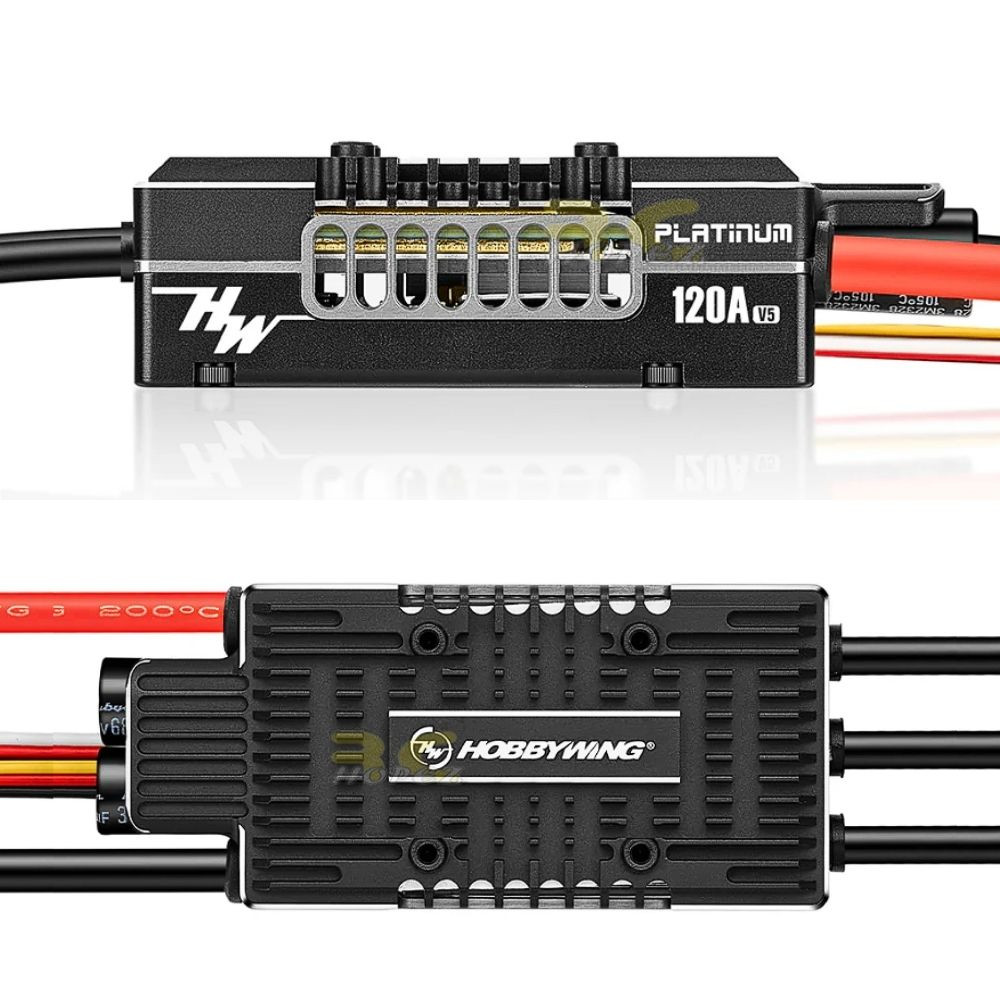

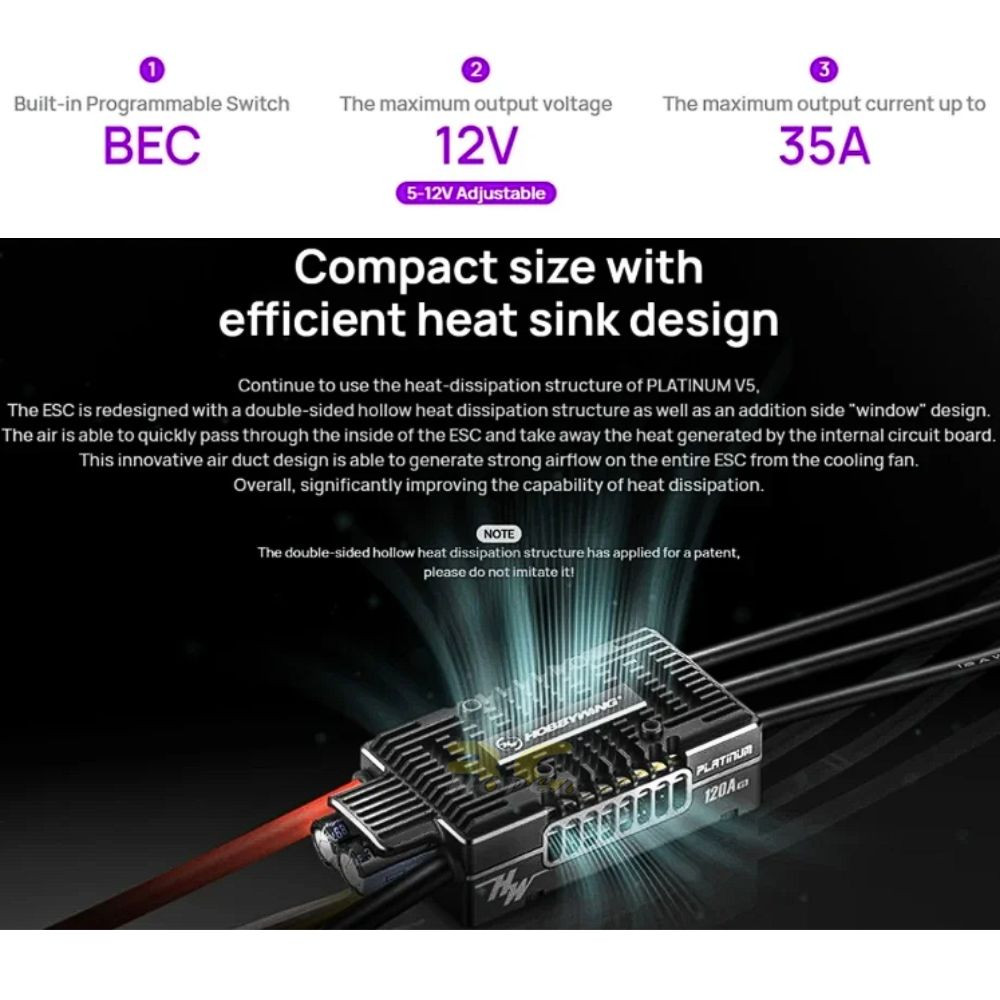

The Platinum 120A V5 Brushless ESC features a redesigned and compact form that allows it to fit into a wider range of aircraft. Its double-sided heat sink with a side vent enables air to flow quickly through the ESC, efficiently cooling it even during intense use. This innovative air duct design is combined with a powerful cooling fan that significantly enhances the ESC's cooling capability, ensuring stable performance and longevity.

High-Power BEC
This ESC comes equipped with a built-in 12V Switch BEC, offering adjustable output voltage from 5V to 12V and a maximum current output of 35 amps. The BEC includes an anti-reverse circuit, allowing it to operate in parallel with external batteries for added protection. This high-power BEC ensures reliable power delivery to the aircraft's electronics, supporting demanding flight operations with greater output capability and safety.

Advanced RPM Accuracy

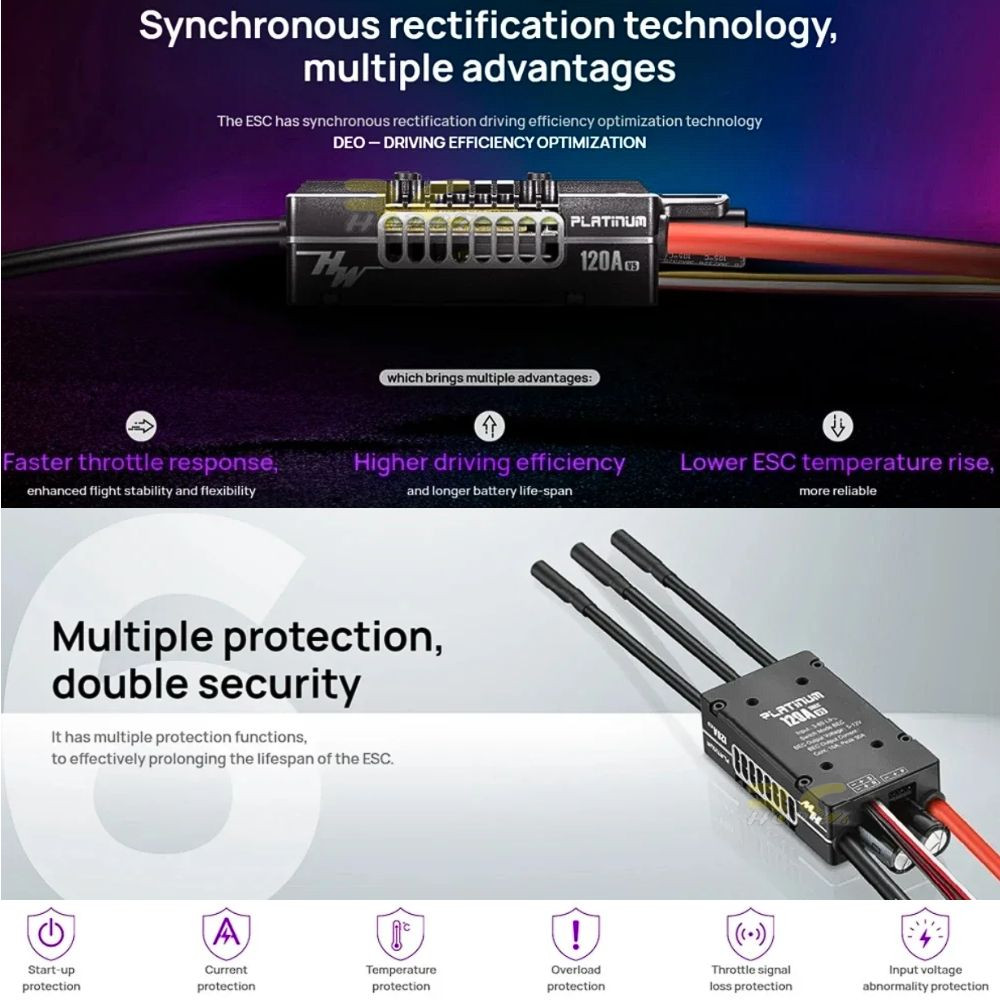

Equipped with a 32-bit processor, the Platinum 120A V5 Brushless ESC utilizes an advanced RPM accuracy algorithm to deliver precise and consistent performance. This algorithm maximizes RPM accuracy and allows pilots to adjust constant speed sensitivity to their preference. Additionally, the ESC incorporates synchronous rectification driving efficiency optimization (DEO) technology, which enhances throttle response, flight stability, and overall efficiency, resulting in longer battery life and lower operating temperatures.

Features:
Efficient heat dissipation with double-sided heat sink
Adjustable BEC output voltage
Anti-reverse circuit in BEC
High-power BEC with 35A peak output current
Enhanced throttle response and flight stability
Advanced RPM accuracy algorithm
Driving efficiency optimization
32-bit processor for powerful and precise performance

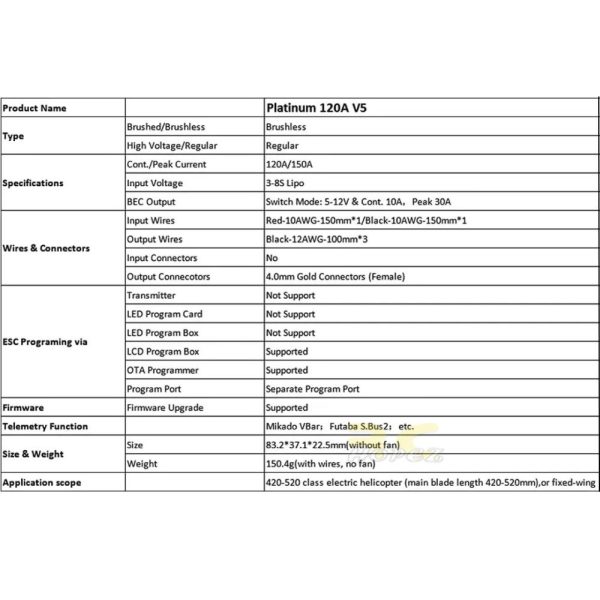

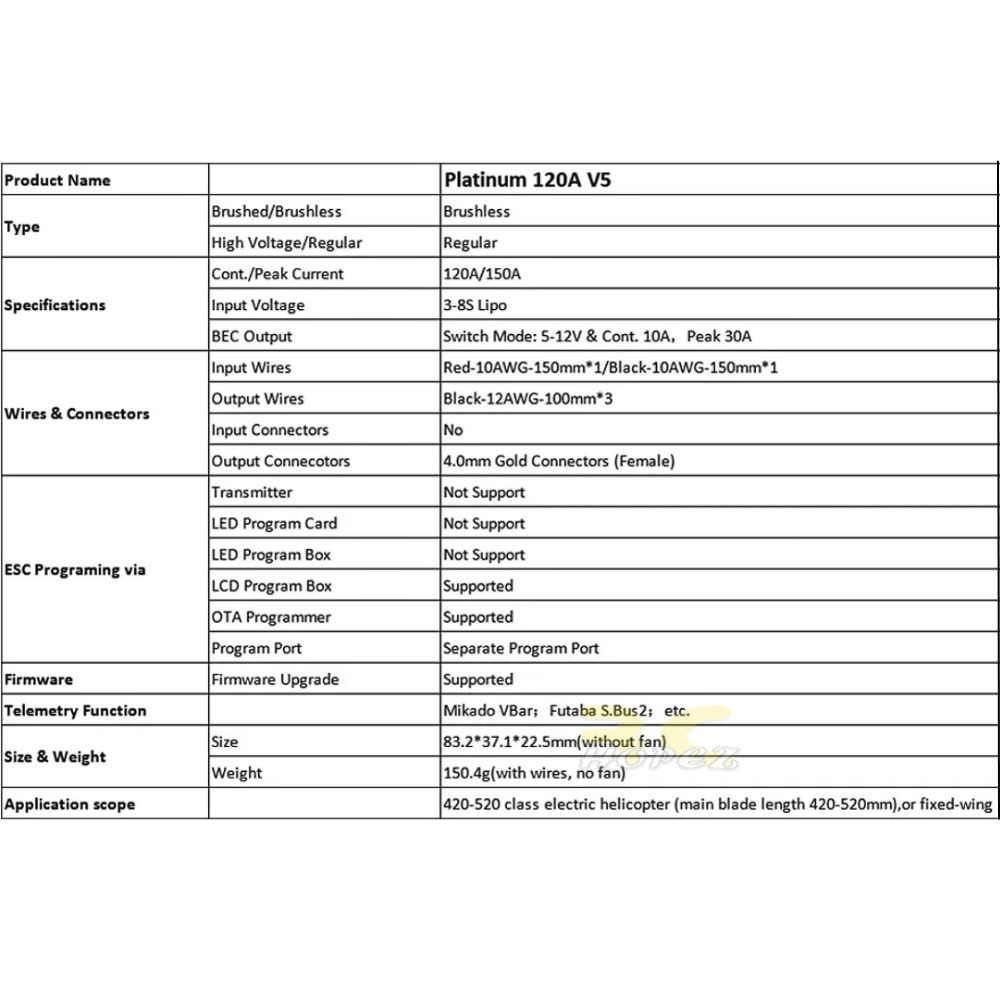

Product Name : Platinum 120A V5
Product Number : 30203402

Product Type
Brushed/Brushless: BL
High Voltage/Regular: Regular

Specifications:
Cont./Peak Current: 120A/150A
Input Voltage: 3-8S Lipo
BEC Output: Switch Mode:5-12V & Cont. 10A，Peak 30A

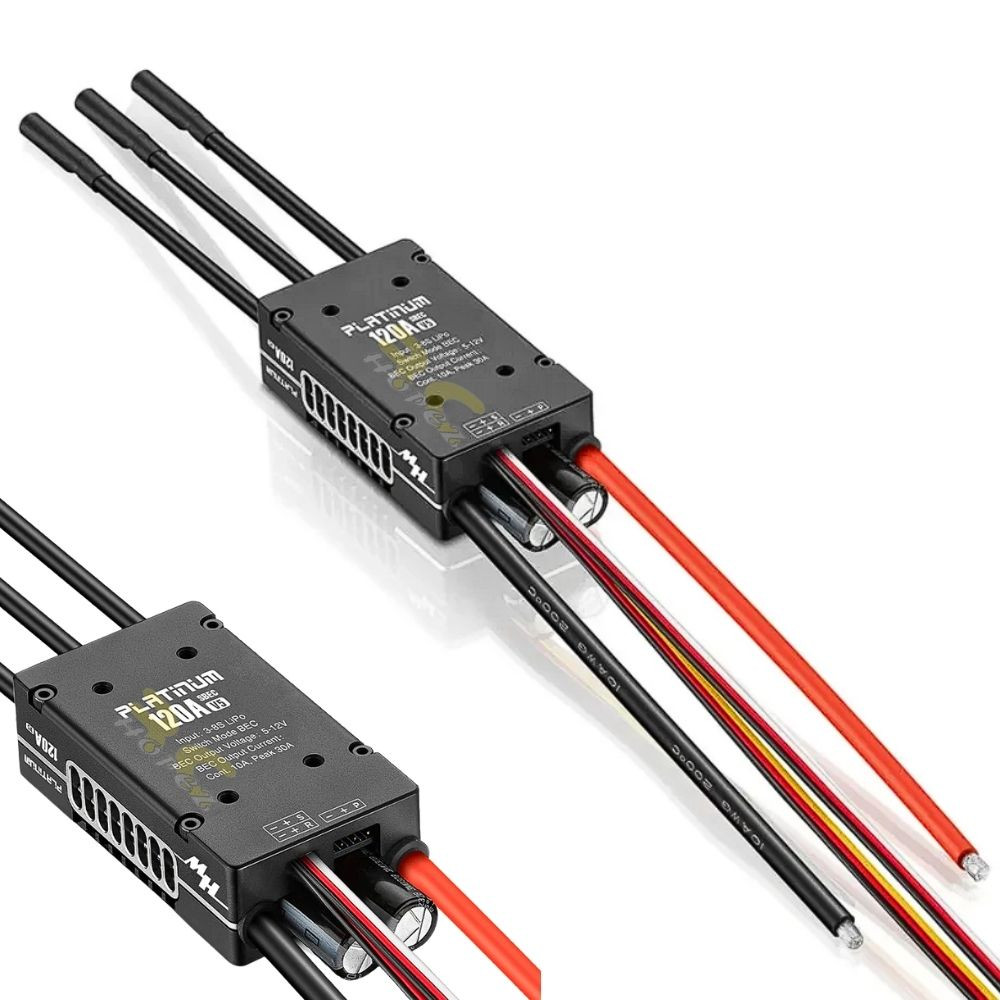

Wires & Connectors
Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
Output Wires: Black-12AWG-100mm*3
Input Connectors: No
Output Connecotors: 4.0mm Gold Connectors (Female)

ESC Programing Via
Transmitter: Not Supported
LED Program Card: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
OTA Programmer: Supported
Program Port: Separate Program Port

Firmware
Firmware Upgrade: Supported

Telemetry Function
Mikado VBar；Futabas S.Bus2；etc.

Size & Weight
Size: 83.2*37.1*22.5mm(without fan)
Weight: 150.4g(with wires, no fan)

Application scope
420-520 class electric helicopter (main blade length 420-520mm),or fixed-wing

Package Included:
1 x Hobbywing Platinum 120A V5 ESC
1 x Manual
