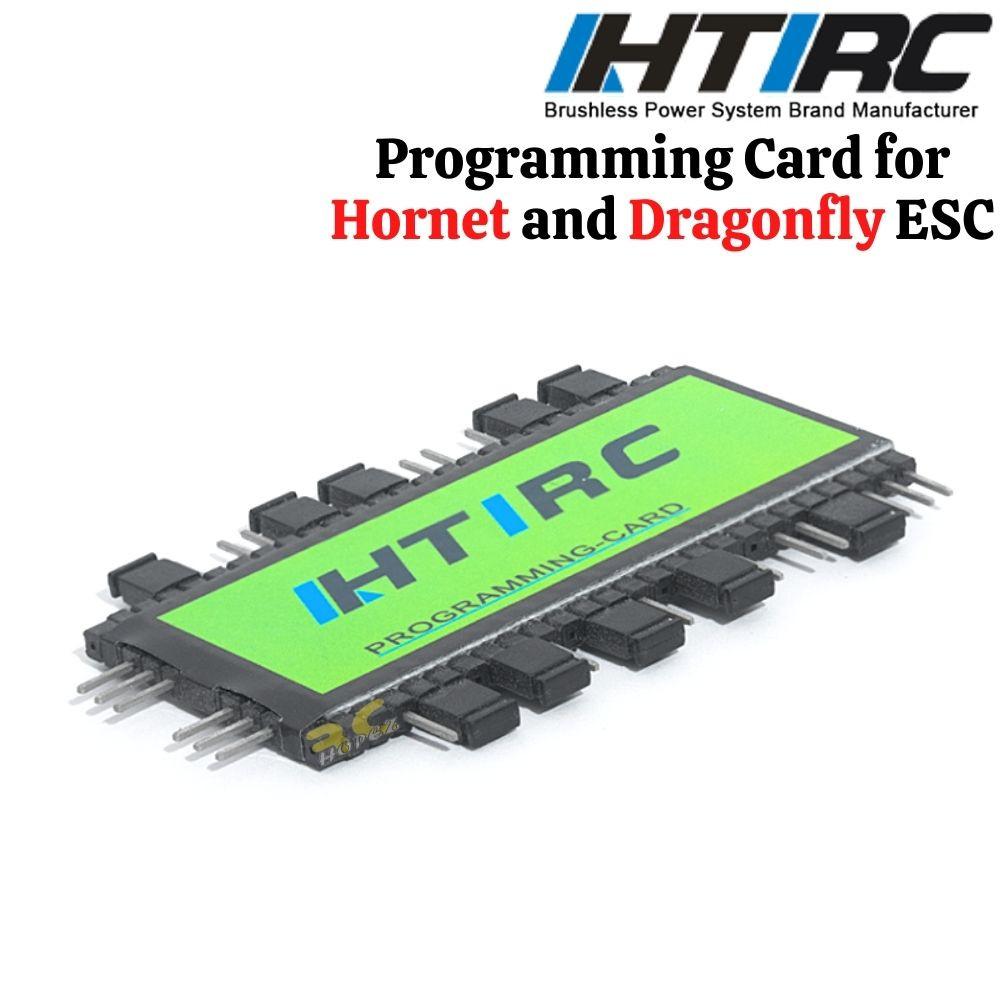

HTIRC Programming Card for Hornet and Dragonfly ESC HTIRC-Card

HTIRC Programming Card for Hornet and Dragonfly ESC HTIRC-Card

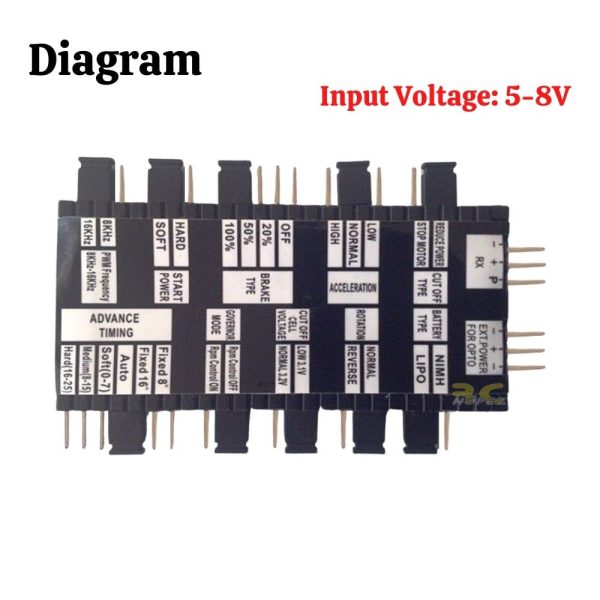

In a nutshell, its super simple to use.  Basically you set the pins to the values you want. Connect your esc to a motor w/o a prop attached for safety (so that you can hear the beeps), then you plug in the signal line to the program card, then you connect the battery to the ESC, you will hear one beep when programmed correctly, that's it.  Super simple.

• Prepare your program card, DC power supply, ESC and motor. (Please do not install propeller while programming)
•  Connect the ESC to the motor/Signal Wire to the Program Card/ESC to the battery pack.
•  For the ESC without BEC built-in(OPTO), you need to connect the extra power (5.0-8.0V) to the Program Card.
•  You should hear one short Beep that your settings are confirmed and stored. If you hear four
•  Beeps, the settings are invalid and you should check and reset.

Specifications:
Product Model: Hornet
Input: 5.0-8.0V

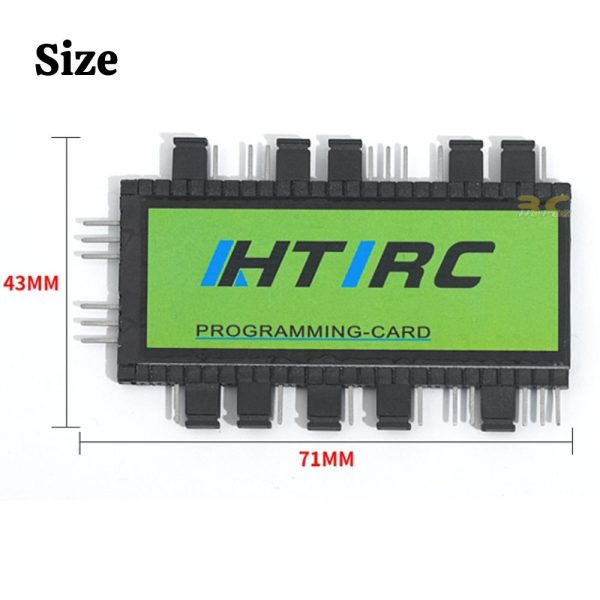

Size: 43mmx71mm
Weight: 10g

Packing Included:

1 x HTIRC Programming Card for Hornet and Dragonfly ESC
