iFlight Defender 25 Blitz AIO F745 FC + 20A ESC 2-6S MX-DEF25-AIO

iFlight Defender 25 Blitz AIO F745 FC + 20A ESC 2-6S MX-DEF25-AIO

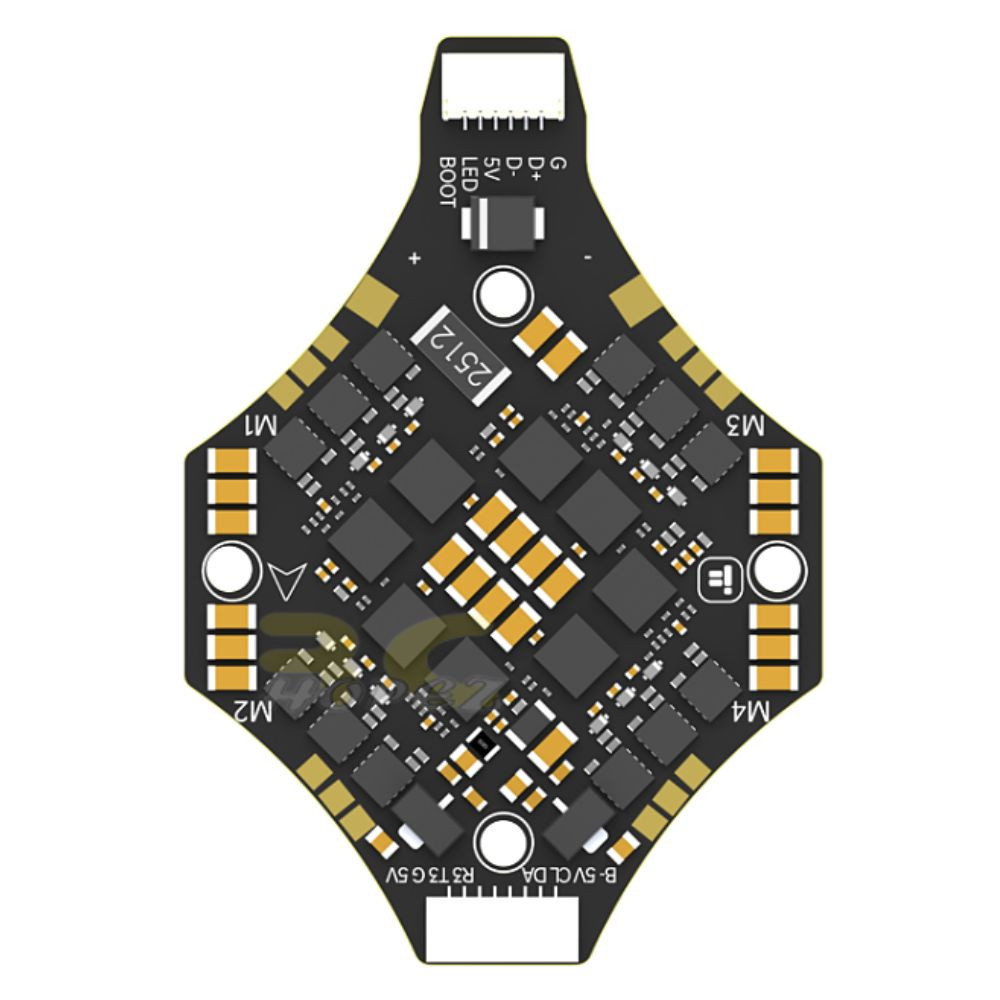

This iFlight BLITZ F7 AIO is a new generation board designed for the Defender 25. Featuring an F745 flight controller, 20 ESC, and OSD, this is a future-proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight, etc. Lightweight, minimum size, minimum work. Solder your motor wires on and let's go!

Features

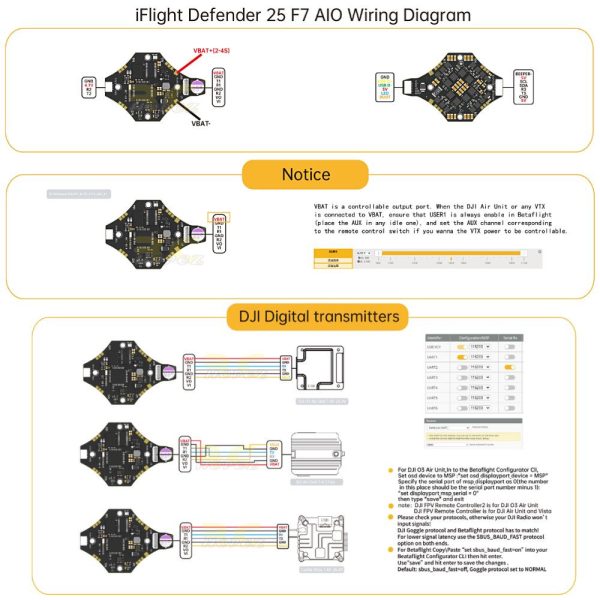

Pass-through DJI O3 and Caddx Vista/Polar Connector
32MB Onboard Flash Blackbox
STM32F745, 216MHz MCU
Weight: 12.8g/0.2g
F745 FC + 20 ESC
ICM42688P Gyro
DPS310 Gyro
OSD Optional (only required if you plan to use an analog FPV System)

Specifications

IFLIGHT DEFENDER 25 F745 FC
Smartaudio / IRC Tramp VTX protocol supported
Input voltage: 2-6S, support LIHV battery
Mounting pattern: 25.5×25.5mm /3mm
FC Firmware：IFLIGHT_BLITZ_F7_AIO
Connector: SH1.0 to Type-C adapter
Blackbox: 32MB Onboard Flash
OSD: YES (HD VTX version)
Dimensions: 32.5*32.5mm

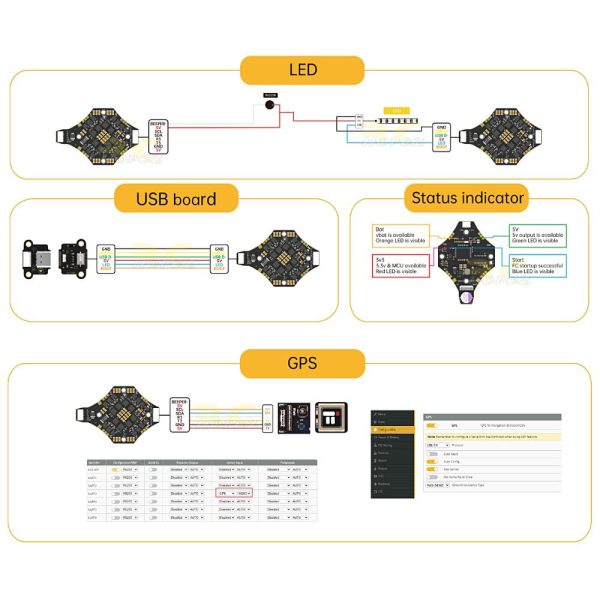

WS2812 LED Strip: Yes
BEC output: 5V 2.5A
Barometer: DPS310
MCU: STM32F745
Gyro: ICM42688P
Buzzer: Yes

IFLIGHT DEFENDER 25 20 ESC
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
ESC Telemetry: Yes（PCB routed, set UART6 for telemetry）
Output current: 20A, peak value 30A (10 seconds)
Input voltage: 2-6S Support LIHV battery
ESC firmware: IFLIGHT_BLITZ_G071_01
Current sensor: ratio 200 (1/10mV/A)
Bidirectional DShot: Yes
ESC MCU: STM32G071
Driver: FD6288
BEC: NO
OSD: Optional, not required if flying a Digital FPV system

Package included
1 x Defender 25 BLITZ F7 AIO (Optional)
1 x Capacitor 470uF/25V (Onboard)
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
