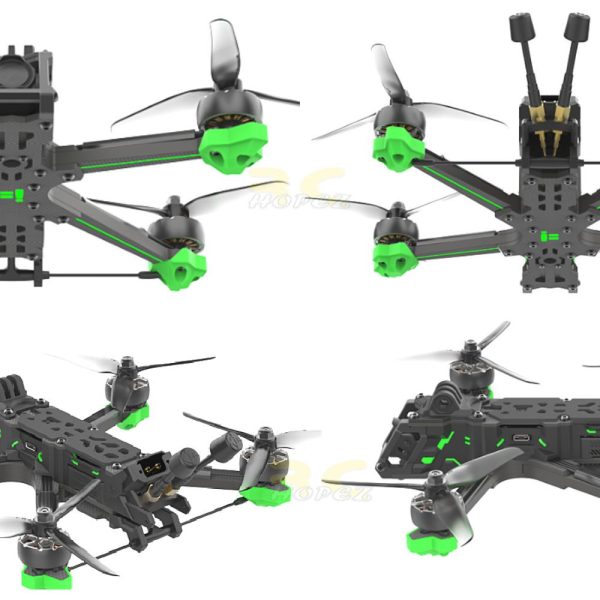

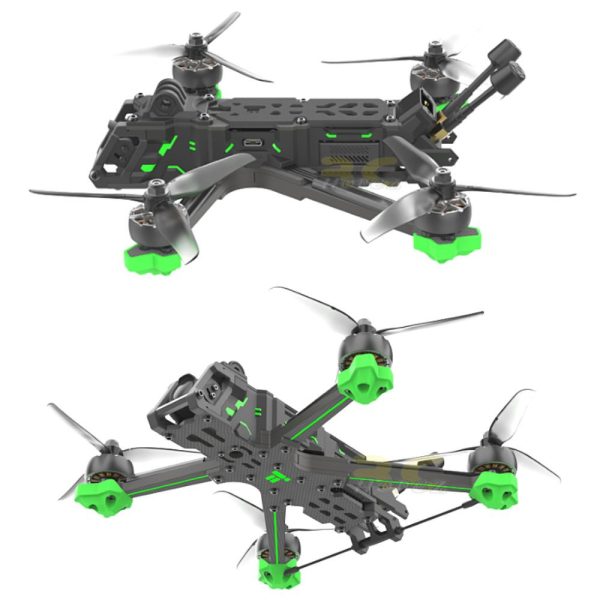

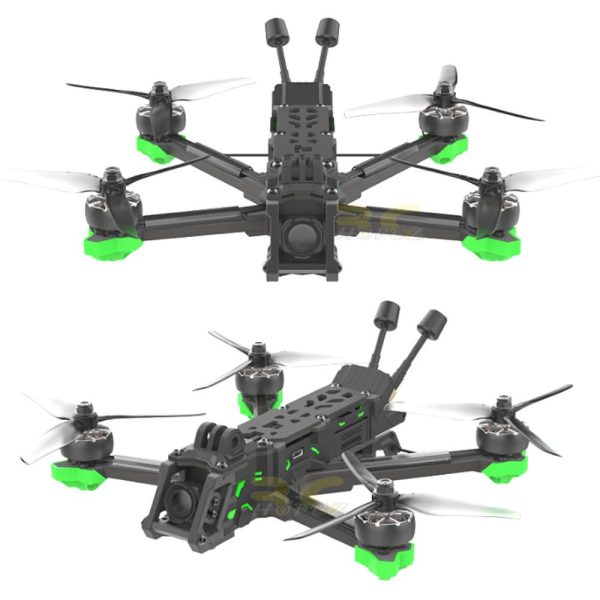

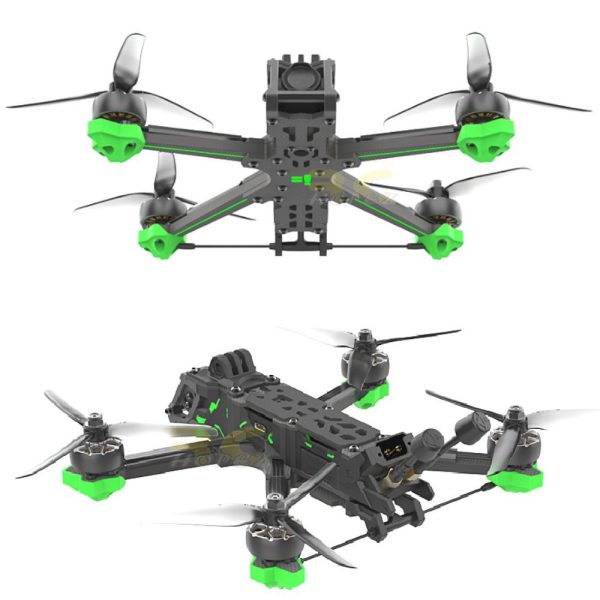

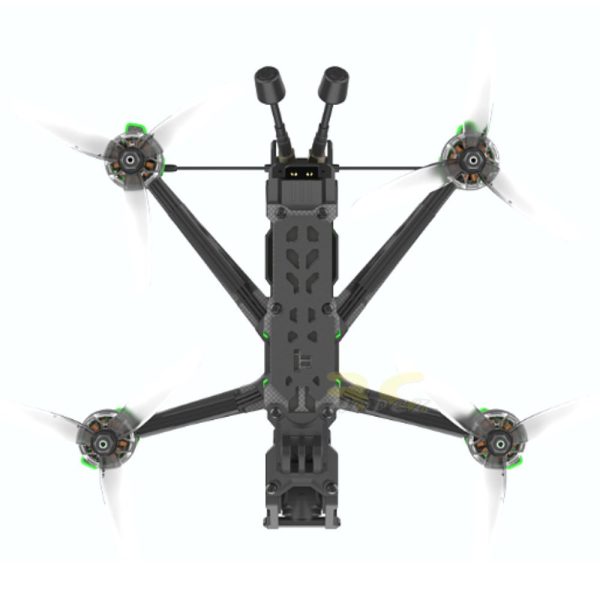

iFlight Nazgul Evoque F5D V2 DeadCat HD 6S 5 Inch FPV Racing Drone With DJI O3 Air Unit Camera F5DV2-HD

iFlight Nazgul Evoque F5D V2 DeadCat HD 6S 5 Inch FPV Racing Drone With DJI O3 Air Unit Camera F5DV2-HD

Description
Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts.

Highlights
Smooth and Powerful XING2 Motors

Latest Nazgul Frame for Maximum Protection

DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)

4K Stabilized Video with 155° Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)

Secured Battery Plug with Anti-Spark Filter

Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We’ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.

Specification
Product Name: Evoque F5D V2
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame wheelbase: 223 mm (DeadCat)
Motor: XING2 2207 1750KV (6S)
Prop: Nazgul 5 inch propellers
Weight: 445grams
Takeoff Weight: Approx. 610 g
Dimensions (L×W×H): 180×180×80 mm
Diagonal Distance: 120 mm
Max Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: 100 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: Optional(GPS + Galileo)

Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 290 grams（headband included）
Dimensions (L×W×H): L167 * W1039 * H 813mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm
Diopter Adjustment Range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Max Video Transmission Bitrate : 50 Mbps
Operating Temperature Range: 0° to 40° C (32° to 104° F)
Power Input: 7-9 V (1.5 A)

Additional Suggested Parts (NOT Included)
iFlight FULLSEND 1400mAh 150C 6S
GoPro Mounts

iFlight M8Q-5883 GPS Module V2.0 with Compass (Optional)
GPS module: GPSSAM-M8Q
Frequencies： 72 channel
Compass module: QMC5883L
Accuracy:  Horizontal <2.5m average), SBAS < 2.0m average,
GPS patch antenna size: 15 x 15 mm
Total dimensions：20 x 20 x 10.5 mm
Weight:  8g
Input Voltage： 3.3V-5V，current 25mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA

Included：
1 x Nazgul Evoque F5D V2 DeadCat HD 6S
2 x Antennas
1 x Battery padReports
2 x Nazgul F5 Props
2 x Battery strap

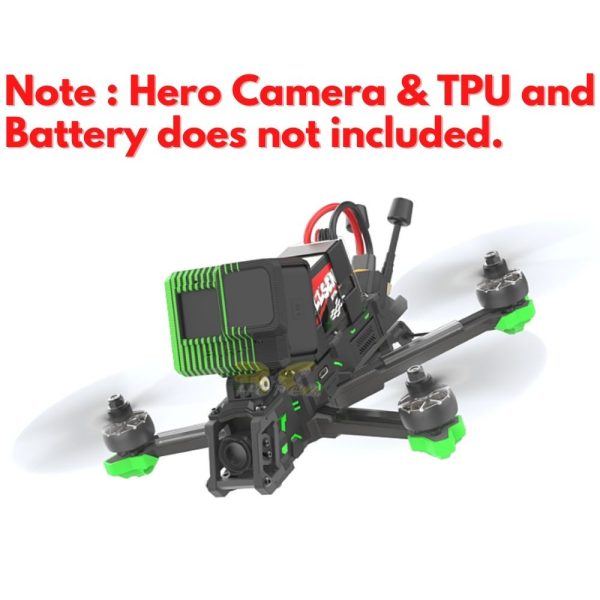

Note: Hero camera , TPU print camera mount and battery does not included.
