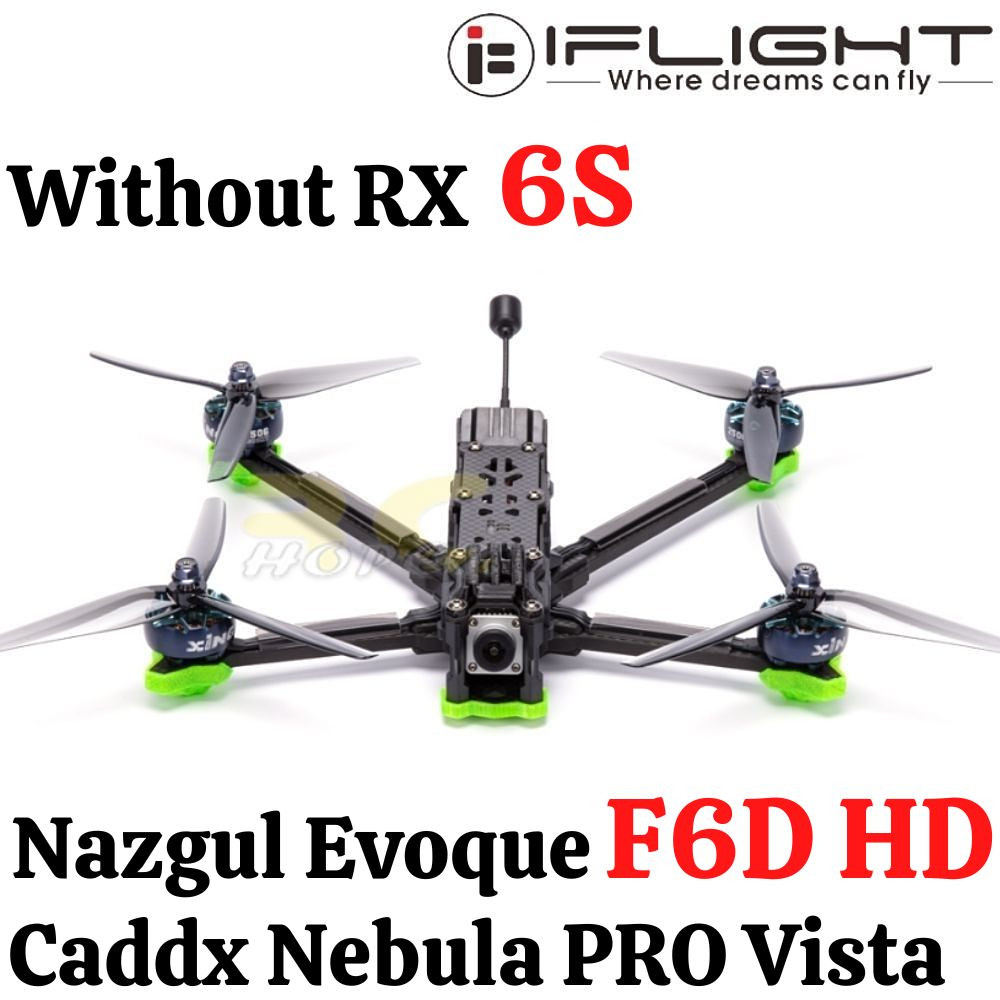

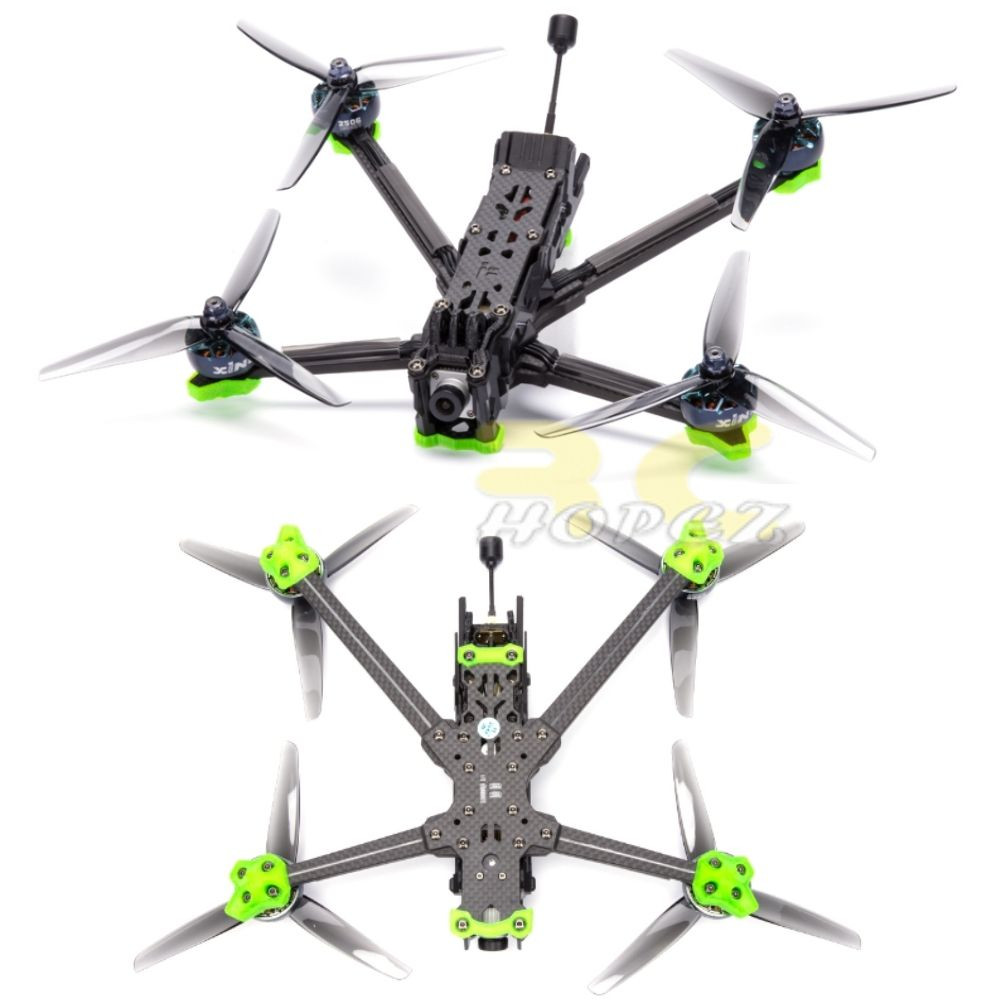

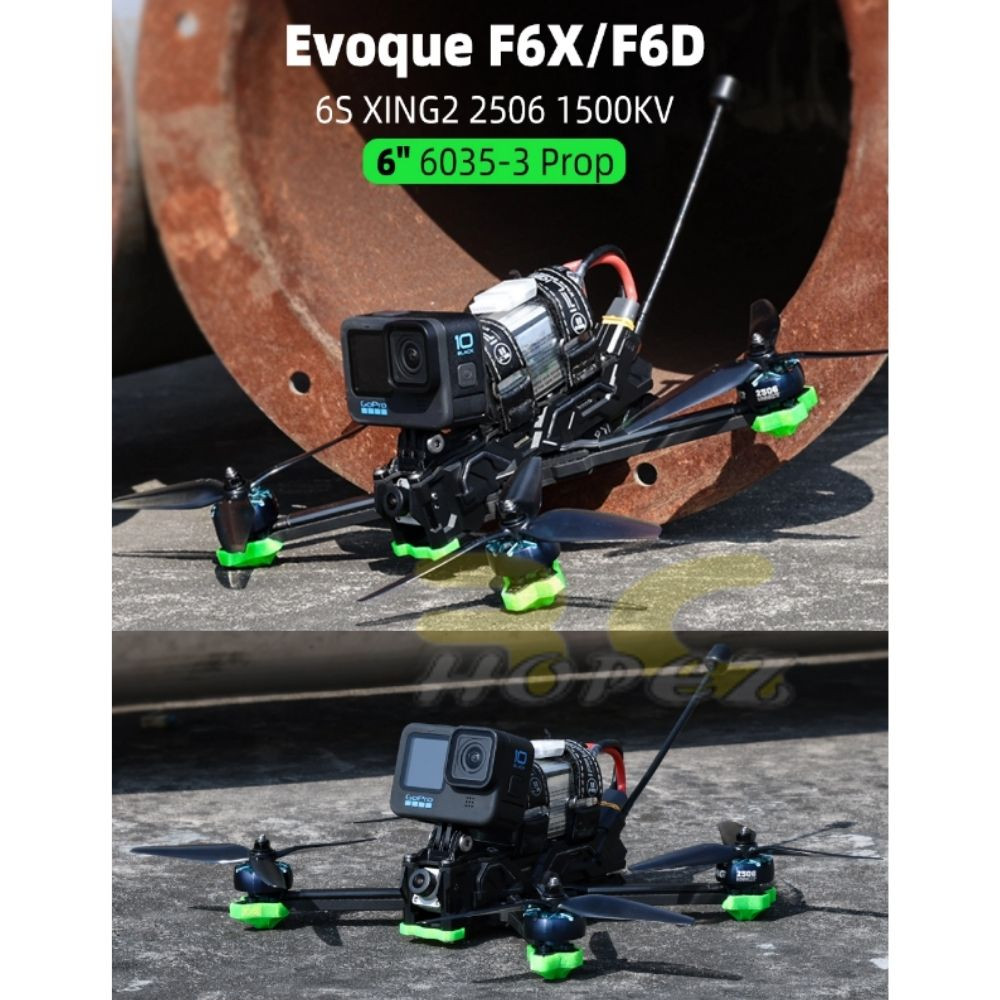

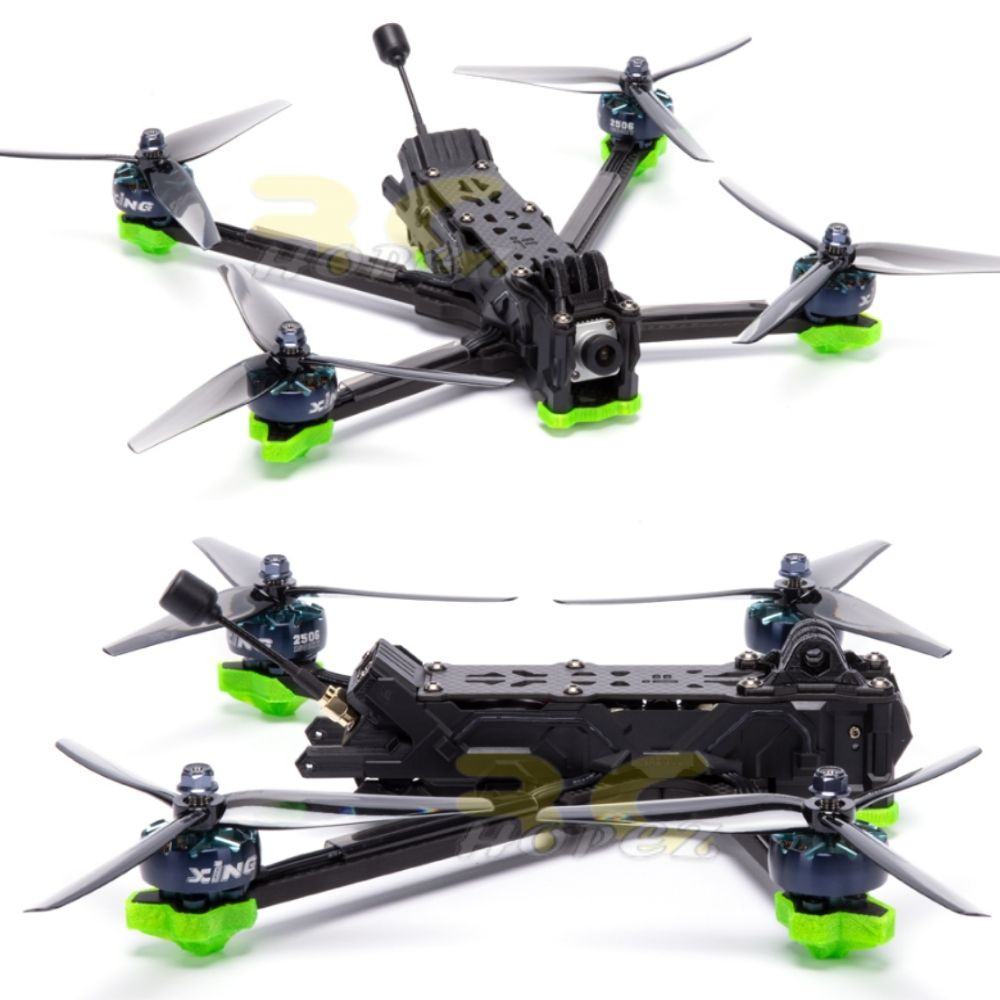

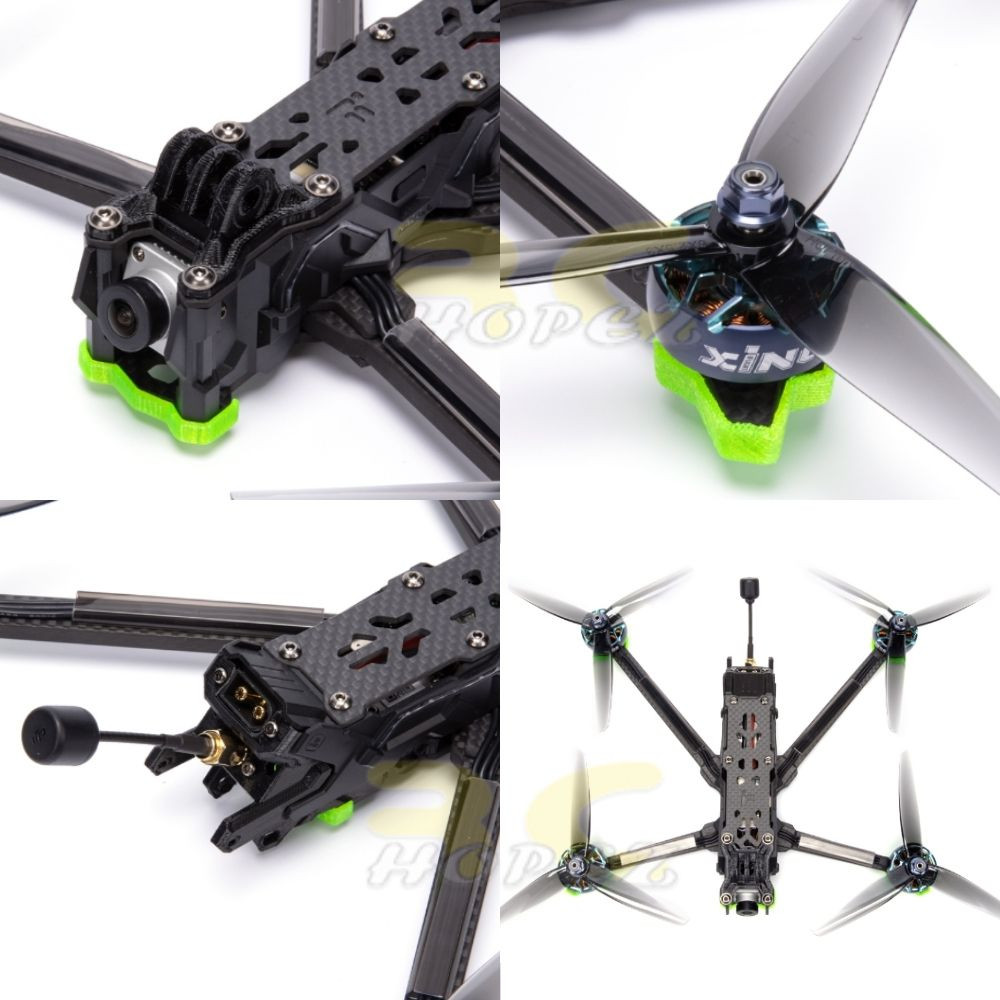

iFlight Nazgul Evoque F6D DeadCat HD 6S 6 Inch FPV Racing Drone With Caddx Nebula PRO Vista Without Receiver F6D-HD

iFlight Nazgul Evoque F6D DeadCat HD 6S 6 Inch FPV Racing Drone With Caddx Nebula PRO Vista Without Receiver F6D-HD

Changelog:
14/4/22:  Before XING2 2506 1500KV motors (Blue color) changed to XING2 2506 1500KV motors(Black color)
23/8/22: Before DJI Camera Vista HD System changed to Nebula Pro Vista HD System

Top Features
The Secret Of Ultimate Performance Is Passion
Lightweight Side Panels – Keep Your Rig Clean
Secured Integrated XT60 Battery Plug – As Safe, It Can Be
High-Performance Electronics – F7 55A Power Stack
XING2 Performance Motors – The Best Motors Just Got Better
Illumination – Let It Be Green
Digital HD Experience – Nebula Pro Vista HD System

Specifications:
– Total Dimensions: 262.6mm
– Geometry: DeadCat frame
– Bottom to top distance: 28mm
– Arm Thickness: 6mm
– Bottom plate thickness: 2.5mm
– Top plate thickness: 2mm
– Upper(middle) plate thickness: 3mm
– FC // BLITZ Mini F7
– ESC // BLITZ Mini 55A
– XING2 2506 1500KV motors
– 6035 propellers
– Caddx Nebula Pro Vista HD System

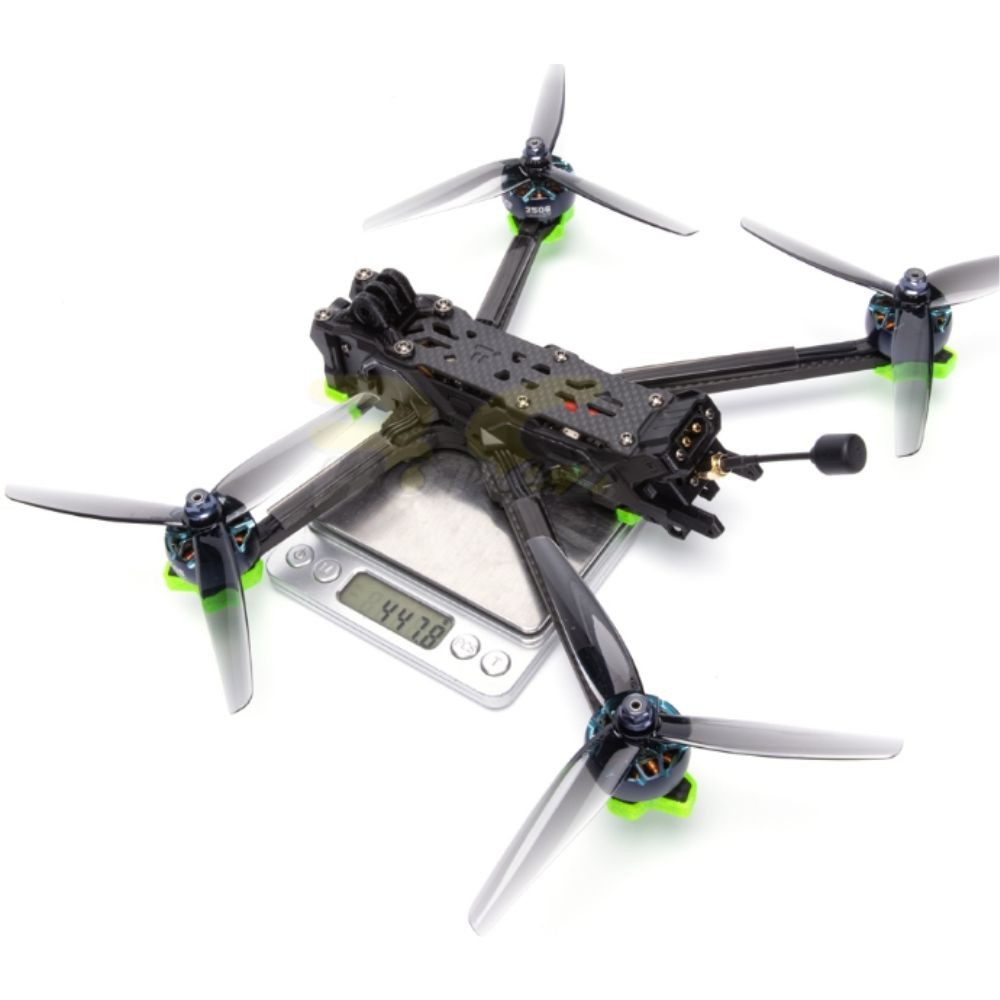

– Weight: 447.8g (without battery and GoPro mount)

FC // BLITZ MINI F7
– MCU：STM32 F722
– Gyro：BMI270
– Baro: DPS310
– Betaflight OSD：IFLIGHT OSD （AT7456E)
– Blackbox：16MB
– 5 X Uarts
– UART1 for VTX HD/Analog
– UART2 for  Receiver
– UART3、UART4 for GPS or 0ther sensors that require a serial port
– UART6 for ESC Telemetry
– 4×Dshot/PWMoutputs
– 1×I2C
 -1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）
– 1 xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)
– 1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2i/5V /G/R2/T2）
– 1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)
– 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
– Smartaudio&IRCTramp  VTX protocol supported
– WS2812ledStrip：Yes
– Bepper：Yes
– Firmware: IFRC-BASEF4 4.X.X
– Mounting：20*20mm/φ4
– Dimensions：30.5*27mm
– Weight：5.0g

ESC // BLITZ Mini 55A
– Dimension: 35*42mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU：G071
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Firmware: BLHeli 32
– Target:   IFLIGHT_BLITZ_G2

Additional Suggested Parts (NOT Included)
Battery 6S 1300mah-1550mAh
GoPro Mounts

Package included：
– 1 x Nazgul Evoque F6 HD DeadCat
– 2 sets of 6035 Propellers
– 2 sets of Battery pads
– 3 x Battery straps
– 1 Screw bag
– 1 iFlight M8Q-5883-GPS Module V2.0 (Optional)

Note: The Gopro camera, TPU print camera mount and battery does not include.
