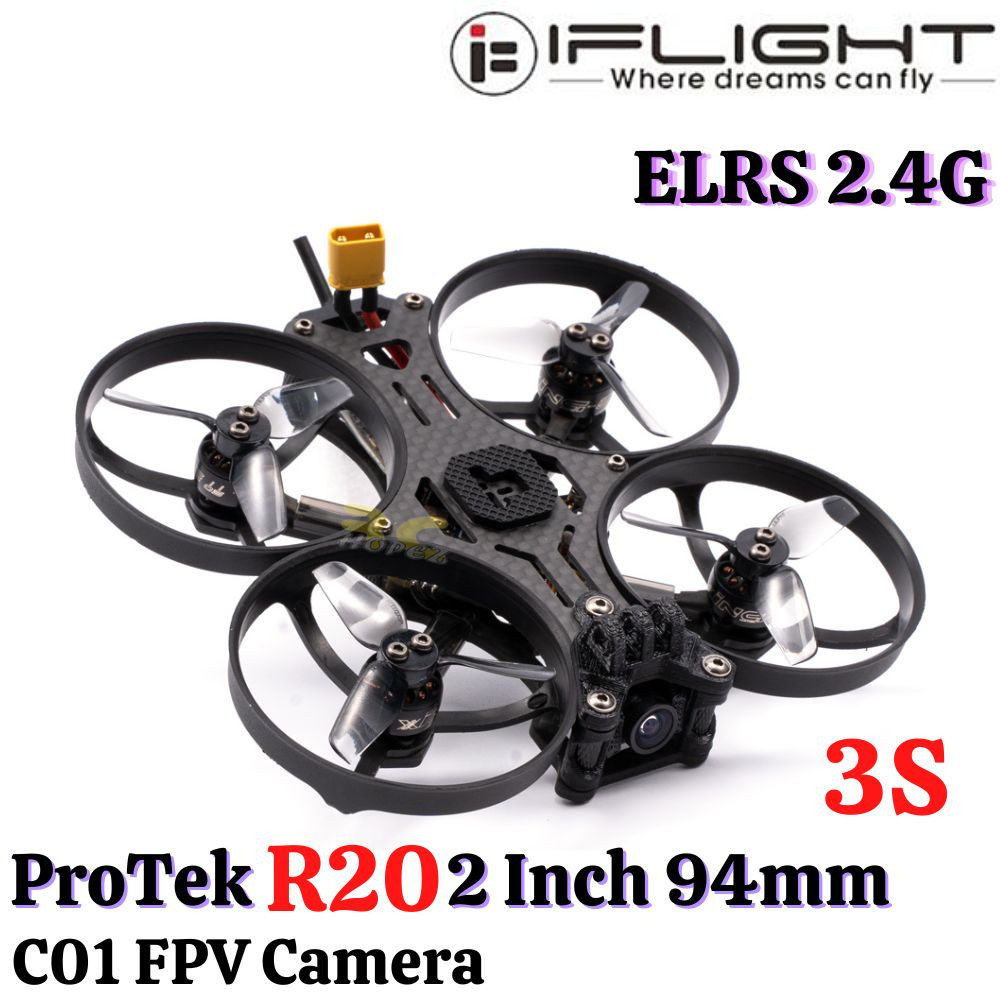

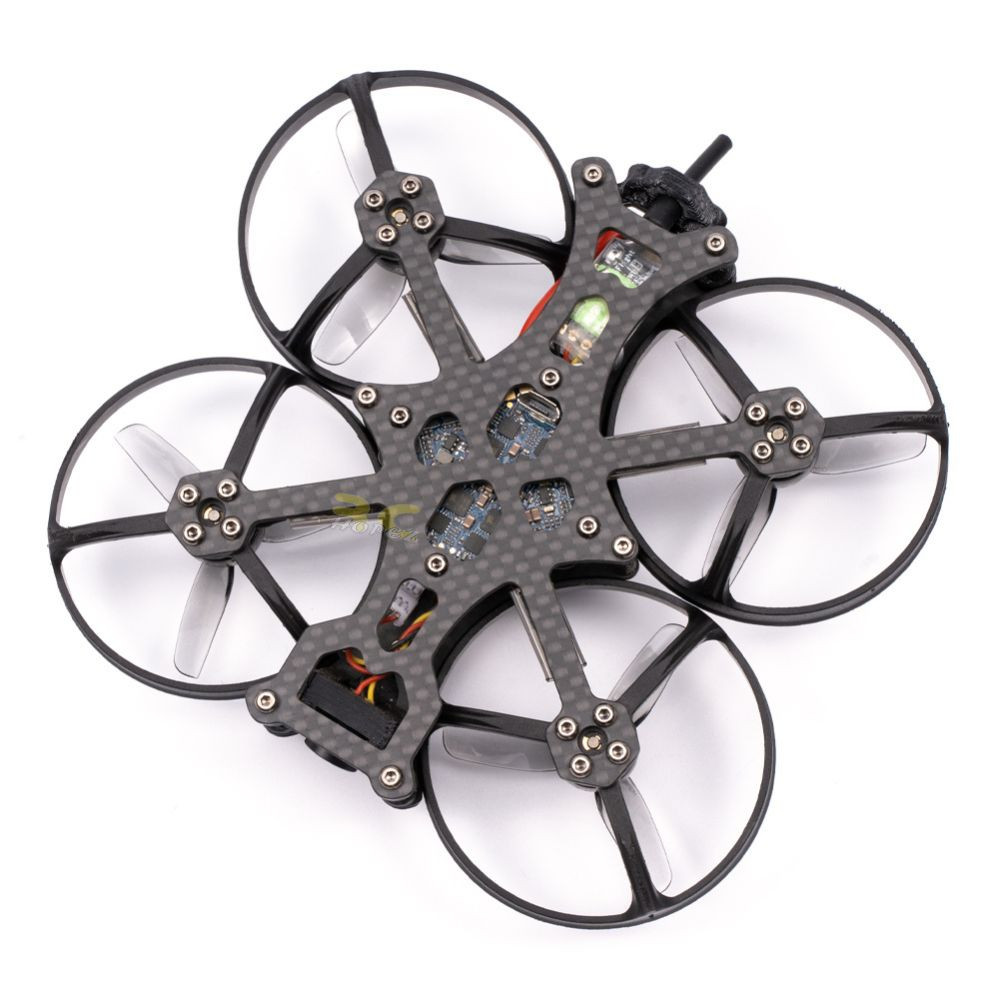

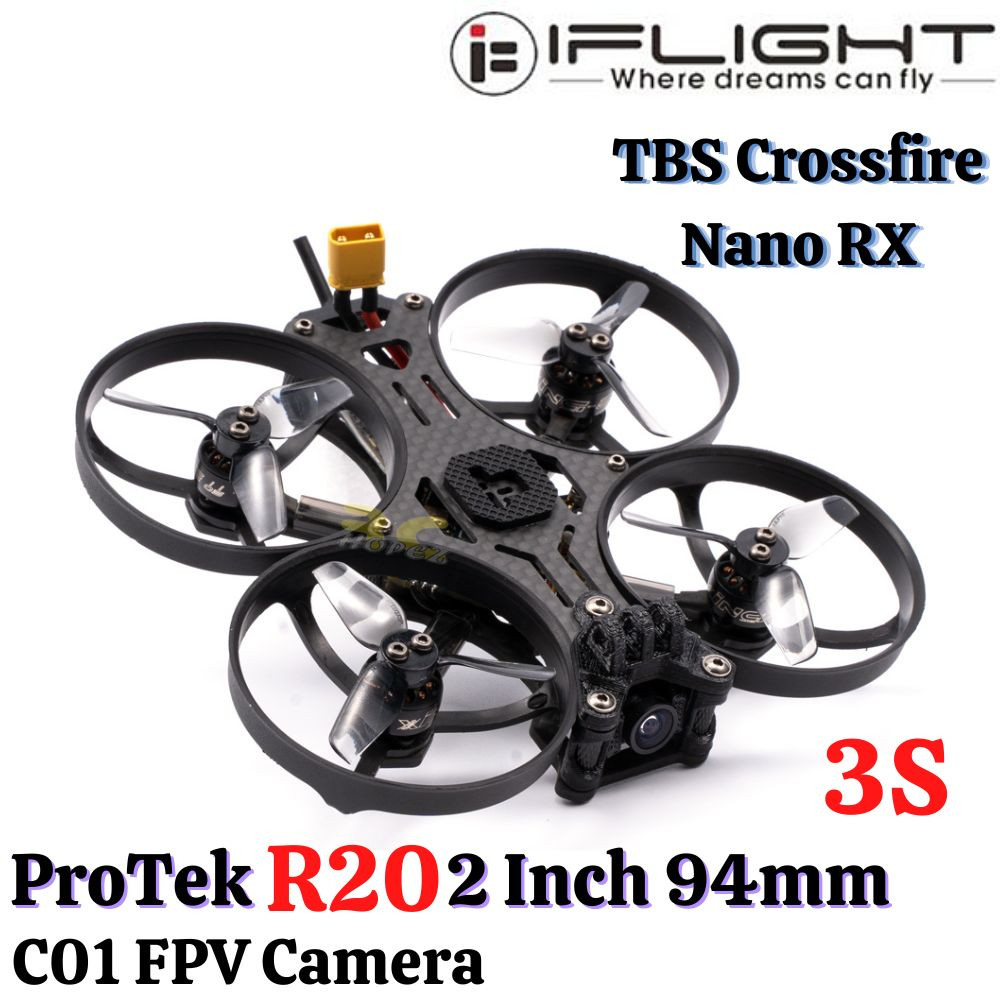

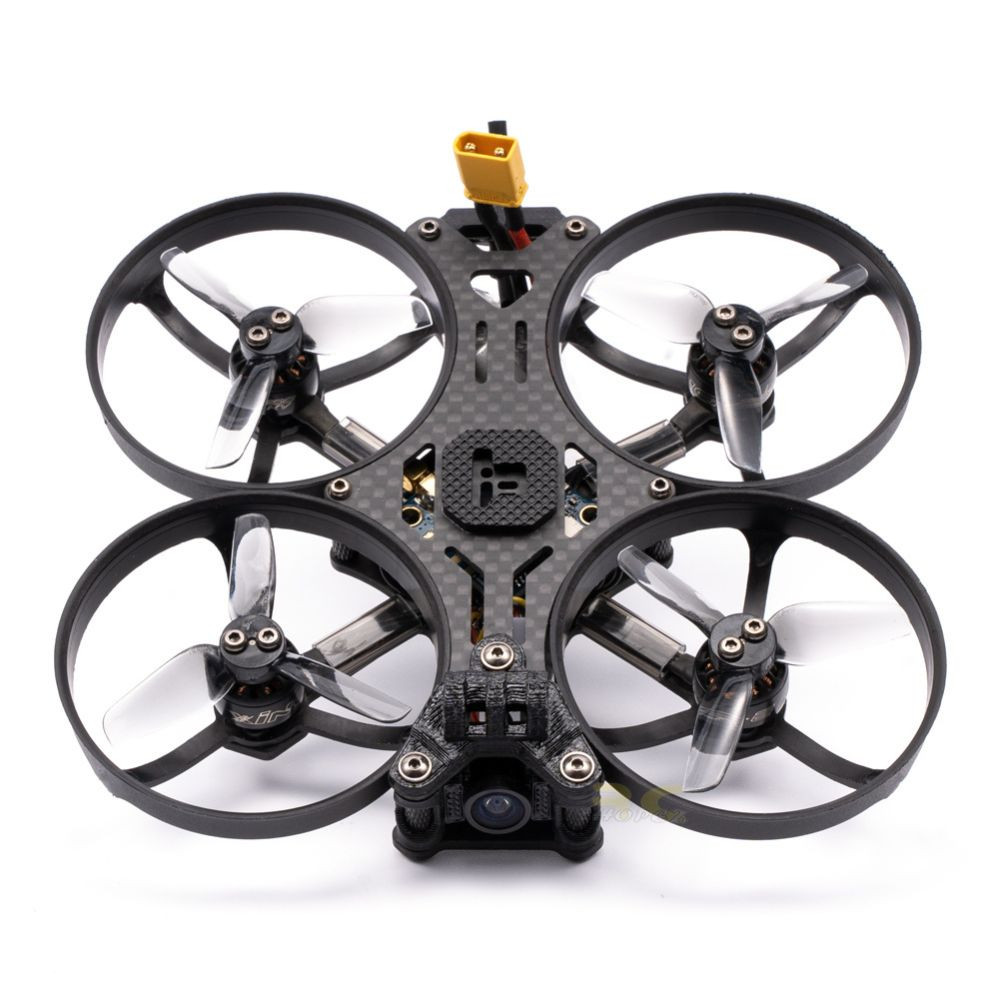

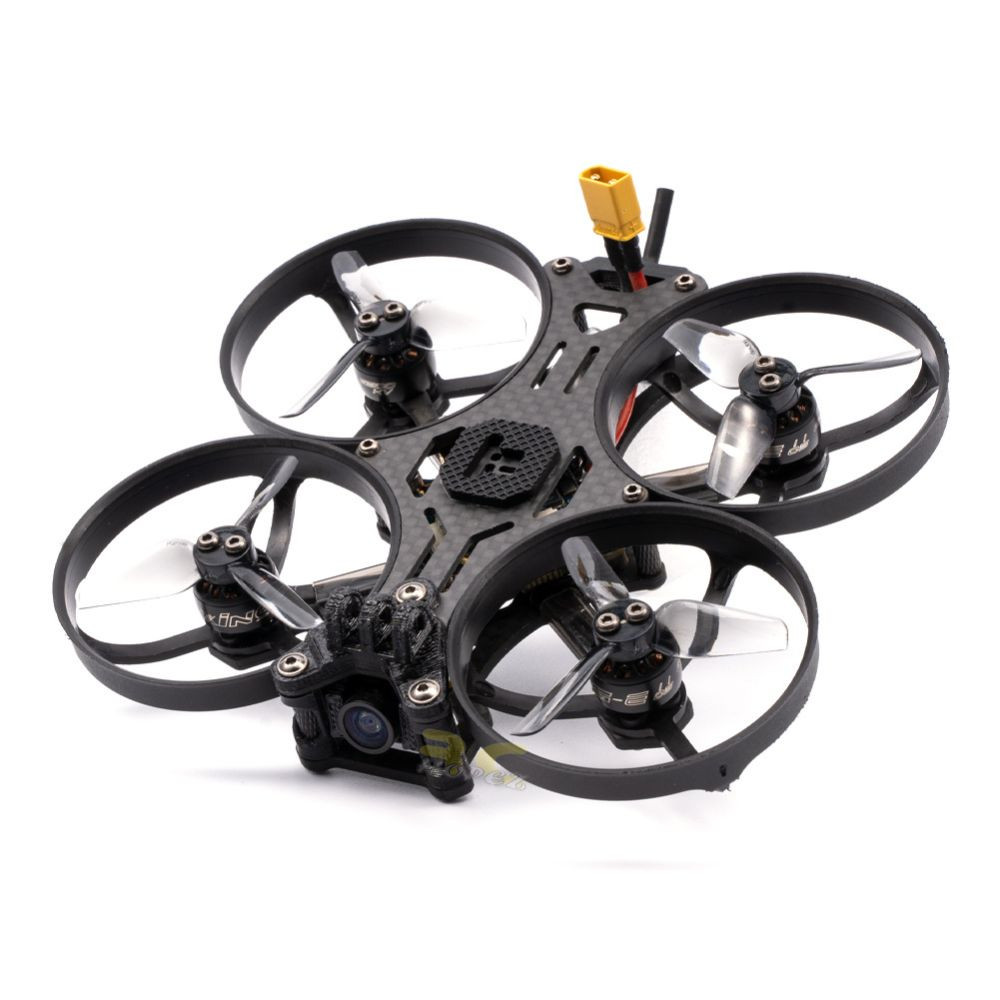

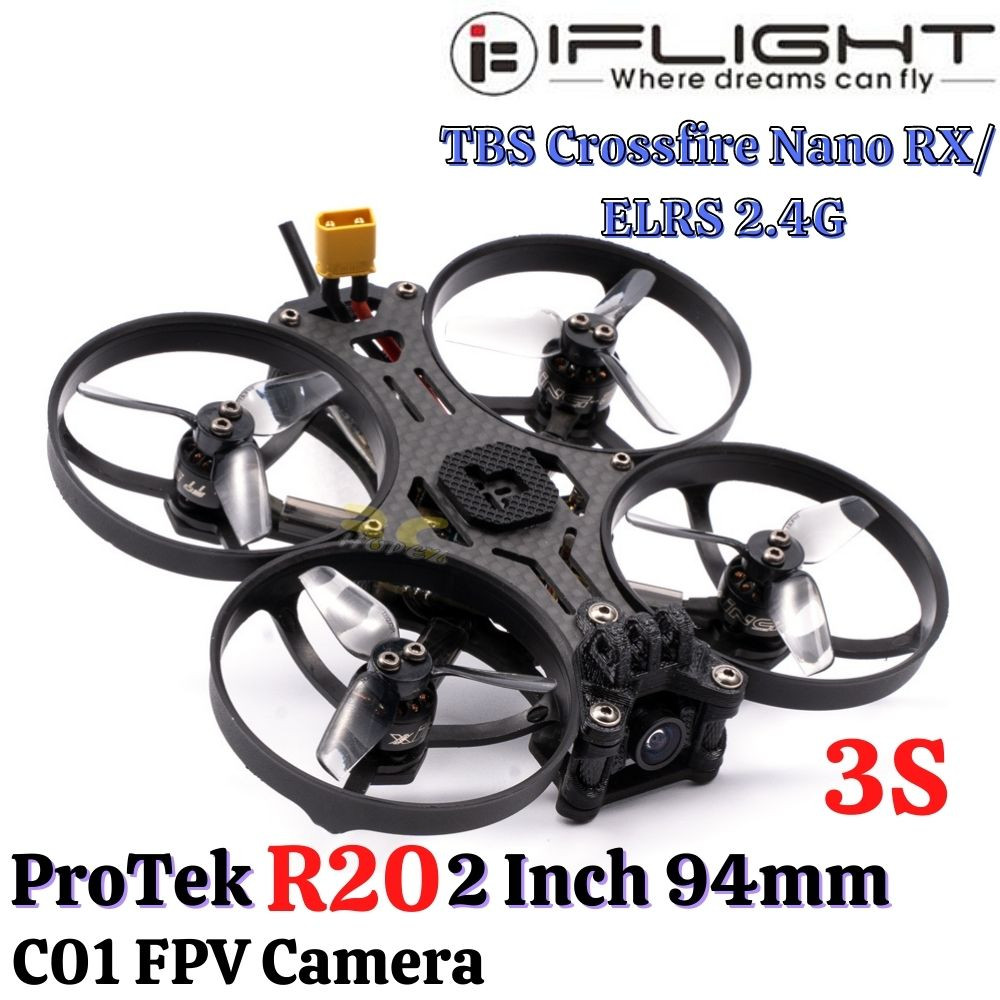

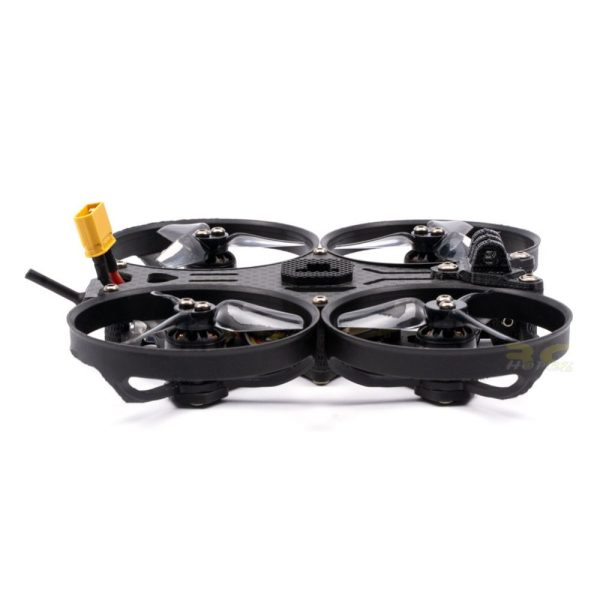

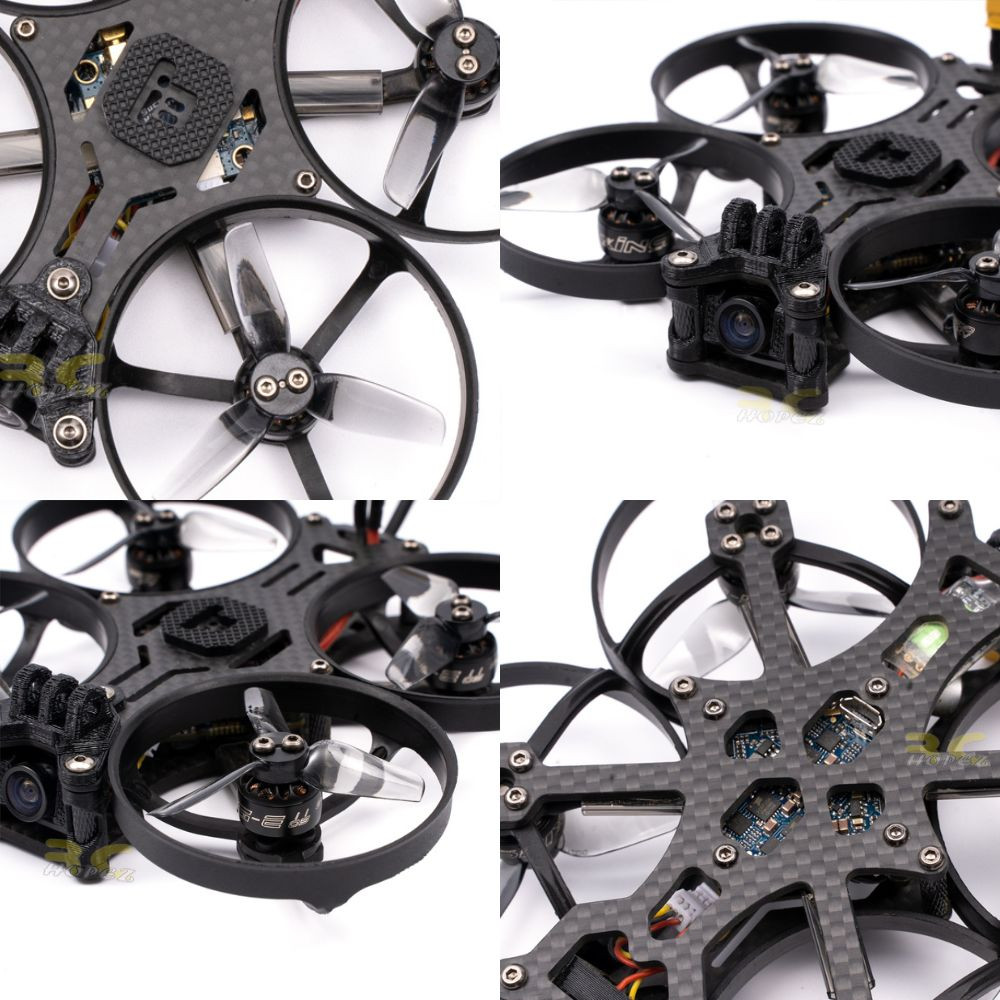

iFlight Protek R20 2 Inch 94mm 3S CineWhoop With C01 FPV Camera TBS Nano RX/ELRS 2.4G R20-AN

iFlight Protek20 2 Inch 94mm 3S CineWhoop With C01 FPV Camera TBS Nano RX/ELRS 2.4G R20-AN

Changelog:
23-11-22 : SucceX-D 20A Whoop V3.2 F4 AIO Board (MPU6000)(ELRS Version) change to Whoop AIO F4 V1.1 AIO Board (BMI270)

Features
ProTek R20 BNF Specs:
-VTX: SucceX Mini Force 5.8GHz 600mW VTX Adjustable

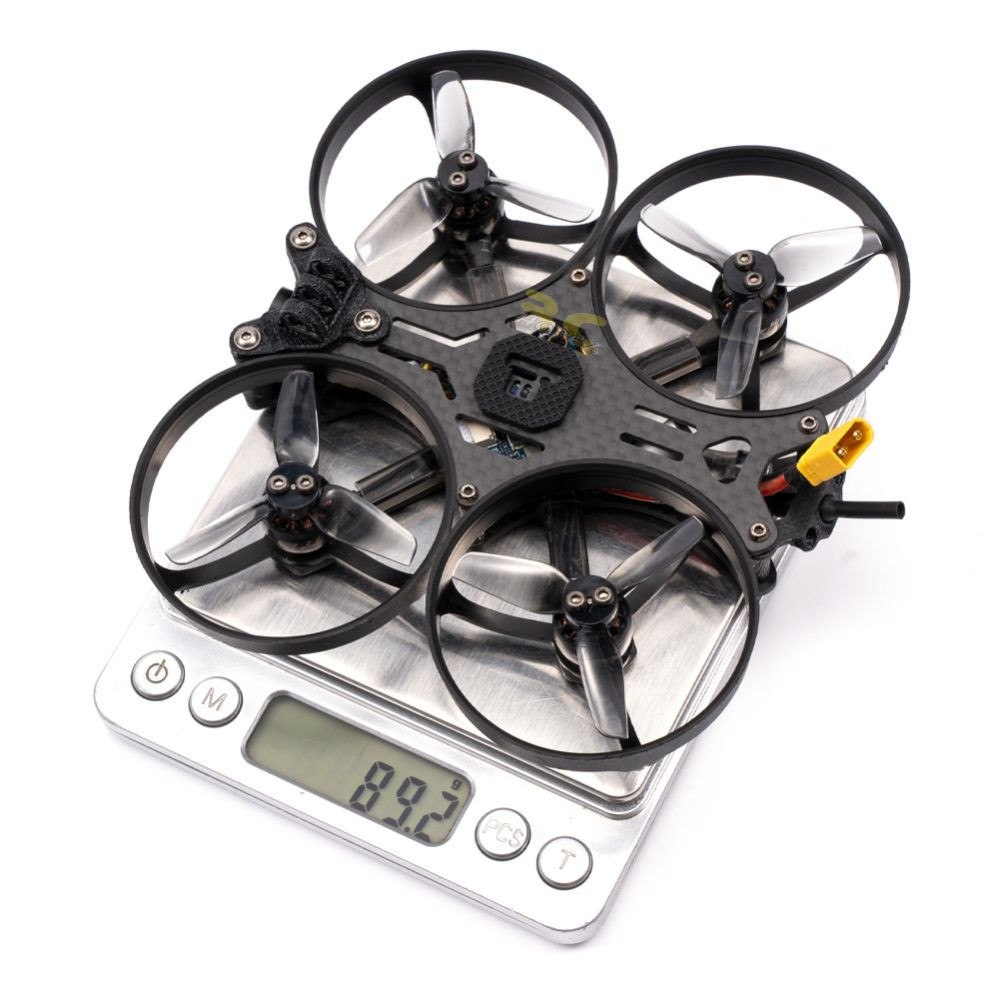

-Weight: 89.2g (without battery)
-Bottom plate thickness: 2.5mm
-Motor: XING-E 1105 6500KV (3S)
-Top plate thickness: 1.5mm
-Body Size: 132mm*122mm
-FC pattern: 25.5*25.5mm
-FPV cam spacing: 14mm
-Whoop AIO F4 V1.1 AIO Board (BMI270)(TBS/ ELRS 2.4G Version)
-Arm Thickness: 2.5mm
-Propeller size: 2 inch
-Wheelbase: 94mm

Specifications:

AIO//Whoop AIO F4 V1.1 AIO (TBS/ ELRS 2.4G Version)
Mounting pattern: 25.5*25.5mm/φ3mm
Firmware Target: IFLIGHT_F411_PRO
Constant current: 20A，25A (Burst)
Config：IFLIGHT_F411_PRO.config
Connector: Micro-USB
ESC Firmware: Q-H-15
Current sensor: yes
BEC output: 5V 2A
ESC Telemetry: NO
Size: 30.5*30.5mm
MCU: STM32F411
BLHeli: BLHeli-S
Barometer: NO
Blackbox: 8MB
Gyro: BMI270
INA pad: nR2
Weight: 7.4g
Input: 2-4S

XING-E 1105 6500KV FPV Micro Motor
– Model: XING-E 1105
– KV: 6500
– Version: CW Screw Thread
– Input Voltage: 3S Lipo
– Configuration: 9N12P
– Bearing: φ5xφ2×2.5

VTX//SucceX Mini Force 5.8GHz 600mW VTX Adjustable
-Power: PIT/25/200/400mW/600mW
-Antenna interface: MMCX
-VTX protocol : IRC Tramp
-Output 40 channels.
-Size: 29*29mm
-Mounting pattern: 20*20Φ3/25*25 mmΦ2
-Weight: 4g

Additional Suggested Parts (NOT including)
iFlight FPV Goggles with DVR Function
Battery 3S 450mAh XT30

-Receiver: ELRS 2.4G / TBS Crossfire Nano RX (Optional)

Package Included:
1x iFlight ProTek R20 Analog FPV Drone
1 x iFlight Lipo Strap 10*150mm (Color May Vary)
2 x HQ 2*2*3 (Set of 4 – Color May Vary)
