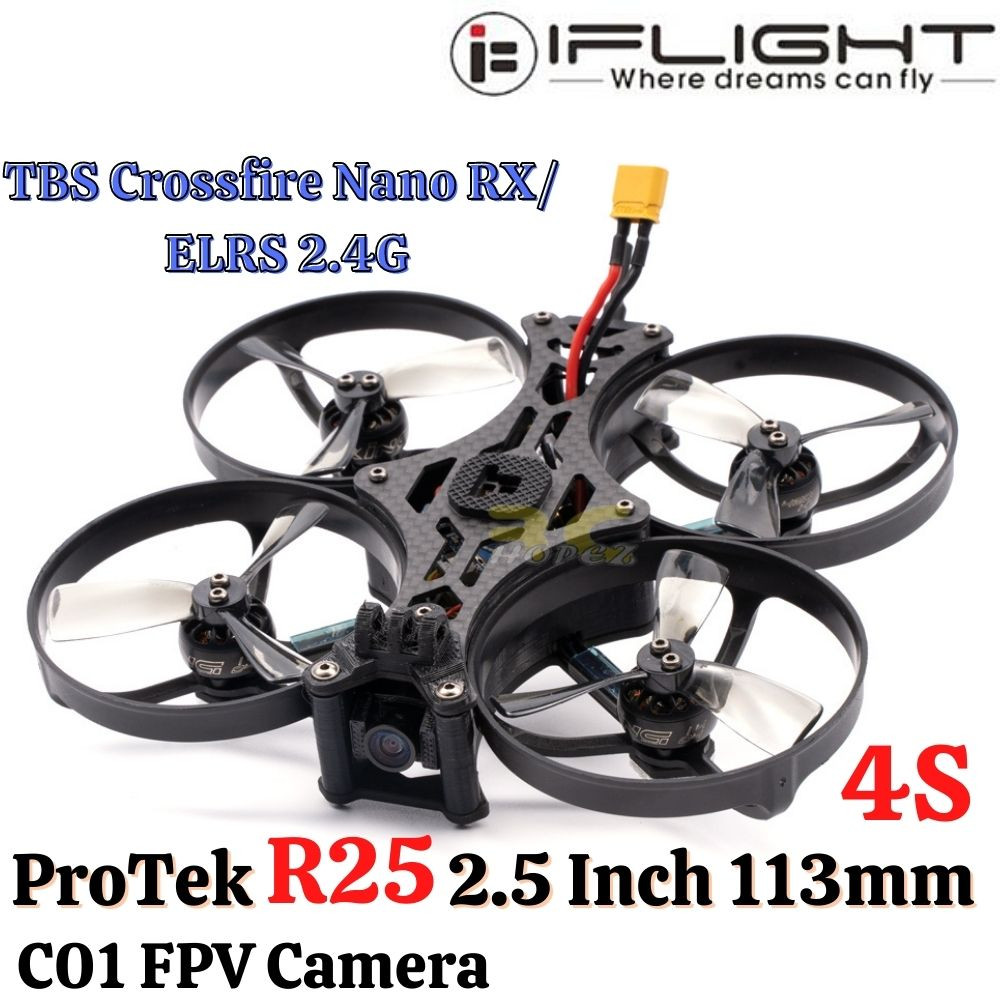

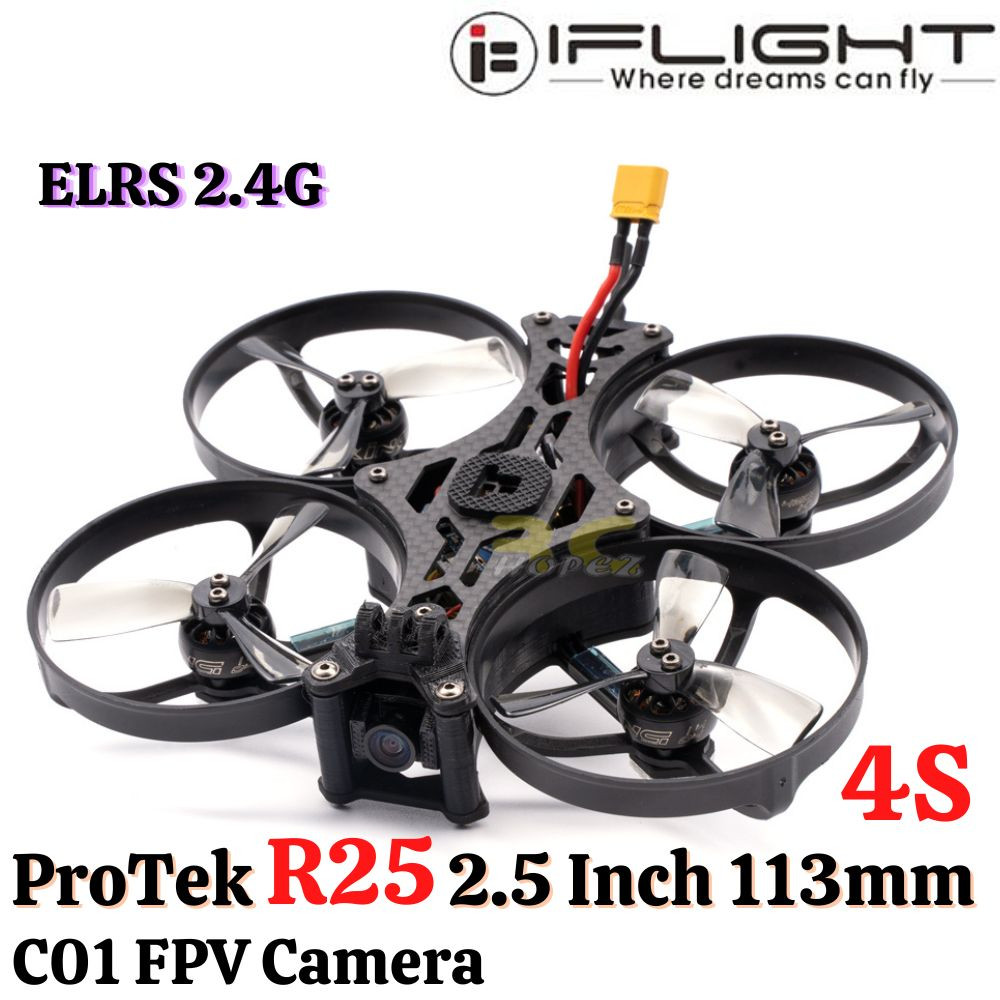

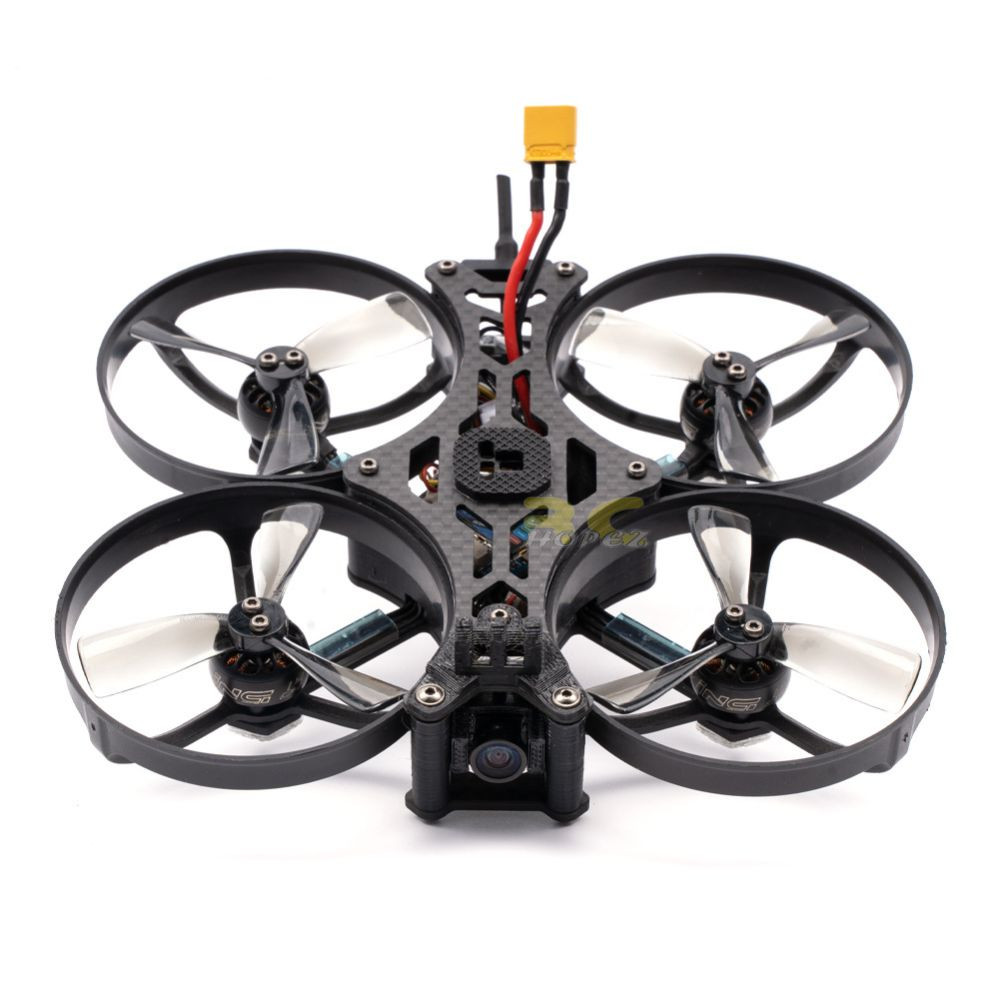

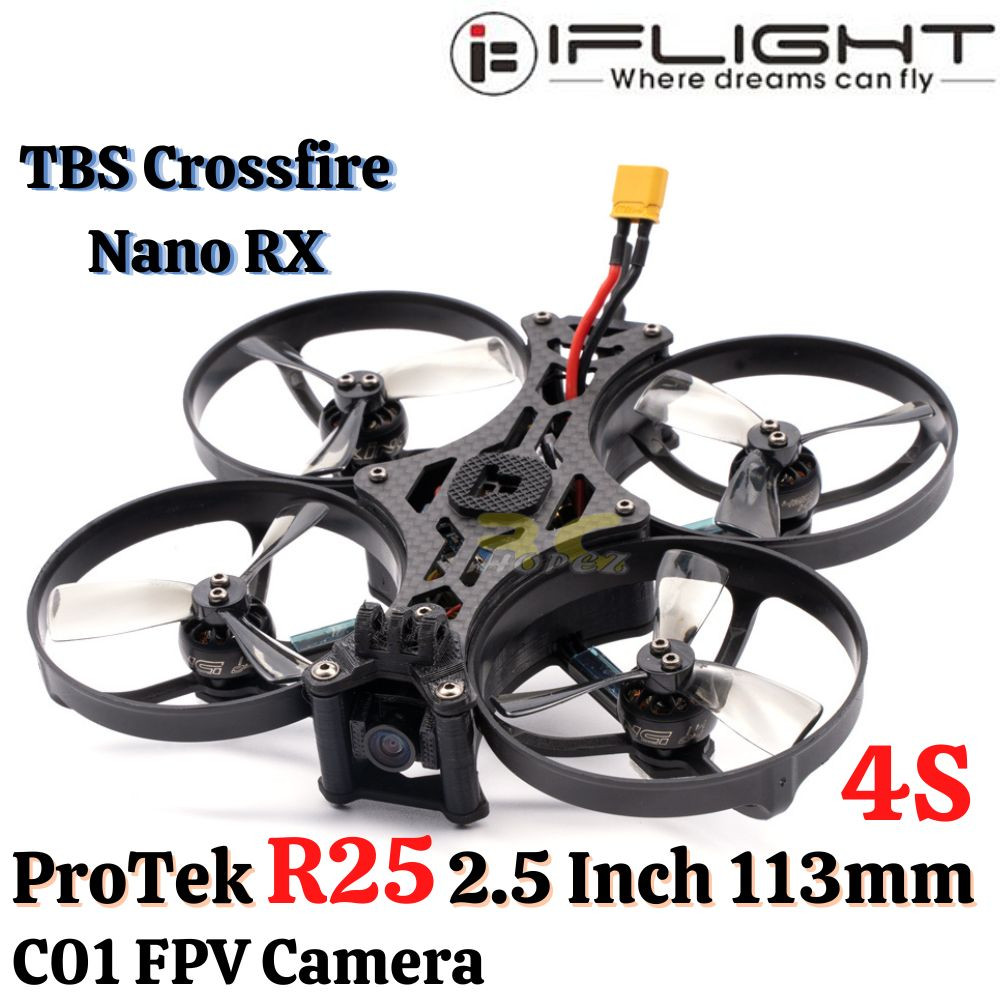

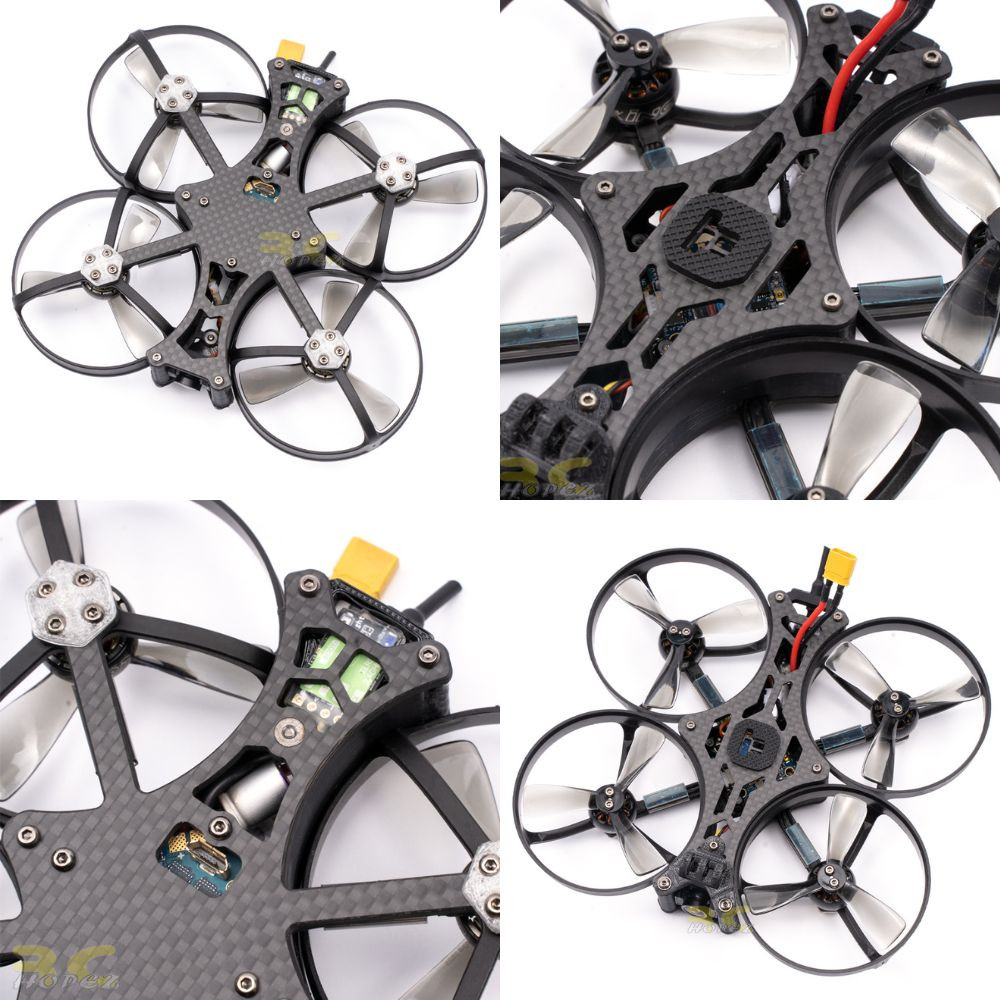

iFlight Protek R25 2.5 Inch 114mm 4S CineWhoop With C01 FPV Camera TBS Nano RX/ELRS 2.4G R25-AN

iFlight Protek R25 2.5 Inch 114mm 4S CineWhoop With C01 FPV Camera TBS Nano RX/ELRS 2.4G R25-AN

Features
ProTek R25 BNF Specs:
*Motor: XING 1404 4600KV

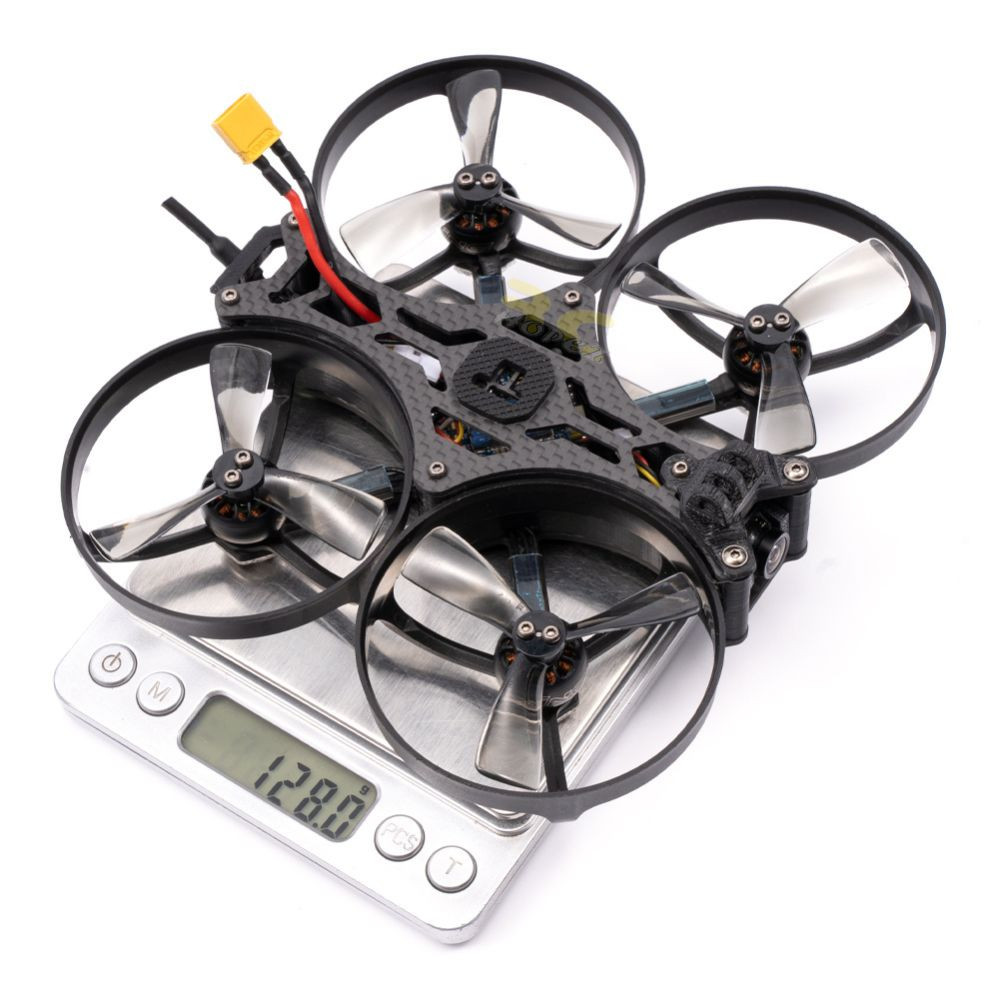

*Weight: 128.0g (without battery)
*Bottom plate thickness: 2.5mm
*Top plate thickness: 1.5mm
*Body Size: 143mm*158mm
*FC pattern: 25.5*25.5mm
*FPV cam spacing: 14mm
*Whoop F4 AIO 1.1
*Propeller size: 2.5 inch
*Arm Thickness: 2.5mm
*Wheelbase: 113mm

Specifications:

AIO//Whoop AIO F4 V1.1 AIO
Mounting pattern: 25.5*25.5mm/φ3mm
Firmware Target: IFLIGHT_F411_PRO
Constant current: 20A，25A (Burst)
Config：IFLIGHT_F411_PRO.config
Connector: Micro-USB
ESC Firmware: G-H-50
Current sensor: yes
BEC output: 5V 2A
ESC Telemetry: NO
Size: 30.5*30.5mm
MCU: STM32F411
BLHeli: BLHeli-S
Barometer: NO
Blackbox: 8MB
Gyro: BMI270
INA pad: nR2
Weight: 7.4g
Input: 2-4S

XING X1404 4600KV Motor
Voltage: 2S-4S
KV: 4600KV
-Configuration: 9N12P
-Stator Diameter: 14mm
-Stator Length: 4mm
-Shaft Diameter:2mm
-Motor Dimensions(Dia.*Len): Φ18.3×12.5mm
-No.of Cells(Lipo): 2-4S
-Max Continuous current(A): 11.8A
-Max Continuous Power(W): 174.6W
-Internal resistance: 0.28Ω
-Weight: 8.5g(without cable)
-Mounting pattern: 9*9*φ2mm
-Bearing: 5*2*2.5mm

SucceX Mini Force 5.8GHz 600mW VTX
Power: PIT/25/200/400mW/600mW
Antenna interface: MMCX
VTX protocol : IRC Tramp
Output 40 channels.
Size: 29*29mm
Mounting pattern: 20*20Φ3/25*25 mmΦ2
Weight: 4g

C01 FPV Camera
Image sensor: 1/4" CMOS sensor
Resolution: 733H*493V, with global WDR
Signal system: NTSC
Lens: 2.1mm (M7) field of view 160°
Signal-to-noise ratio: >45db
Electronic Shutter Speed: Auto
Automatic Gain Control (AGC): Automatic
Minimum Illumination: [email protected]
D-WDR: Automatic
Day/Night: Color
Power supply: DC 3-5.5V
Current: 135mA @ 5V / [email protected]
Shell material: ABS
Size: 11 * 14.5mm
Net weight: 1.4 grams
Red wire: Positive (5V) Black wire: Negative (GND) White wire: Signal wire (VTX)

Additional Suggested Parts (NOT including)
iFlight FPV Goggles with DVR Function
Battery 4S 650-850mAh XT30

-Receiver: ELRS 2.4G / TBS Crossfire Nano RX (Optional)

Package Included:
1 x ProTek R25 AnalogBNF
1 x iFlight Lipo Strap 15*180mm (Color May Vary)
2 x Nazgul 2525 propeller (Set of 4 – Color May Vary)
