Description
iFlight Protek25 2.5 Inch 114mm 4S CineWhoop With RaceCam R1 Camera BNF TBS Nano RX P9162-TBS
Changelog:
26-5-22 : SucceX-D 20A Whoop V3.1 F4 ugraded to V3.2
26-5-22 : Before XING 1404 5500KV motor changed to XING 1404 4600KV
26-5-22 : RunCam Nano2 2.1MM NTSC 4:3 changed to RaceCam R1 Mini 1200TVL 2.1mm 19*19
Features:

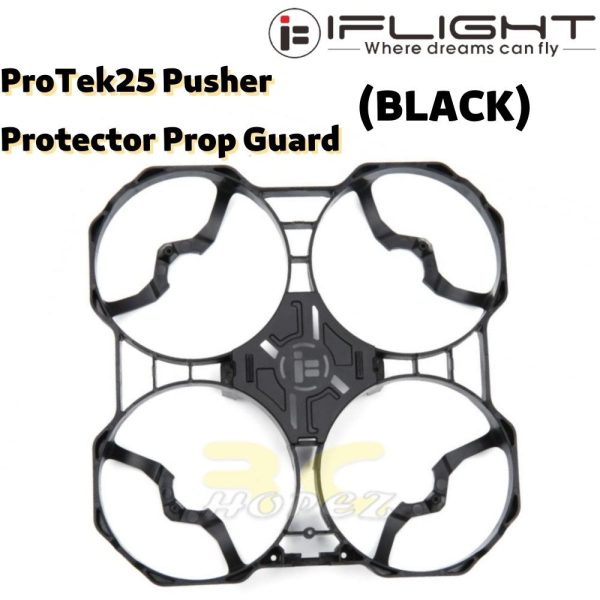

– UPGRADED PROP GUARDS V2.0 (Material optimized)
– No Props or frame in view!
– RaceCam R1 Mini 1200TVL 2.1mm 19*19
– High performance SucceX-D 20A Whoop V3.2 F4 AIO Board to save weight and space
– T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
– Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
– Low Resonance frame construction (Less Jello, more Cinematic footage)
– Better smooth XING 1404 4600KV motors
– Pre-tuned with smooth freestyle settings
ProTek25 BNF Specs:
– SucceX-D 20A Whoop V3.2 F4 AIO
– Motor: XING 1404 4600KV
– Wheelbase: 114mm
– Body Size: 91*68.7mm
– Bottom plate thickness: 3mm
– Top plate thickness: 2mm
– Top and bottom plate spacing: 24mm (aluminum standoff height)
– Propeller size: 2.5 inch
– FC pattern: 25.5*25.5mm / 20*20mmmm
– FPV cam spacing: 20mm
– Weight: 194.3g (without battery)
FC // SucceX-D 20A Whoop V3.2 F4 AIO
Size:30.5*30.5mm
Mounting pattern:25.5*25.5mm/φ3mm
Connector:Micro-USB
MCU:STM32F411
Gyro:MPU6000
Blackbox:16MB
BEC output: 5V 2A
INA pad:nR2
Barometer:no
Constant current:20A,25A(Burst)
Input:2-4S
Current sensor:yes
BLHeli:BLHeli-S
ESC Telemetry:no
Firmware Target:IFLIGHT_F411_PRO
ESC Firmware:G-H-30 BLS
VTX// SucceX Micro Force 5.8GHz 600mW VTX Adjustable
-Power: PIT/25/100/200mW/300mW/600mW
-Mounting pattern: 20*20Φ3/25*25 mmΦ2
-Antenna interface: MMCX
-VTX protocol : IRC Tramp
-Size: 29X29mm
-Weight: 4g
Additional Suggested Parts (NOT including)
iFlight FPV Goggles with DVR Function
Battery 4S 850mAh
-Receiver: TBS Crossfire Nano RX
Includes
Pre-built and tested Quadcopter
1 x ProTek25 Frame
1 x aceCam R1 Mini 1200TVL 2.1mm 19*19
2 x Nazgul 2525 propeller (Set of 4 – Color May Vary)
2 x iFlight Lipo Strap 15*200mm (Color May Vary)
1 x Naked GoPro TPU bottom stand black (Naked GoPro Protector not included)
1 x EVA Cotton Strip
Note:
Battery, GoPro and GoPro mount NOT included
