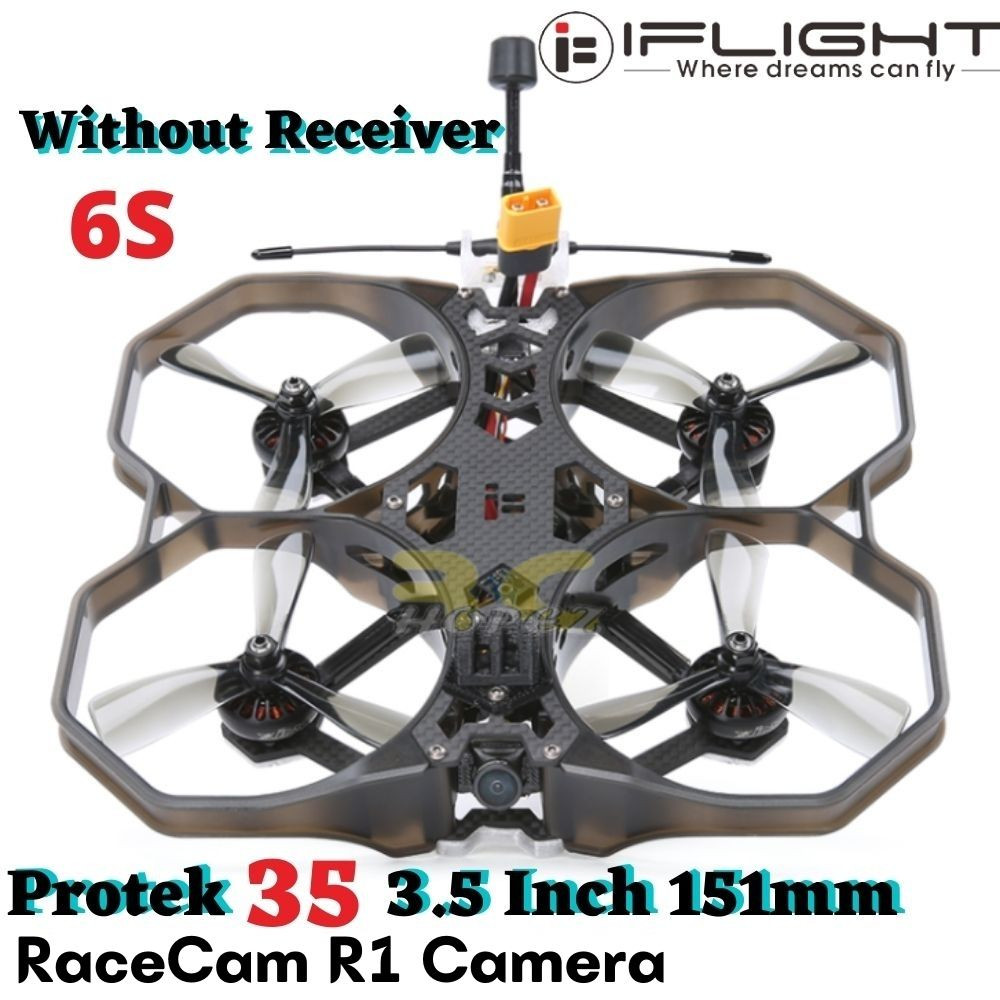

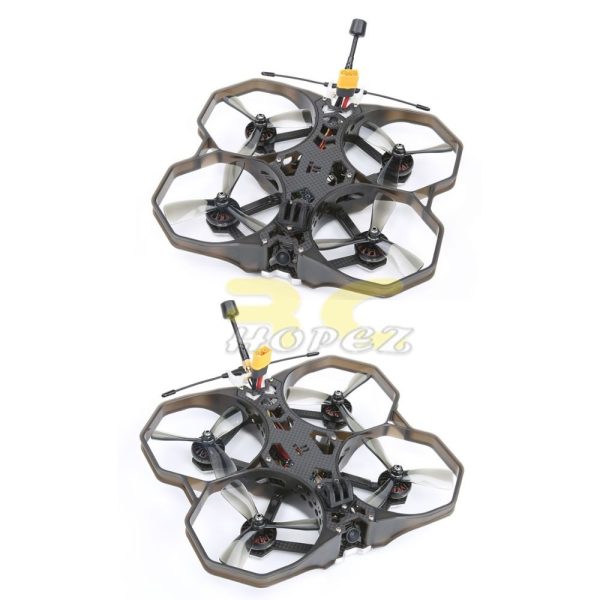

iFlight Protek35 3.5 Inch 151mm 6S CineWhoop With RaceCam R1 Camera PNP Without Receiver P35PNP-6S

iFlight Protek35 3.5 Inch 151mm 6S CineWhoop With RaceCam R1 Camera PNP Without Receiver P35PNP-6S

Changelog:
29/10/21:  RaceCam R1 Micro 1200TVL 1.8mm 14*14 changed to RaceCam R1 Mini 1200TVL 2.1mm 19*19
4/2/22: Upgraded Beast F7 45A to Beast F7 55A V2
15/8/22: Upgraded Beast F7 45A to BLITZ F7 55A AIO

Features:

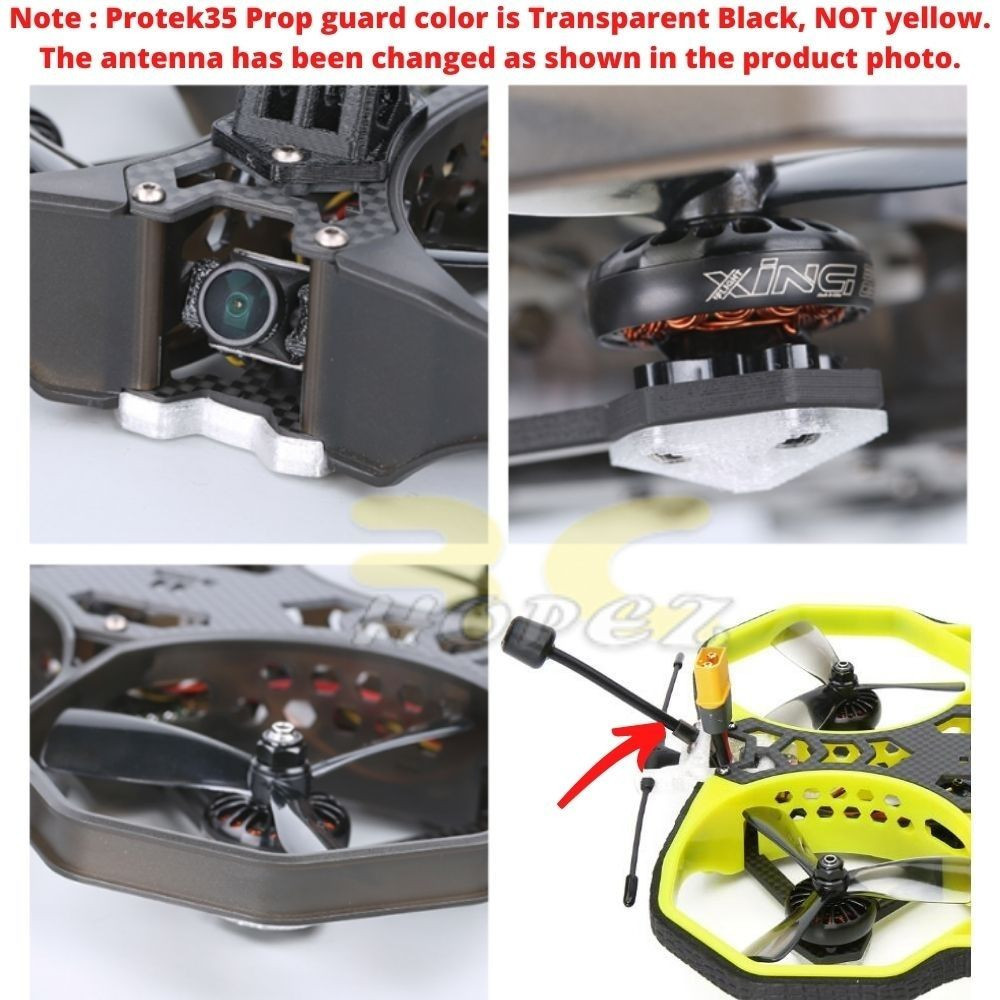

– UPGRADED PROP GUARDS V2.0 (Material optimized)
– No Props or frame in view!
–  High performance True-AIO Board BLITZ F7 55A AIO to save weight and space
– T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
– Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
– Low Resonance frame construction (Less Jello, more Cinematic footage)
– RaceCam R1 Mini 1200TVL 2.1mm 19*19
– Better smooth XING 2205 2300KV (6S) 12x12mm /Φ2 (Black)
– Pre-tuned with smooth freestyle settings

ProTek35 BNF Specs:

– Board BLITZ F7 55A AIO

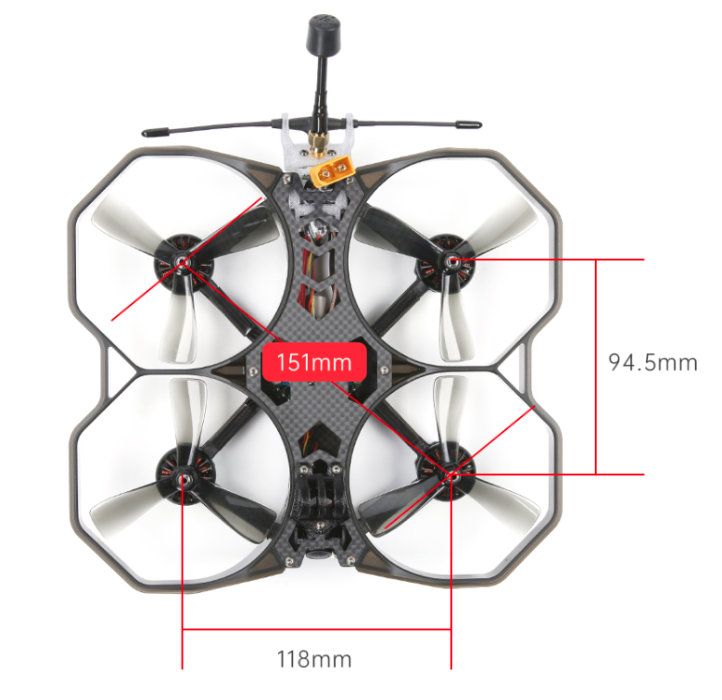

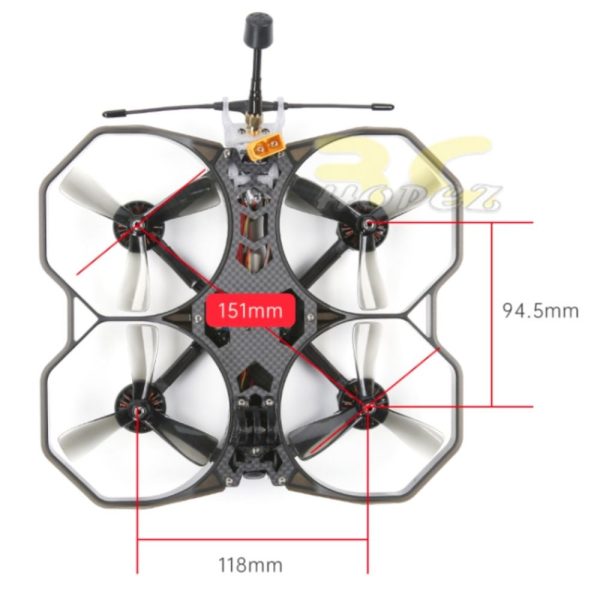

– Wheelbase: 151mm
– Body Size: 118*94.5mmmm
– Bottom plate thickness: 3.5mm
– Top plate thickness: 2mm
– Top and bottom plate spacing: 20mm (aluminum standoff height)
– Propeller size: 3.5 inch
– FC pattern: 25.5*25.5mm / 20*20mmmm
– FPV cam spacing: 20mm

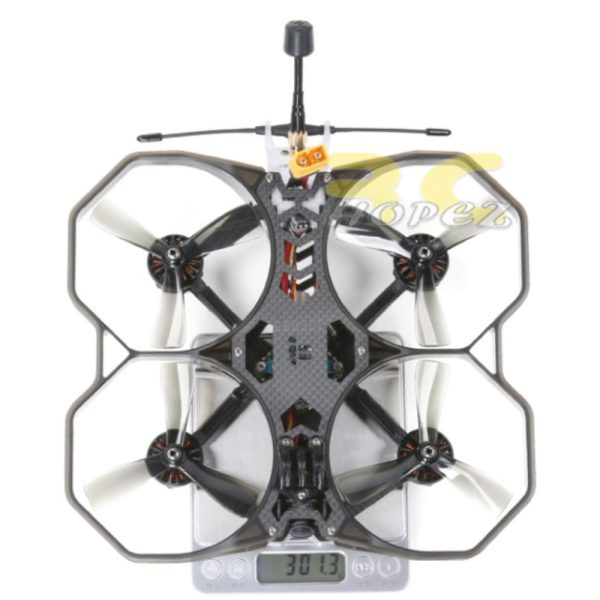

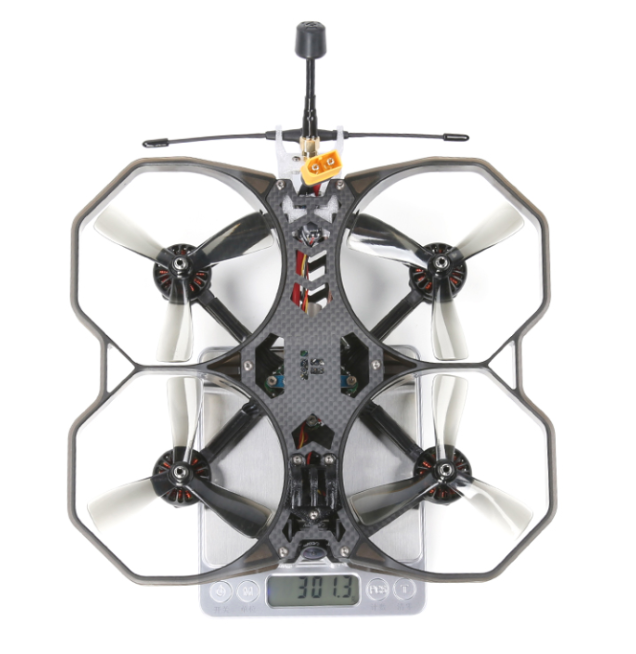

– Weight: 305g (without battery)

BLITZ F7 55A AIO
FC MCU: BGA-STM32F745 216MHz
Gyro: BMI270
OSD: IFLIGHT OSD (AT745E)
BEC: 5V 2.5A
Blackbox: 16Mb Onboard Flash
Baro: DPS310
Uart: 5*UART (UART1, UART2, UART3, UART4, UART7), (5 groups of hardware interface, 8 groups of software support)
Uart: 5*UART (UART1, UART2, UART3, UART4, UART7), (5 groups of hardware interface, 8 groups of software support)
UART1 for Free
UART2 for VTX HD/Analog Telemetry
UART3 for Receiver
UART4 for Free
UART7 for Free
(Free can be used by serial ports for GPS, receiver and other functions)
4*Dshot/PWM outputs
2*I2C
1*SH1.0 7pin connector for VISTA/Receiver (BAT/GND/T1/R1/GND/R2/5V)
1*0202 RGB LED
Smartaudio & IRC Tramp VTX protocol supported
WS2812 led Strip: Yes
Bepper: Yes
Voltage input: 2-6S
Outer size: 32.5*32.5mm
Hole size: 25.5*25.5mm/φ3mm
USB Type: Micro-USB
Weight: 8.5g
ESC current support: 55A (continuous), 60A (instantaneous)
ESC MCU: 8BB21
Current sensor: Yes
BLHeli: BLHeli-S
Telemetry: no
FC Firmware: IFLIGHT_F745_AIO
ESC Firmware: G-H-50 BLS

VTX// 5.8GHz SucceX Micro 600mW VTX (Adjustable)
-Power: PIT/25/200/400mW/600mW
-Antenna interface: MMCX
-VTX protocol : IRC Tramp
-Size: 29*29mm
-Mounting pattern: 20*20Φ3/25*25 mmΦ2
-Weight: 4g

Additional Suggested Parts (NOT including)
iFlight FPV Goggles with DVR Function
Battery 6S 95C 1300mAh

PNP Version: Without Receiver

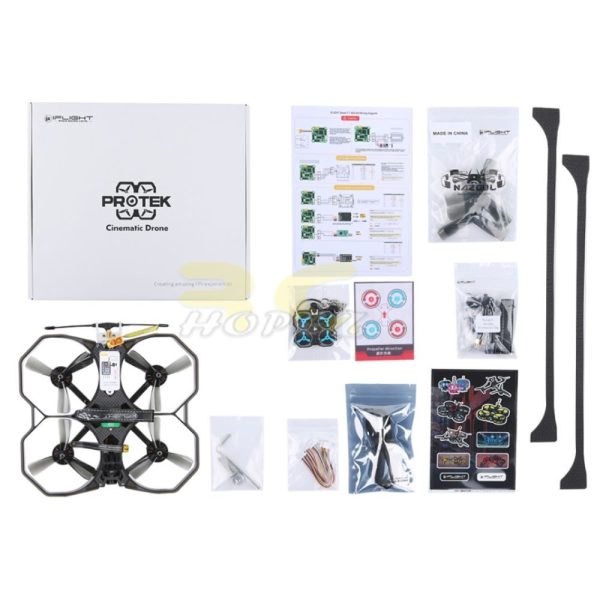

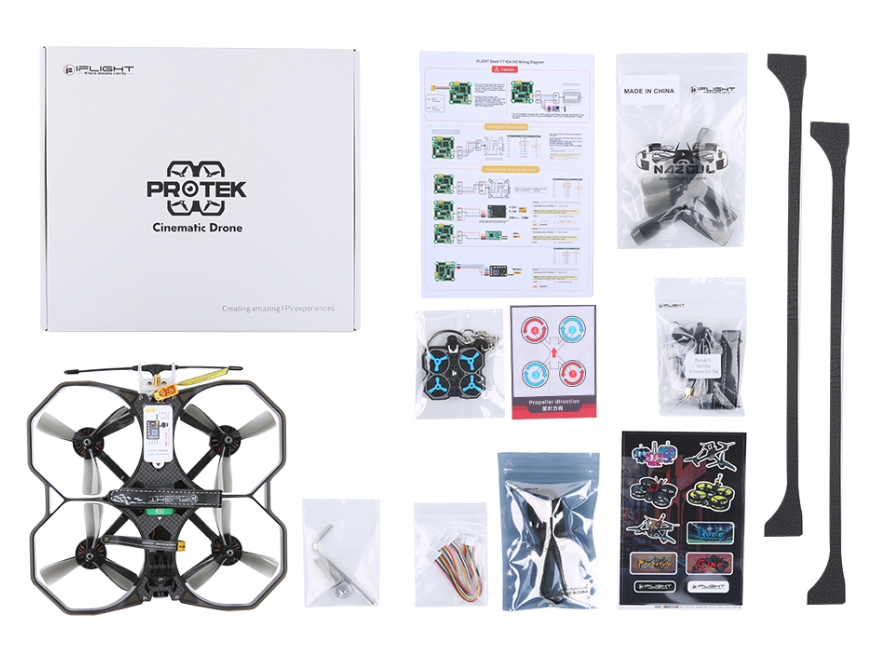

Includes
Pre-built and tested Quadcopter
1 x ProTek35 Frame V1.2 Version
1 x RaceCam R1 Mini 1200TVL 2.1mm 19*19
2 x TPU camera side plate soft mount
2 x Nazgul 3535 propeller (Set of 4 – Color May Vary)
1 x iFlight Lipo Strap 15*150mm (Reports Color May Vary)
1 x iFlight Lipo Strap 15*250mm (Color May Vary)
1 x GoPro TPU bottom stand black (GoPro Protector not included)
1 x EVA Cotton Strip

Note:

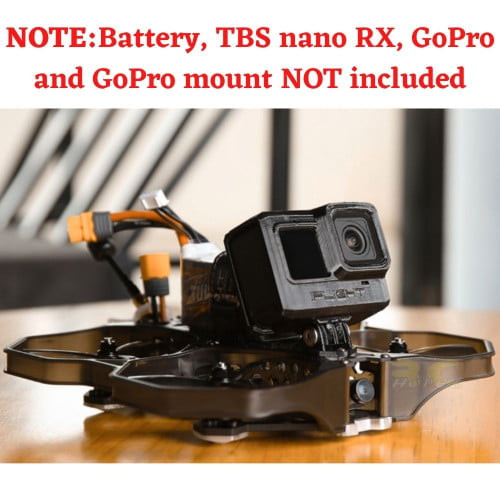

Battery, TBS nano RX, GoPro and GoPro mount NOT included
