iFlight SucceX Force 5.8g 48CH PIT/25mW-800mW Adjustable VTX with MMCX to RP-SMA Adapter Cable for FPV MX8824-R

iFlight SucceX Force 5.8g 48CH PIT/25mW-800mW Adjustable VTX with MMCX to RP-SMA Adapter Cable for FPV MX8824-R



PRODUCT DESCRIPTION
Features:





– The output power is stable;





– Transmit power 4 gear switch: 25mW/200mW/400mW/800mW;





– Output 48 channels.





– Frequency lock fast, the boot does not interfere with companions;





– Built-in output power self-check function;





– Full format video format: NTSC /PAL;





– Wide input voltage range. low power consumption:





7V～36V，+12V/380mA@800mW;

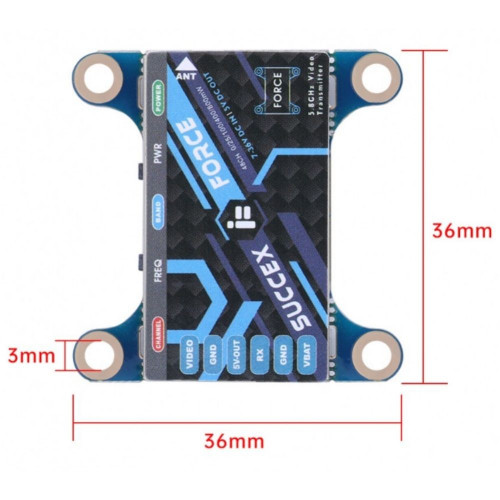

– Small size:36*36*3mm





– Mounting holes 4-M3

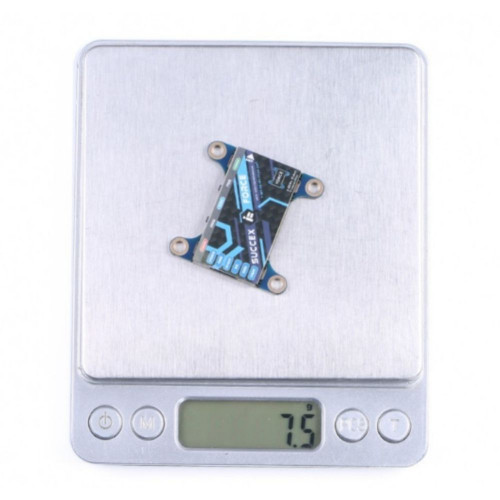

– Lightweight: 7.2g(excluding antenna)





Specs:





– Item: SucceX-Force 800mW adjustable VTX





– Input voltage: 5V





– Output voltage/ Max current: 5V 1A





– 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@500mW, 380mA@800mW





– Channel: 48





– size:36*36*3mm





– PIT/25mW/200mW/400mW/800mW





– MMCX to RP-SMA Adapter Cable





Package included:





– SucceX-Force 800mW adjustable VTX x 1 pc





– Cables x 1 set
