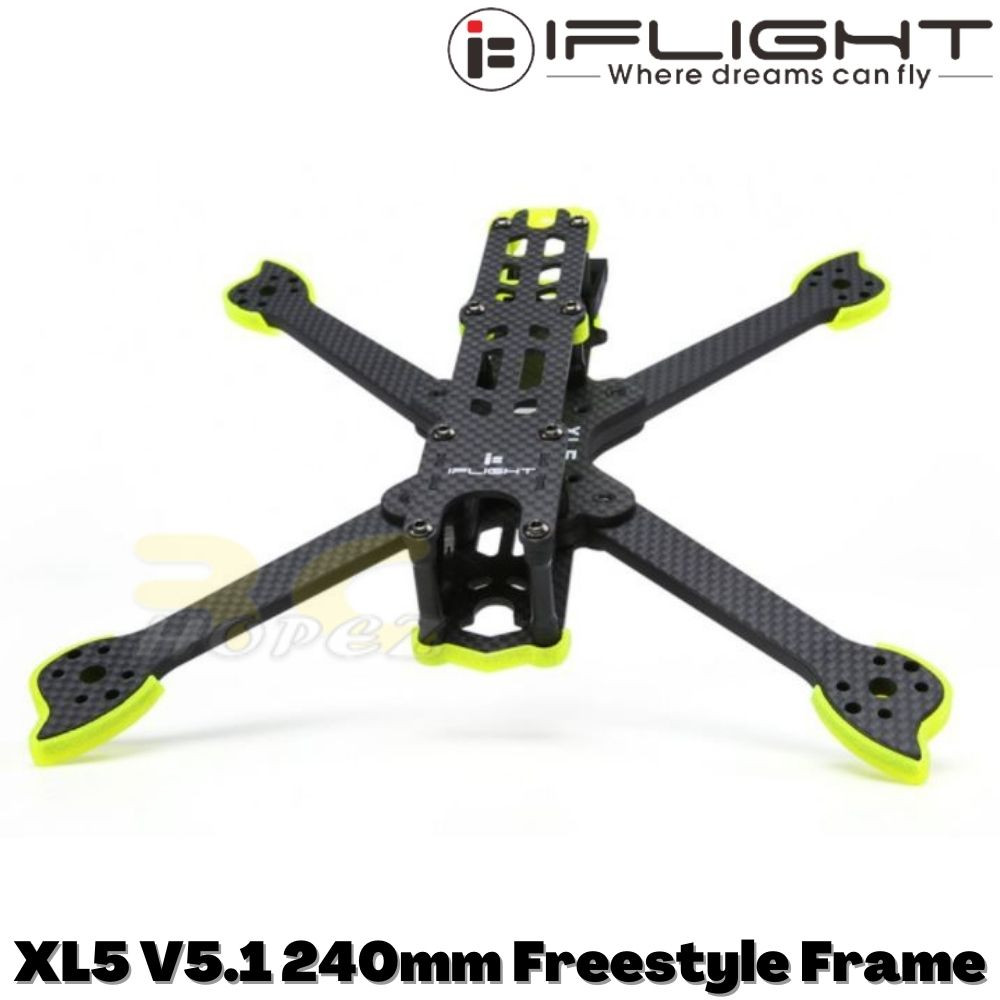

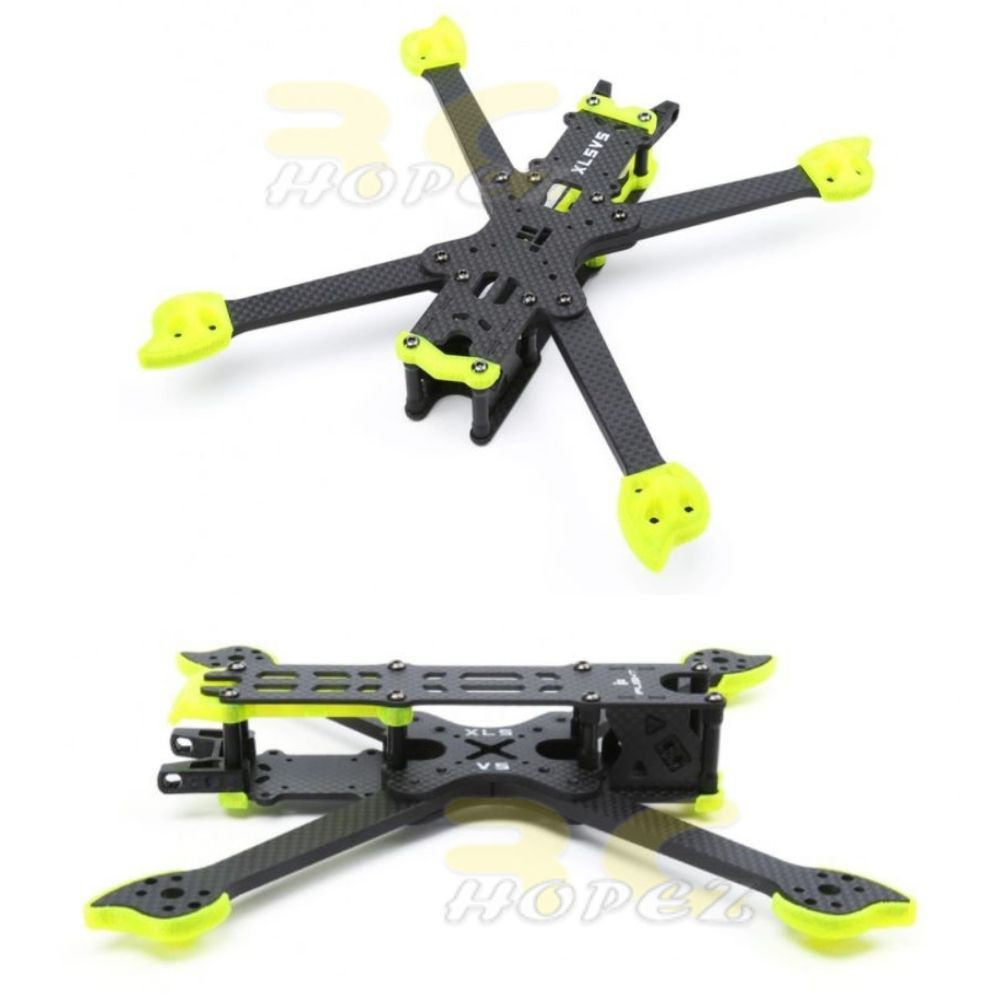

iFlight XL5 V5.1 True X 240mm Carbon Fiber FPV Freestyle Frame Kit MX8571

iFlight XL5 V5.1 True X 240mm Carbon Fiber FPV Freestyle Frame Kit MX8571

Note: V5.1 comes with LED hole .

PRODUCT DESCRIPTION
It's proud to announce the release of the XL series V5 Frames, XL5 V5.1 is a 5" size quadcopter , fit for the Caddx Digital FPV system on it.

The main advantages of the XL series V5  are in the flight performance, the stronger and thick arms. The XL series V5.1 frames fly balanced because of the true X configuration and wide stance. This main changings makes flight stability in the air.

Features:

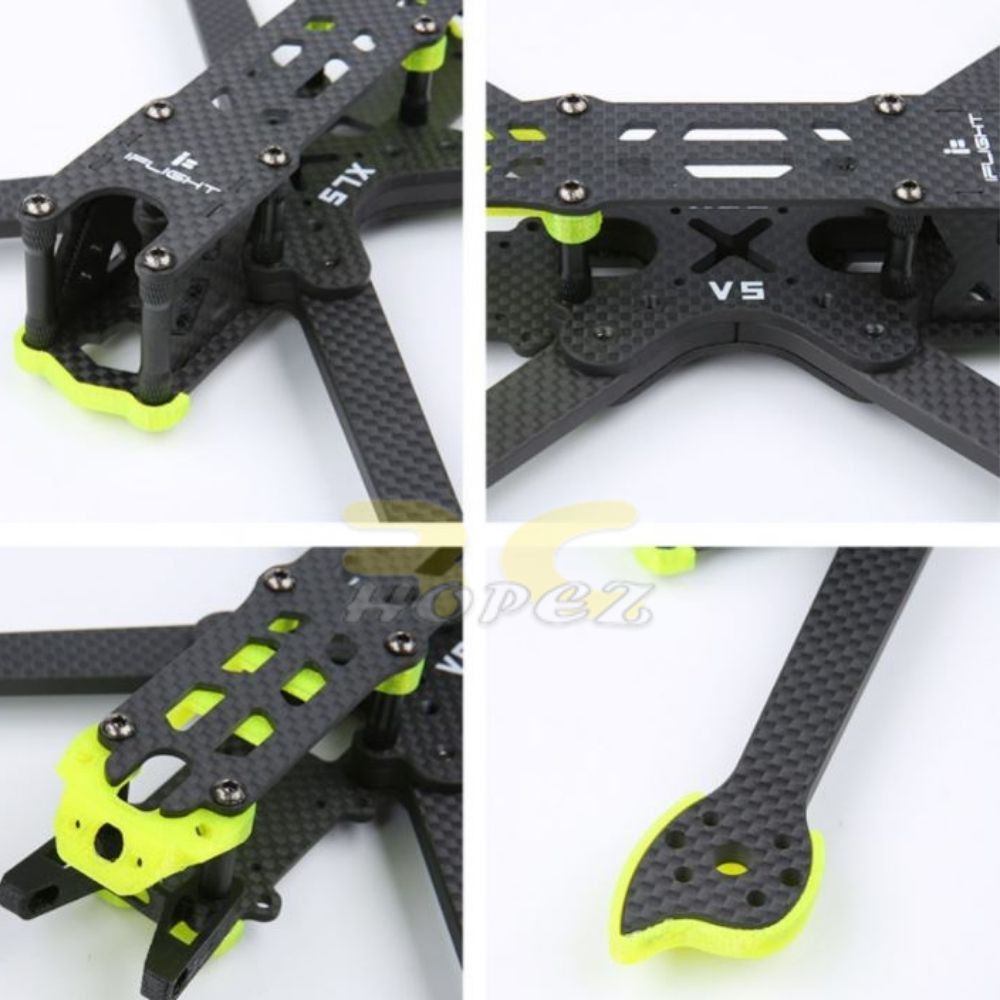

– 5mm arm design for more durability
– Easy-Swap arms
– Popular True-X configuration
– Fit for the 22xx 23xx motors
– TPU crash-guards
– Fits both 30.5x and 20x stacks
– Motors with LED can be installed

XL5 V5 frame specs:

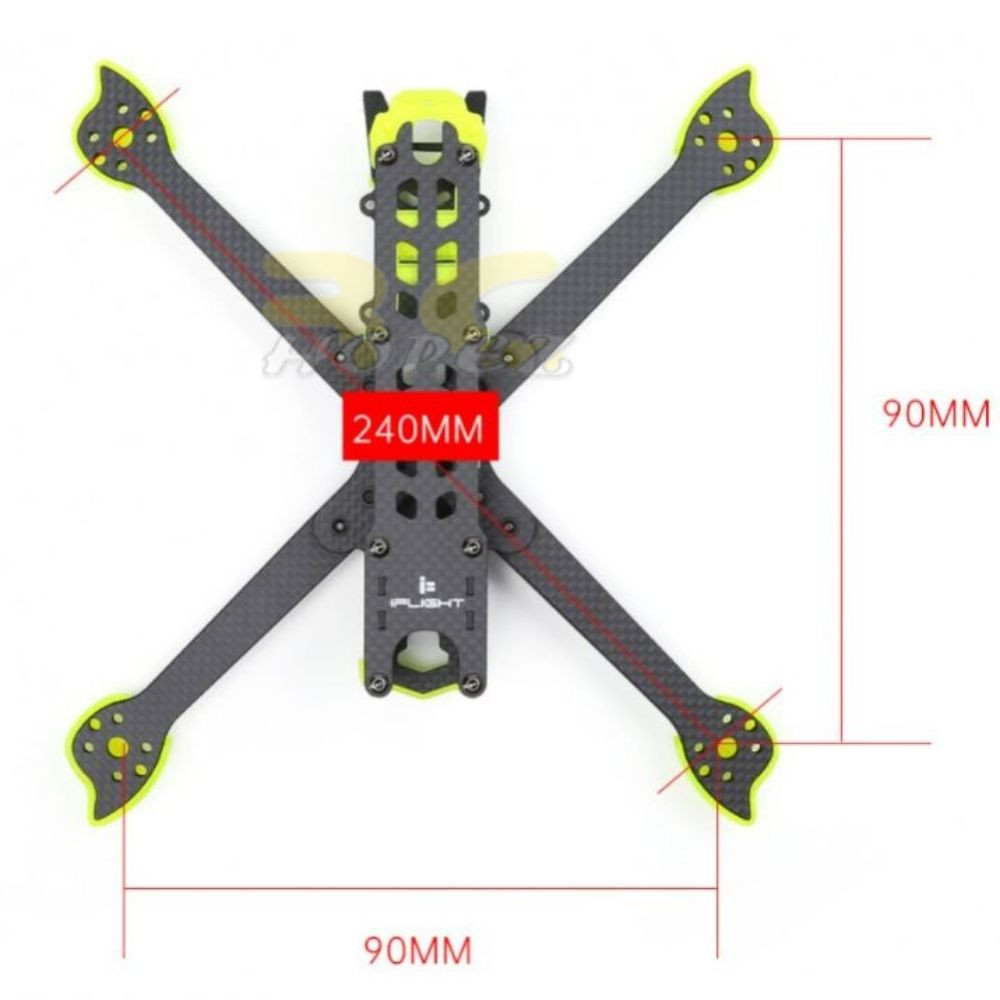

Wheelbase:   240mm*240mm
Body size: 170*170mm
Propeller size: 5 inch /5.1 inch
FC pattern: 30.5*30.5/20*20 mm
FPV cam spacing: 19mm
Motors: 22xx 23xx

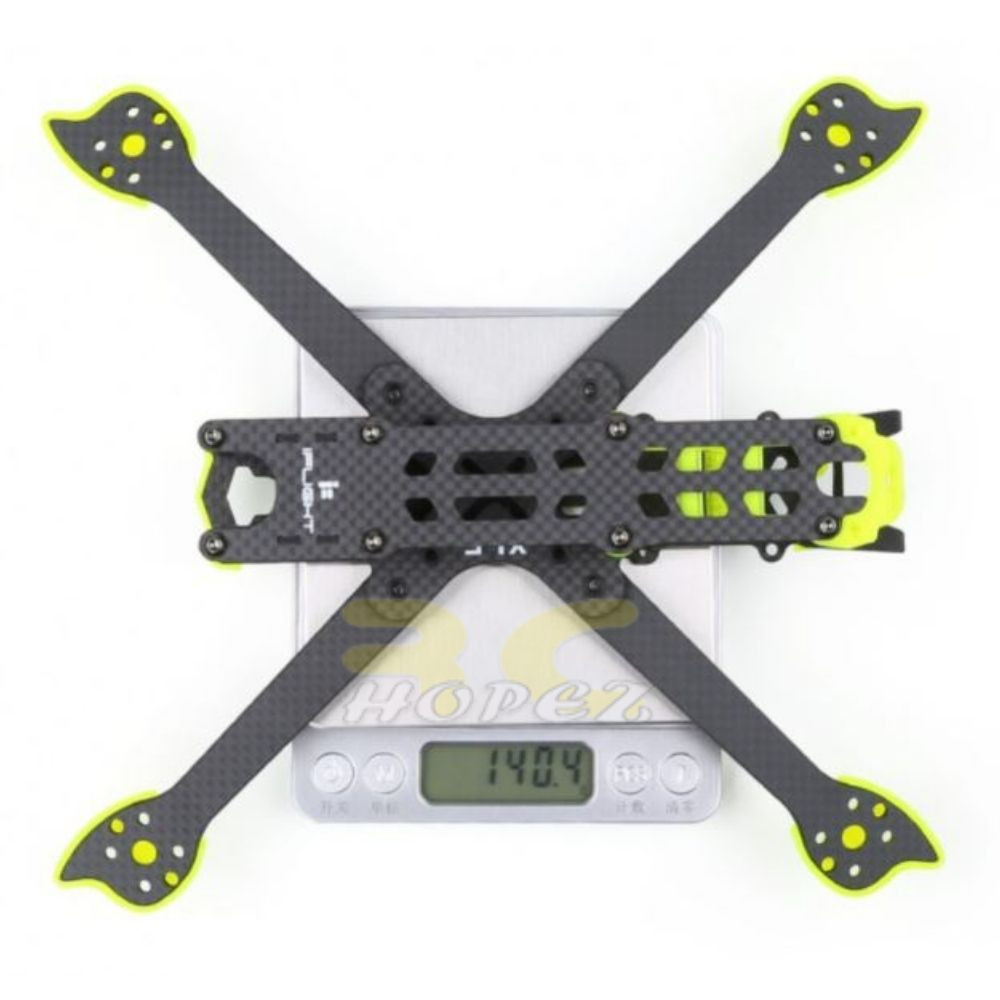

Weight: 146.9g (with TPU parts)

Recommended parts (NOT Included):
SucceX-E F4 45A flight stack
XING-E 2207 FPV Motor （6S 1800kv / 4S 2750kv)
Nazgul 5140 props
GoPro Mount

Package Included:
1set x iFlight XL5 V5.1 frame
1pack x screws
1set x TPU Camera mount adapters
1pc x TPU VTX antenna mount
2pcs x battery anti-slip mat
2pcs x battery straps (the color will be shipped randomly)

NOTE: GoPro mount do not included.
