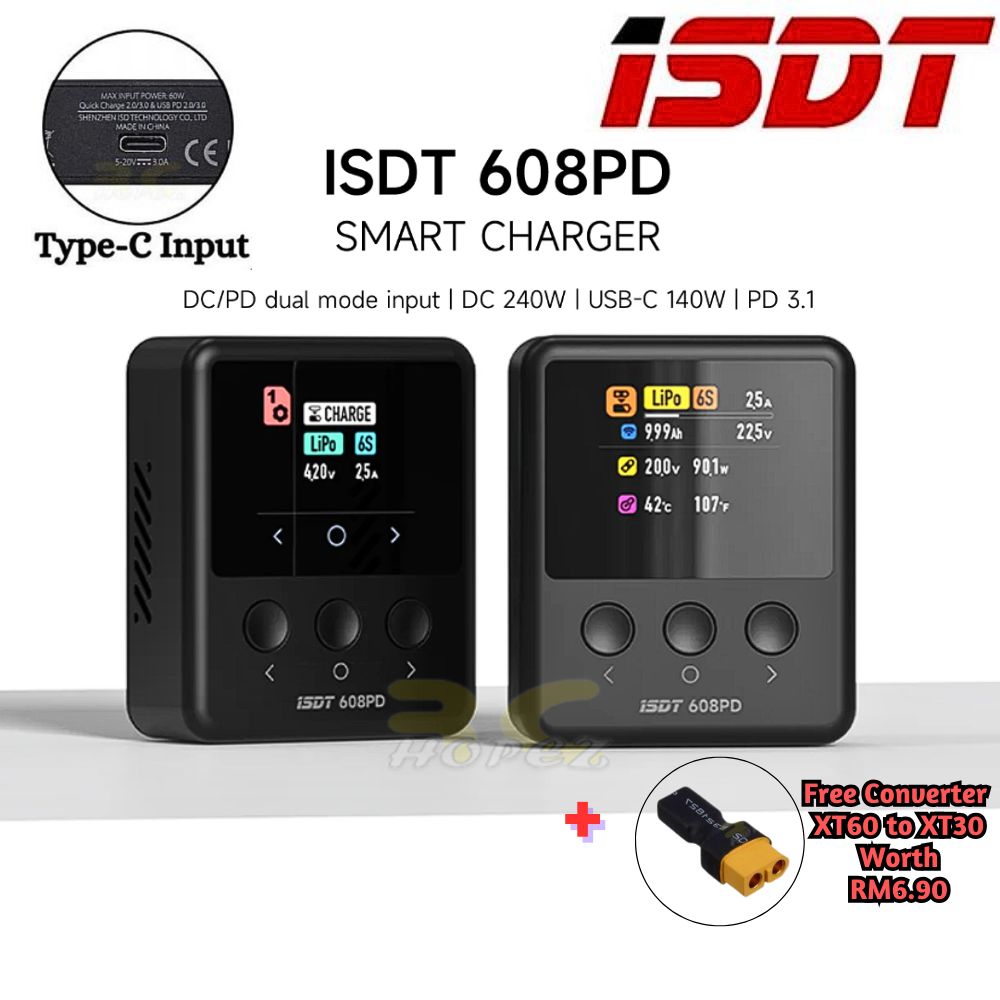

ISDT 608PD 240W 10A Smart Digital Lipo Charger XT60 USB Type C Input For 1-6S Battery + Free XT60 to XT30 ISDT-608PDN

ISDT 608PD 240W 10A Smart Digital Lipo Charger XT60 USB Type C Input For 1-6S Battery + Free XT60 to XT30 ISDT-608PDN

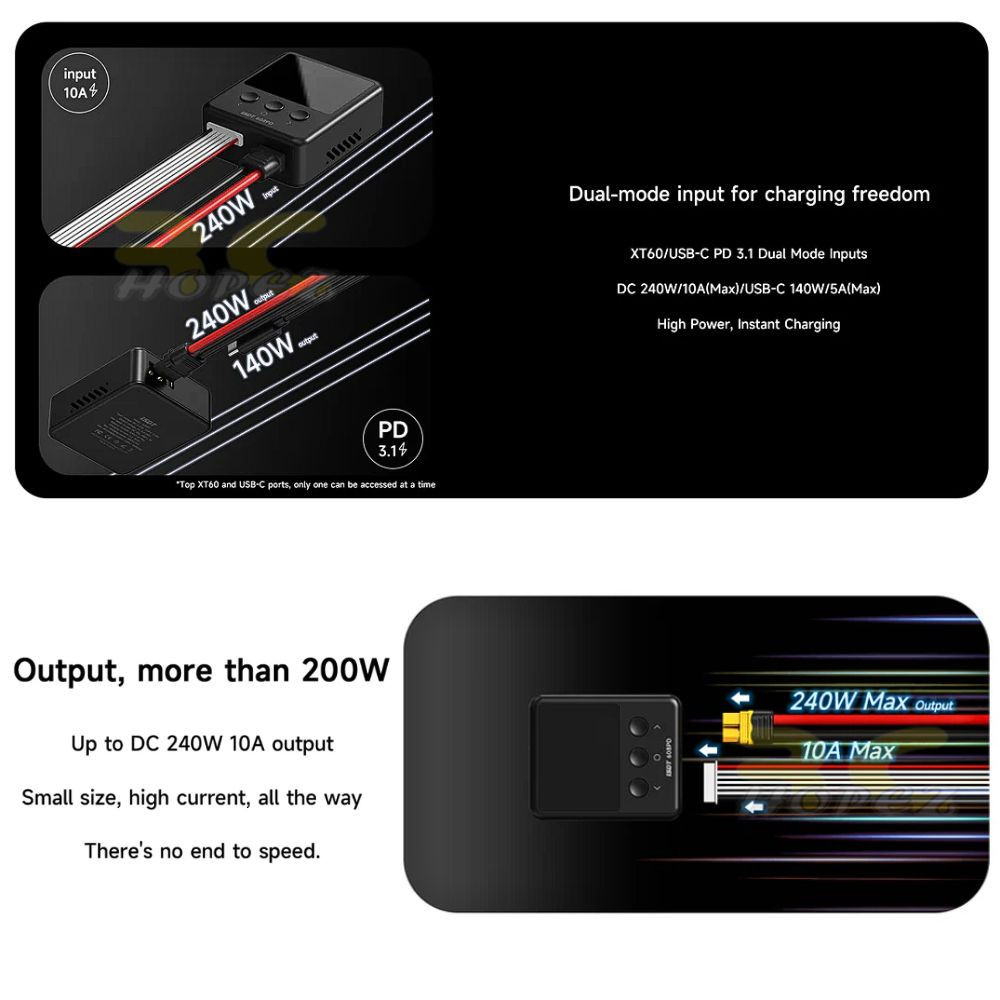

New generation of pocket chargers：DC 240W high power / max 10A output with USB C 140W/5A max output,meet your multi-scenario high power for Lipo battery charger needs.

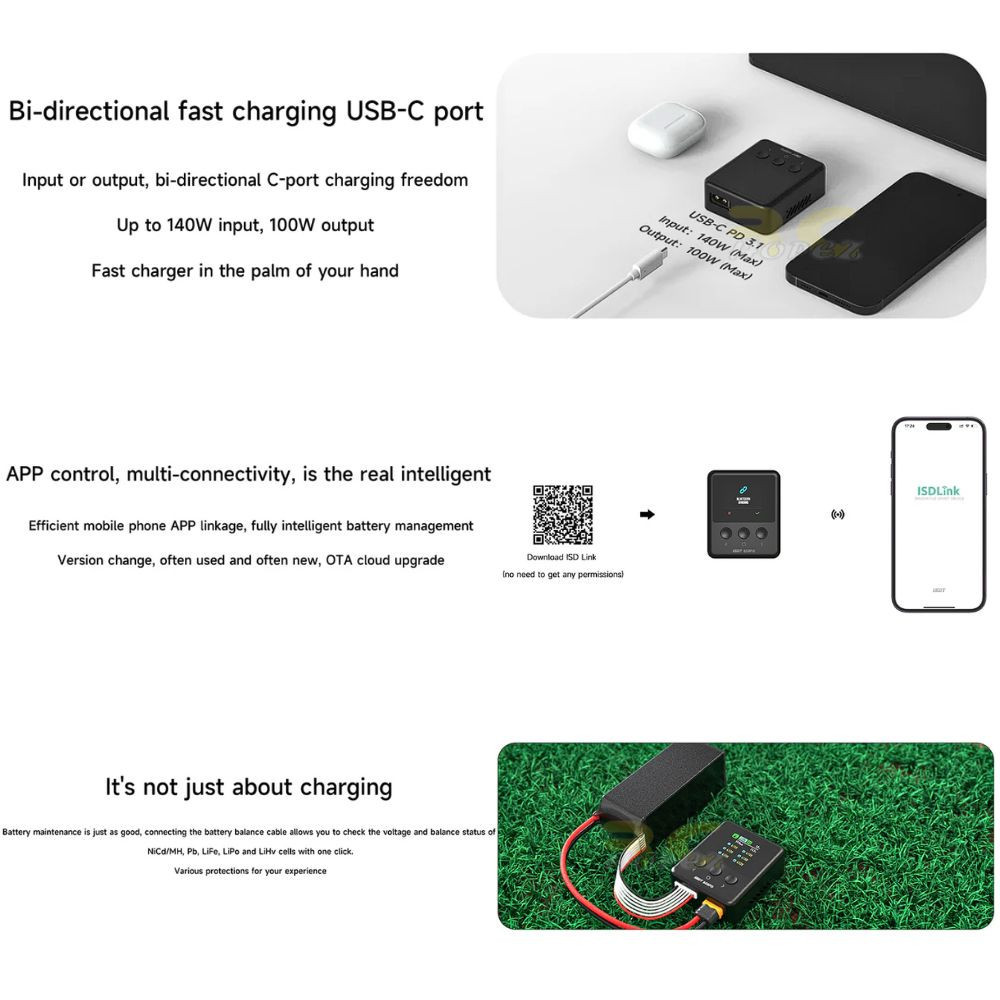

Truly intelligent charger: Support APP connection, fully intelligent battery management, one-click view of battery parameters and charging status.

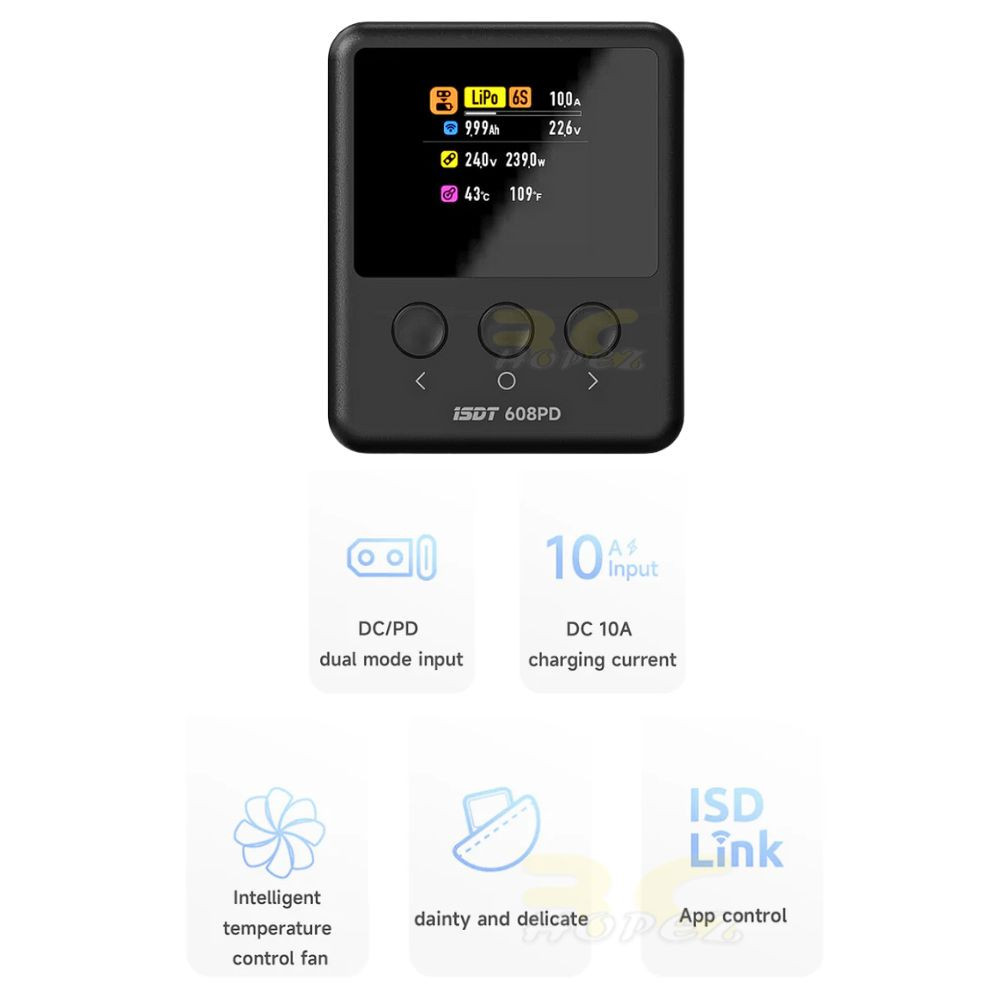

IPS screen：Low power consumption, 1.5 inch IPS screen, automatic brightness adjustment, viewing angle 178°, clear and clear display, even in difficult environments or angles, even in strong sunlight.

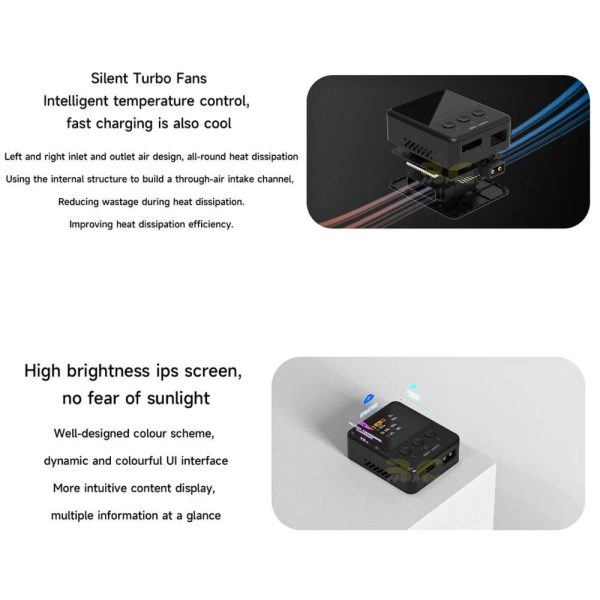

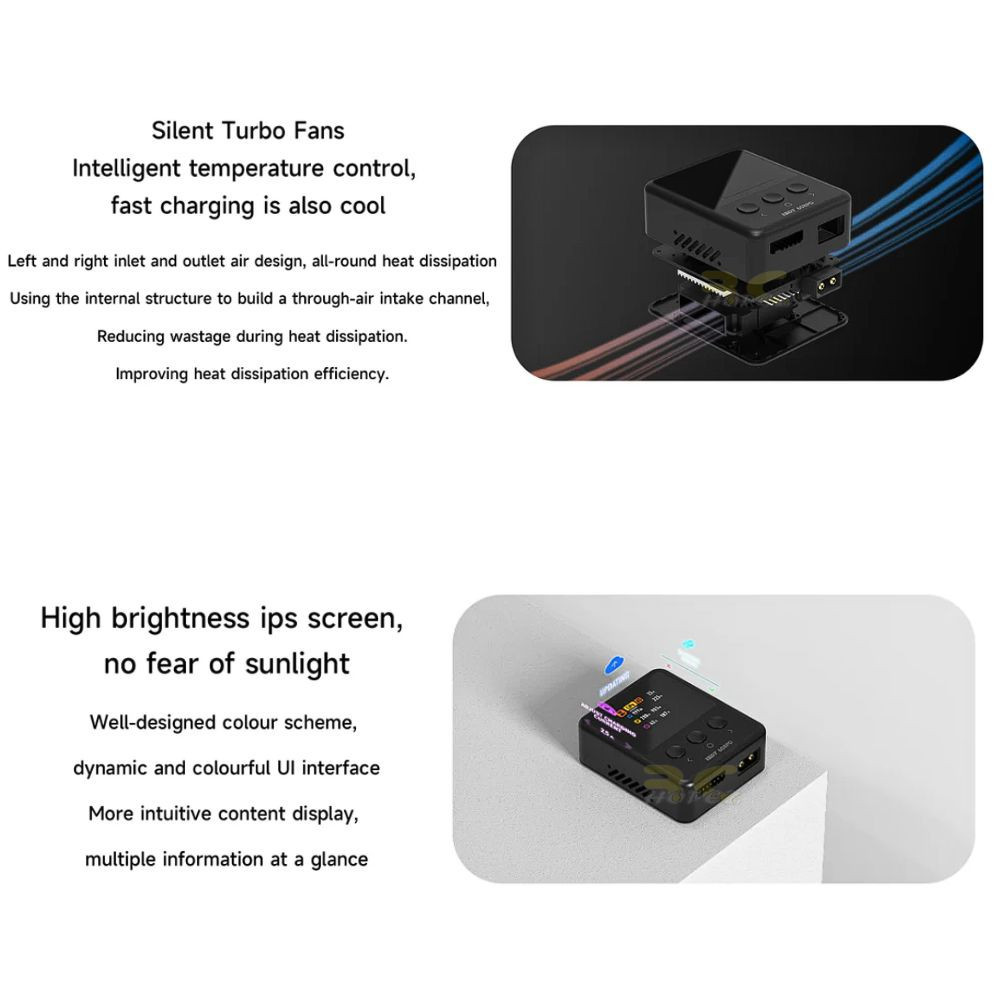

Powerful cooling system：Advanced artistic cooling air duct, active design of the cross flow cooling air duct, initiator ball bearing fan, with precisely engineered aluminium alloy fins and hi-tech silicon heat conducting pad, construction of a highly efficient heat dissipation system.

Universal charger: Supports charging and discharging for most batteries, including: LiFe, LiPo, LiHv (4.35V~4.50V) 1-6S/Pb 1-12S/NiMH 1-16S, etc.

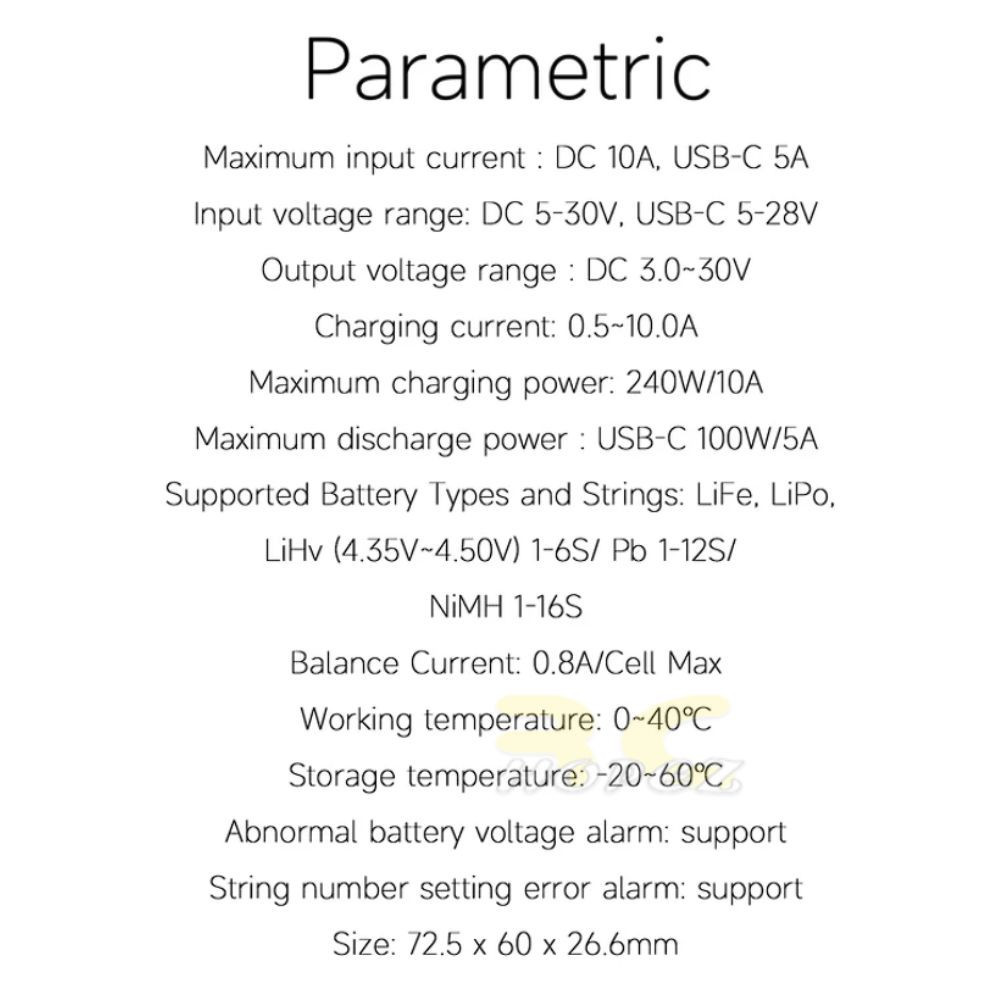

Specification:
Model No: ISDT 608PD
Input voltage: DC 5-30V, USB-C 5-28V
Output voltage: DC 3.0~30V
Max Input Current: DC 10A,USB-C 5A
Charging Current: 0.5~10.0A
Max Charging Power: 240W/10A,140W/5A
Maximum Discharge Power: USB-C 100W/5A
Balance Current: 0.8A/Cell Max
Support Quick-Charge: PD2.0/3.0,QC 2.0/3.0 (Not supported 5V/1A power supply input)
Support Battery Type and Series: LiFe,LiPo,LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S
Operating Temperature: 0~40℃ Storage Temperature: -20~60
Abnormal Battery Voltage Alarm: Support
Alarm for String Number Setting Error: Support
Dimension: 72.5×60×26.6mm
Weight: 85g(±10%)

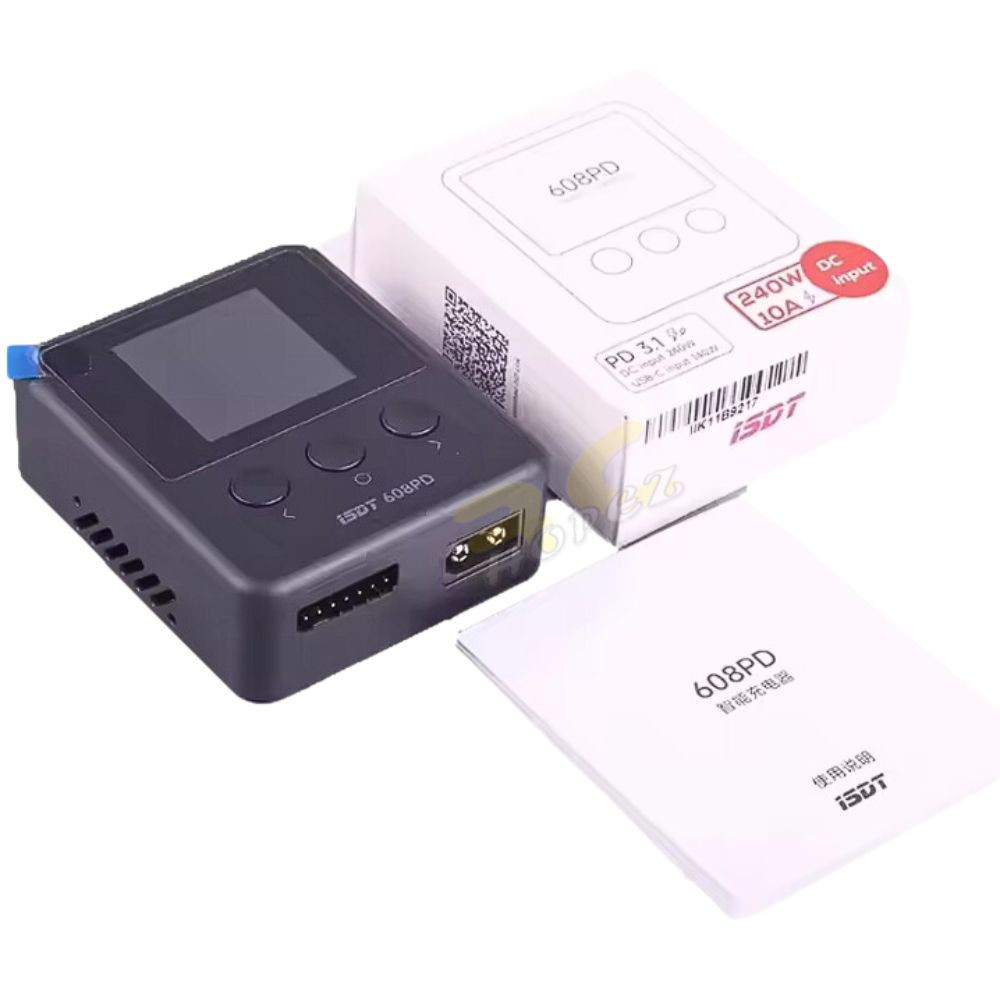

Packaging included :

1 x ISDT 608PD 240W 10A Smart Digital Lipo Charger
1 x Free Converter XT60 to XT30
