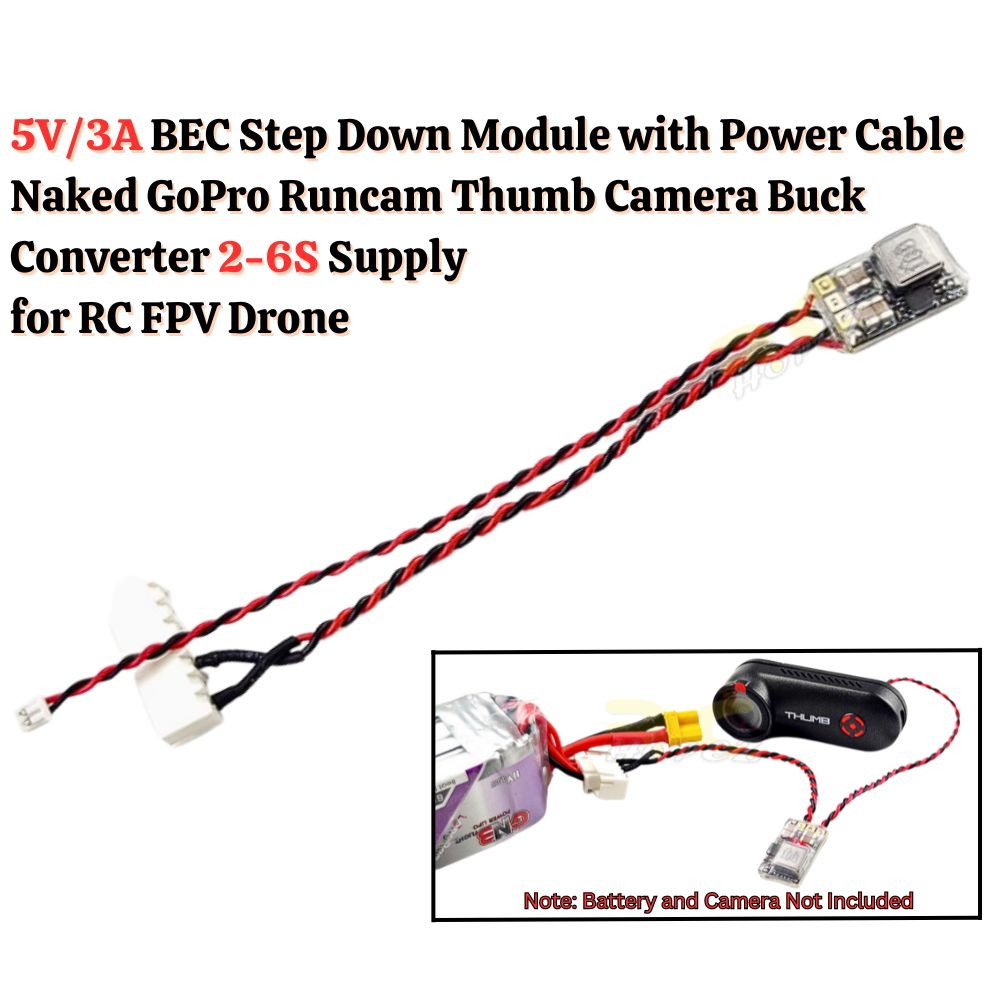

Naked GoPro Runcam Thumb Camera Buck Converter 2-6S 5V/3A BEC Step Down Module with Power Cable for RC FPV Drone XJ561

Naked GoPro Runcam Thumb Camera Buck Converter 2-6S 5V/3A BEC Step Down Module with Power Cable for RC FPV Drone XJ561

Specification:
Item name: BEC step down module,buck converter
Input voltage: 2-6S
BEC output: 5V/3A
Connector: PH1.25
Size: 16mm x 10mm x 1.5mm
Wire length: 5cm
Weight: 3g(with power cable);1.6g(only buck module)
Used for FPV drone thumb camera GoPro

Usage:
1.This 5V power supply step-down module is suitable for 5V power supply equipment such as thumb camera/PRO; when short connected to 10V, it can be used for high-power 10V equipment such as naked GoPro 8.

2.It adopts switching step-down and high-efficiency synchronous rectification, which can step down from an input voltage as high as 22V to a low output stable voltage, which is very suitable for applications that require step-down.

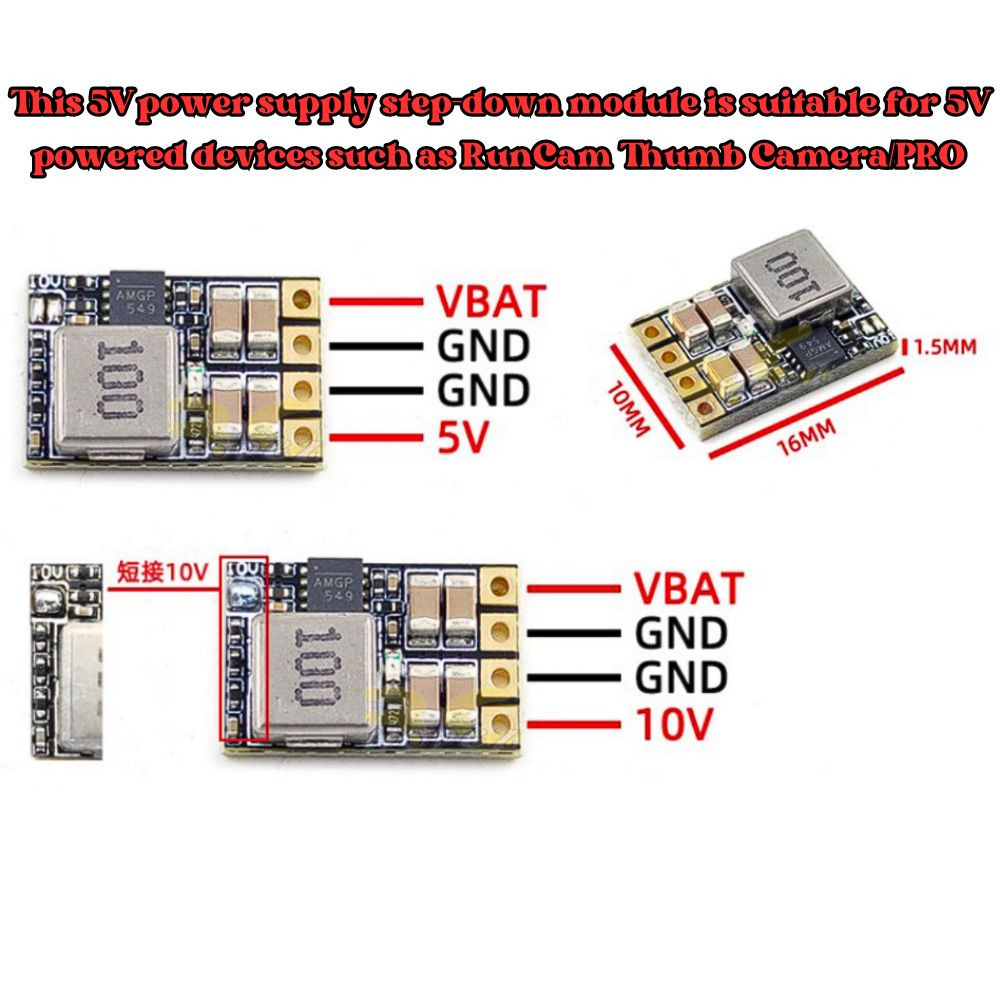

3.Voltage output 5V/10V adjustable, when the short interface is short-connected, the output voltage is 10V 2A, when disconnected, the output voltage is 5V 3A.

Note:

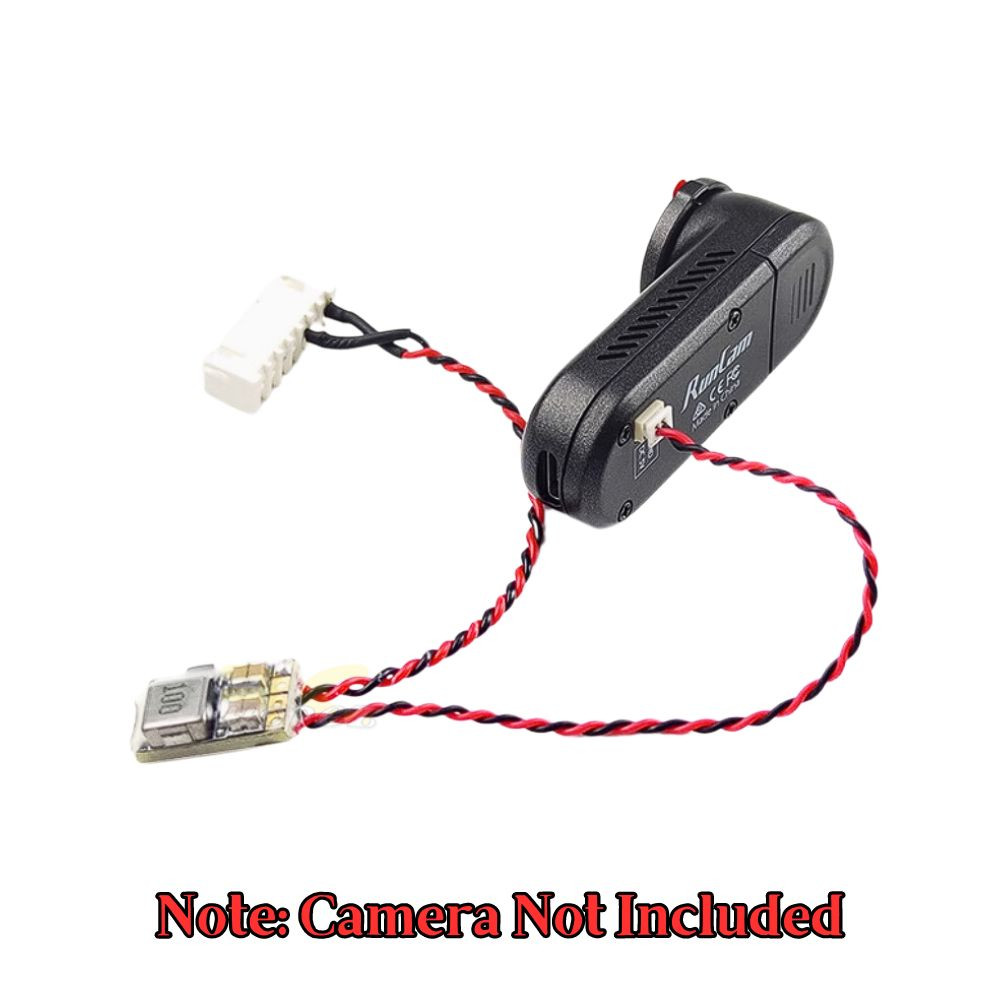

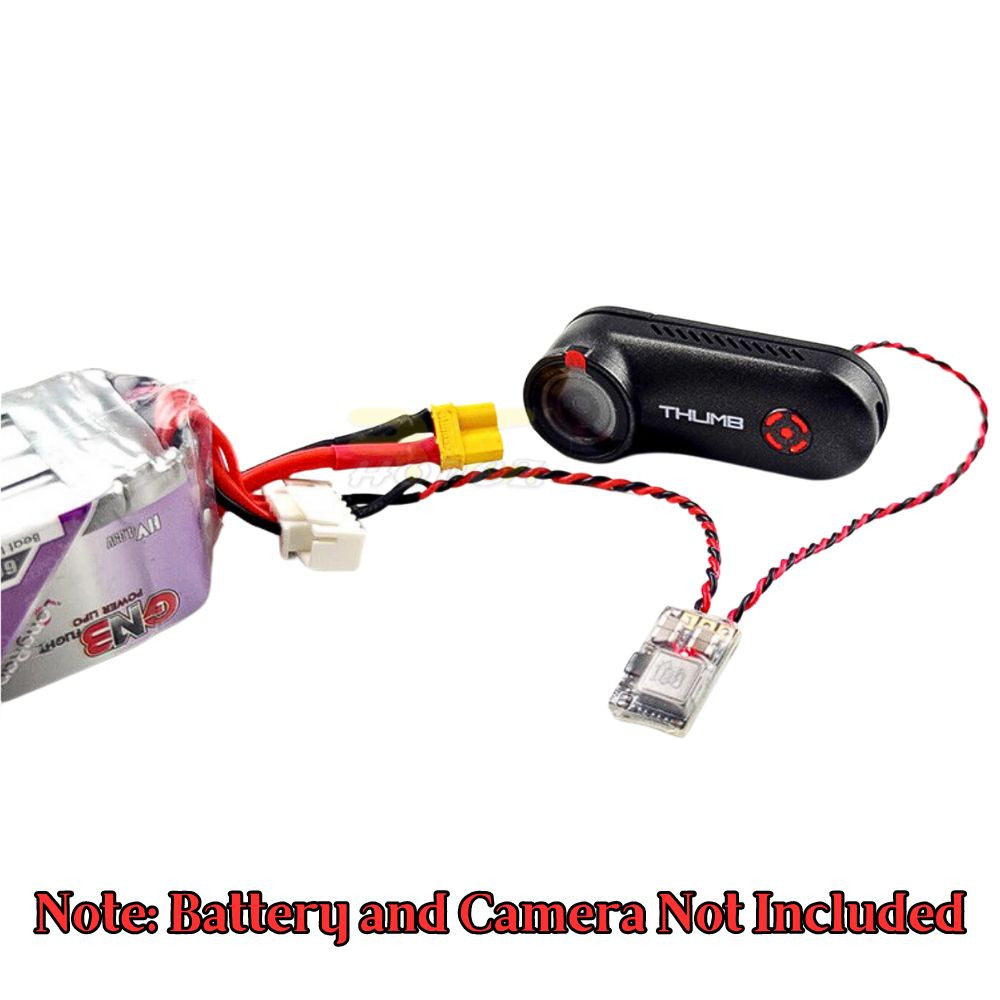

1.The battery and camera will not include.
2.Due to manual measurement the size may have slightly deviation.

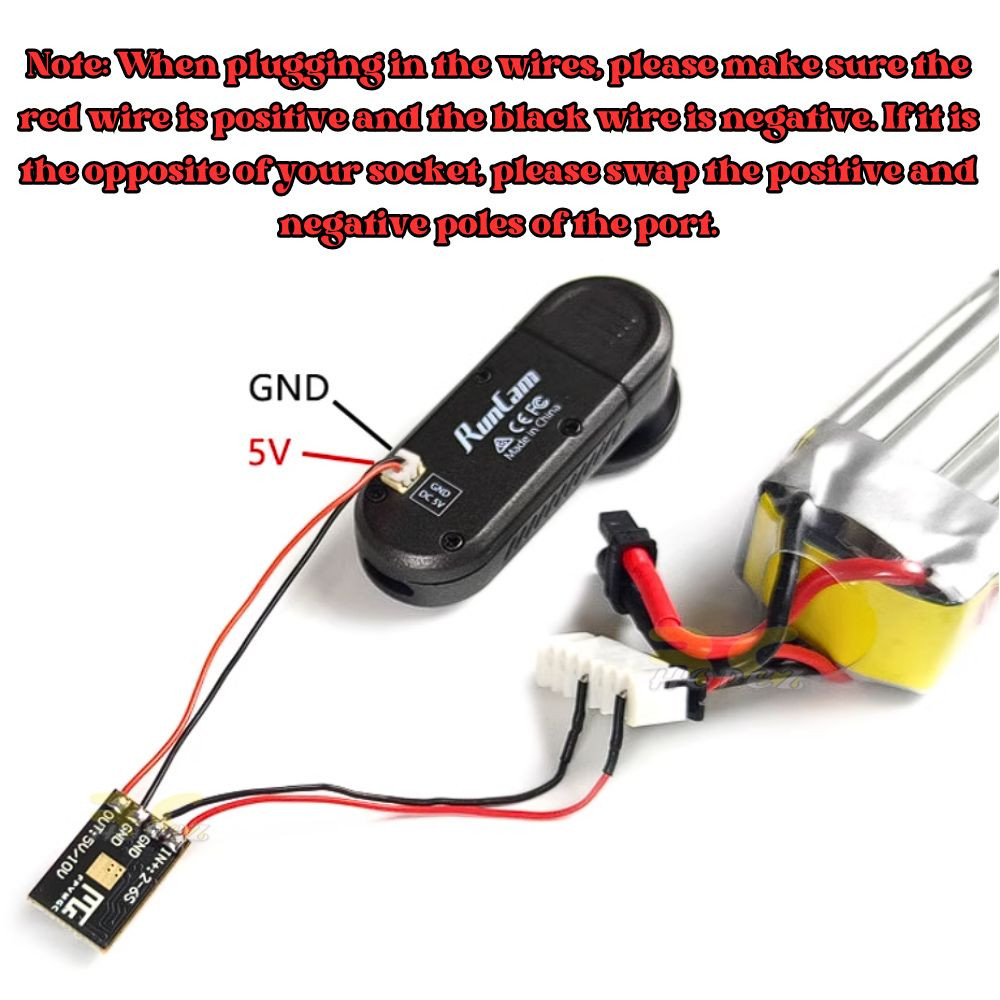

3.This module is only suitable for PH1.25 connector thumb camera. (for Runcam thumb Pro V2 need to modify and solder the original cable connector)

Package included:

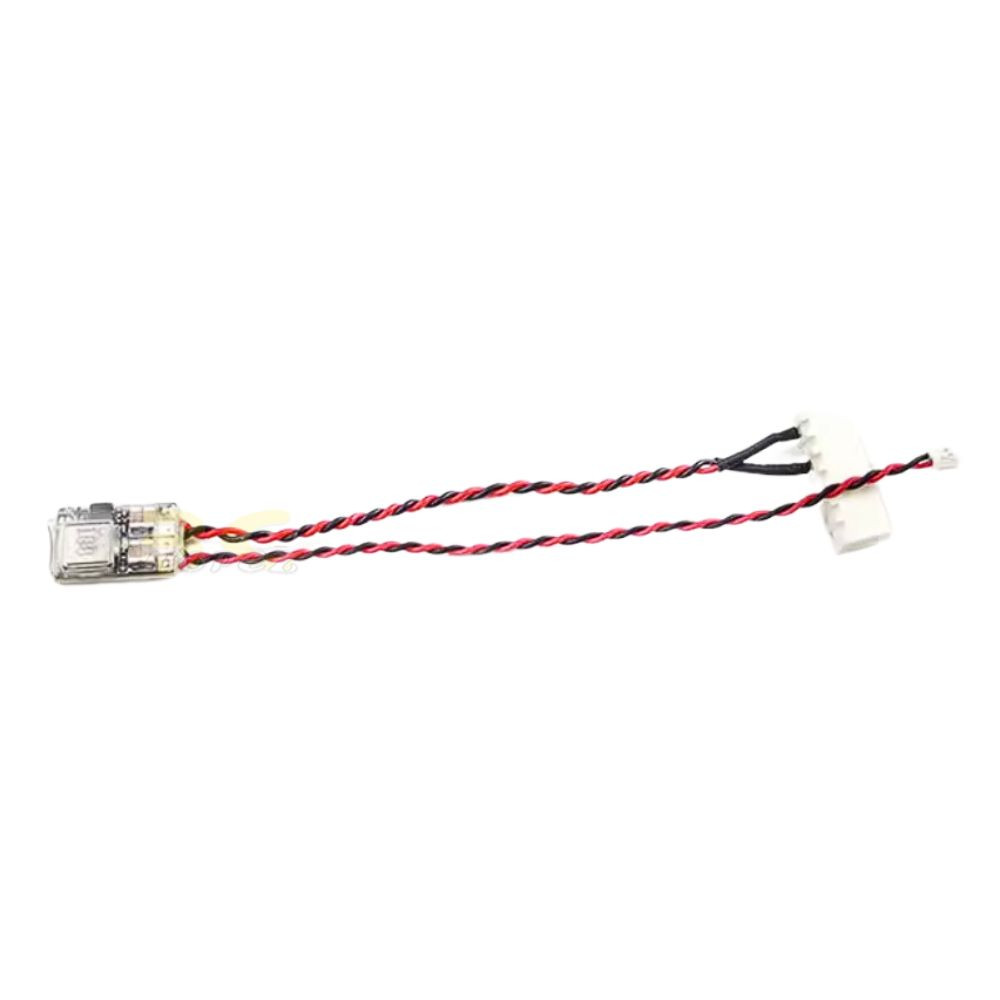

1 x 5V/3A BEC Step Down Module with Power Cable
