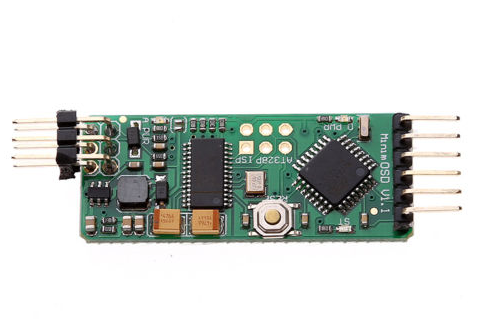

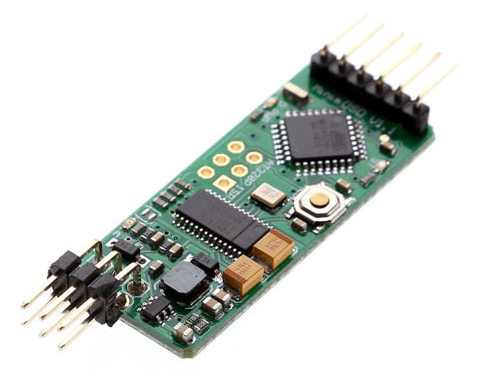

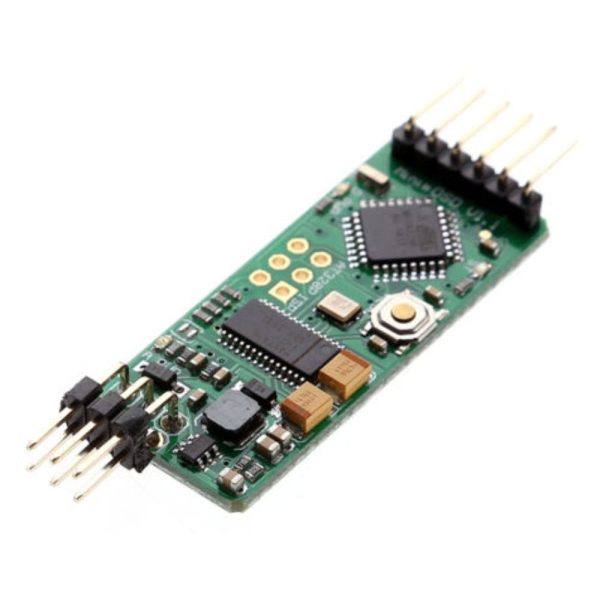

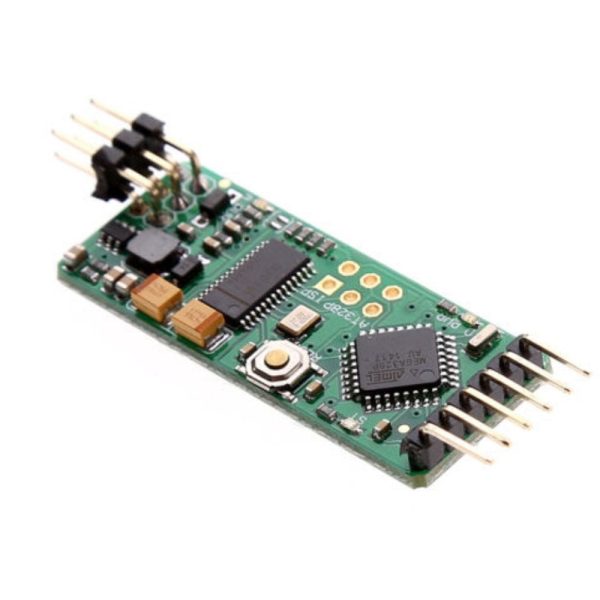

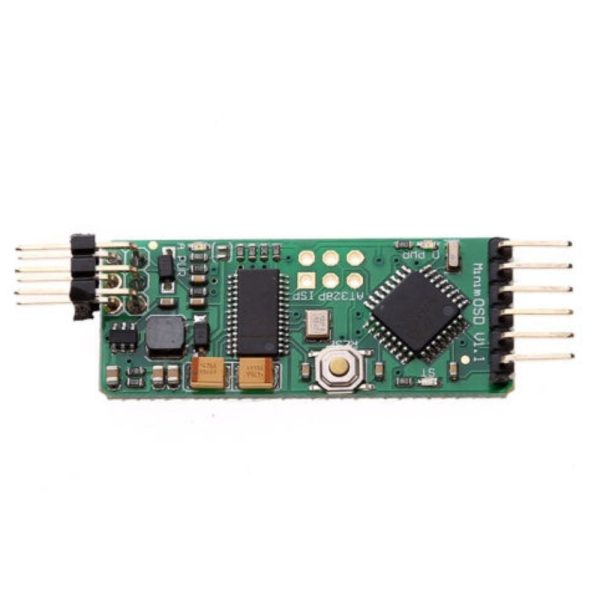

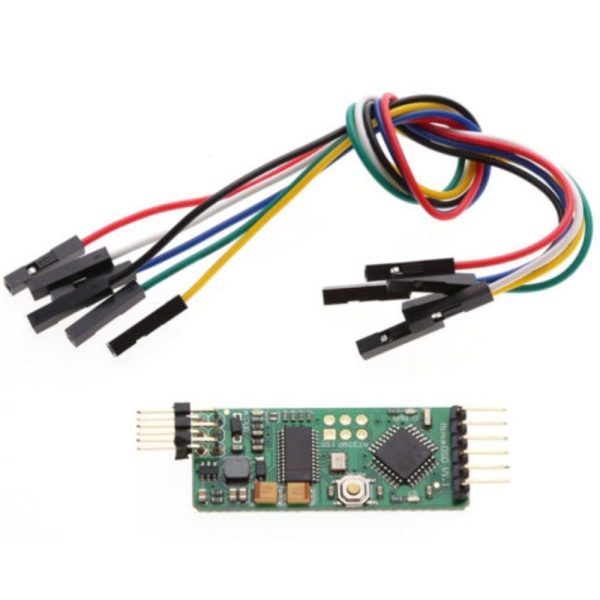

On-Screen Display Ardupilot Mega Mini OSD Rev. 1.1 OSD diy drones APM2.0 APM2.5 APM2.6 W298

On-Screen Display Ardupilot Mega Mini OSD Rev. 1.1 OSD diy drones APM2.0 APM2.5 APM2.6 W298

Description :

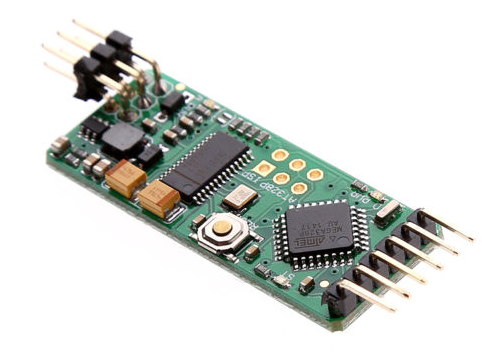

OSD Board MinimOSD APM Telemetry to APM2.0 APM2.5 APM 1 APM 2
On-Screen Display APM OSD MinimOSD Ardupilot Flight Controller Board

Specification:
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
FTDI cable compatible pinout
Standard 6-pin ISP header
Two independent power sections with an LED indicator on each
Solder jumpers for combining the power sections
+5V 500mA regulator for up to +12V supply input
Solder jumper for PAL video option

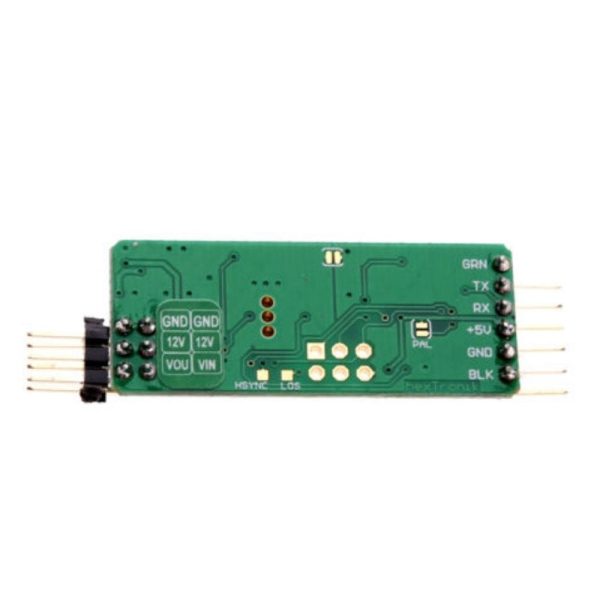

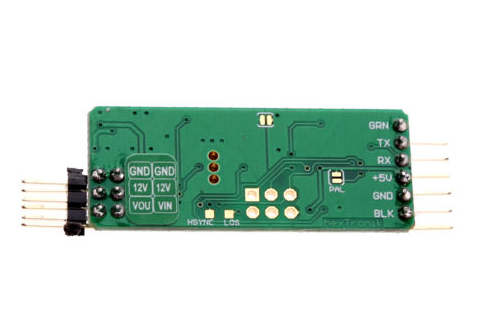

Exposed test points for HSYNC and LOS Dimensions: 0.7″W x 1.7″L (2.4″ w/ pins as shown) x 0.3″H

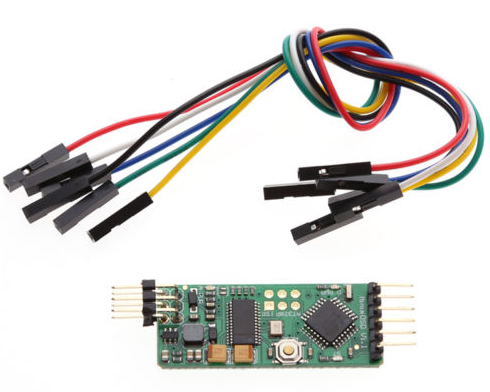

Package list:
1 x MinimOSD Board
