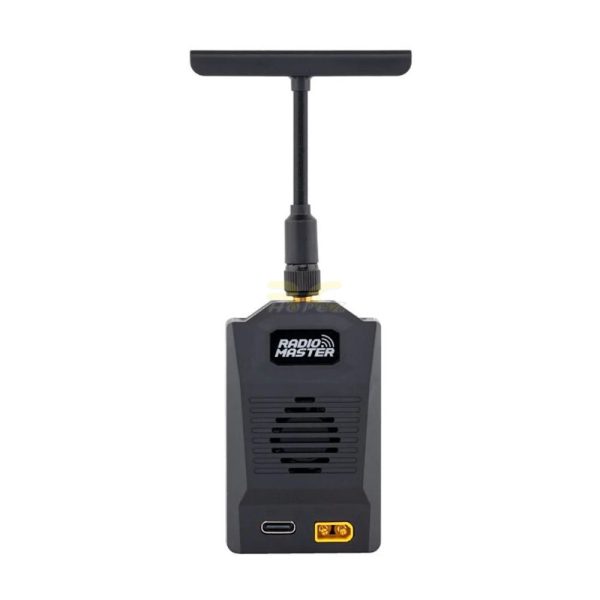

RadioMaster Ranger Nano 2.4GHZ ELRS Module for Radiomaster Zorro Remote Control TX-Ranger Nano

RM178.00RM275.00

SKU: TX-Ranger Nano Category:

RadioMaster Ranger Nano 2.4GHZ ELRS Module for Radiomaster Zorro Remote Control TX-Ranger Nano

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Combo Package
The Ranger Nano Combo package is the ideal way to get started in the world of ExpressLRS. A complete Ranger Nano module is provided along with two RP1 ExpressLRS receivers and one RP2 ExpressLRS receiver.

Features
High-efficiency cooling system
Wifi and Bluetooth support
Packet rates up to F-1000Hz
Up to 1Watt Power output
T-antenna included

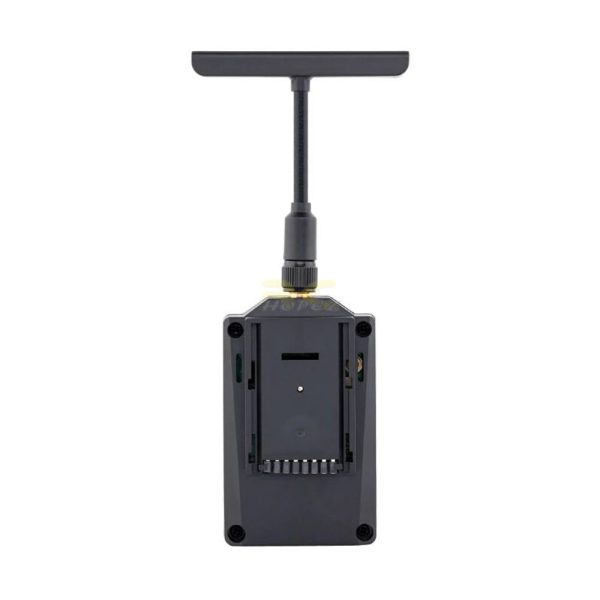

With the Nano connector, support Zorro radio

Specification
Item: Ranger Nano Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz – 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes

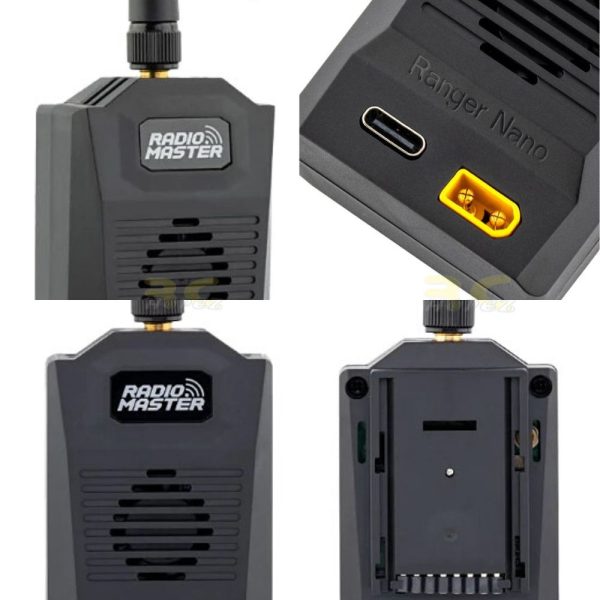

XT30 Power supply voltage: DC 6V – 16.8V
Weight: 48g (with antenna) / 39g (without antenna)

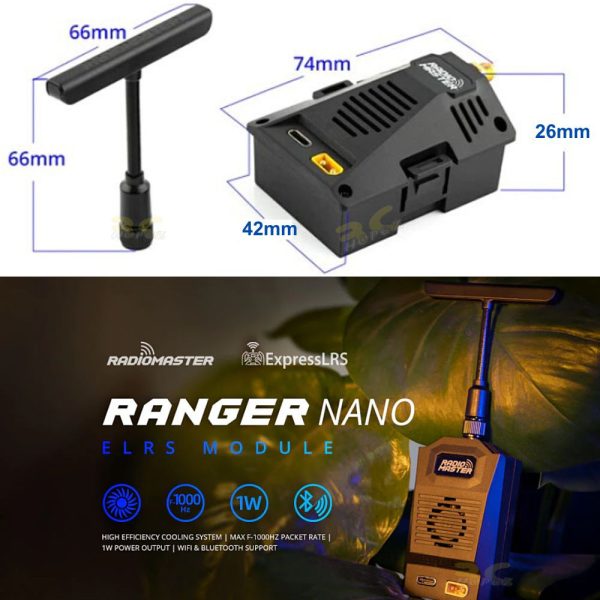

Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

To learn more and support the ExpressLRS project visit https://www.expresslrs.org/

Package Includes (Optional)

Ranger Nano Only
1x Radiomaster Ranger Nano 2.4Ghz ELRS Module
1x 2.4GHz T Antenna – RP-SMA

OR

Ranger Micro Combo
1x Radiomaster Ranger Nano 2.4Ghz ELRS Module
1x 2.4GHz T Antenna – RP-SMA
2x Radiomaster RP1 Receiver
1x Radiomaster RP2 Receiver

*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules.

Weight 0.10 kg
Dimensions 5.00 × 5.00 × 5.00 cm
Optional

Ranger Nano, Ranger Nano Combo
