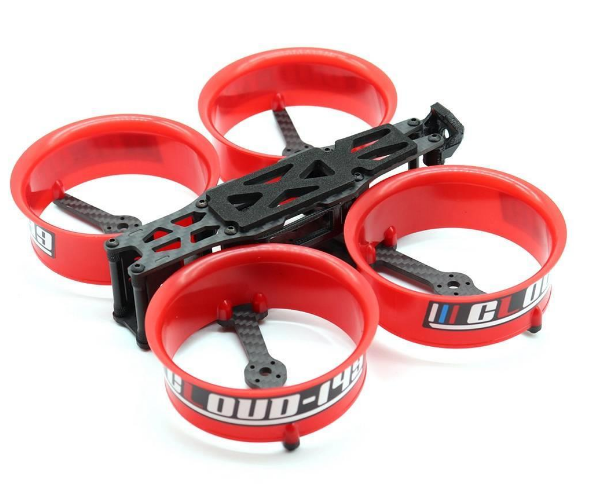

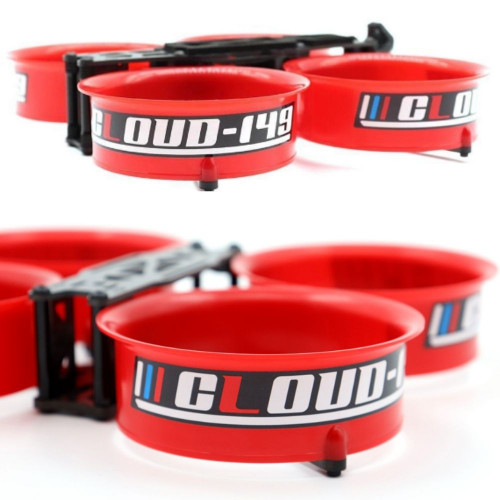

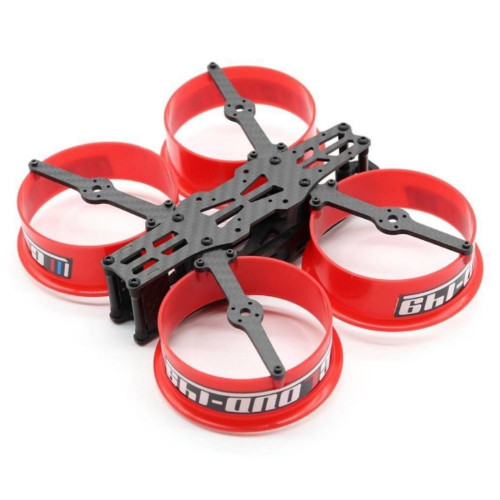

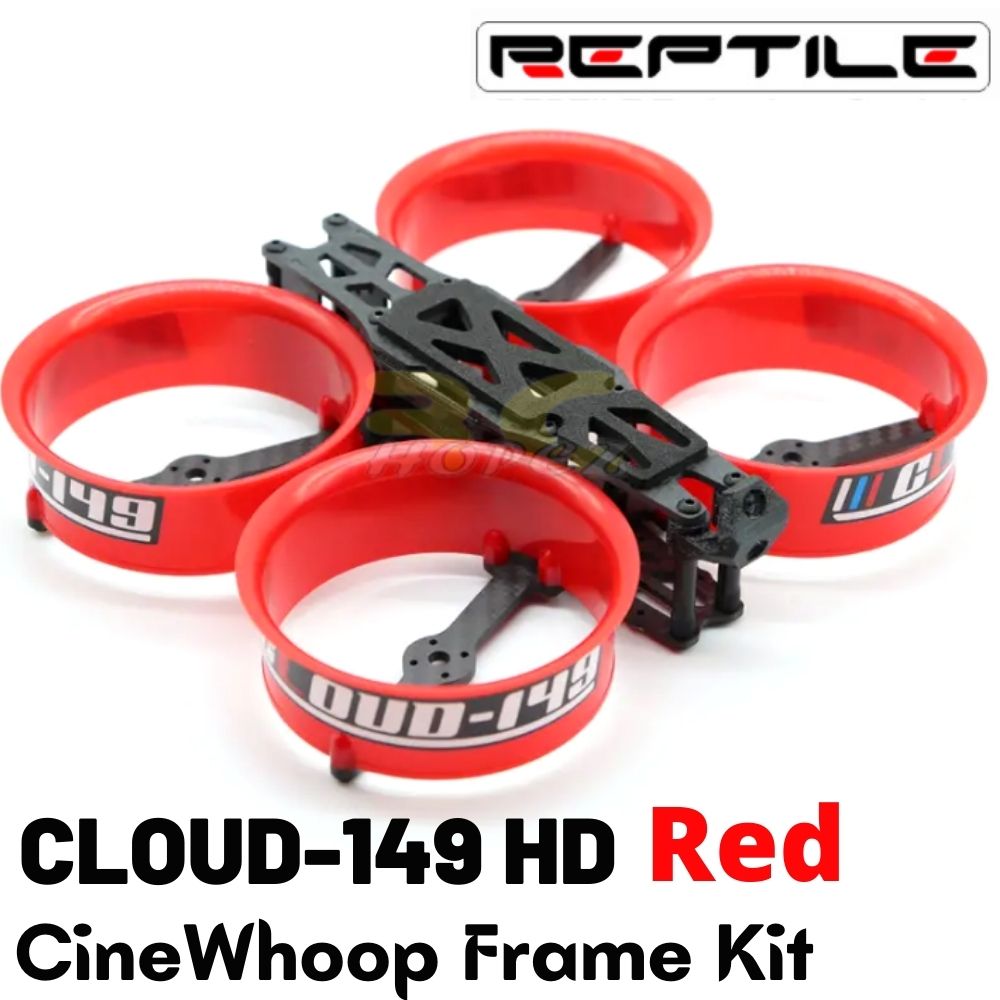

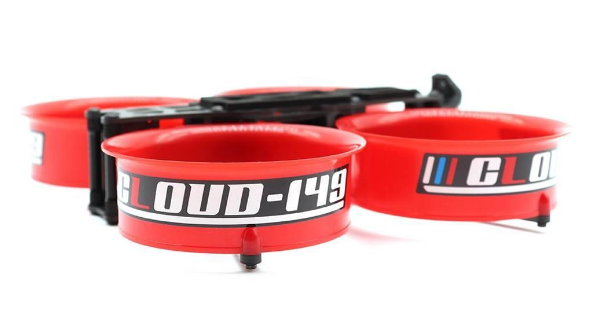

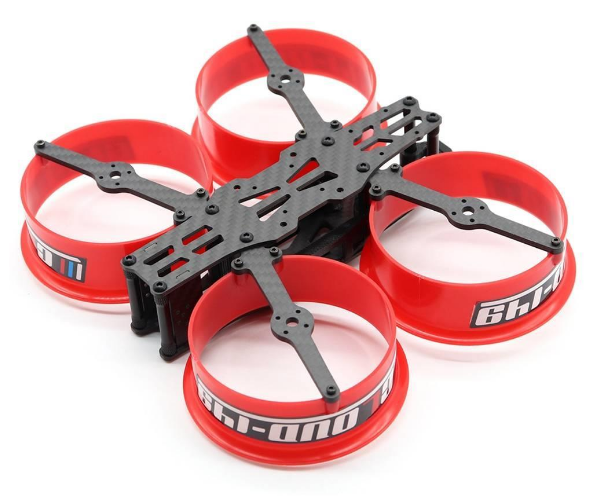

Reptile CLOUD-149 HD 149mm 3inch CineWhoop Carbon Fiber Frame Kit Compatible DJI Air Unit (Red) C150R-Kit

Reptile CLOUD-149 HD 149mm 3inch CineWhoop Carbon Fiber Frame Kit Compatible DJI Air Unit (Red) C150R-Kit

Specification:
Brand Name: Reptile
Model: CLOUD-149HD

Wheelbase: 149mm
Upper plate length:156mm
Lower plate length:156mm
Weight: 115g (Include print part)
Bottom plate: 2mm

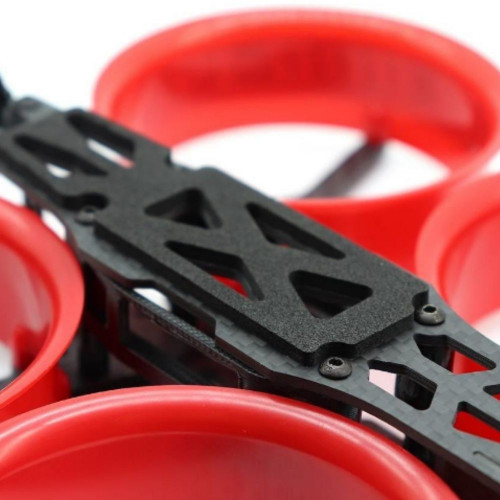

Top plate: 2mm
Arm plate:3mm
Position of FC installation hole: 20*20mm/30.5*30.5mm
Camera mounting hole distance:20mm
Distance of installation hole of motor:12mm
Plastic parts: ABS material plastic Diversion ring
Printed parts: TPU antenna base

Features:

1. Suitable for DJI FPV System
2. Video unocclusion
3. Beautifully designed,rugged and durable
4. High quality carbon plate,precision cutting
5. Includes 3D printed Parts for installing DJI FPV System

Recommend Parts (NOT included) :
Flight Controller: 20x20mm OR 30.5×30.5mm RF / Kiss / F4 / F3 / F7 FC
Brushless ESC: 20A-50A
Propeller: 3 Inch Propeller
Brushless Motor: 1306 / 1408 / 1506 Motor
Camera FPV: 19mm camera support DJI FPV Air Unit

Battery:  4S 650mAh –  6S 1300mAh Lipo

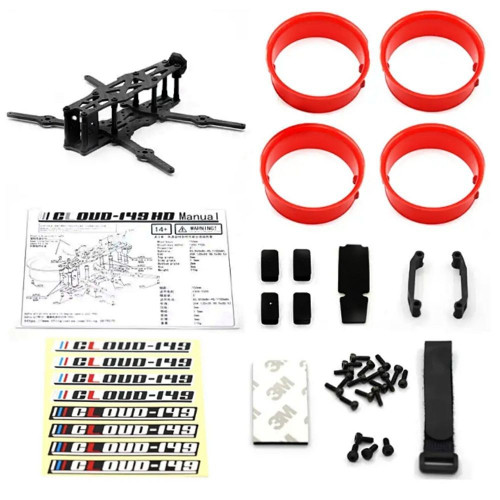

Package Included:

1x Top plate
2x Side plate
1x Bottom plate
2x Arm plate

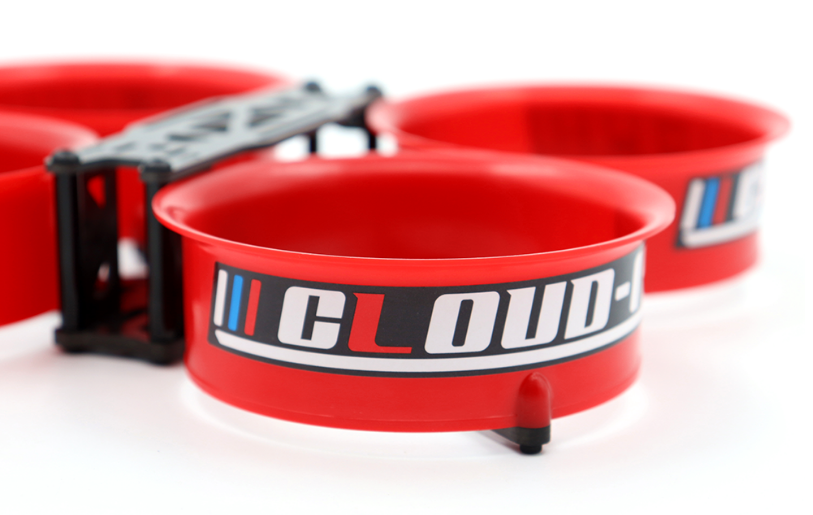

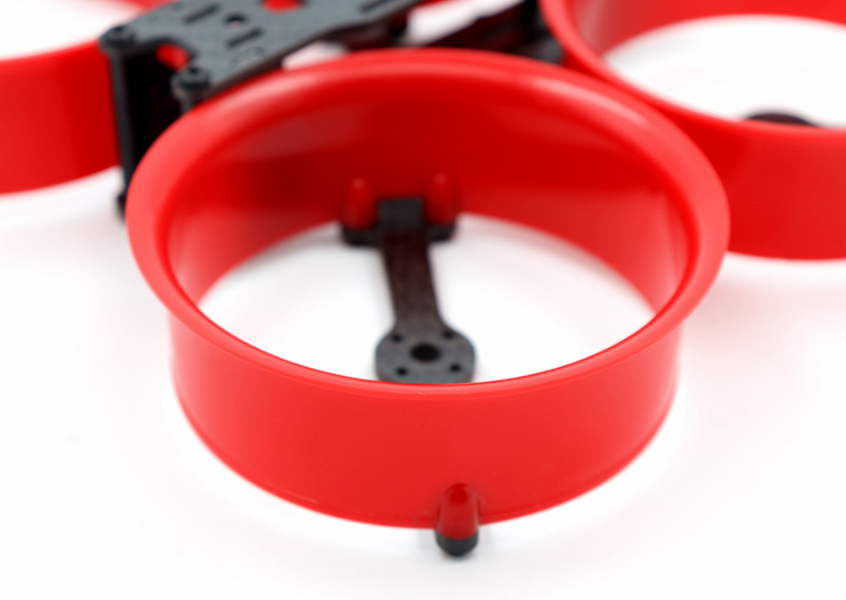

4x plastic Diversion ring
1x 3D Printing TPU Antenna base
8x Aluminum pillar
1x 3D Printing TPU Mounting Base for DJI FPV transmitter
1x Screw package
1x Battery strap

NOTE: Frame Kit only, NOT including all the electronic parts and propeller.
