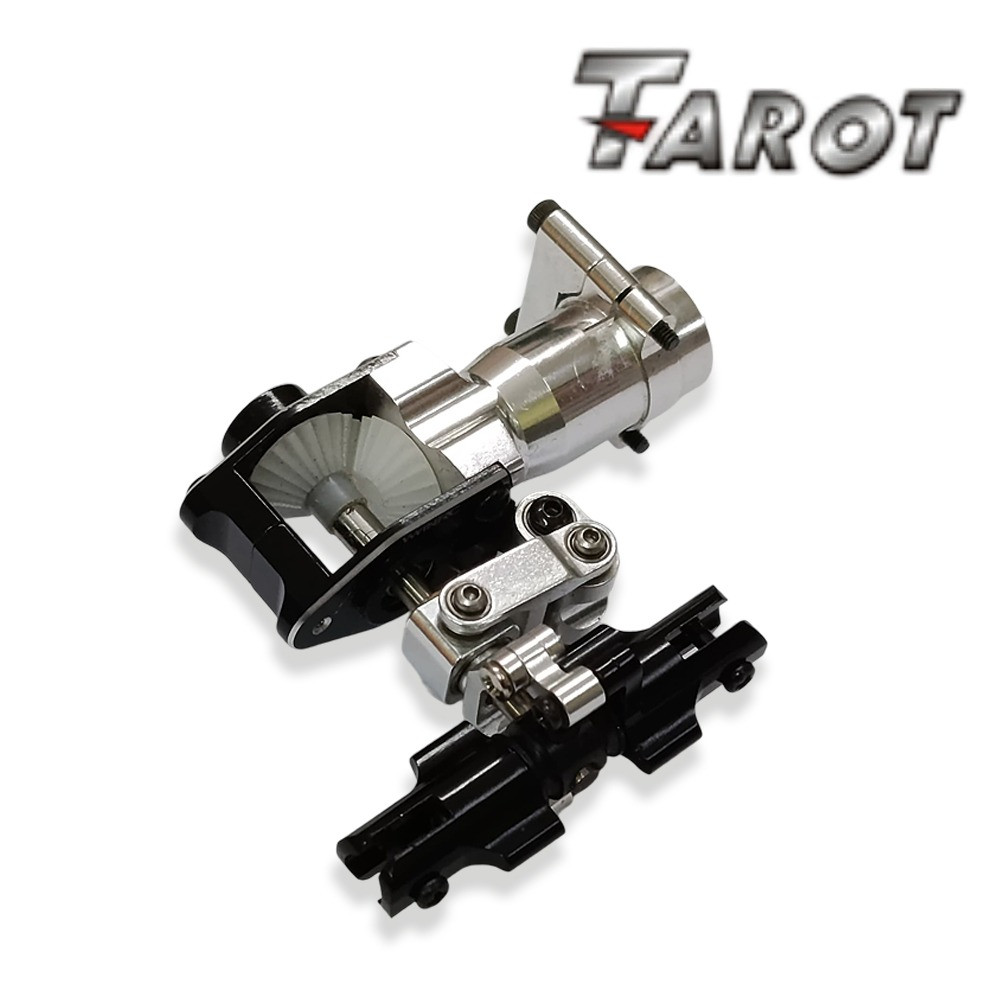

Tarot 450 PRO Complete Metal Tail Set (Silver) TL45038-05

Tarot 450 PRO Complete Metal Tail Set (Silver) TL45038-05

Specifications:

• Use for T-REX 450 PRO, TARO 450 PRO V2

 [Product Specifications]

â—† metal tail shaft pass on the left side of the base plate

â—† metal tail shaft pass seat right side of the plate

â—† metal tail gear box seat x 1

â—† tail gear box bushing x 1 (Φ8xΦ10x7mm)

â—† aluminum gear box column x 1 (Φ4×15.5mm)

â—† tail horizontal axis group x 1 (Φ13.8x47mm)

â—† the tail horizontal axis long bevel x 1 (Φ2.6xΦ13.8×19.25mm)

â—† vertical wing bracket x 1

â—† MR83ZZ bearing x 2 (Φ3xΦ8x3mm)

â—† MR106ZZ bearing x 2 (Φ6xΦ10x3mm)

â—† Round hexagonal screw x 6 (M2x5mm)

â—† round with hexagonal screw x 2 (M2x18mm)

â—† new tail shaft sleeve x 1 (Φ4xΦ4.8×9.6mm)

â—† the End control group T-arm x 1 (20x6x5mm)

â—† tail control the rod head x 2 (Φ5.1×11.58×4.2mm)

â—† metal tail rotor bearing sleeve x 1 (Φ5.3xΦ7×5.3mm)

â—† tail rotor control arm x 1 (18.5x14mm)

â—† the tail connecting rod head copper sets A x 2 (Φ2xΦ3x4mm)

â—† the tail rod head copper sleeve B x 2 (Φ2xΦ3×2.5mm)

â—† tail rotor bearing pad x 1 (Φ4xΦ5.1×0.3mm)

â—† MR74ZZ bearing x 2 (Φ4xΦ7×2.5mm)

â—† MR52ZZ bearing x 2 (Φ2xΦ5×2.5mm)

â—† Stainless steel ball head x 3 (Φ4.75×4.59mm)

â—† pan head Phillips screws x 3 (M2x6.5mm)

â—† collar screw x 1 (M2x9mm)

â—† bearing screw x 2 (M2x8mm)

â—† collar screw x 2 (M2x6mm)

â—† Washer x 1 (Φ2xΦ3.6×0.2)

â—† clamp base metal tail rotor x 2

â—† Tail Rotor T-Block x 1

â—† bearing MR63ZZ x 2 (Φ3xΦ6×2.5mm)

â—† bearing MR52ZZ x 2 (Φ2xΦ5×2.5mm)

â—† Round hexagonal screw x 2 (M2x8mm)

â—† collar screw x 2 (M2x8mm)

â—† Washer x 2 (Φ2xΦ3.6×0.3mm)

â—† M3 ended vent screw x 1 (M3x3mm)

â—† Washer x 2 (Φ2xΦ3.6×0.5)
