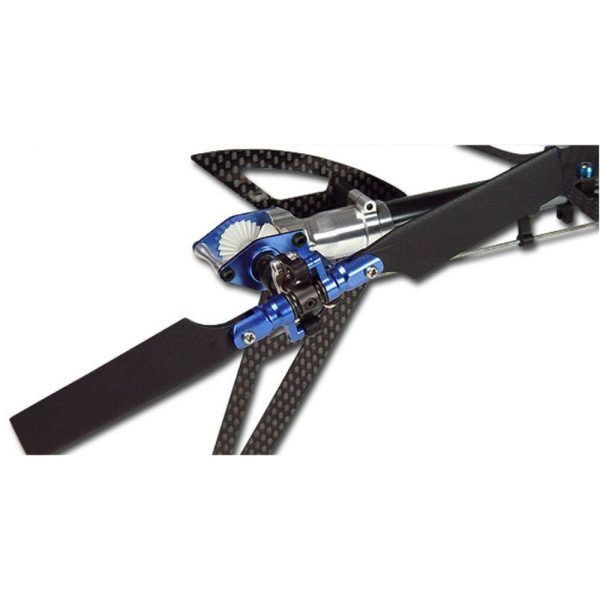

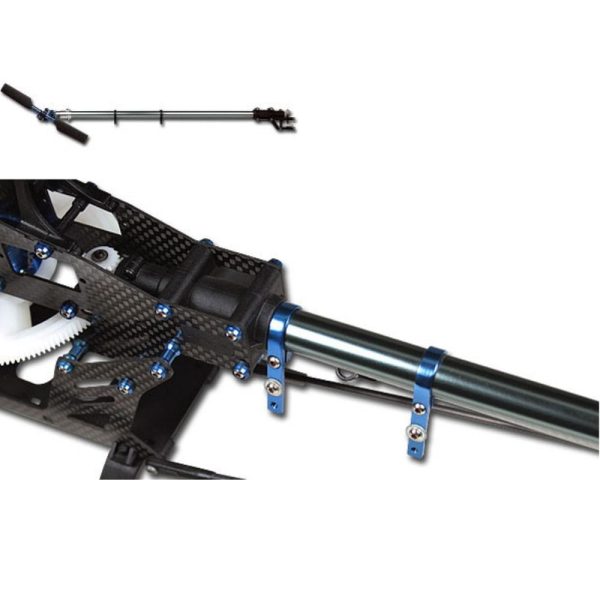

Tarot 450v3 Torque Tube Conversion Kit TL1298

Tarot 450v3 Torque Tube Conversion Kit TL1298

Instruction:

• Use for TARO 450 Sport/GF/SE/SEV2 and  T-REX 450 S/GF/SE/SEV2.
• The high efficiency torque tube drive system is not only decrease the consumption of the motive power but also increase the fluency and the precision of the rudders.

Specification:

• 450V3 Tail boom mount set(L) x 1
• 450V3 Tail boom mount set(R) x 1
• Aluminum hexagonal bolt x 7(3x22mm)
• 450V3 Tail Drive Gear Assembly x 1(16.8×30.4mm)
• 450V3 Front long umbrella gear x 1(6×10.8×17.85mm)
• 450V3 Front short umbrella gear x 1(2.7×10.8×6.7mm)
• Bearing MR106ZZ x 4(6x10x3mm)
• Socket button head screw x6(M2x14mm)
• Socket button head screw x8(M2x5mm)
• Washer x 1(1.5x5x0.4mm)
• Tail torque tube unit x 1
• Vertical stabilizer mount x 1
• Socket screw x2(M2x16mm)
• 347 Tail boom x 1(11×12.07x347mm)
• Torque tube x 1(3.1×3.6x347mm)  Max. impact torque:15kg.cm 166.68~194.46oz-in
• Bearing MR84ZZ x 1(4x8x3mm)
• Tail boom brace x2
• Socket button head collar screw x4(M2x2.5x8mm)
• Socket button head self tapping screw x1(T2x8mm)
• M2.5 Special washer x 2(2.5x6x2mm)
• Tail blade x 2
