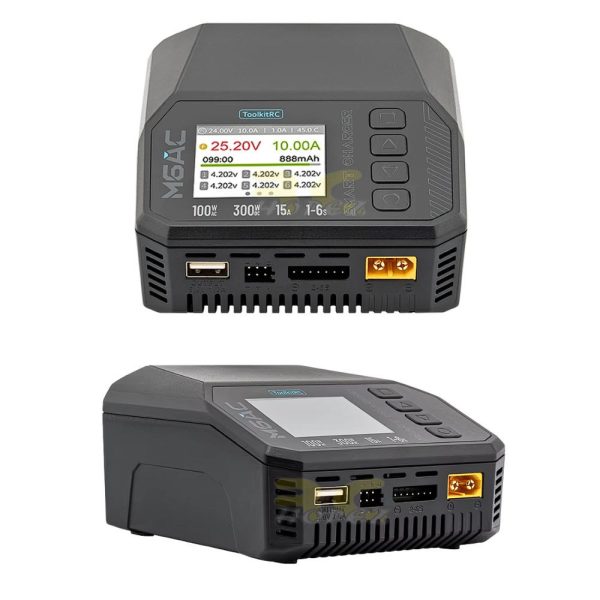

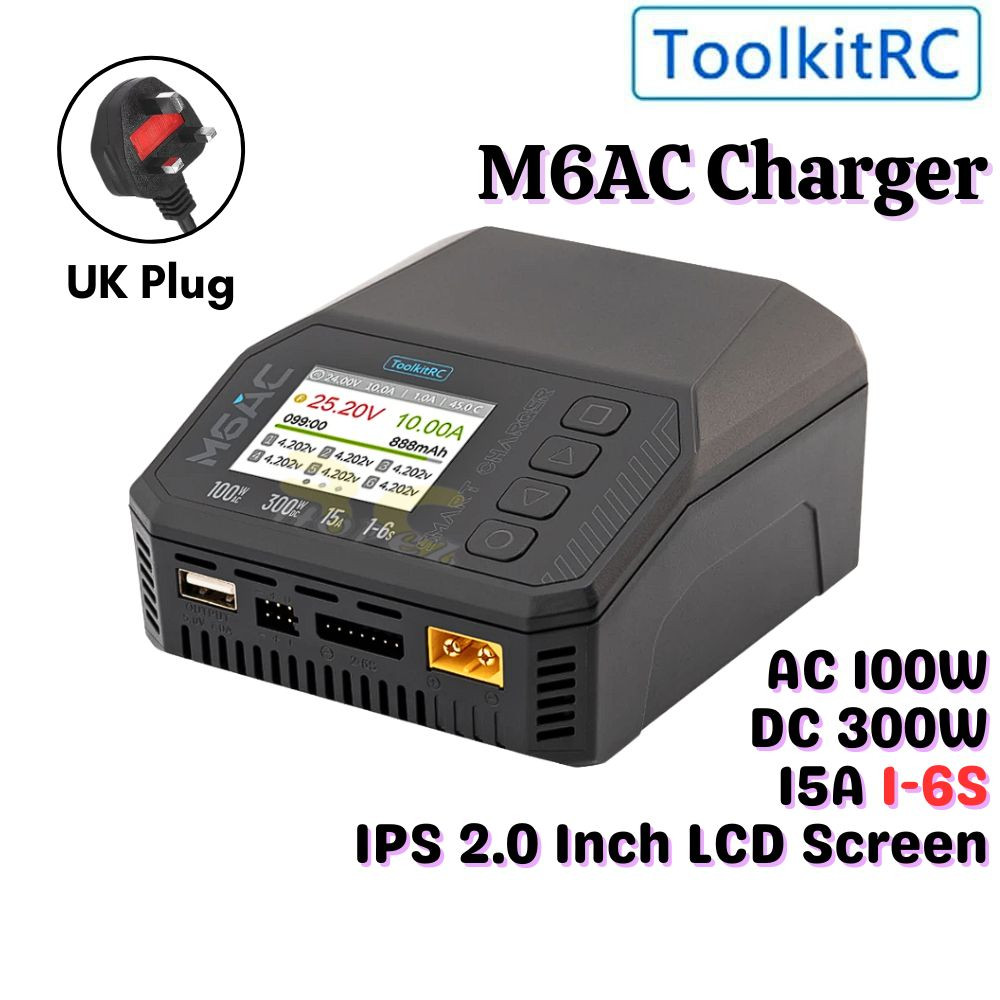

ToolkitRC M6AC Smart Balance Charger 1-6S AC 100W DC 300W 15A   For Lipo LiHV LiFe NiMh LiIon Battery UK Plug TK-M6AC

ToolkitRC M6AC Smart Balance Charger 1-6S AC 100W DC 300W 15A   For Lipo LiHV LiFe NiMh LiIon Battery UK Plug TK-M6AC

About this product
The ToolkitRC M6AC is a compact and powerful charging solution, perfect for FPV pilots and RC enthusiasts. Featuring an impressive 300W output and 15A charging current, this AC charger handles 1-6S LiPo batteries with ease. Equipped with an XT60 connection, it ensures a reliable and efficient charge every time. Its user-friendly interface and multifunctional design make it an essential tool for keeping your batteries ready to perform. Whether you're at home or in the field, the M6AC delivers unmatched convenience and performance.

Features
Wide Battery Compatibility
Multifunctional Capability
User-Friendly Interface
Reliable Performance
High-Power Output
XT60 Connection
Compact Design
Versatile Usage

Specifications

DISCHARGING POWER
Internal Resistance Measurement: 0.1mΩ-99mΩ @ 1-6S
USB-A Output: 5.0V/1.0A @ 10W or upgrade
Voltage Range: 1.0V-5.0V @ 1-6S
Recycle Mode: 0.1-15A @ 300W
Internal Mode: 0.1-3A @ 15W

OUTPUT
Power Output: 0.5-15A @ 1-28V (Mode: CC+CV)
SBUS Output: 880us-2200us × 16 CH @ 74Hz
PPM Output: 880us-2200us × 8 CH @ 50Hz
PWM Output: 500us-2500us @ 20-1000Hz

MEASURER
SBUS: 880us-2200us × 16 CH @ 20-100Hz
PPM: 880us-2200us × 8 CH @ 20-50Hz
PWM: 880us-2200us @ 20-400Hz

CHARGER
Charging Power: 0.1-15A @ 300W
Balance Current: 1000mA @ 4.2V
Balance Accuracy: <0.005V
Battery Types Supported:
LiPo, LiHV, LiFe, LiIon, LTO @ 1-6S
NiMH @ 1-16S, Pb @ 1-10S
Input Voltage:
AC: 100-240V @ MAX 120W
DC: 7-35V @ MAX 30A

DIMENSIONS
LCD: IPS 2.0″ LCD, 320×240 px

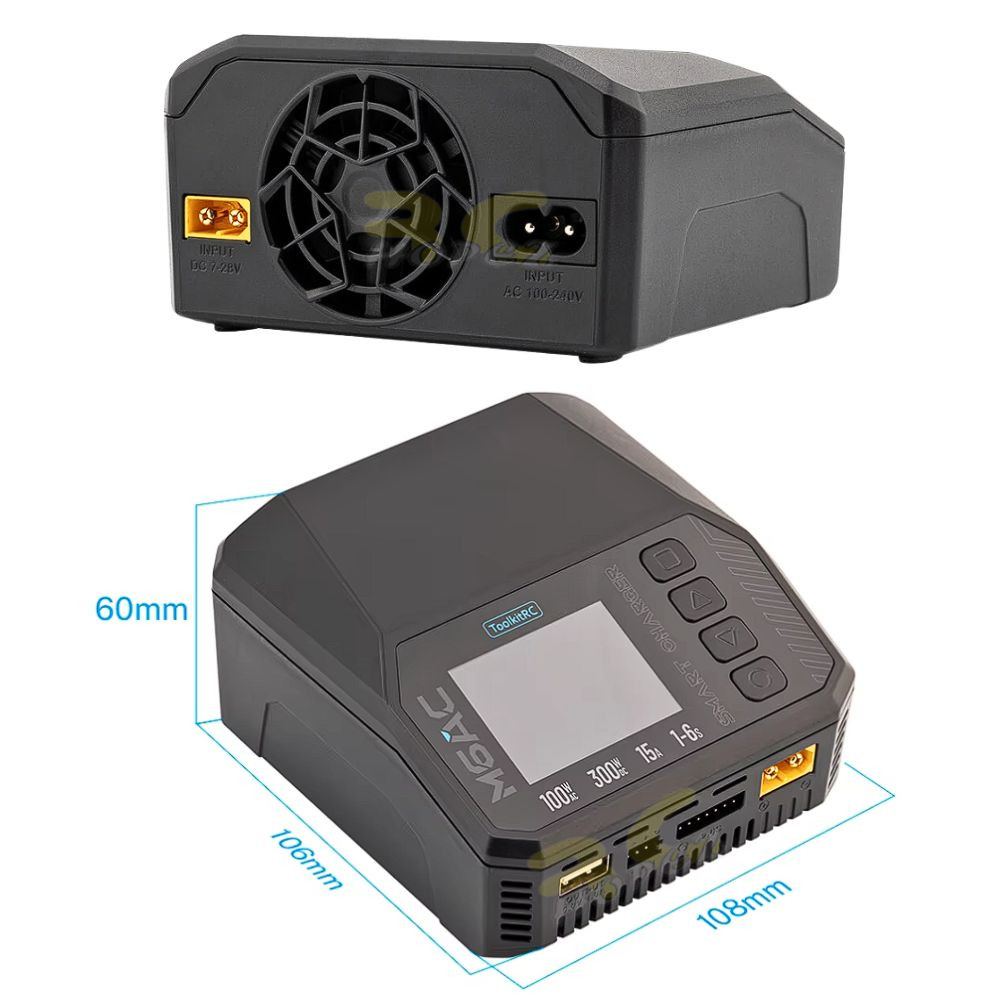

Product Size: 108×106×60mm
Packing Size: 144×158×63mm
Packaging Weight: 510g
Product Weight: 350g

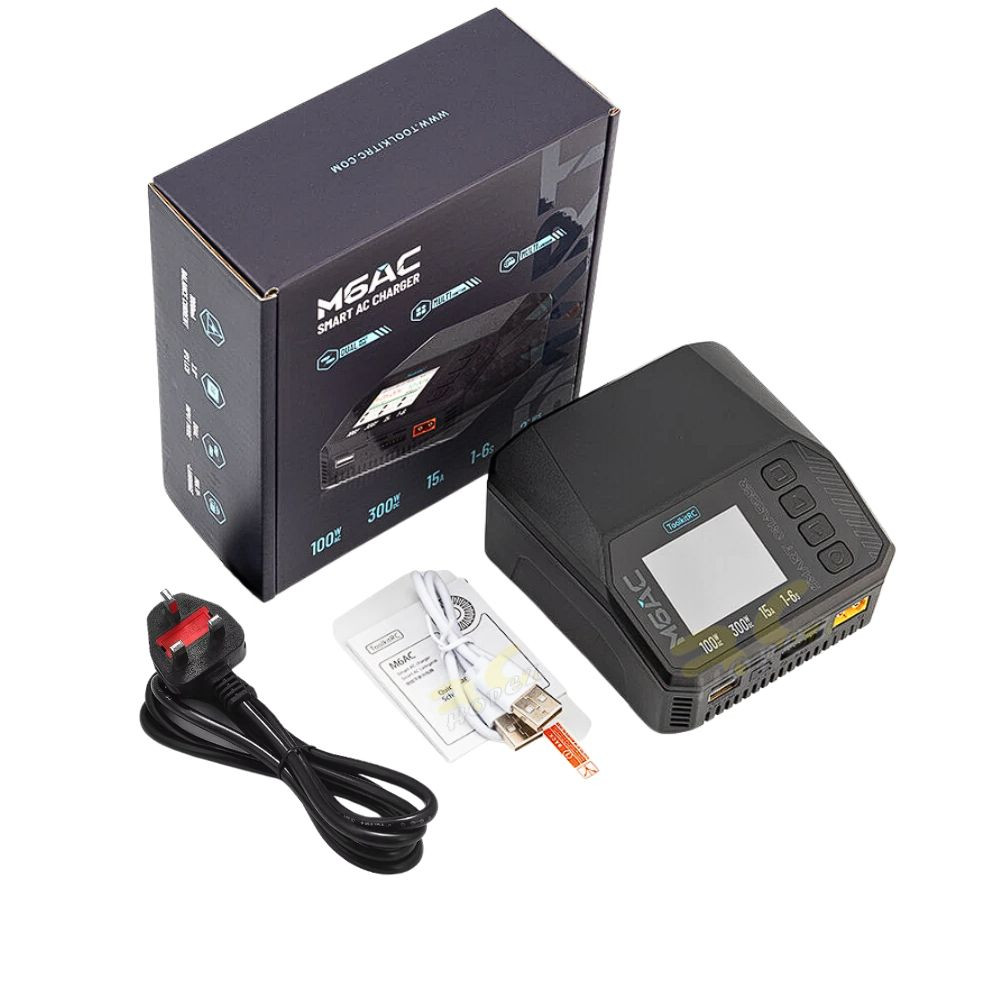

Includes
1x ToolkitRC M6AC 300W 15A 1-6S AC Charger – XT60
1x Screen Protector
1x AC Input Cable (UK Plug)
1x Quick Manual
1x USB Cable
