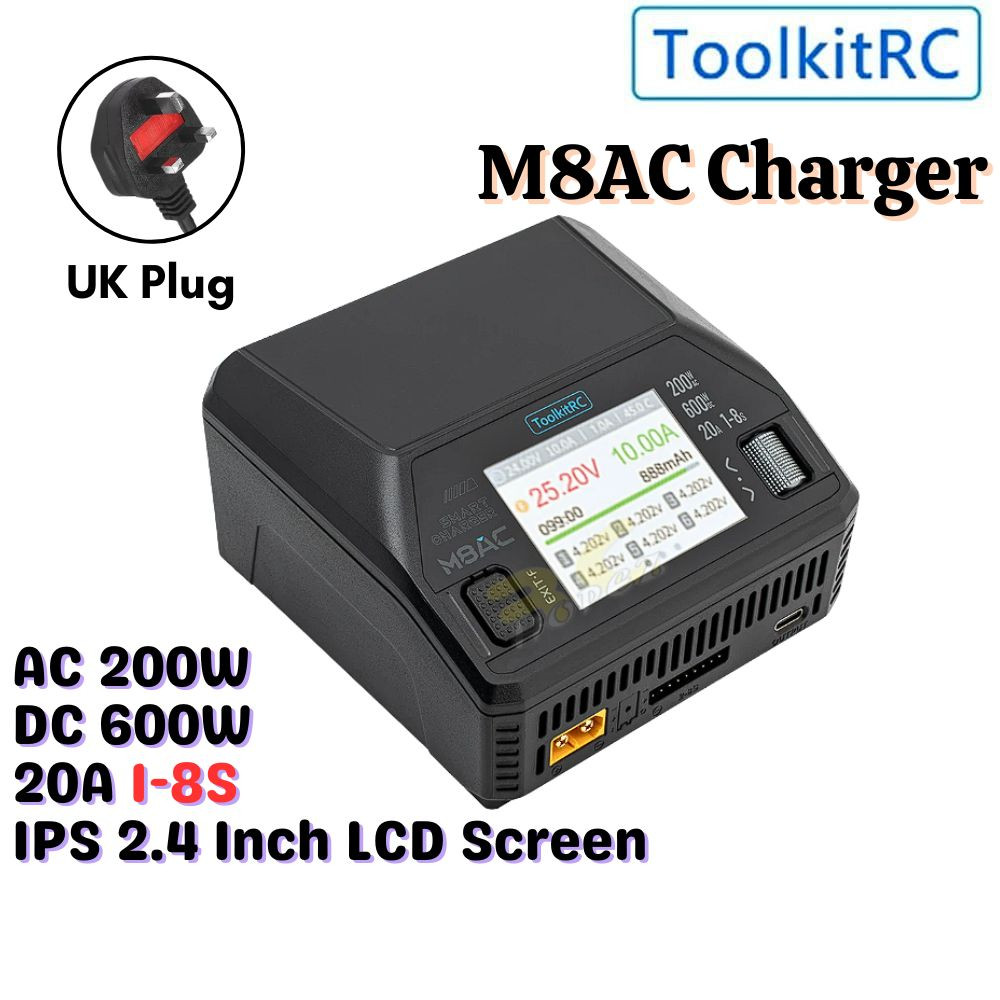

ToolkitRC M8AC Smart Balance Charger 1-8S AC 200W DC 600W 20A   For Lipo LiHV LiFe NiMh LiIon Battery UK Plug TK-M8AC

ToolkitRC M8AC Smart Balance Charger 1-8S AC 200W DC 600W 20A   For Lipo LiHV LiFe NiMh LiIon Battery UK Plug TK-M8AC

About this product
The ToolkitRC M8AC is a 600W 20A charger with AC/DC input, supporting LiPo, LiHV, LiFe, Li-Ion, LTO (1-8S), NiMH (1-20S), and Pb (1-12S) batteries. It's 2.4″ IPS LCD ensures easy navigation, while 1000mA balance charging optimizes battery health with <0.005V accuracy. With 600W charging, 300W (recycle), and 20W (normal) discharge, plus a 65W USB-C port, it’s built for performance. Beyond charging, it functions as a PWM, PPM, and SBUS signal tester. Compact (108 × 113 × 62mm) with an XT60 input, it’s efficient and powerful.

Features
Advanced Balance Charging
Wide Battery Compatibility

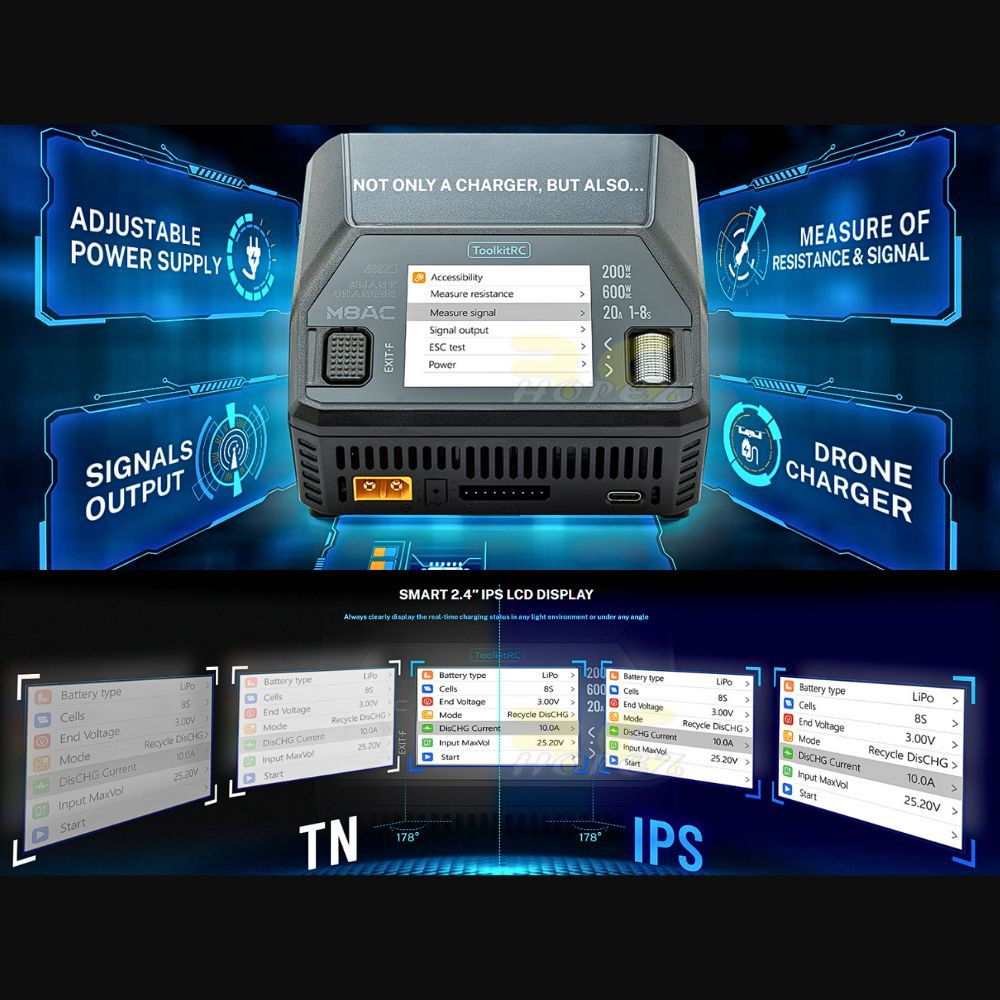

Signal Testing & Generation
High-Powered Charging
Compact & Efficient

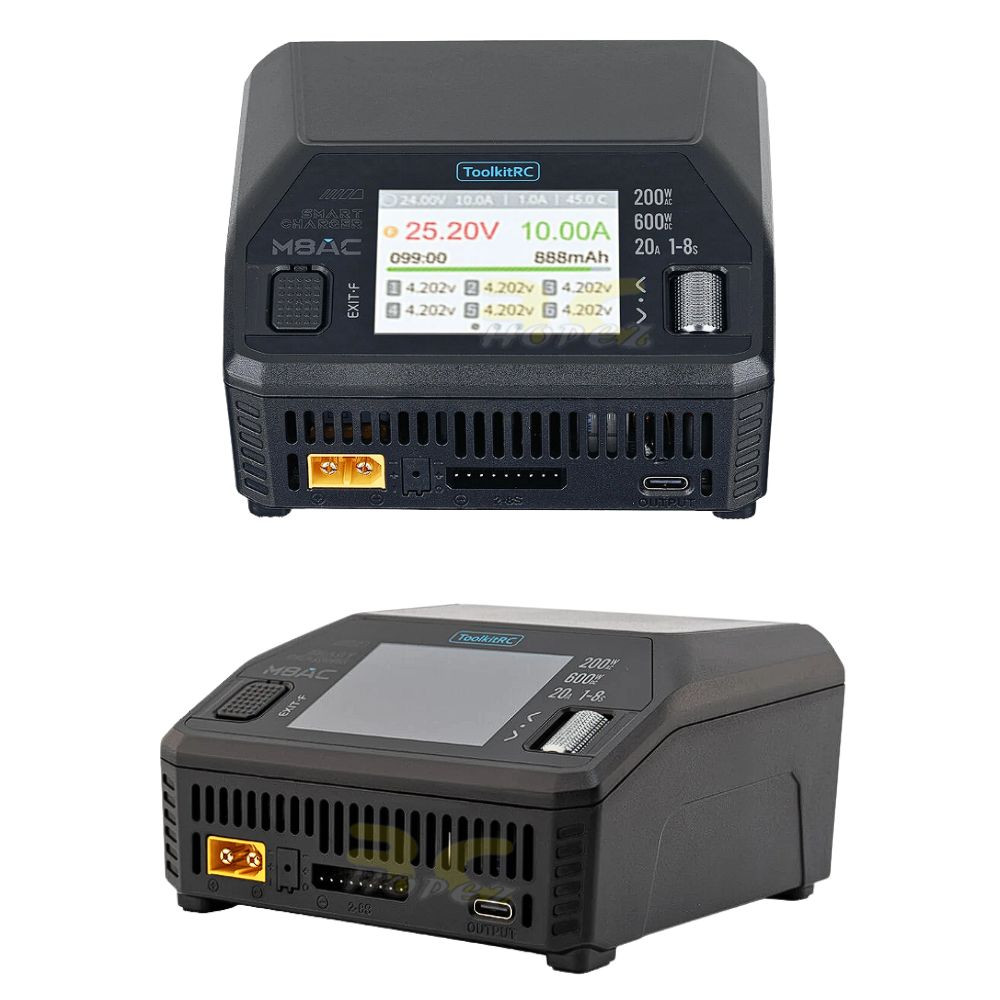

2.4" IPS LCD Screen
Discharge Modes
USB-C Port (65W)
AC/DC Input

Specifications

OUTPUT
Power: 0.5-15A @ 1-35V (Mode: CC + CV)
SBUS: 880us-2200us × 16CH @ 74Hz
PWM: 500us-2500us @ 20-1000Hz
PPM: 880us-2200us × 8CH @ 50Hz

MEASURER
Internal Resistance: 0.1mΩ-99mΩ @ 1-8S
SBUS: 880us-2200us × 16CH @ 20-100Hz
PPM: 880us-2200us × 8CH @ 20-50Hz
PWM: 880us-2200us @ 20-400Hz
Voltage: 1.0V-5.0V @ 1-8S

DISCHARGING POWER
USB-C: MAX 20.0V @ 65W (Upgrade)
0.1-20A @ 300W (Recycle Mode)
0.1-3A @ 20W (Normal Mode)

BATTERY TYPE
LiPo, LiHV, LiFe, Li-Ion, LTO @ 1-8S
Charging Power: 0.1-20A @ 600W
Balance Current: 1000mA @ 4.2V
Balance Accuracy: <0.005V
NiMH @ 1-20S
Pb @ 1-12S

GENERAL

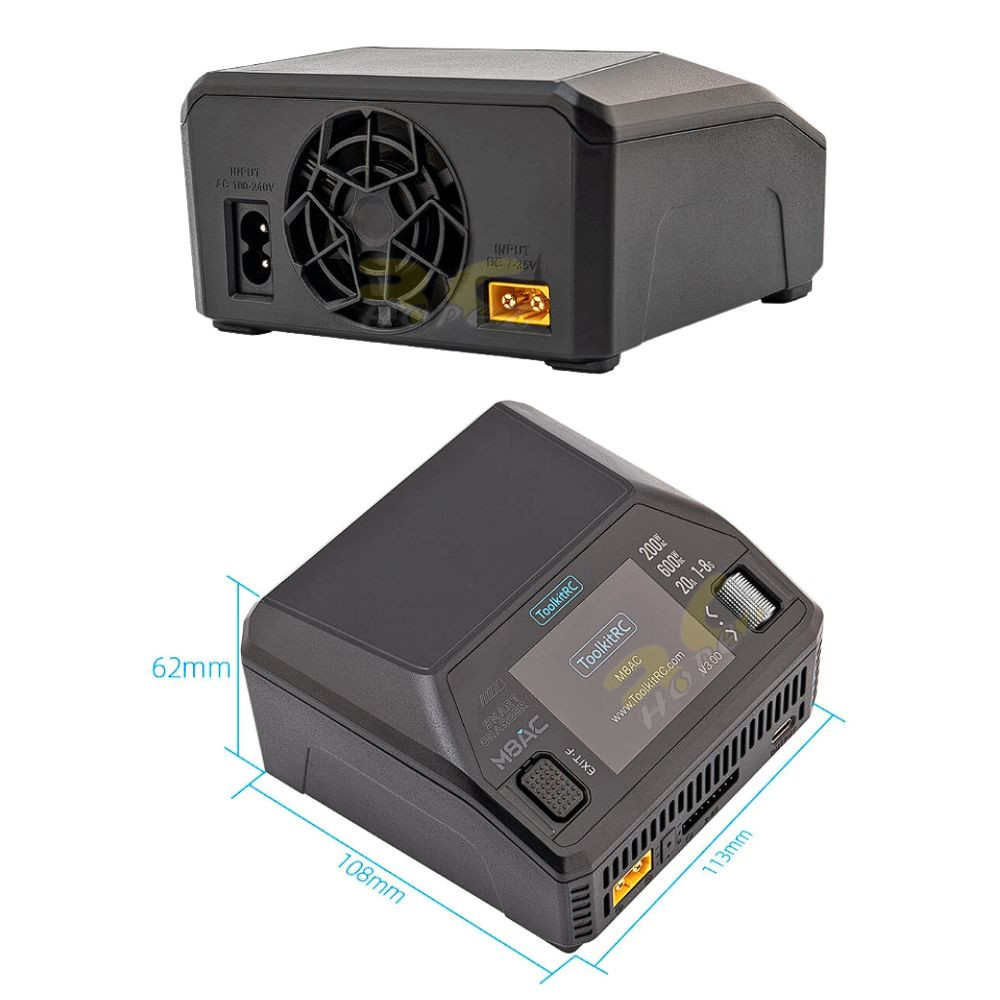

Product Size: 108 × 113 × 62mm
Packing Size: 136 × 153 × 67mm
LCD: IPS 2.4″ LCD, 320 × 240px
Packaging Weight: 600g
Product Weight: 500g

CHARGER
Input Voltage:
AC 100-240V @ MAX 2.5A
DC 7-35V @ MAX 25A

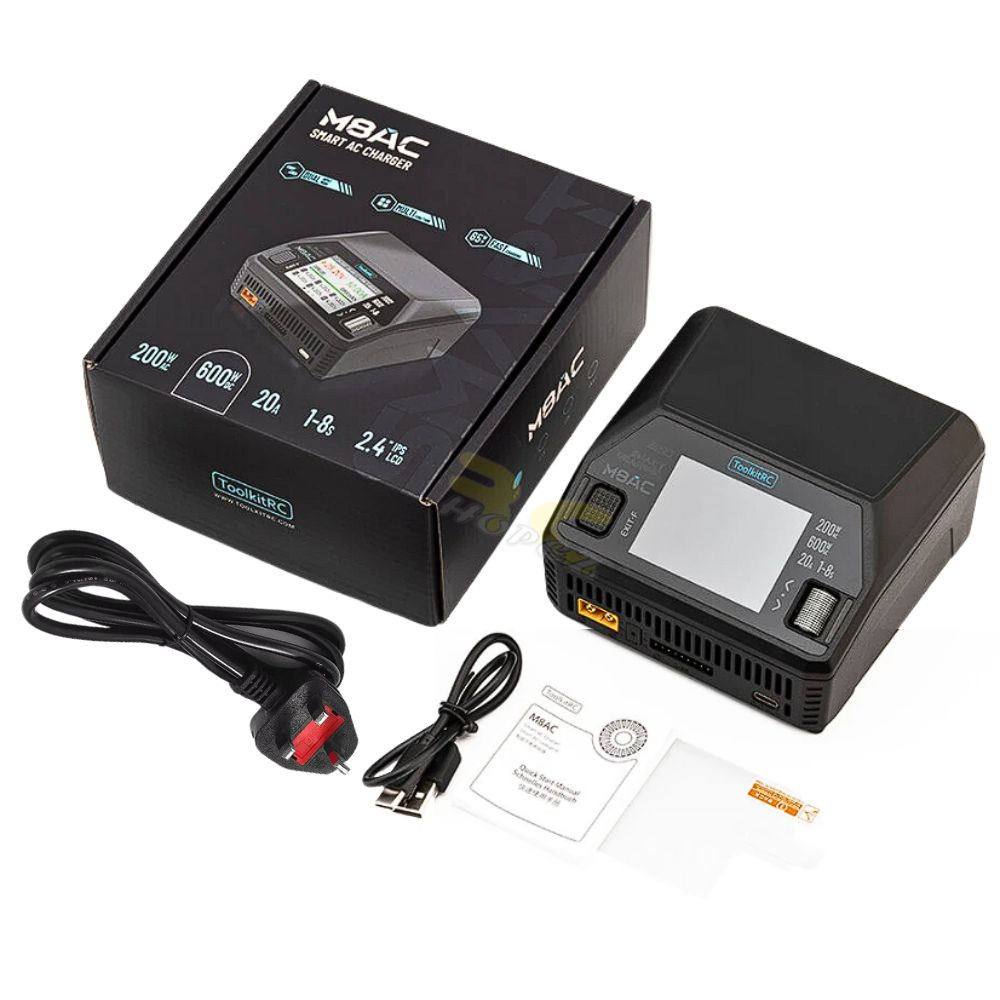

Includes
1x ToolkitRC M8AC 600W 20A 1-8S AC/DC Smart Charger – XT60
1x Screen Protector
1x AC Input Cable (UK Plug)
1x Quick Manual
1x USB Cable
