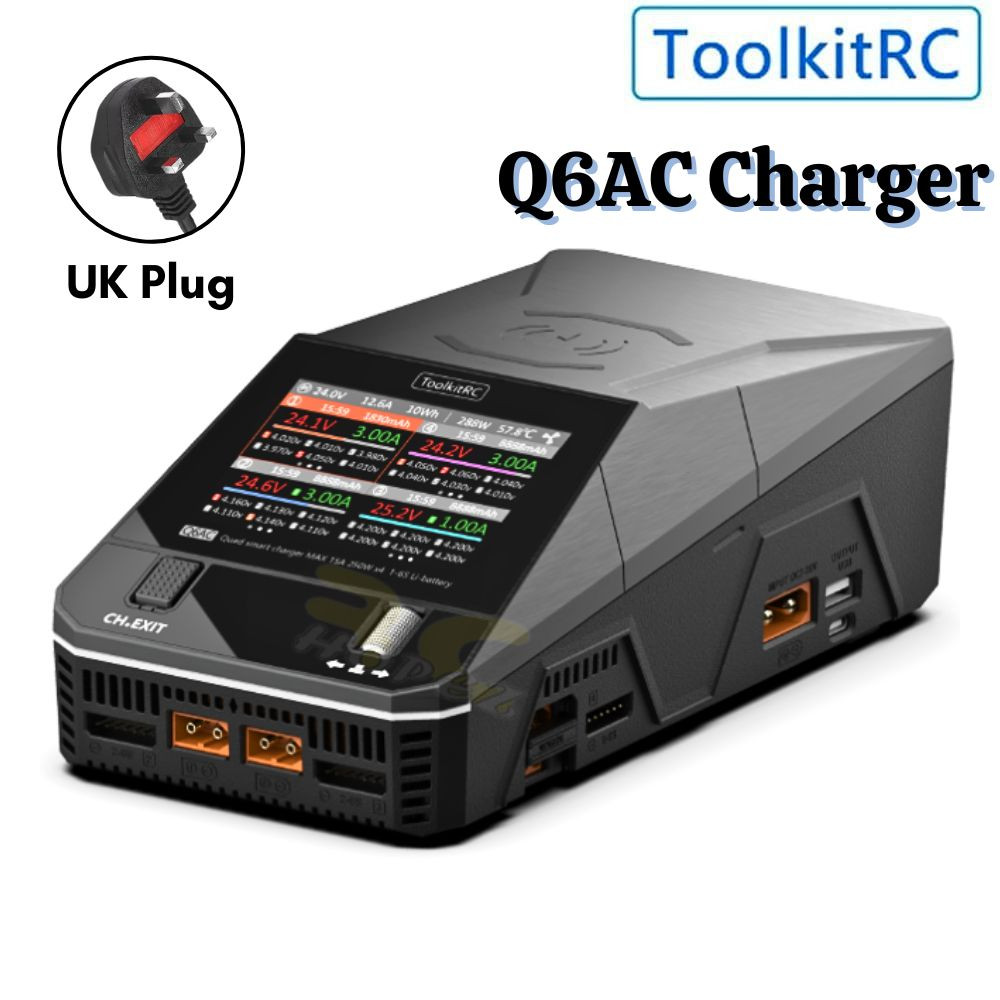

ToolkitRC Q6AC AC 400W DC 1000W 15A*4 Battery Charger Support Wireless Charging 1-6S 4CH Output XT60/XT30 TK-Q6AC

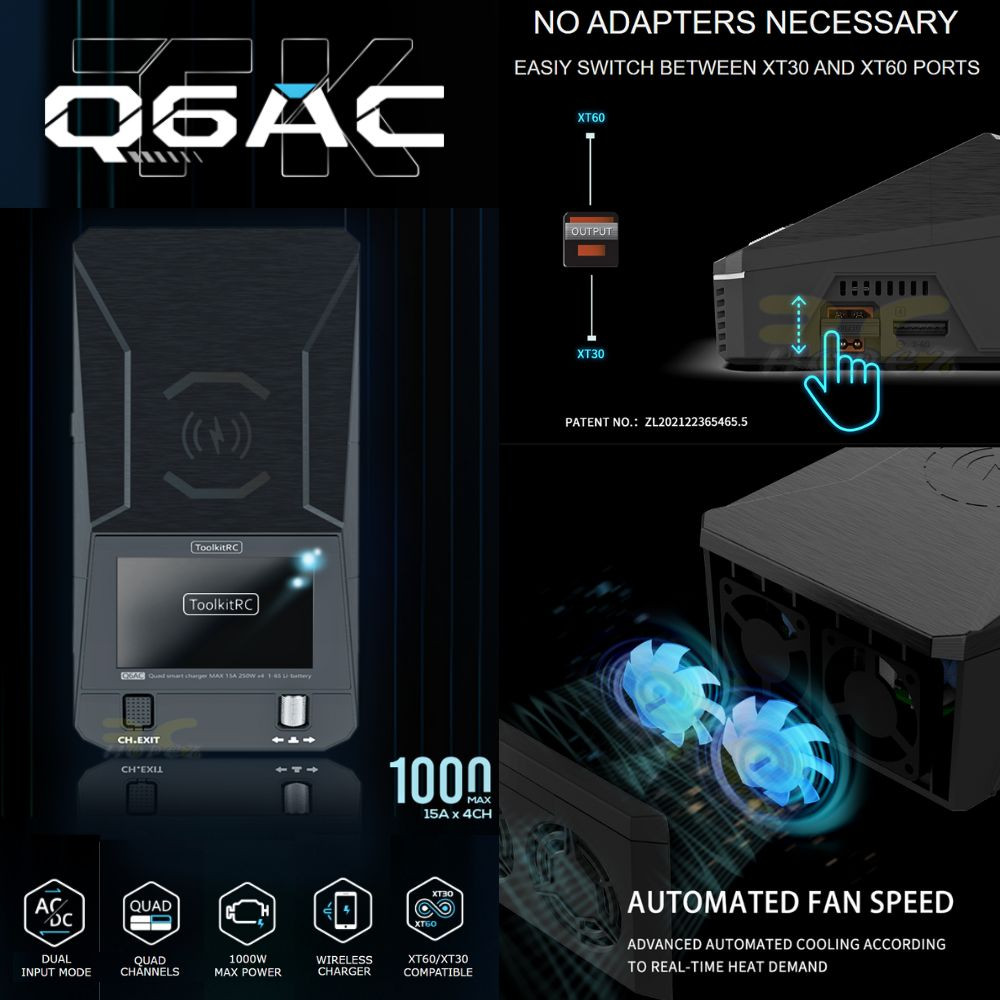

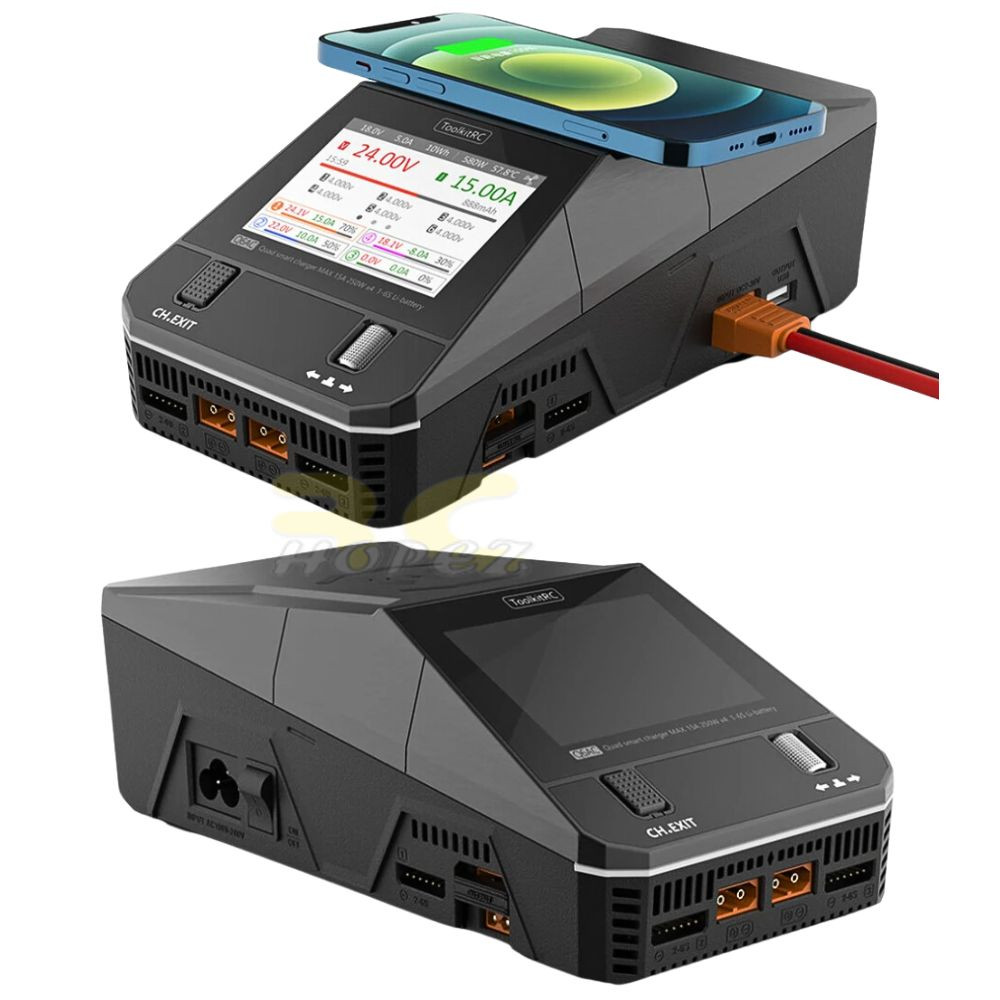

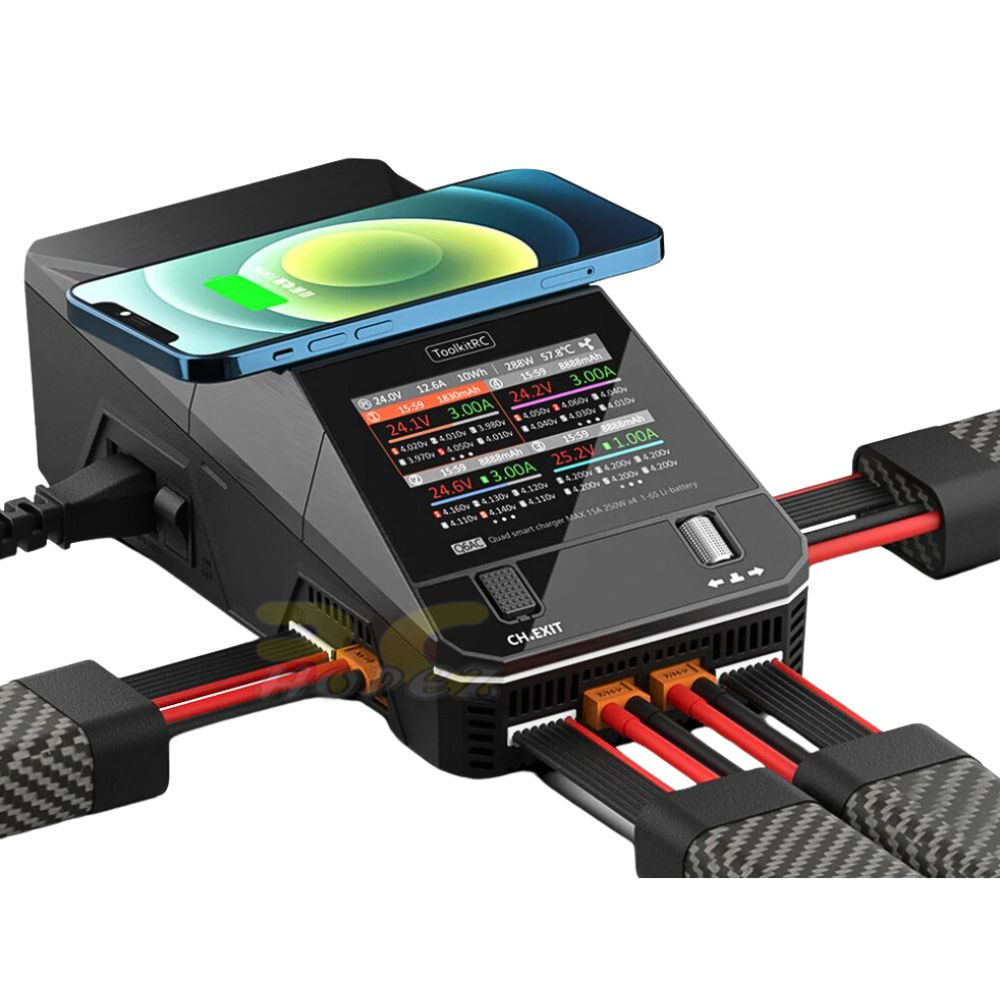

Q6AC Four Channel Independent Output, Automatic Power Distribution, Total Output Power up to 1000W, AC/DC Dual Mode Input, built-in 400W AC Power Supply, XT90 DC Input, Power up to 1000W, Magesafe Magnetic Suction Wireless Charging, Slider Design, Compatible with XT60/XT30
Features
XT30/XT60 Output

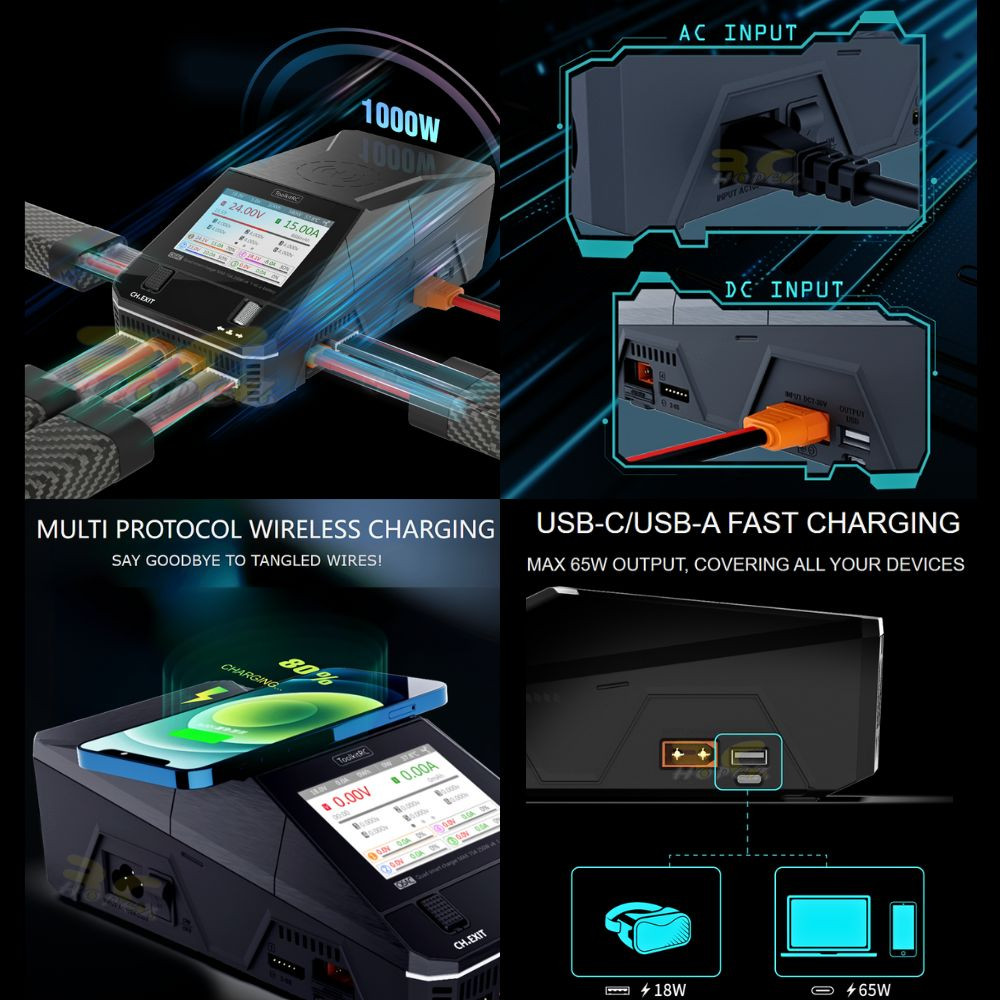

Dual AC/DC Input
Supports 1-6S
Drone charger
Power supply
Signal source
Signal tester
Multimeter
Instructions
1. Connect the power supply.When the power is turned on, enter the main interface.
2. Operate the Wheel to move the cursor, select the desired function, and press the Wheel to comfirm the entry.
3. Repeat the above steps to set the corresponding parameters of this function.
4. Under any function, press the Exit key once to return to the previous step.

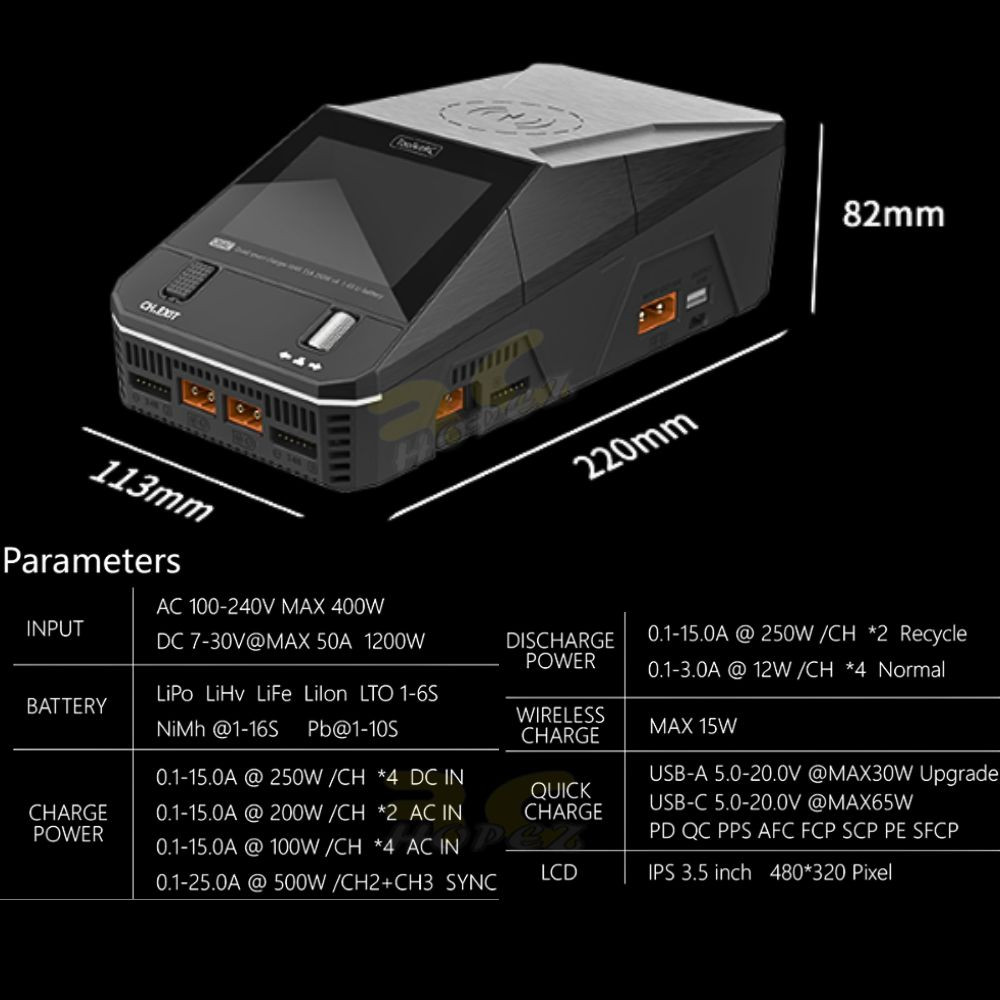

Specifications
CHARGER
Discharge Power: 250W @MAX 15A Recycle mode / 12W@3A Normal mode
Input Voltage: AC 100-240V MAX 100W 5.0A / DC 7.0-30.0V @MAX 50A
Battery Type: Lipo LiHV LiFe Lion LTO@1-6S / NiMh @1-16S Pb @1-10S
Charging Power: 250W @MAX 15A*4 DC IN / 200W @MAX 15A*2 AC IN / 100W @MAX 15A*4 AC IN / 500W @MAX 25A CH2+CH3 SYNC
Balance Current: 800mA @ 4.2V
USBA: 30W or Upgrade
USBC: MAX 65W@20.0V / PD QC PPS AFC FCP SCP PE SFCP
GENERAL

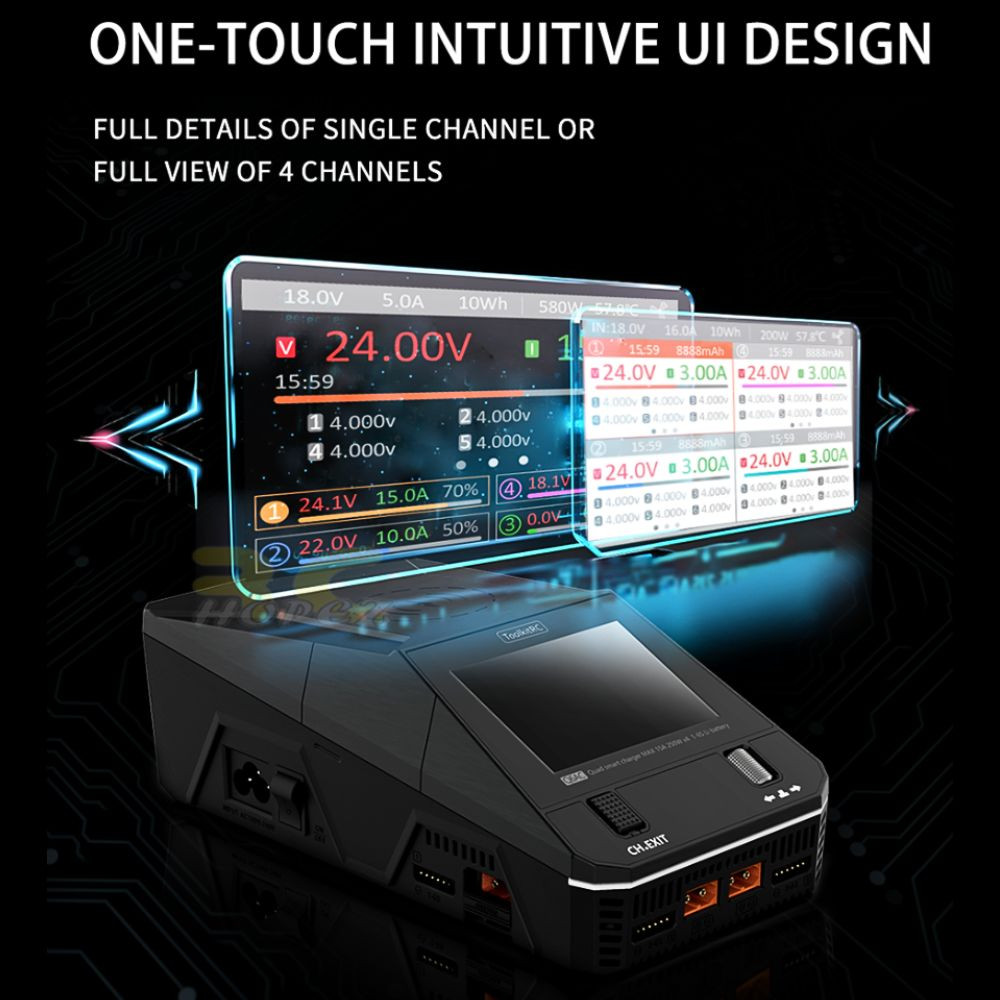

LCD: IPS 3.5 inch LCD 480*320 resolution
Packing Size: 260*220*120mm
Product Size: 220mm*113mm*82mm
Packaging Weight: 1600g
Product Weight: 1120g

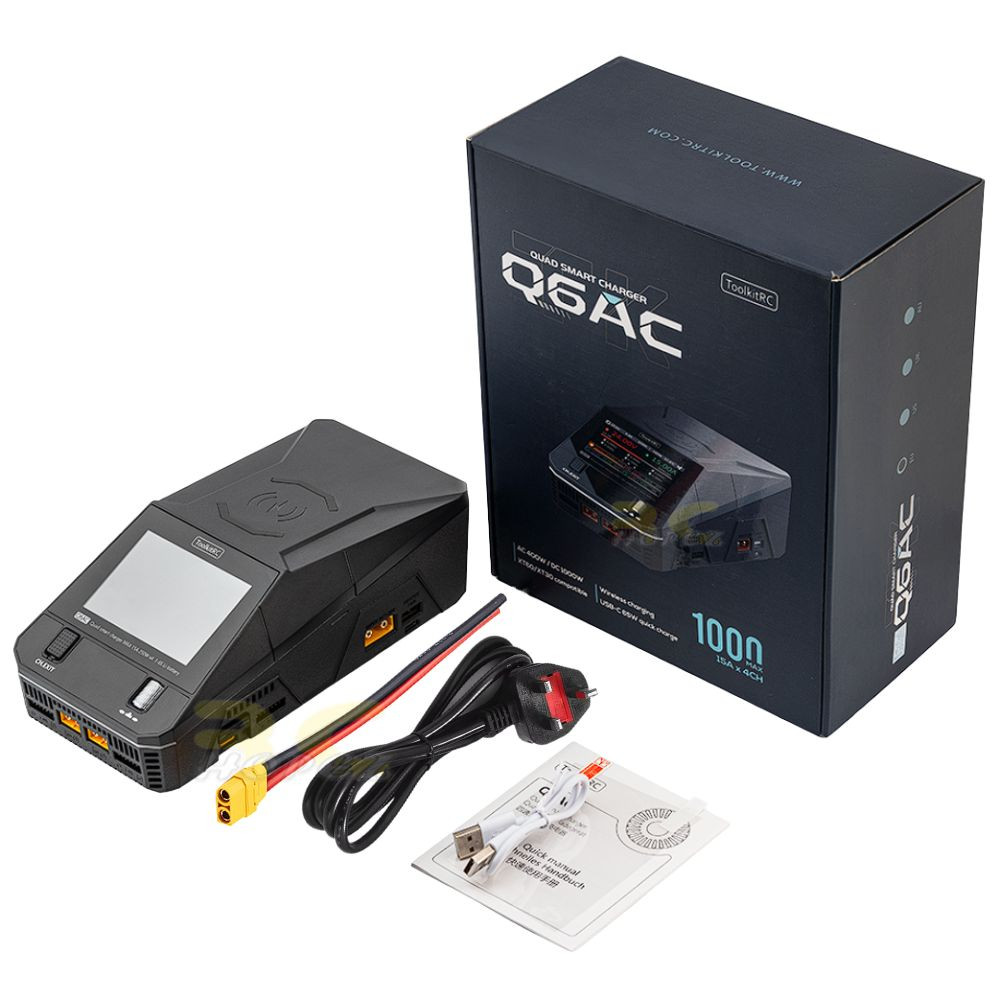

Includes :
1 x ToolkitRC Q6AC Quad Smart Charger
1 x USB Cable
1 x Manual
1 x AC Cable US Plug
1 x Cable with XT90 connector
1 x 3-Pin Universal UK Plug Adapter
