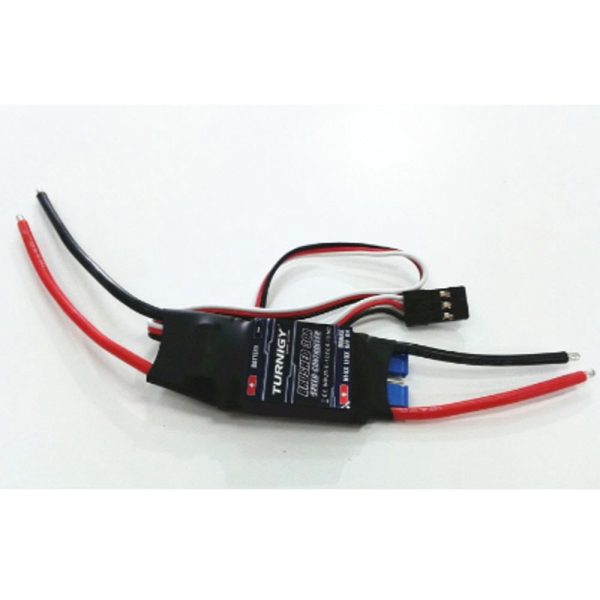

Turnigy 30A BRUSHED ESC 6468

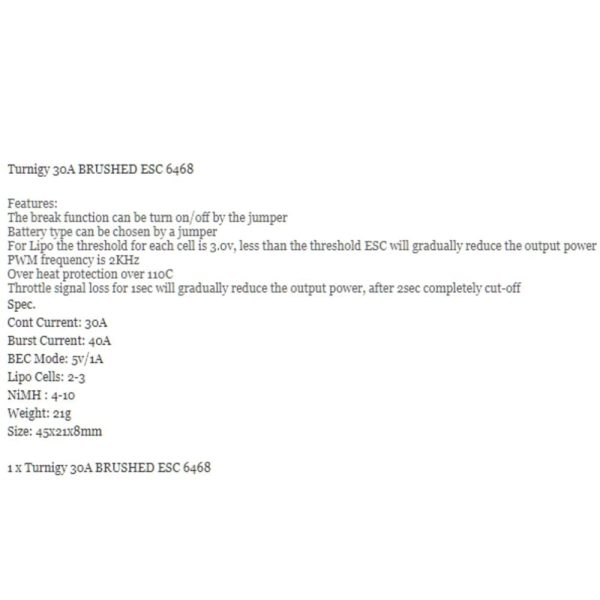

Features:
The break function can be turn on/off by the jumper
Battery type can be chosen by a jumper
For Lipo the threshold for each cell is 3.0v, less than the threshold ESC will gradually reduce the output power
PWM frequency is 2KHz
Over heat protection over 110C
Throttle signal loss for 1sec will gradually reduce the output power, after 2sec completely cut-off
Spec.
Cont Current: 30A
Burst Current: 40A
BEC Mode: 5v/1A
Lipo Cells: 2-3
NiMH : 4-10
Weight: 21g
Size: 45x21x8mm
1 x Turnigy 30A BRUSHED ESC 6468
