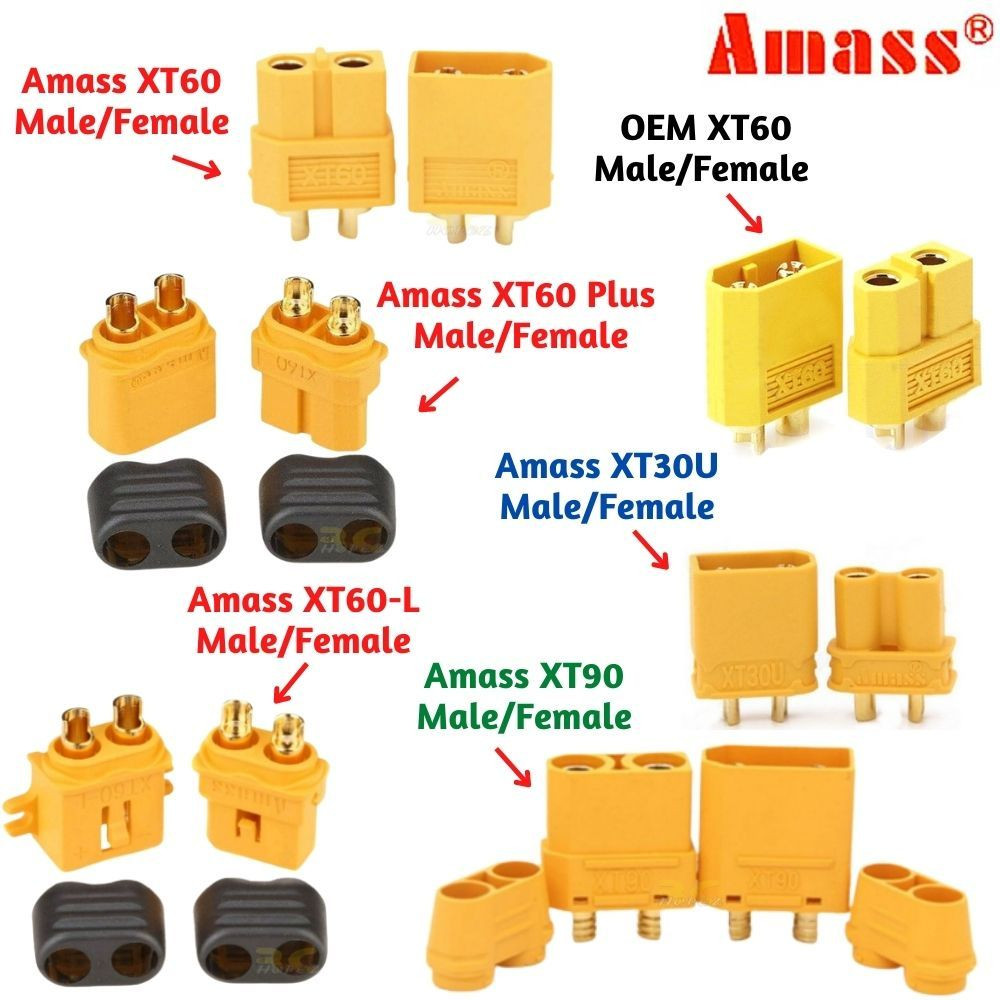

XT30 XT60 XT60H XT60L XT90 Plug Amass / OEM Male Female Connector Plug Socket for Battery ESC HS-Connector

XT30 XT60 XT60H XT60L XT90 Plug Amass / OEM Male Female Connector Plug Socket for Battery ESC HS-Connector

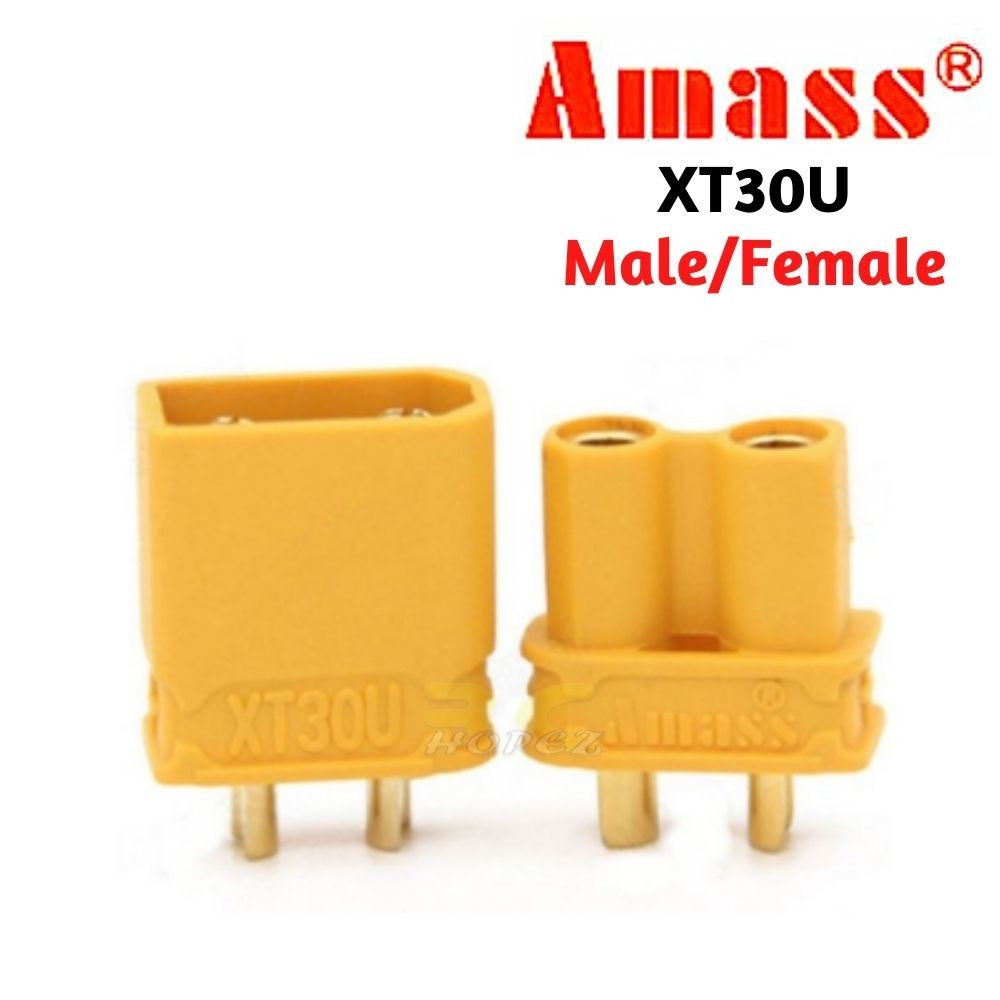

Description : (XT30 Male/Female)
Brand: Amass
Colour: Golden Yellow
Metal Meterial: Brass Gold Plated
Insulating Material: Nylon / PA
Rated Voltage: DC 500V
Rated Current: 15A
Max Current: 30A
Contact Resistance: 0.70mΩ
Working Temp: 20°C-120°C
Recommend Cable Spec: 18AWG

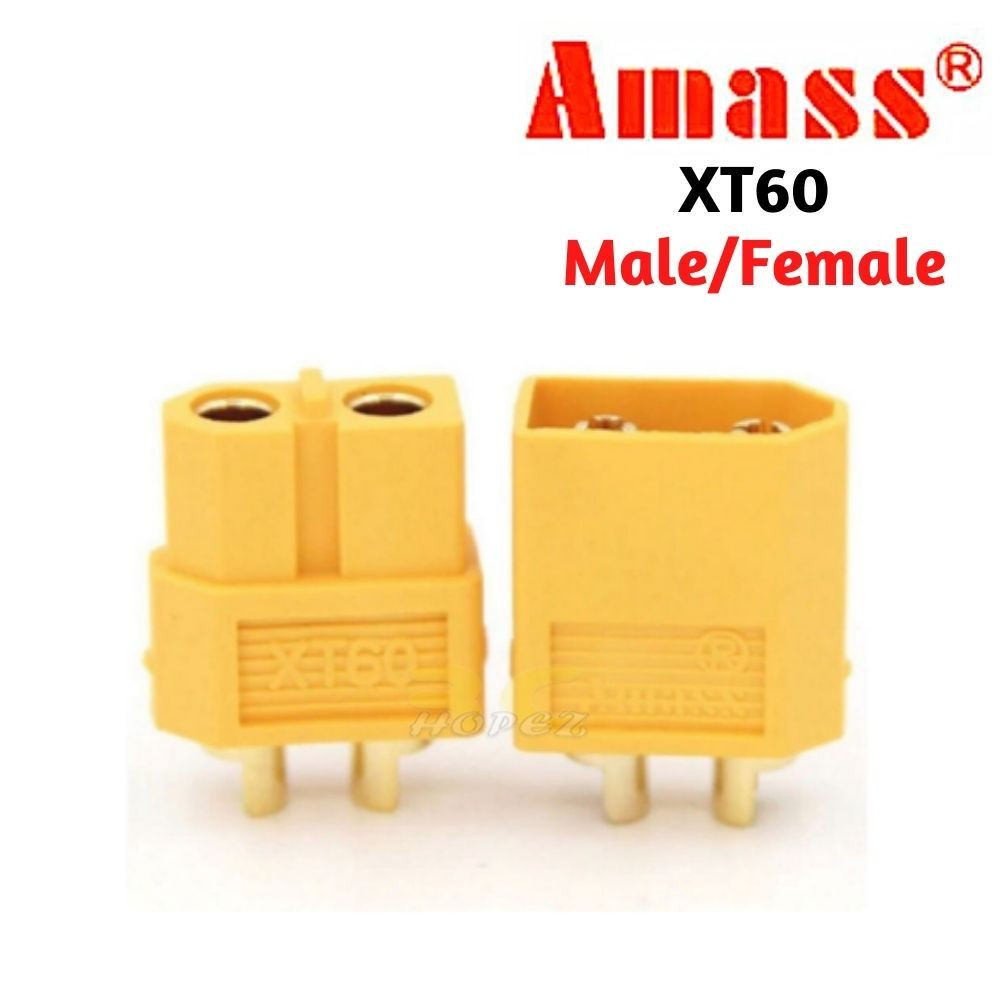

Description : (A-XT60 Male/Female)
Brand: Amass
Color: Golden Yellow
Metal Meterial: Brass Gold Plated
Insulating Material: Nylon / PA
Rated Current: 30-60A(Max)
Continuous Power Rating: 80A
Peak Power Rating: 120A
Bullet Connector: 3.2mm
Recommend Cable Spec: 12AWG

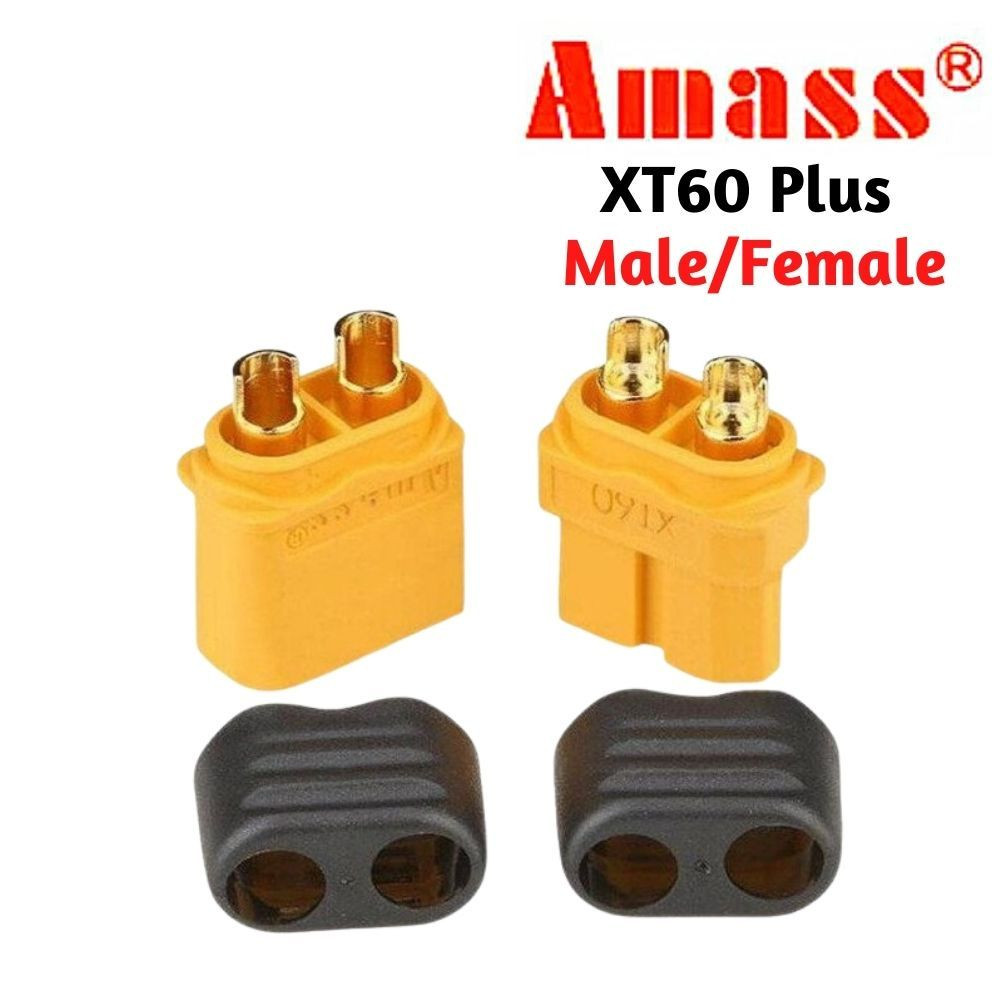

Description : (XT60P Male/Female)
Brand: Amass
Color: Golden Yellow
Metal Meterial: Brass Gold Plated
Insulating Material: Nylon / PA
Rated Current: 30A
Max Current: 60A
Contact Resistance: 0.50mΩ
Working Temp: 20°C-120°C
Recommend Cable Spec: 12AWG

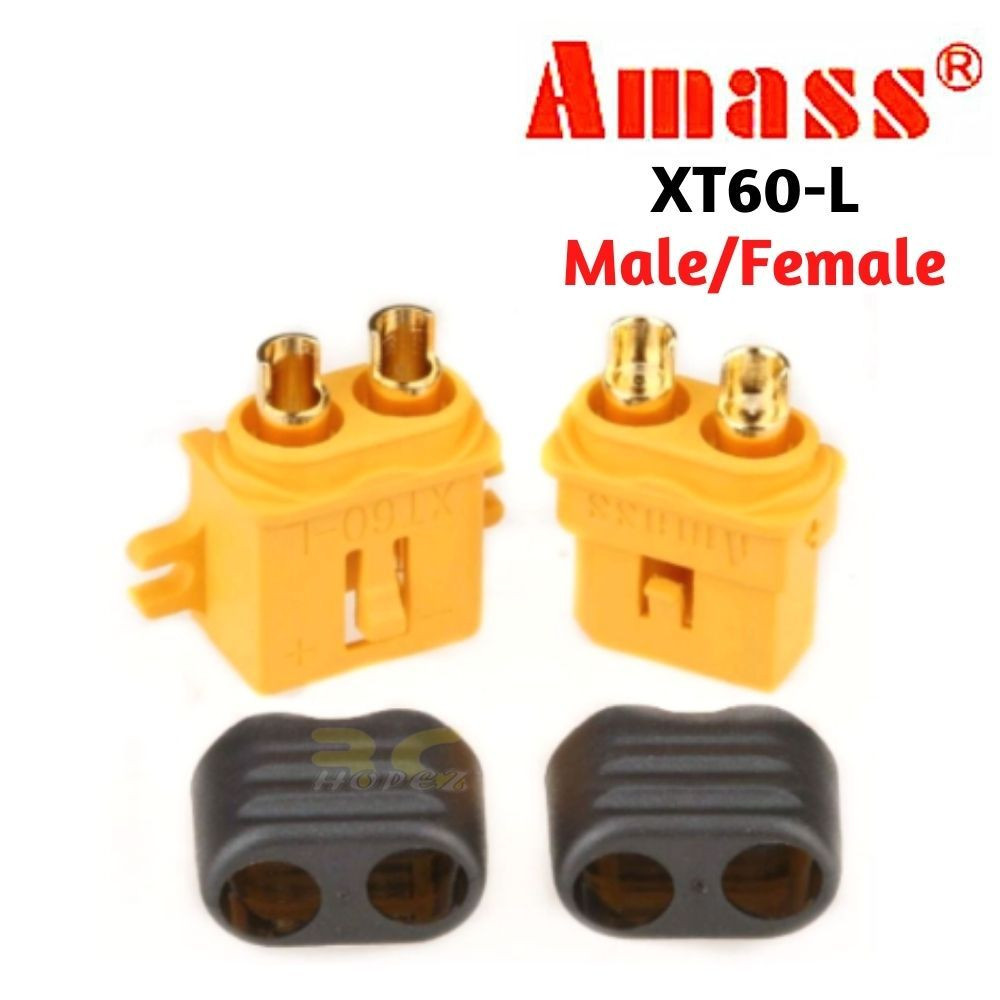

Description : (XT60L Male/Female)
Brand: Amass
Color: Golden Yellow
Metal Meterial: Brass Gold Plated
Insulating Material: Nylon / PA
Rated Current: 60A
Max Current: 100A
Contact Resistance: 0.8 mΩ
Temperature Tolerance: 20-120℃
Recommend Cable Spec: 12AWG

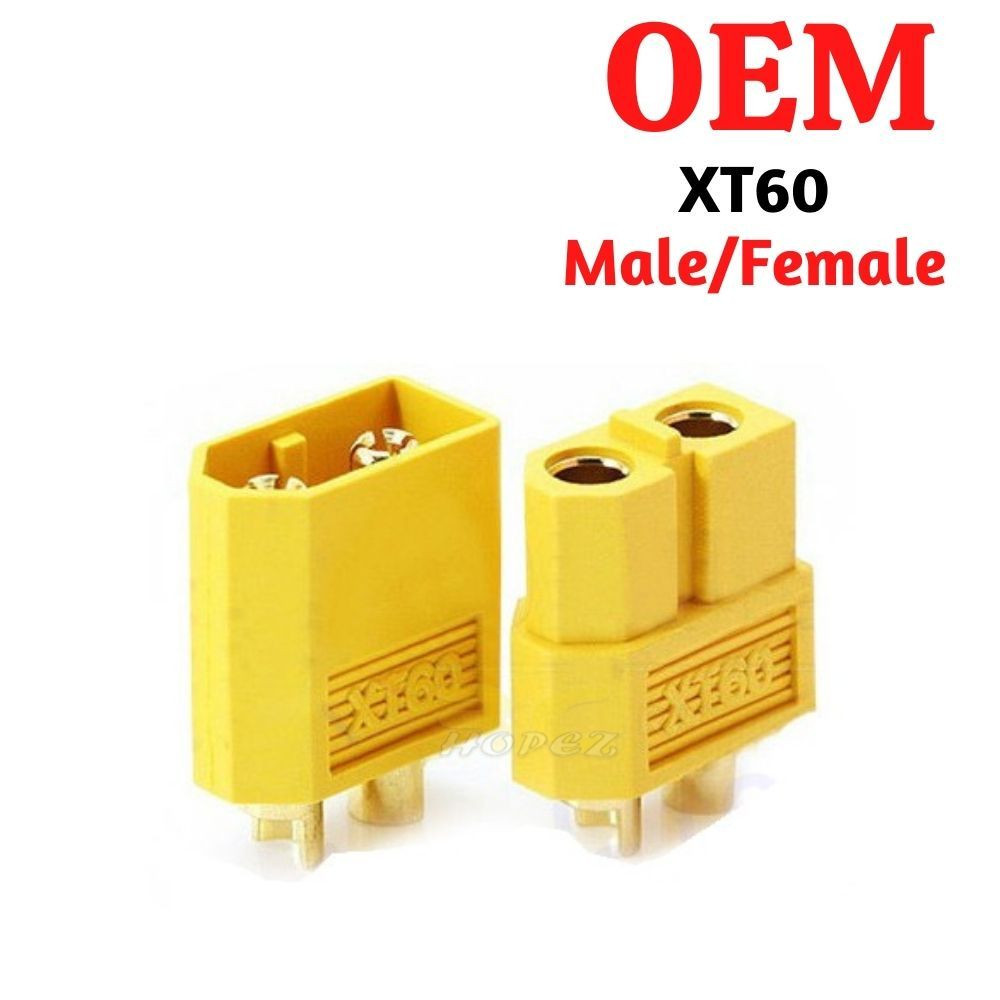

Description : (XT60 Male/Female)
Brand: OEM
Color: Golden Yellow
Metal Meterial: Nylon / PA
Reted Current: 30~60A
Bullet Connector: 3.5mm
Recommend Cable Spec: 12AWG

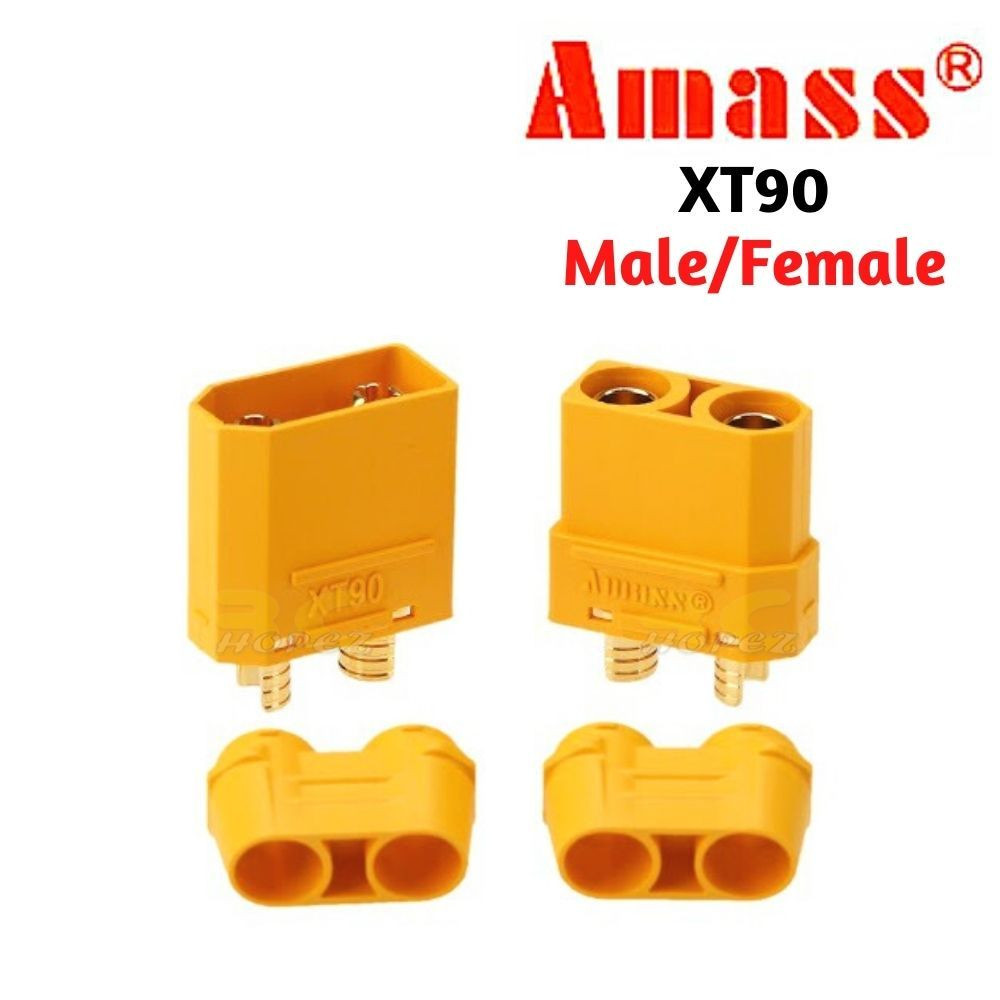

Description : (XT90 Male/Female)
Brand: Amass
Color: Golden Yellow
Metal Meterial: Brass Gold Plated
Insulating Material: Nylon / PA
Rated Voltage: DC 500V
Rated Current: 40A
Max Current: 90A
Contact Resistance: 0.30 mΩ
Temperature Tolerance: 20-120℃
Recommend Cable Spec: 10AWG

Package Included (Optional):

1 x Amass XT30 Male/Female

OR

1 x Amass A-XT60 Male/Female

OR

1 x Amass XT60P Male/Female

OR

1 x Amass XT60L Male/Female

OR

1 x OEM XT60 Male/Female

OR

1 x Amass XT90 Male/Female
