BetaFPV 80mm Brushless Whoop Frame Kit For Pavo Pico BT-Duct

BetaFPV 80mm Brushless Whoop Frame Kit For Pavo Pico BT-Duct

Pavo Pico is the Smallest 2S Sub100g For DJI O3 Cinewhoop frame, compatible with other mainstream HD digital VTX on the market, such as Walksnail Avatar Pro Kit, Vista Kit, etc. Based on feedback from pilots during the BETA TEST before, we have made upgrades to the frame, such as lowering the battery slot height and adding filters and camera protection parts. These improvements will maximize the advantages of the camera and HD digital VTX providing, enabling a unique and unparalleled flying experience for pilots.

Bullet Point

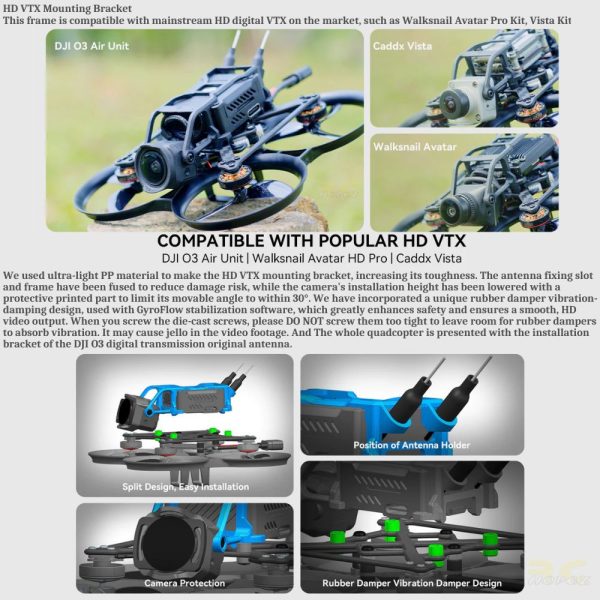

• HD digital VTX bracket made of lightweight and tough injection-molded PP material with an adjusted structure to prevent HD VTX displacement or loss after the crash.
• Incorporating an angle-limited lens protection print and For DJI O3 series filters, It is recommended to purchase, which can increase safety and improve visual quality.

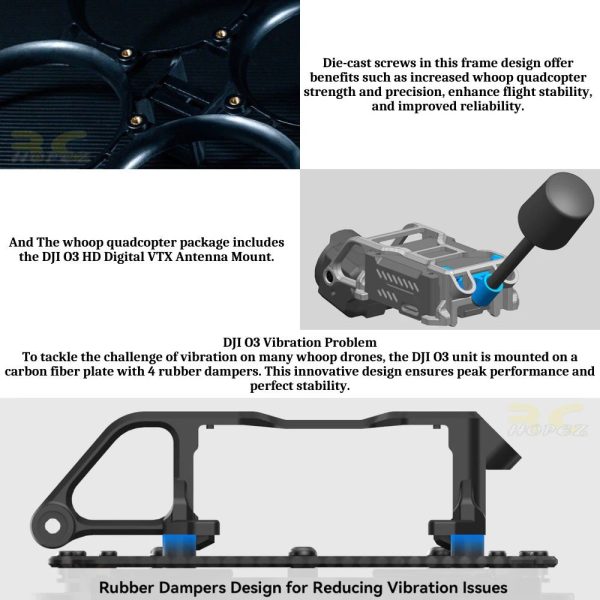

• The Rubber Damper Vibration damping design reduces low-frequency vibrations and is used with GyroFlow stabilization software for a stable and clear camera image during high-speed flight.

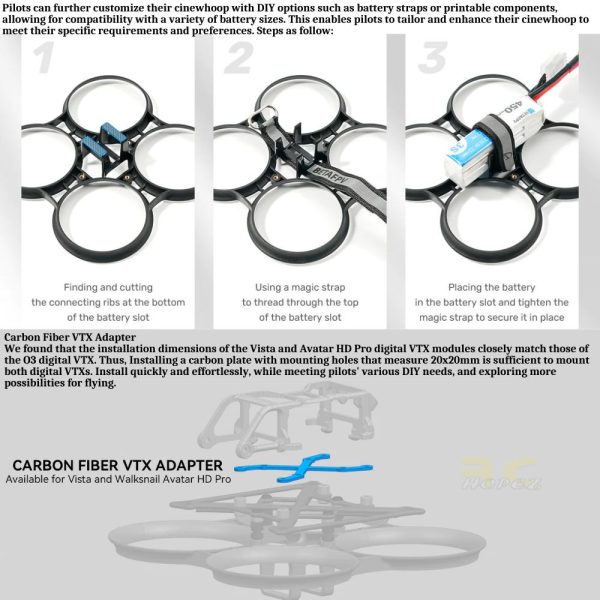

• To accommodate a wider range of battery sizes, the main body of the frame can be trimmed through DIY methods. Additionally, larger batteries can be installed by using battery straps or printed components.
• The For DJI O3 can be directly installed, while For-Avatar and Vista require a 20*20 mounting plate and screws (included) for fixation. The naked frame is suitable for users who DIY refit and assemble the HD VTX by themselves
• You can choose your favorite color or collect them all to create your own unique mix-and-match cinewhoop.

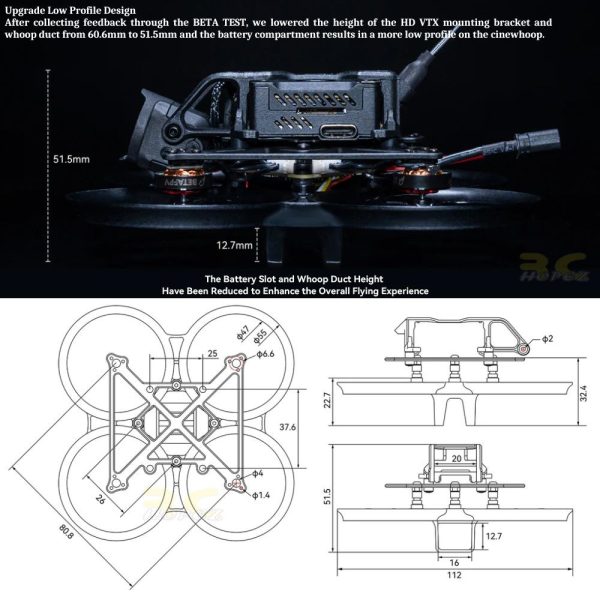

Specification
Item: Pavo Pico Brushless Whoop Frame
Material: PA12
Wheelbase: 80.8mm
Battery Slot Size: 16mm*12.7mm
Camera Installation Spacing: 19mm/20mm

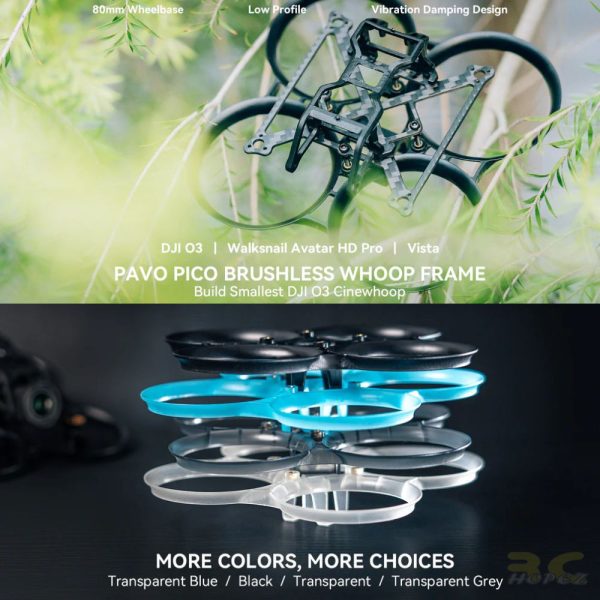

Color: Black / Transparent Grey / Transparent / Transparent Blue (Optional)

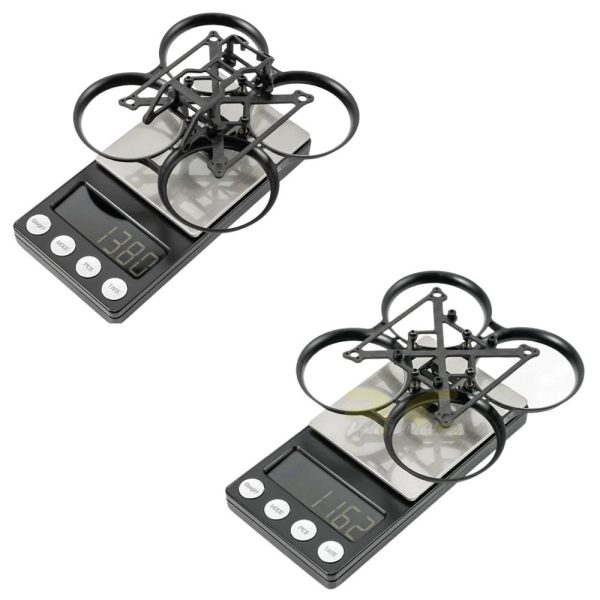

Weight: 13.80g/11.62g
Motor Mounting Hole Position: 3-M1.4-φ6.6mm
FC Pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3

Recommend Parts (Not Included)
FC&ESC: F4 1S 12A AIO V3 / F4 1S 12A AIO V2.2
Motor: 1102 14000kv Brushless Motor
Propeller: GF 45mm 3-Blade Prop, GF 45mm 2-Blade Prop
Battery: 2S 450mAh 45C Lipo Battery

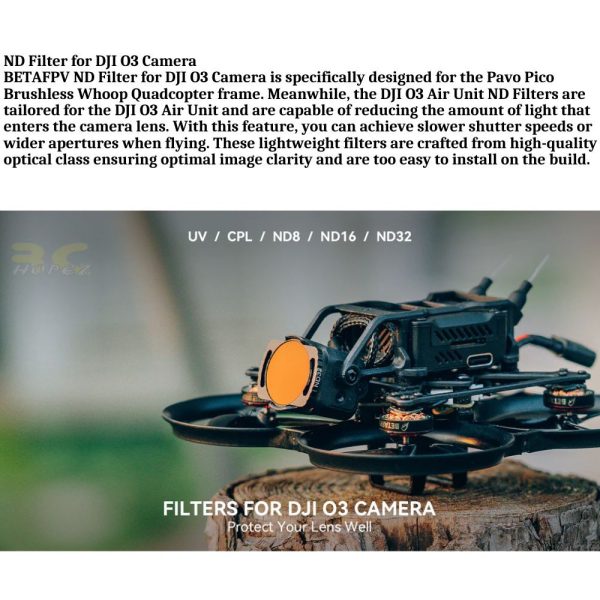

ND Filter: BETAFPV ND Filter for DJI O3 Camera
Quadcopter:Pavo Pico Brushless Whoop
Support HD Digital VTX: For DJI O3 HD Digital VTX, Avatar-HD Digital VTX, Vista HD Digital VTX, Runcam Link

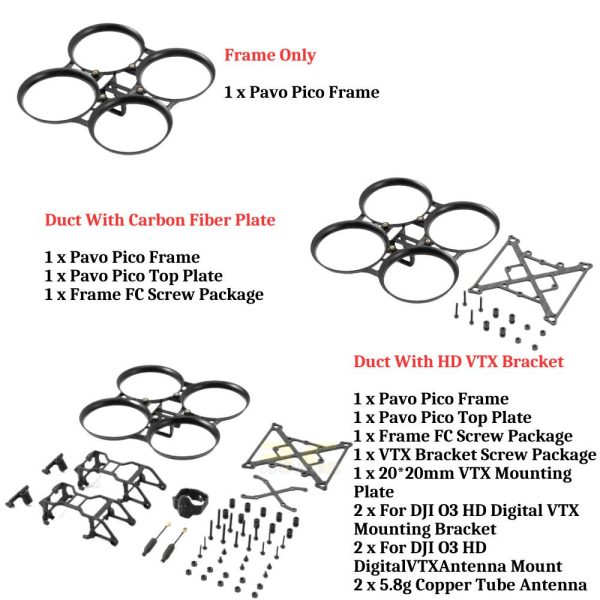

Packing Included:

Frame Only
1 x Pavo Pico Frame

or

Duct With Carbon Fiber Plate
1 x Pavo Pico Frame
1 x Pavo Pico Top Plate
1 x Frame FC Screw Package

or

Duct With HD VTX Bracket
1 x Pavo Pico Frame
1 x Pavo Pico Top Plate
1 x Frame FC Screw Package
1 x VTX Bracket Screw Package
1 x 20*20mm VTX Mounting Plate
2 x For DJI O3 HD Digital VTX Mounting Bracket
2 x For DJI O3 HD DigitalVTXAntenna Mount
2 x 5.8g Copper Tube Antenna
