Caddx Walksnail Avatar HD Pro Camera / VTX V2 Kit  32G with Gyroflow WN-Avatar Pro

RM659.00

1 in stock

SKU: WN-Avatar Pro Category:

Caddx Walksnail Avatar HD Pro Camera / VTX V2 Kit  32G with Gyroflow WN-Avatar Pro

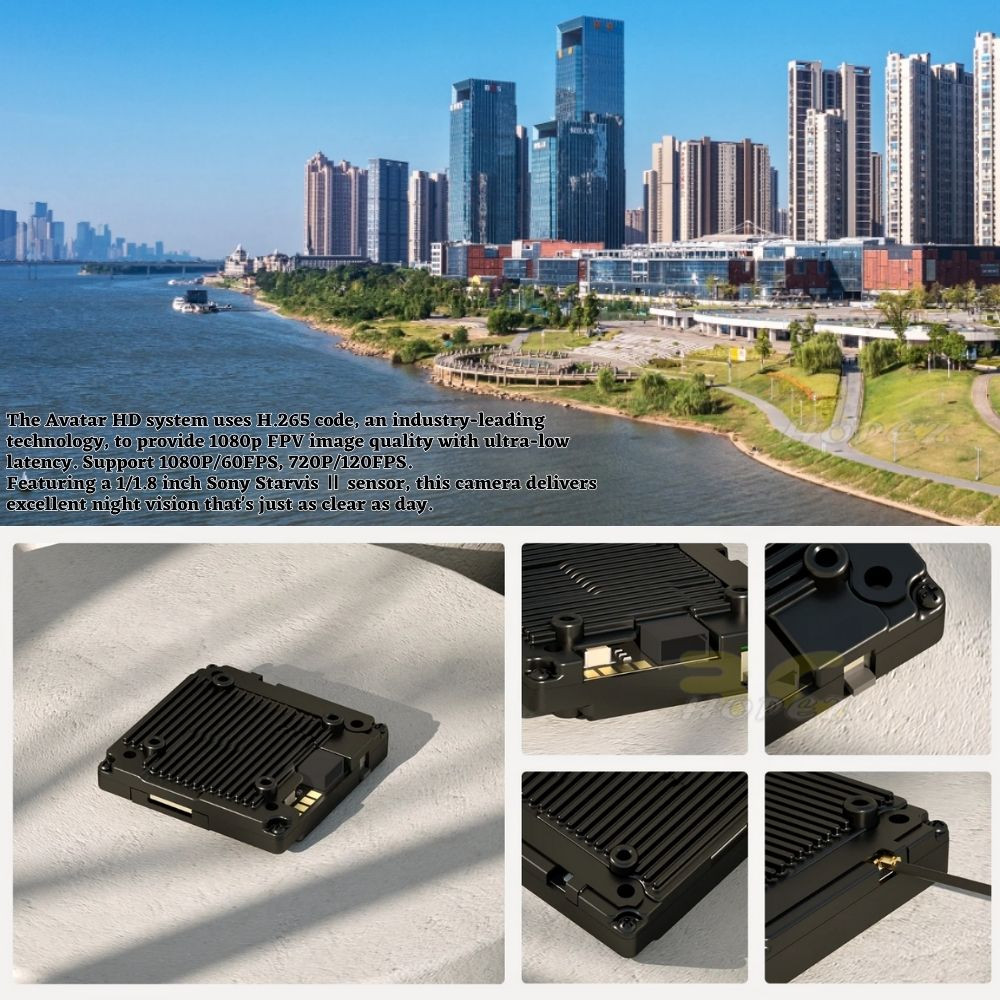

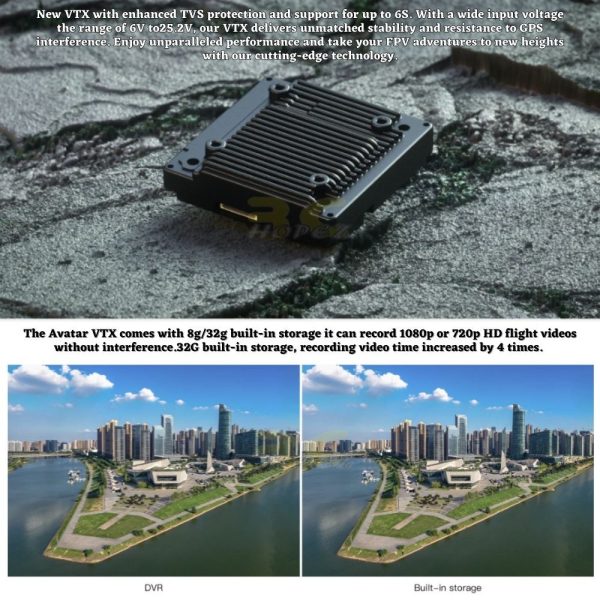

The Walksnail Avatar HD Pro Kit features a VTX with enhanced TVS protection and support for up to 6S. This VTX delivers unmatched stability and resistance to GPS interference with a wide input voltage range of 6V to 25.2V. This kit also features 1080P compatibility, high frame starlight, a 4KM range, and 32GB built-in storage.  Enjoy the unparalleled performance and take your FPV adventures to new heights with this cutting-edge technology!

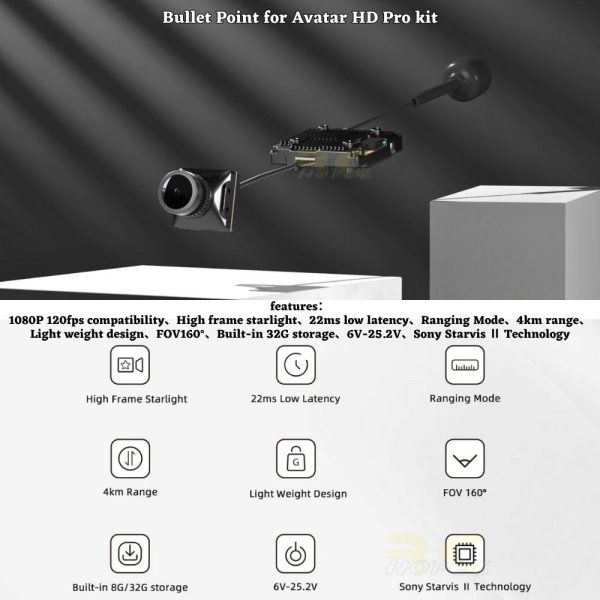

Features
1080P 120fps compatibility
Sony Starvis Ⅱ Technology
Built-in 32GB storage
High frame starlight
Lightweight design
22ms low latency

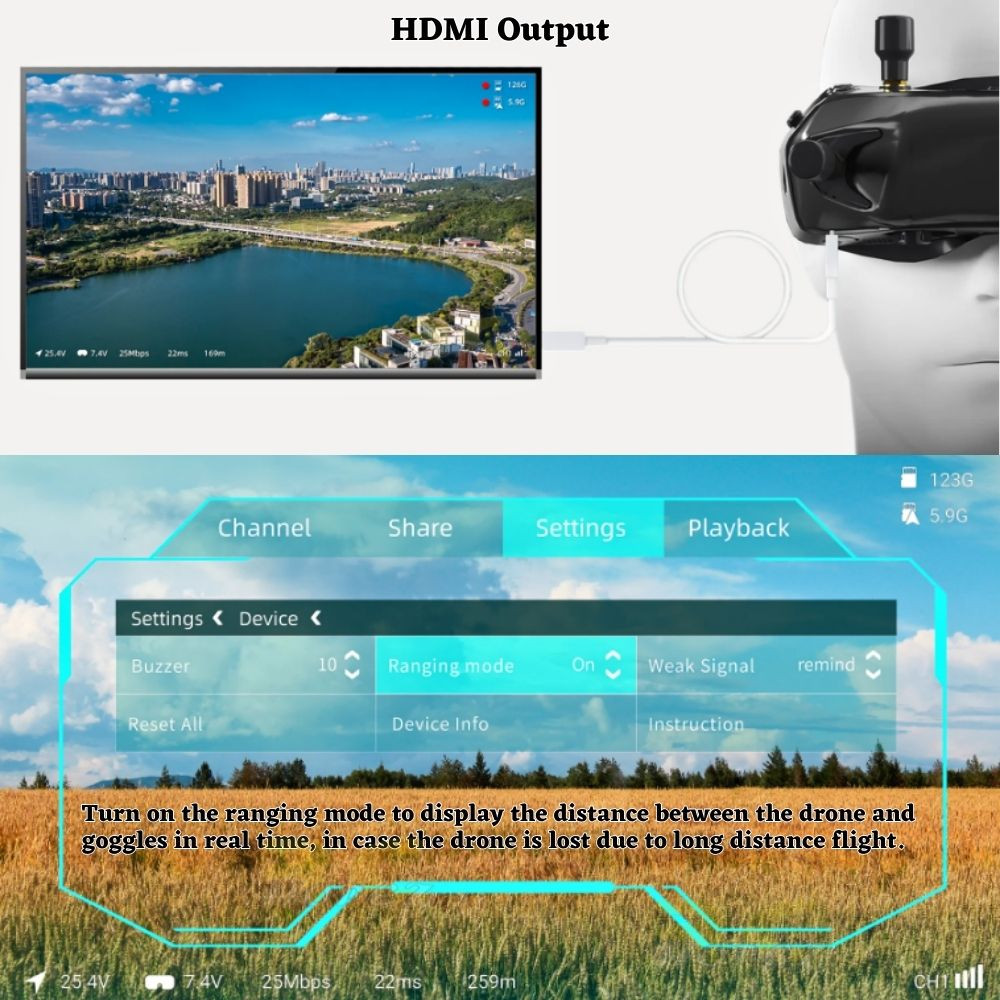

Ranging Mode
4km range
6V-25.2V
FOV 160°

Specifications

HD PRO CAMERA
Resolution: 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;

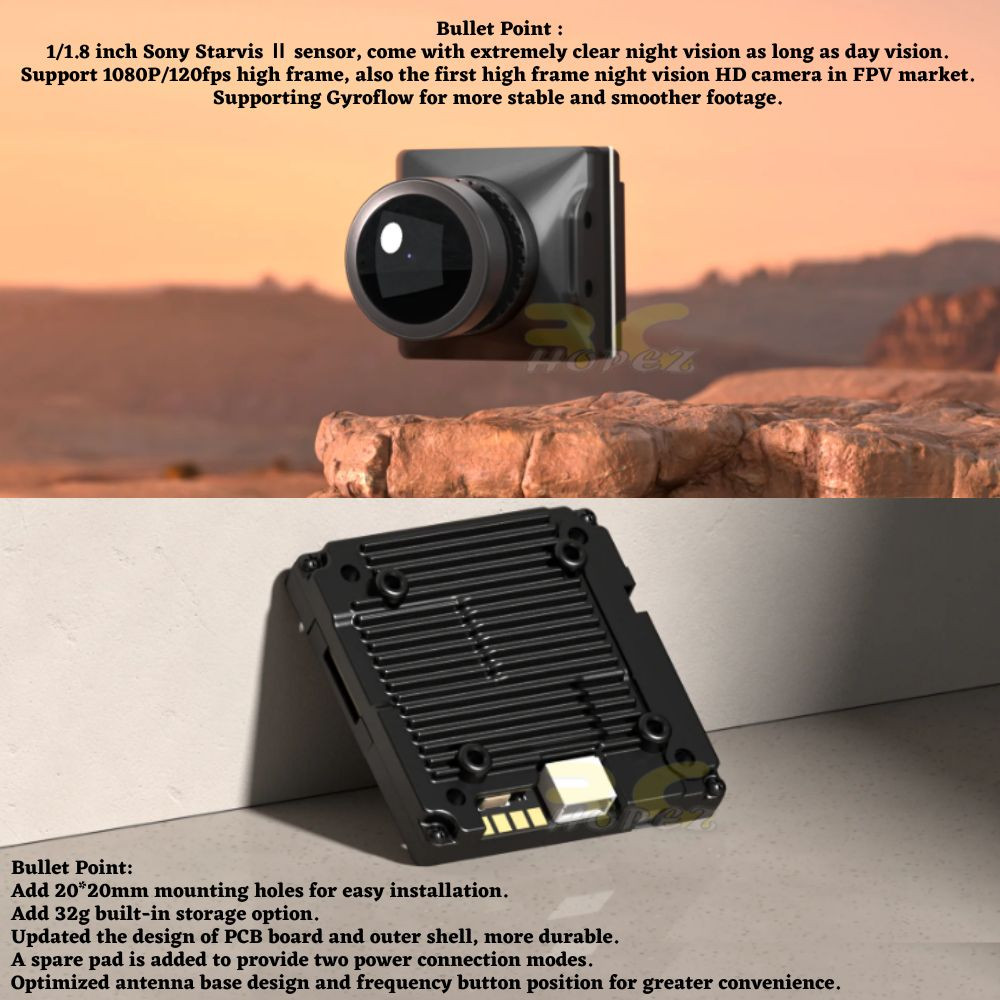

Image Sensor: 1/1.8-Inch Sony Starvis Ⅱ Sensor
Model: Avatar HD Pro camera
Min.Illumination: 0.00001Lux
Dimensions: 19*19*24mm
Shutter: Rolling shutter
Coaxial Cable: 140mm
Ratio: 16/9; 4/3
Aperture: F1.6
Weight: 9.5g
Lens: 8Mp
FOV: 160°

AVATAR V2 VTX
Transmitter Power (EIRP: FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
Supported FC System: Betaflight; Inav; Fettec; ArduPilot;Kiss

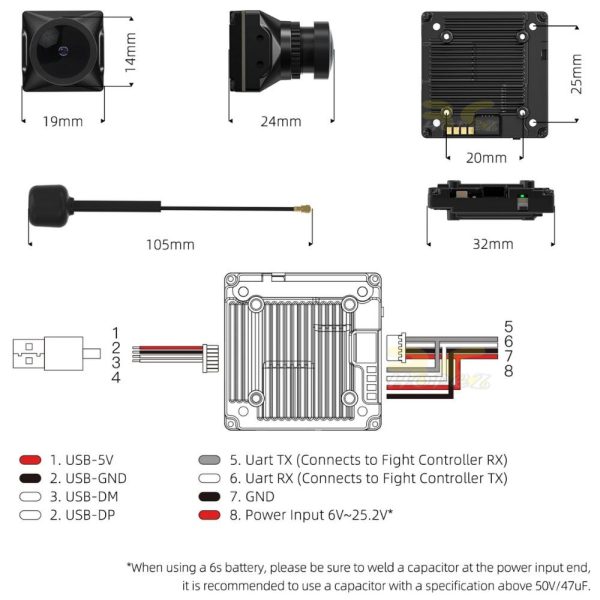

1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)
Communication Frequency: 5.725-5.850GHz

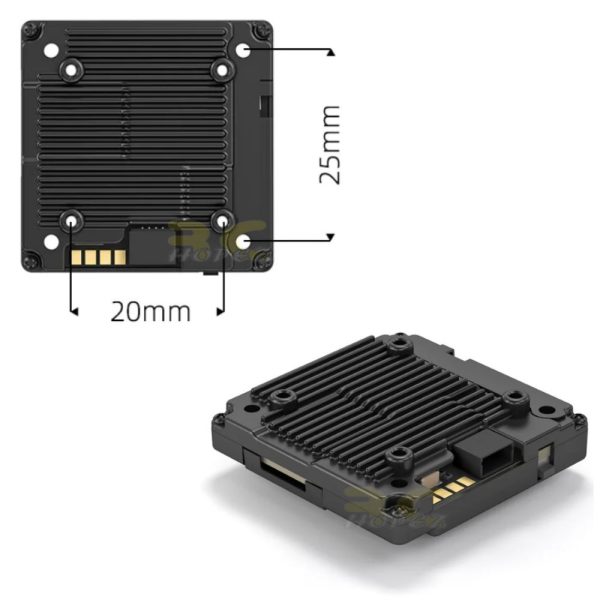

Mounting Holes: 25.5*25.5mm; 20*20mm
Operating Temperature: -20-40℃
Dimensions: 33.5*33.5*10.5mm
Latency: Average delay 22ms
Wide Power Input: 6V-25.2V
Model: Avatar V2 module
Recording: 1080p/720p
OSD: Canvas mode
Antenna: 1(IPEX)
Storage: 32G
Weight: 17.6g
Channels: 8

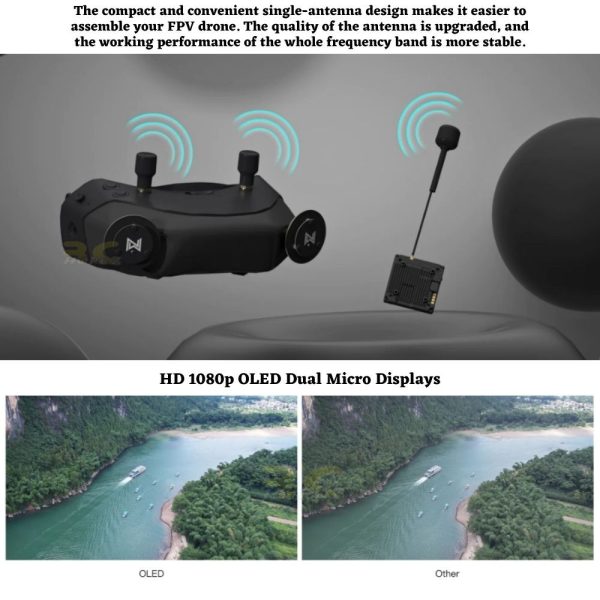

AVATAR V2 ANTENNA
Frequency range: 5600MHz-6000MHz
Size: R15 X 45mm(without cable)
Input Impedance: 50Ω
Polarization: LHCP
Interface: IPEX-1
Gain: 1.9dBi
VSWR: ≤1.5
Weight: 2g

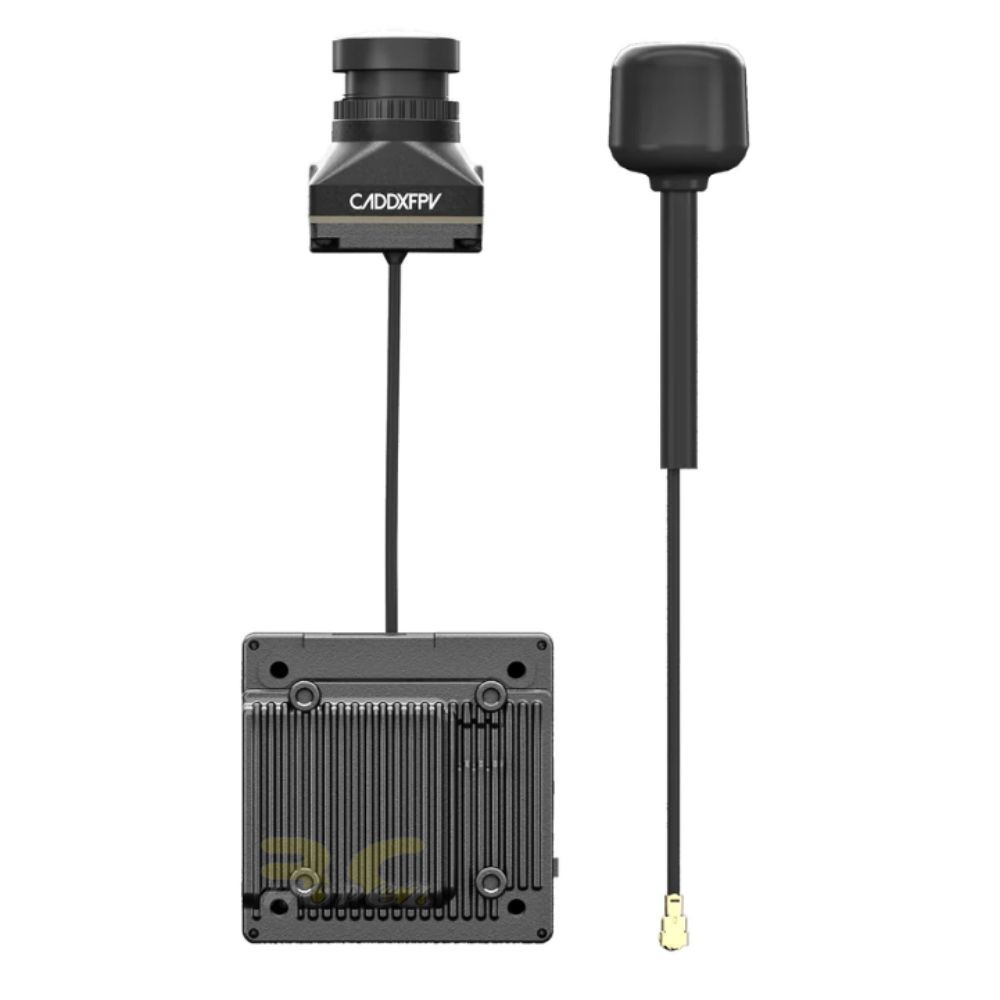

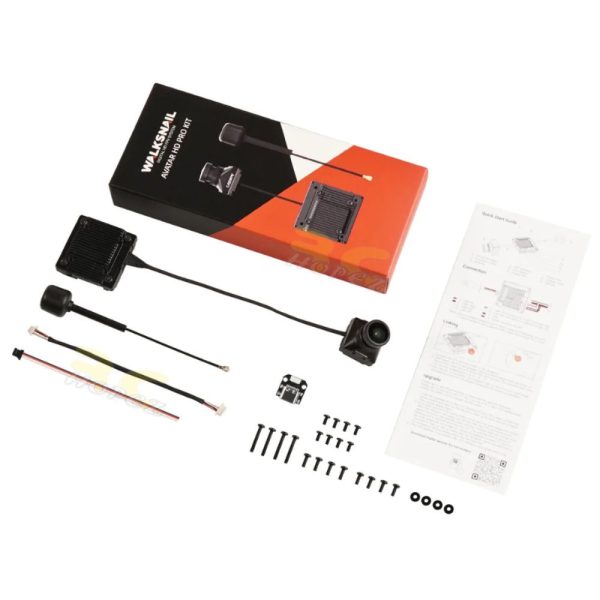

Includes
1x Walksnail Avatar V2 VTX – 32GB w/ Gyro
1x Walksnail Avatar HD Pro Camera
1x Walksnail Avatar V2 Antenna
1 x USB Transfer Extension Cable
1 x 4 Pin Silicone Cable
8 x M2*4mm Screws
4 x M2*5mm Screws
4 x M2*6mm Screws
4 x M2*14mm Screws
4 x M2*5*0.5mm Gasket

Q: Do we support 1080P 120FPS?
A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.



Weight 0.15 kg
Dimensions 6 × 3 × 3 cm
