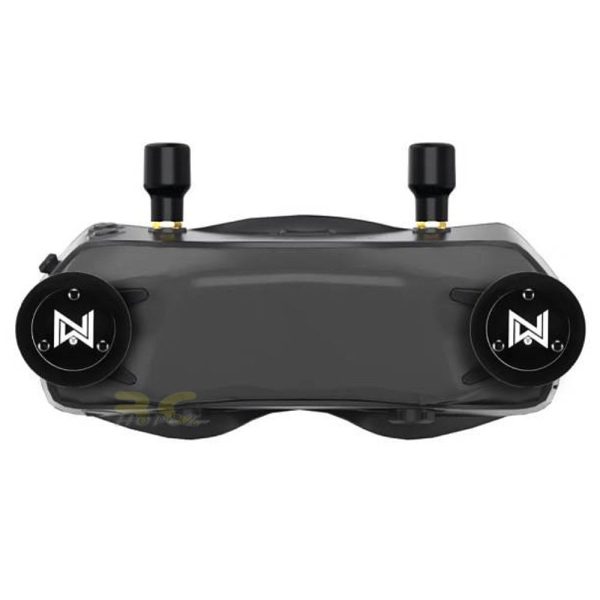

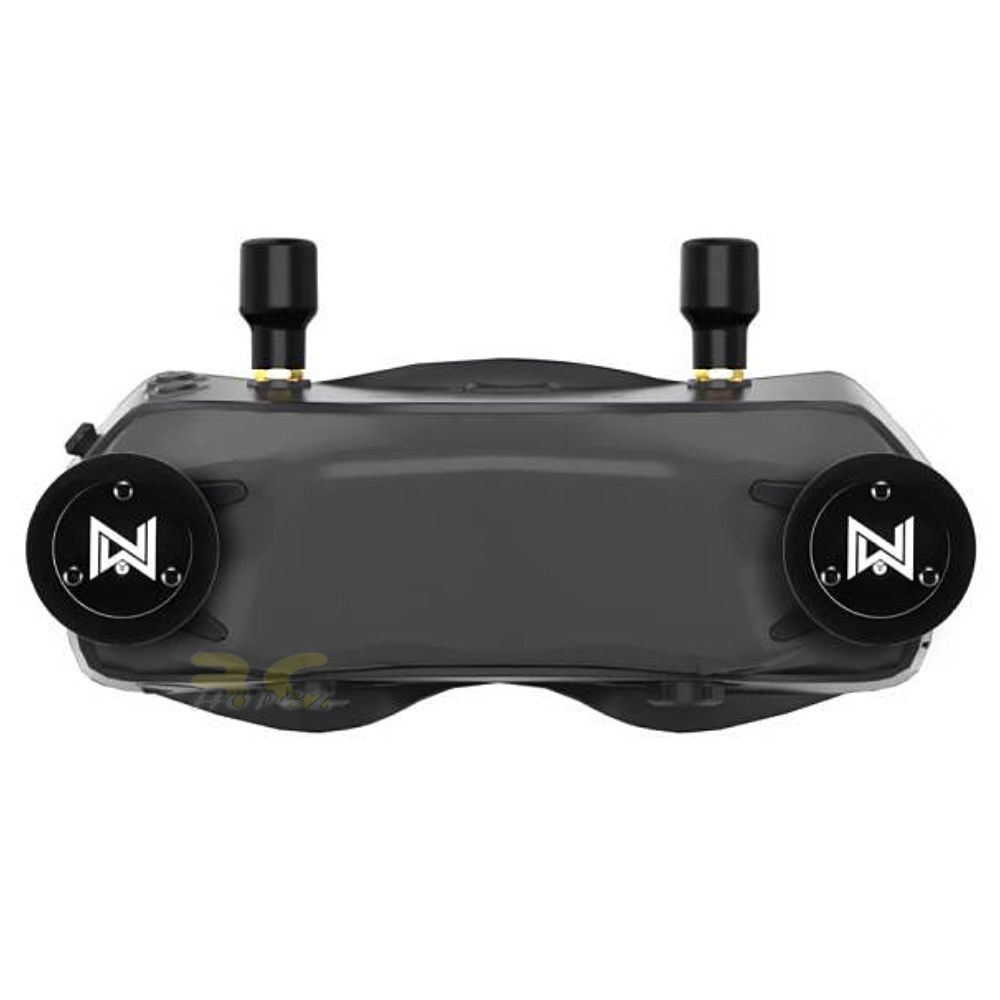

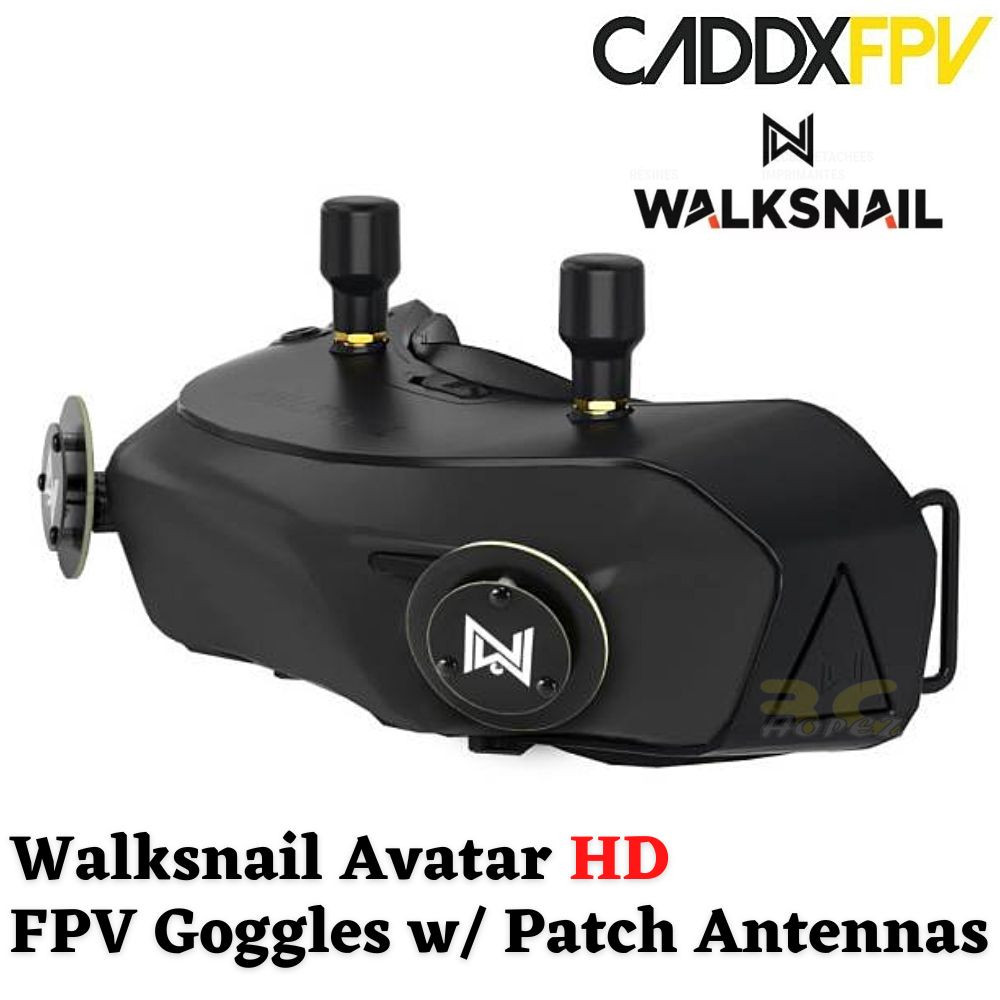

Caddx Walksnail Avatar HD FPV Goggles w/ Patch Antennas WN-Avatar
The Walksnail Avatar Digital HD FPV Goggles feature high-fidelity Full HD OLED displays and support a new 1080p video transmission protocol in a compact design. These goggles are designed as lightweight mini-size goggles with 46° FOV and focus adjustment with HDMI output.
Features
Customizable Fit with Optional Faceplate Pad Accessories
Red Bird LHCP 5.8GHz Goggle Antennas
HD Video Output via USB-C Connector

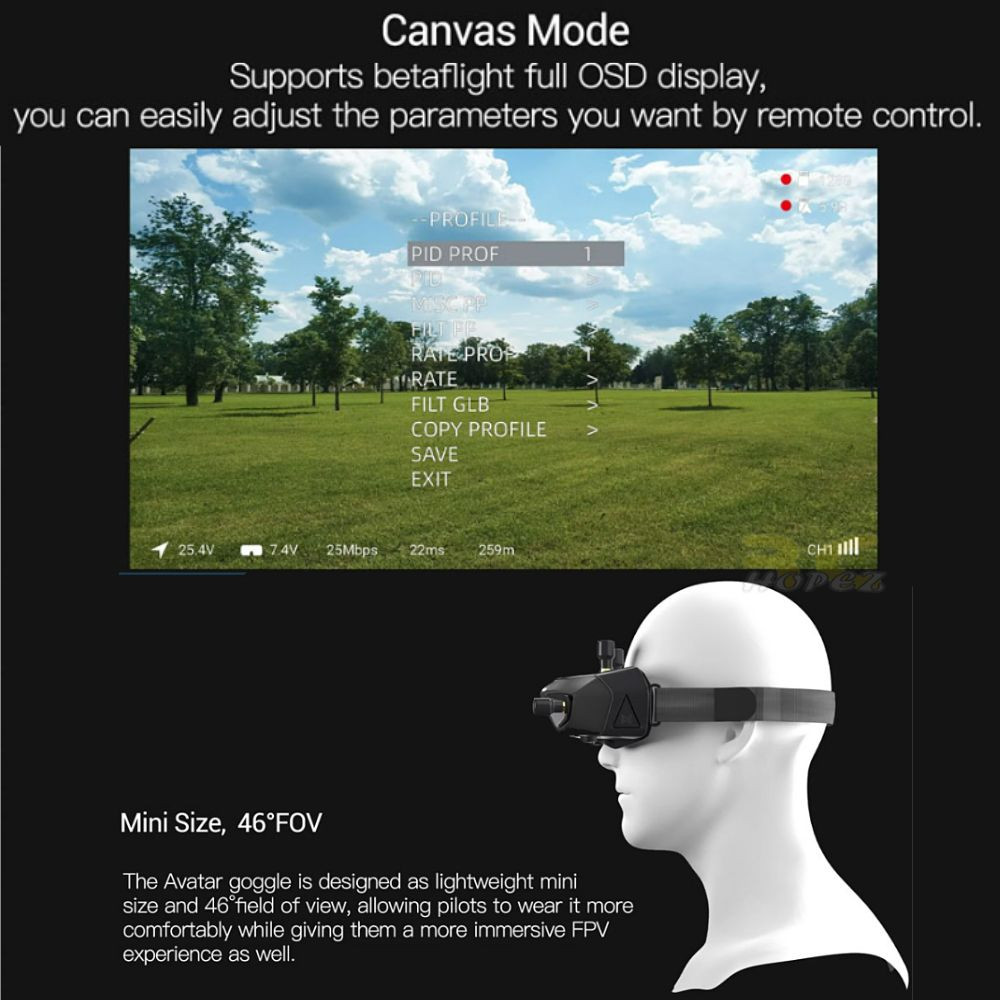

Supports Betaflight Canvas Mode
Walksnail Avatar Patch Antennas
Adjustable Anti-Fog Ventilation
On/Off Power Button
Integrated HD DVR

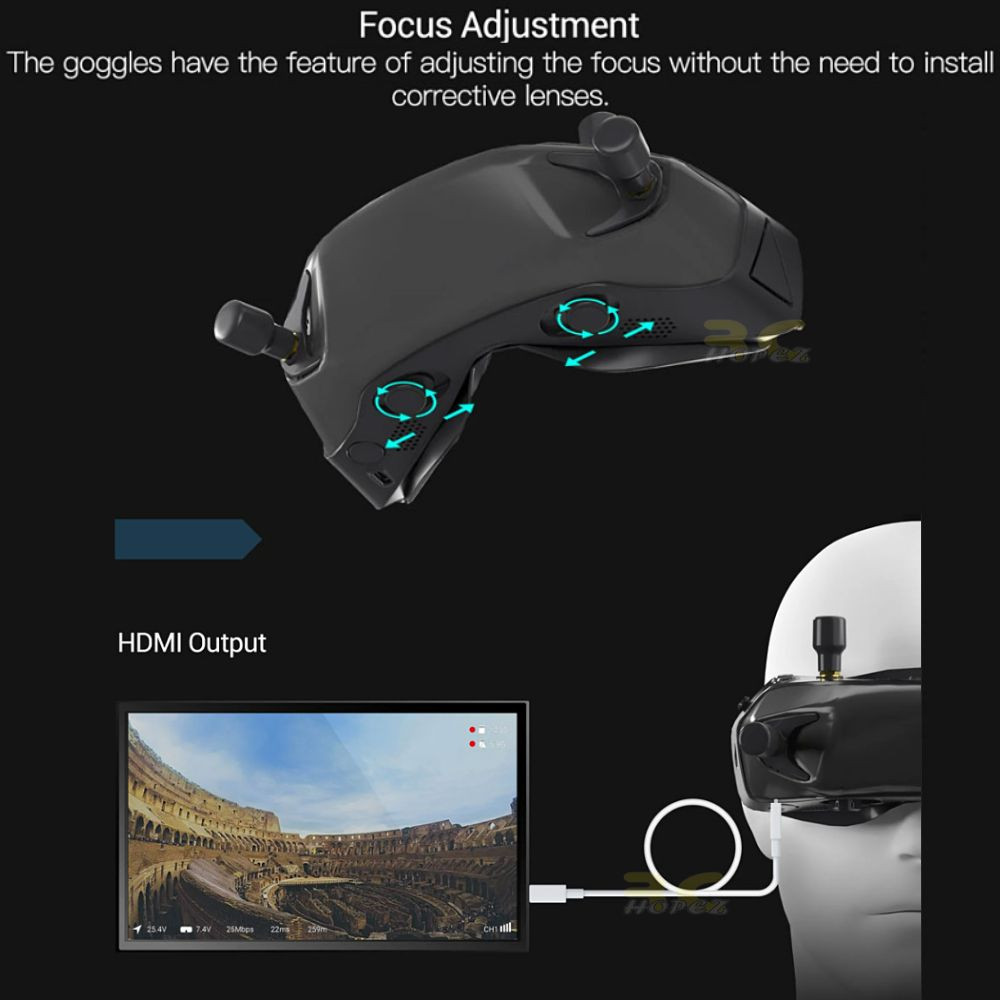

Focus Adjustment
46° FOV
Specifications:
AVATAR HD GOGGLES
Transmitter Power: FCC: <30dBm: CE: <14dBm: SRRC: <20dBm: MIC: <25dBm
Micro Displays: Full HD 1080p OLED Dual Micro Displays
Inter-Pupillary Distance (IPD): 57 ~ 70mm (adjustable)
I/O Interface: Type-C, MicroSD Card, DC 5.5×2.1mm
Adjustable Focus Range: +2 to -6 Diopter
Communication Frequency 5.8GHz
IPD Mechanical Range: 28-70mm
Power Input: 6V-25.2V (2S-6S)
Screen Resolution: 1920×1080
IPD Visual Range: 54-74mm
Model: Avatar HD Goggles
SD Card: Supports 256Gb
HDMI Output: Supported
Field of View (FOV): 46°
Screen Size: .49 Inches
RED BIRD ANTENNA
Cross-Polarization Rejection: -15 to -30dBi
Radiation Efficiency: >97%
Dimensions: 24.8×15.3mm
Bandwidth: 5.6-6GHz
Average Gain: 1.9dBi
Connector: RP-SMA
Polarization: LHCP
Model: Red Bird
Weight: 4.2g
VSWR: <1.3

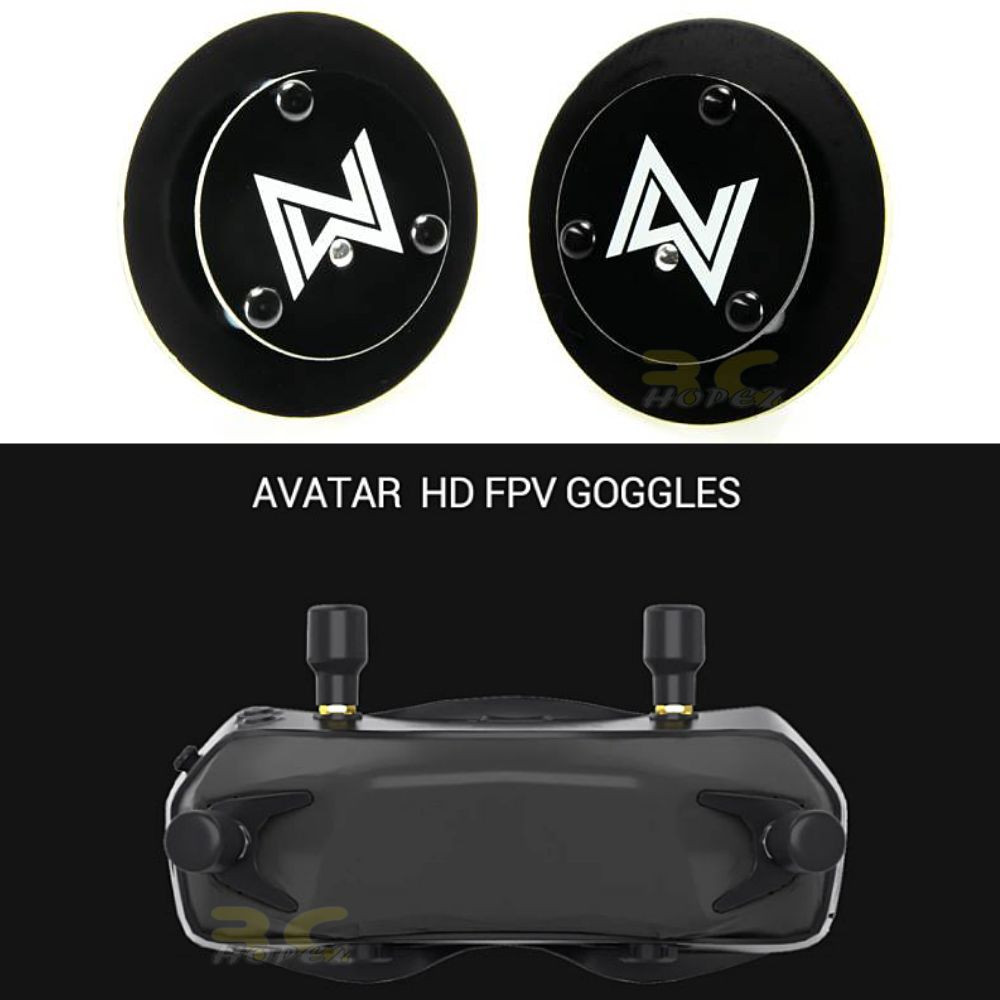

AVATAR PATCH ANTENNA
Frequency range (MHz): 5725-5875
Ambient temperature (℃): -40+60
HPBW: 75°H-plane75°E-plane
Front to back ratio (dB): >10
Input Impedance (Ω): 50
Power Capacity (W): 10
Interface: RP-SMA
Polarization: LHCP
Gain (dBi): 8
VSWR: <1.5
Recommended (Not Included)
HD Nano System: Avatar HD Nano Camera / VTX Kit
HD System: Avatar HD Camera / VTX Kit

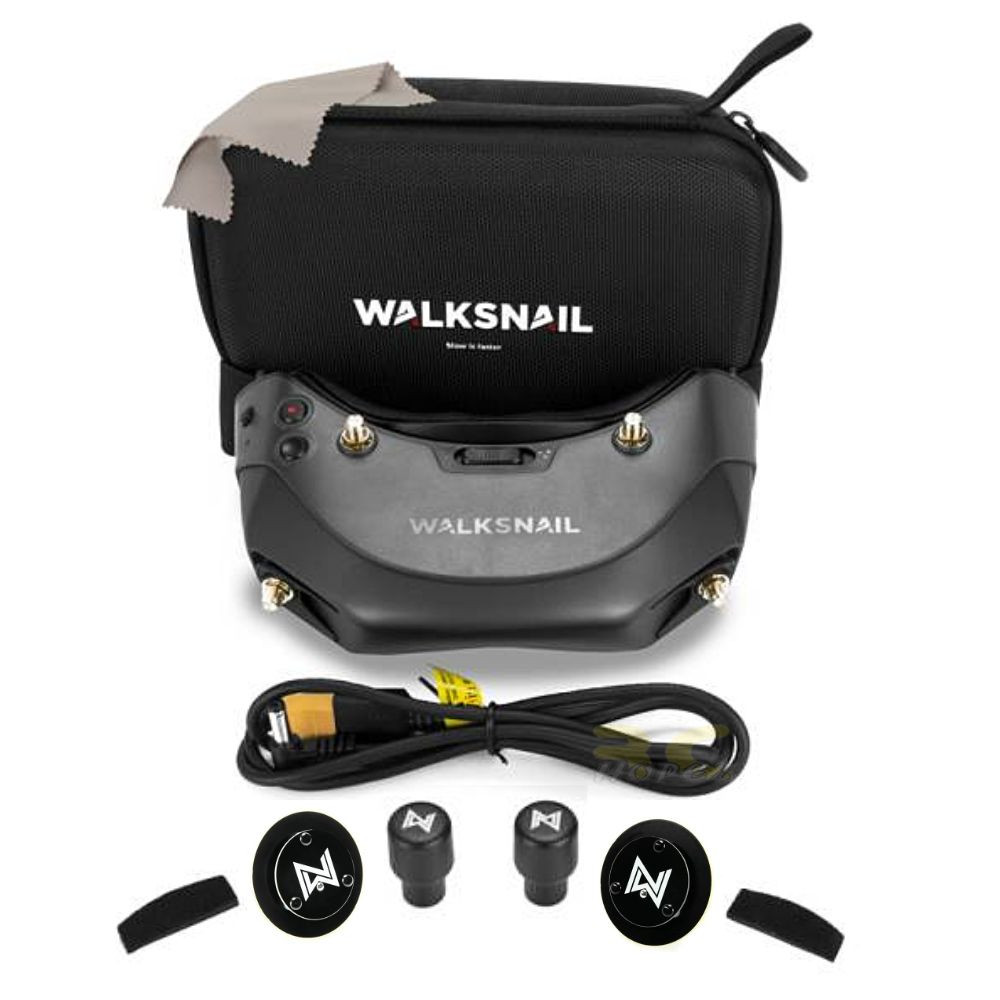

Package Included:
1 x Walksnail Avatar HD FPV Goggles
2 x Walksnail Avatar Patch Antennas
1 x Lens Cleaning Cloth
2 x Red Bird Antennas
1 x XT60 Power Cable
1 x Goggle Strap
1 x Carry Case
