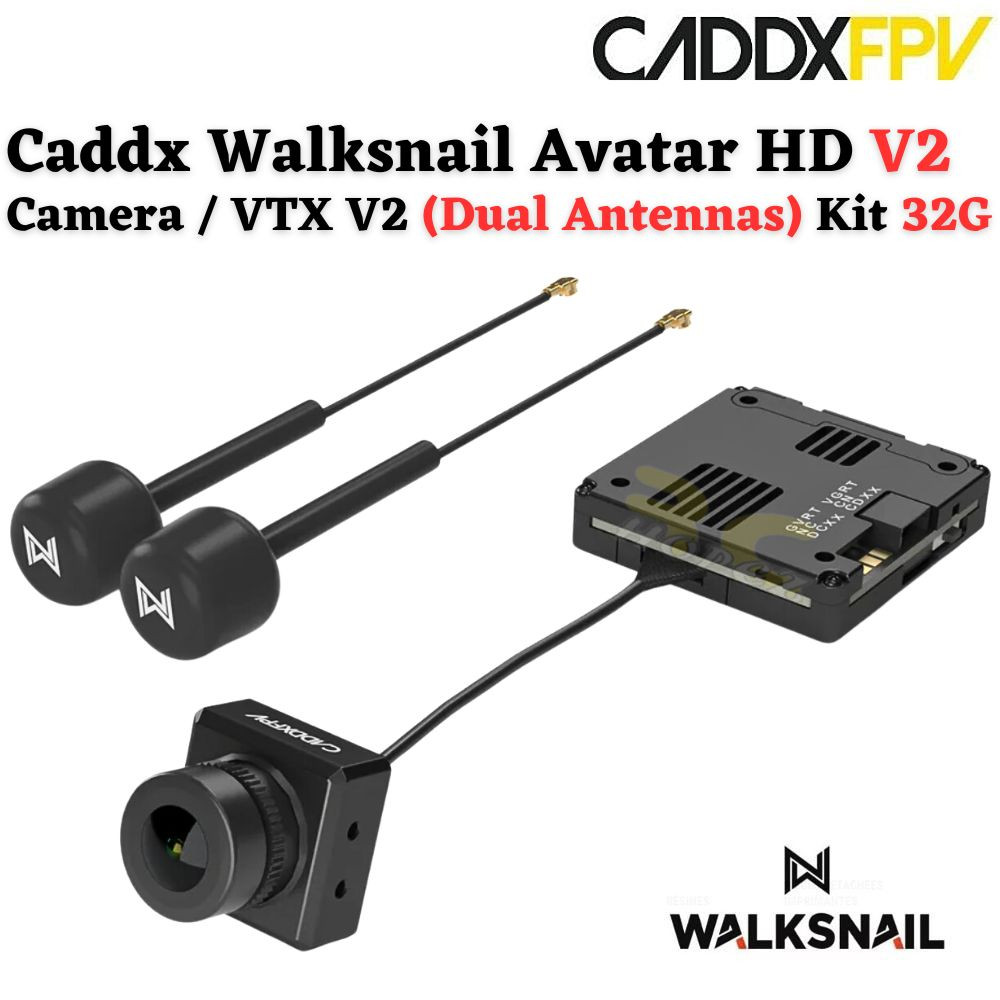

Caddx Walksnail Avatar HD V2 Camera / VTX V2 (Dual Antennas Version) Kit 32G WN-Avatar V2-DUAL

RM649.00

Out of stock

SKU: WN-Avatar V2-DUAL Category:

Caddx Walksnail Avatar HD V2 Camera / VTX V2 (Dual Antennas Version) Kit 32G WN-Avatar V2-DUAL

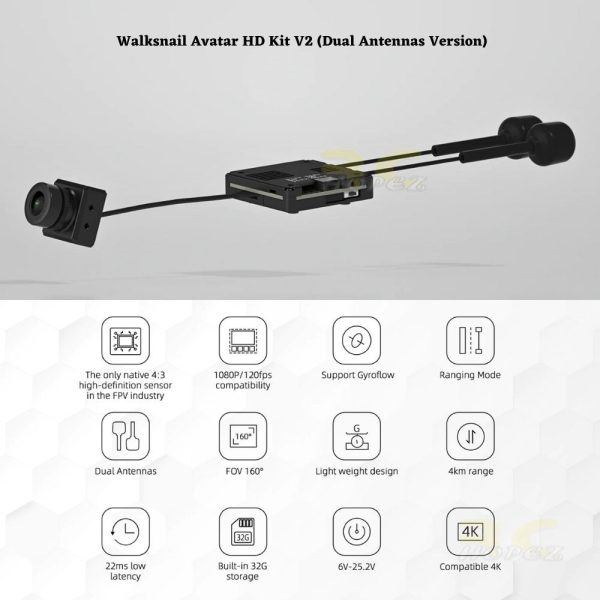

Features
Dual antennas
Compatible 4K
1080P 120fps compatibility
22ms low latency
Ranging Mode
4KM range
Light weight design
FOV160°
Built-in 32G storage,
Support Gyroflow
6V-25.2V
The only native 4:3 high-definition sensor in the FPV industry

Specification

AVATAR HD V2 CAMERA
Model : Avatar V2 camera
Image Sensor : 1/3.2-Inch 4Mp 4:3sensor
Resolution : 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
Ratio : 4:3 native /16:9
Lens : 2.1mm
FOV :160°
Aperture : F2.0
Shutter : Rolling shutter
Min.Illumination : 0.001Lux
Weight : 7.2g
Dimensions : 19*19*22mm
Coaxial Cable : 140mm
Gyroflow : Only 32G VTX Supported

AVATAR V2 (Dual Antenna) VTX
Model : Avatar V2 module(Dual Antenna)
Communication Frequency : 5.725-5.850GHz
Transmitter Power (EIRP) : FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm

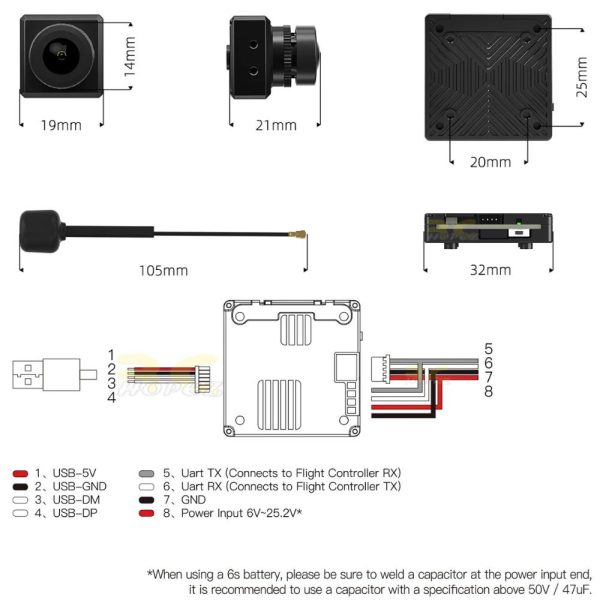

1/O Interface : JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes : 25.5*25.5mm; 20*20mm
Dimensions : 33.5*33.5*10.5mm
Storage : 32G
Recording : 1080p/720p
Weight : 15.4g
Operating Temperature : -20-40℃
Channels : 8
Wide Power Input     : 6V-25.2V
Supported FC System    : Betaflight; Inav; Fettec; ArduPilot; Kiss
OSD : Canvas mode
Latency : Average delay 22ms
Antenna    : 2(IPEX)

AVATAR V2 ANTENNA
Polarization : LHCP
Bandwidth : 5600MHz-6000MHz
Gain : 1.9dBi
VSWR : ≤1.5
Input Impedance : 50Ω
Interface : IPEX-1
Size : R15 X 45mm (without cable)
Weight : 2g

Includes
1 x Walksnail Avatar HD VTX V2 (Dual Antenna) – 32GB w/ Gyro
1 x USB transfer extension cable
1 x 4 Pin silicone cable
8 x M2*4mm screws
4 x M2*5mm screws
4 x M2*6mm screws
4 x M2*14mm screws
4 x M2*5*0.5mm gasket

Weight 0.10 kg
Dimensions 6.00 × 3.00 × 3.00 cm
