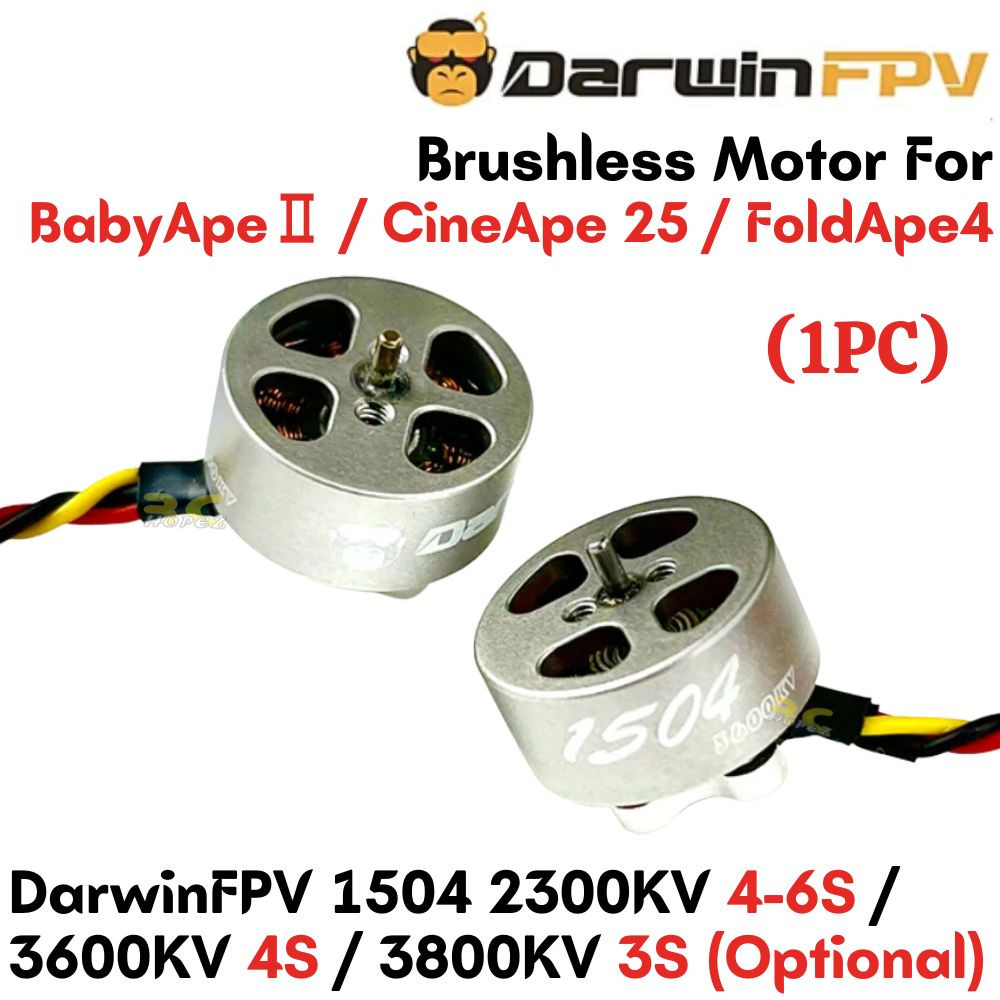

DarwinFPV 1504 2300KV 4-6S/3600KV 4S/3800KV 3S Brushless Motor 1.5mm Shaft for BabyApe Ⅱ/CineApe25/FoldApe4 DW1504N

DarwinFPV 1504 2300KV 4-6S/3600KV 4S/3800KV 3S Brushless Motor 1.5mm Shaft for BabyApe Ⅱ/CineApe25/FoldApe4 DW1504N

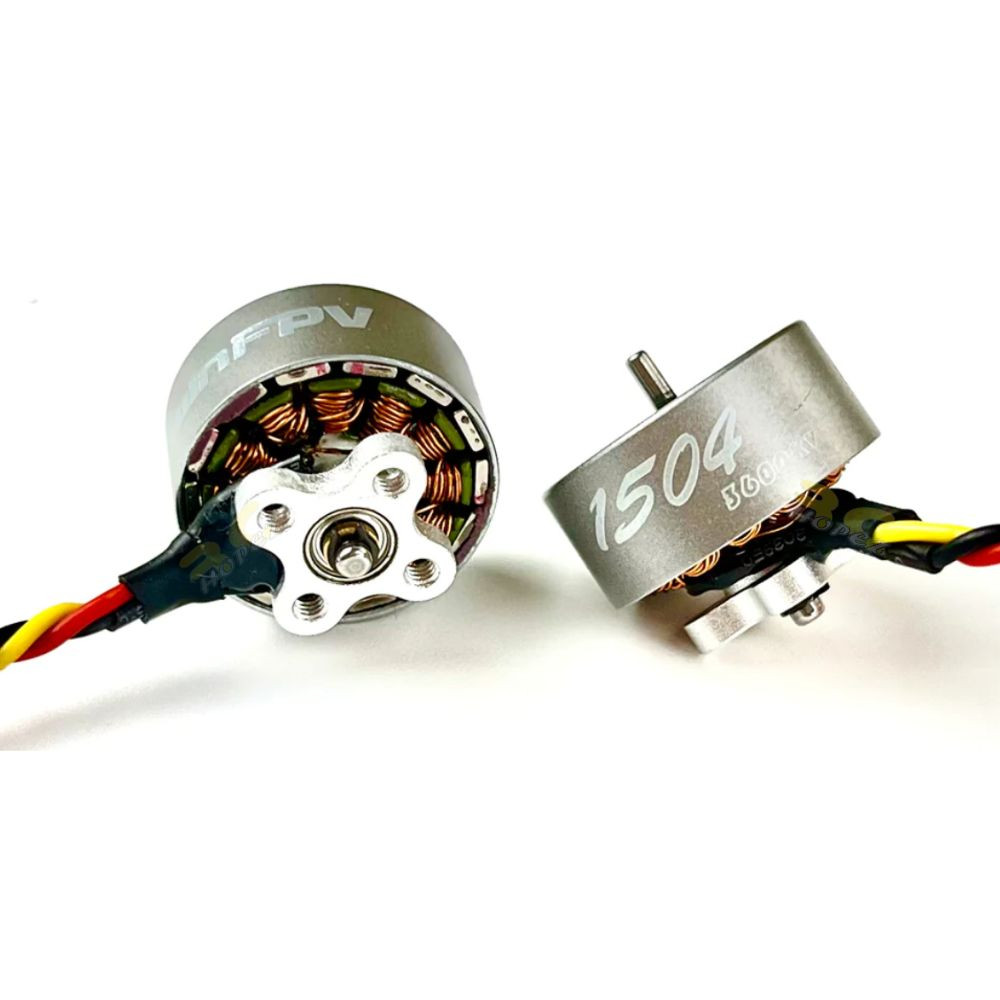

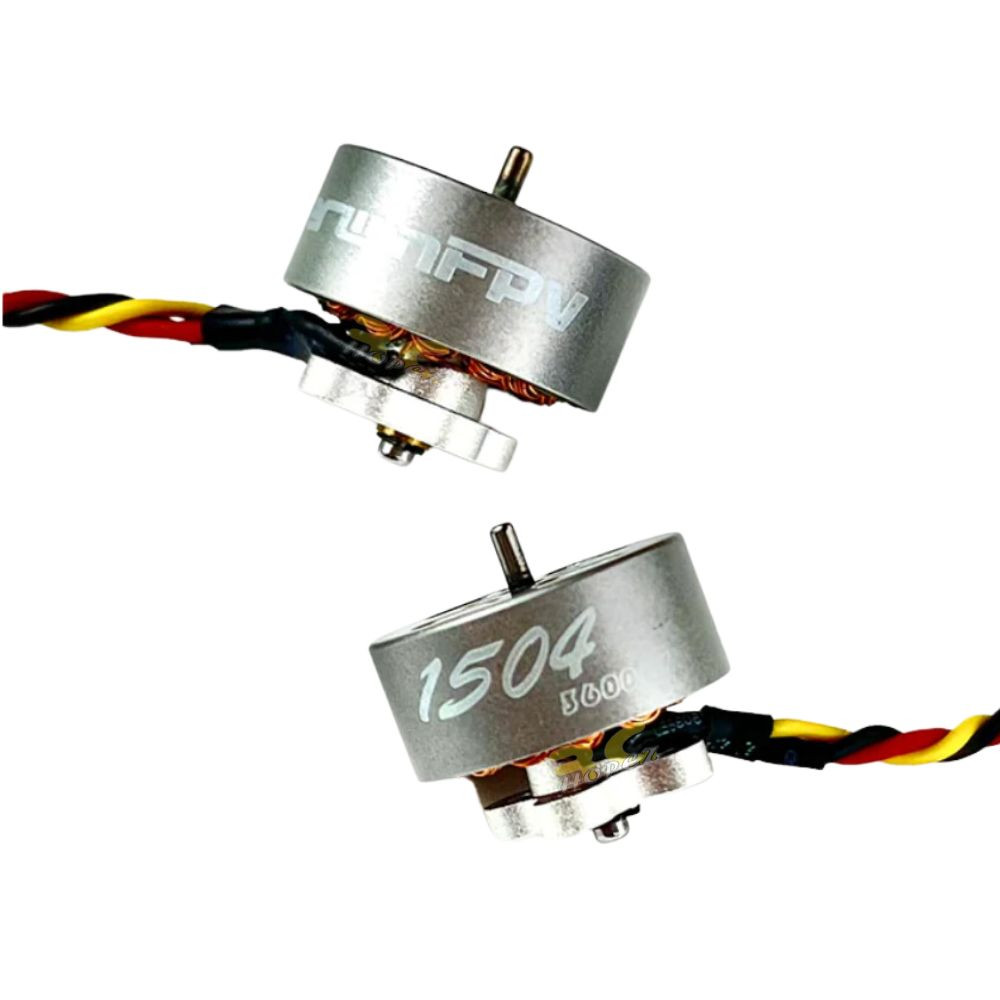

The DarwinFPV 1504 motor is a highly cost-effective motor designed for 3-4 inch acro or long-range FPV drones. Compared to the 1404 motor, it offers more power and higher efficiency.

It follows the same production standards as DJI, with its motor magnetic circuit design also utilizing the same material architecture. Through our testing, this motor runs very smoothly and quietly, delivering excellent efficiency and thrust, making it particularly suitable for ultra-light models like toothpick drones.

Do not judge its quality based on its affordable price; in fact, it undergoes the same level of production standards as DJI but at a fraction of the cost. It performs on par with premium brands, as the mature production processes, ample raw material supply, and efficient assembly determine its characteristic of high quality at a low price.

Features:

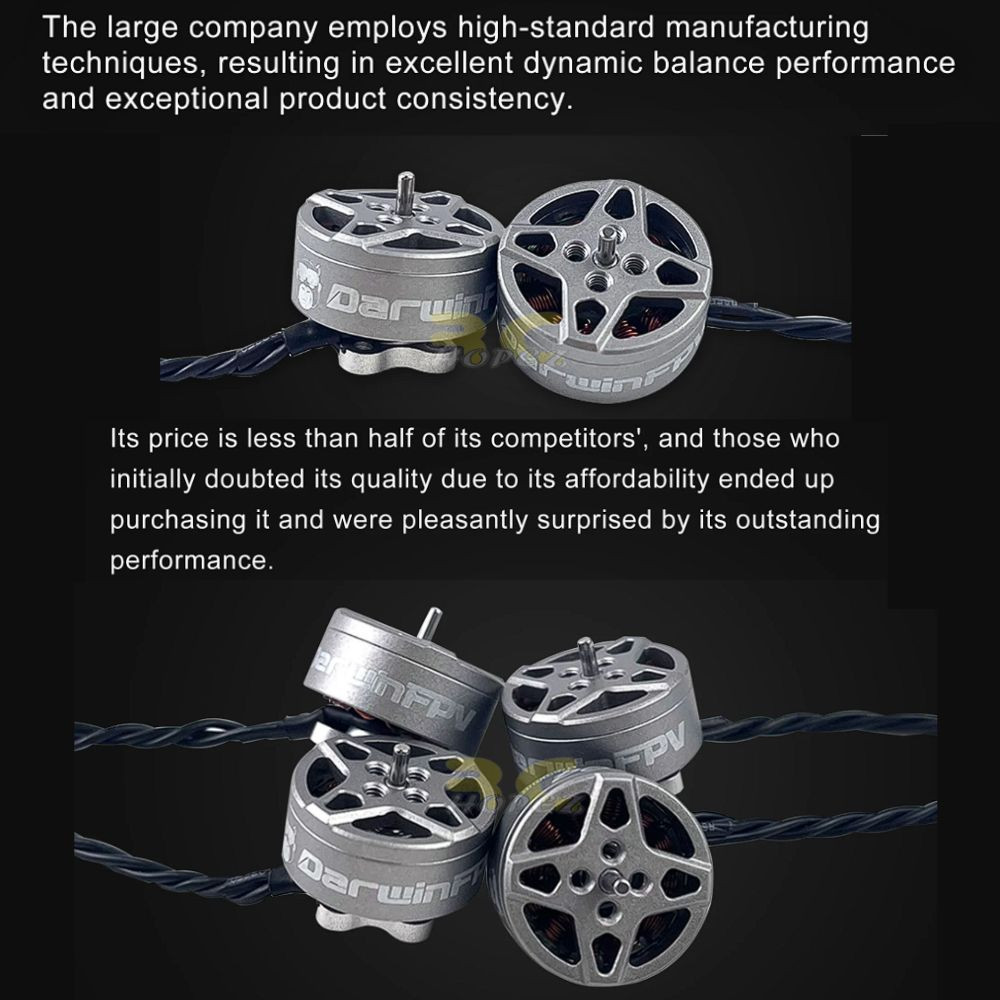

1: The large company employs high-standard manufacturing techniques, resulting in excellent dynamic balance performance and exceptional product consistency.
2: Its price is less than half of its competitors', and those who initially doubted its quality due to its affordability ended up purchasing it and were pleasantly surprised by its outstanding performance.

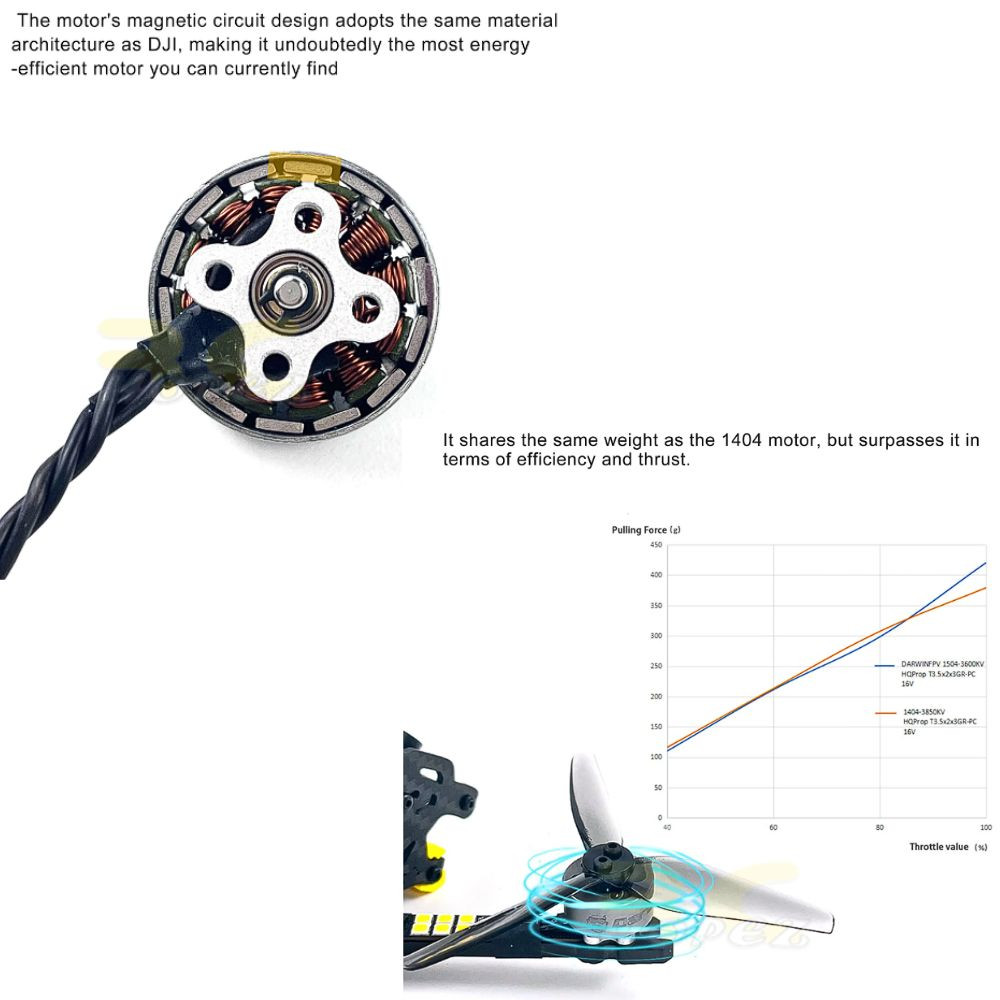

3: The motor's magnetic circuit design adopts the same material architecture as DJI, making it undoubtedly the most energy-efficient motor you can currently find.
4: It shares the same weight as the 1404 motor, but surpasses it in terms of efficiency and thrust.

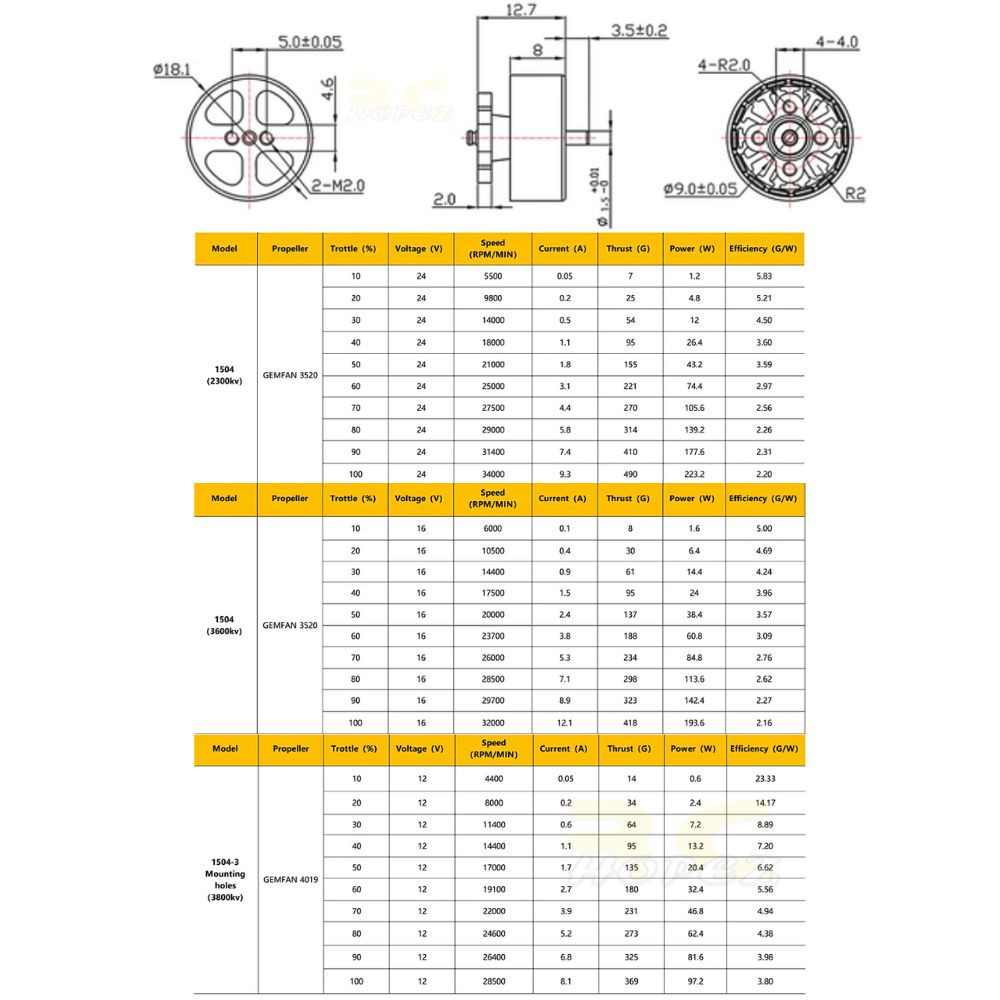

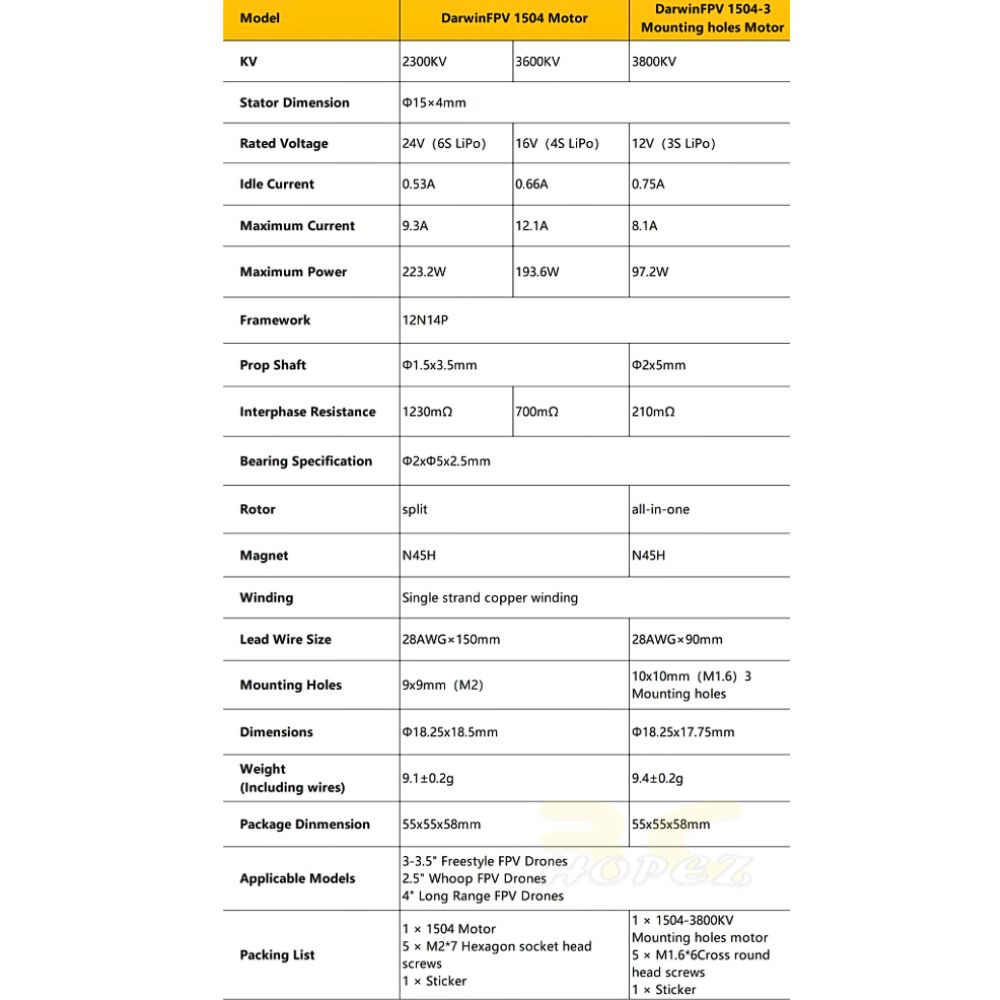

Specifications:

Model: 1504-2300KV 4-6S
Number of slot poles: 12N14P
Stator size: 15 x 4mm
Out shaft diameter: 1.5mm

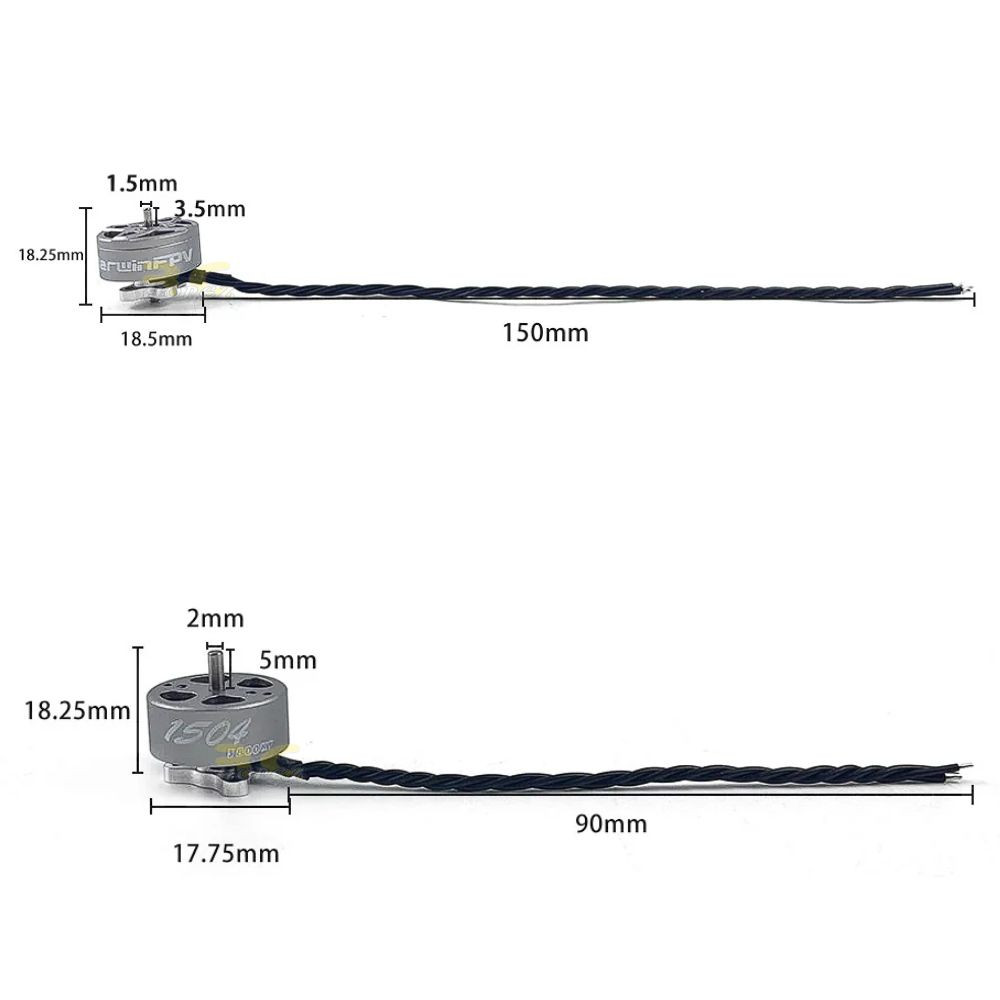

Motor dimensions: 18.25 x 18.5mm
Mounting hole: 9 x 9mm (M2)

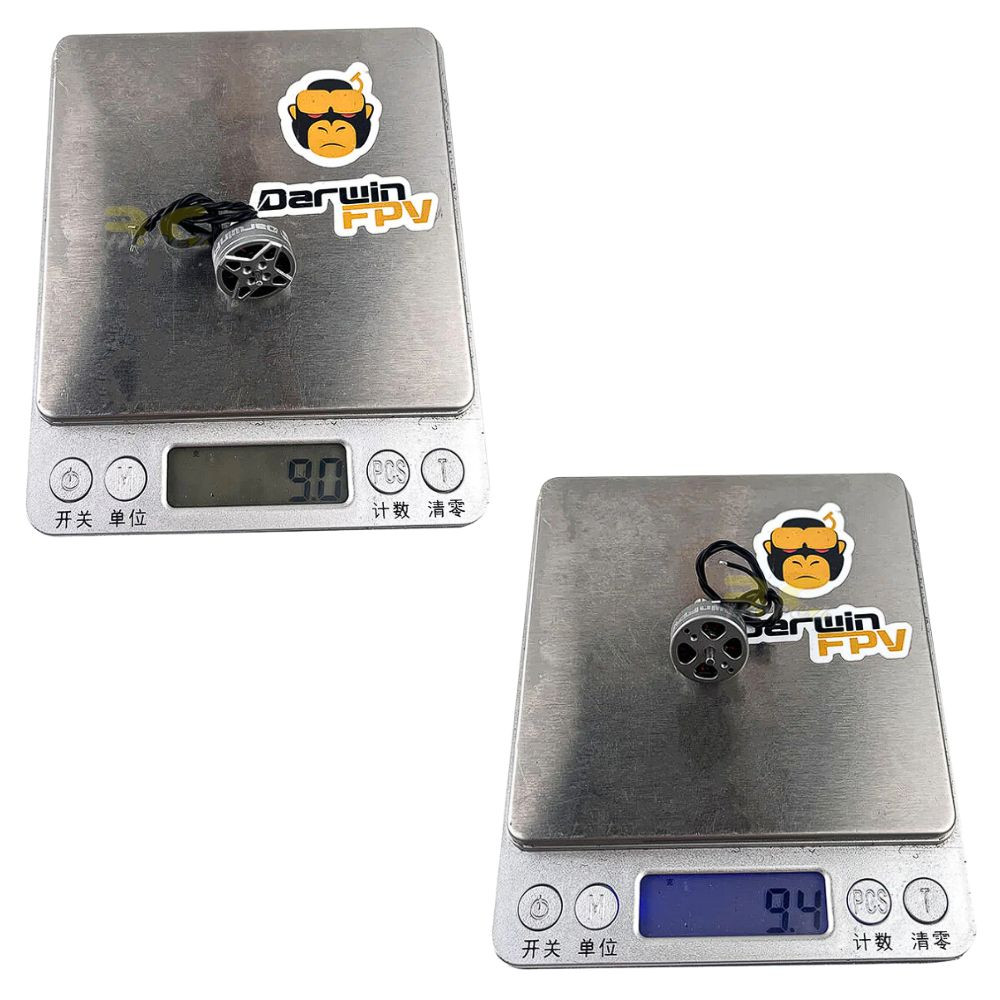

Weight: 9.1g±0.2g
Lead wire specifications: 28#AWG
Rated voltage: 4-6S
Maximum power: 223.2W
Maximum current: 9.3A
Recommended configuration:
6S- 3-3.5 inch Freestyle FPV Drone
6S- 2.5 inch Whoop FPV Drone
4S- 4 inch Long Range FPV Drone
Compatible for : DarwinFPV BabyApe Ⅱ 6S

Model: 1504-3600KV 4S
Number of slot poles: 12N14P
Stator size: 15 x 4mm
Out shaft diameter: 1.5mm
Motor Dimensions: 18.25 x 18.5mm
Mounting hole: 9 x 9mm (M2)
Weight: 9.1g±0.2g
Lead wire specifications: 28#AWG
Rated voltage: 4S
Maximum power: 193.6W
Maximum current: 12.1A
Recommended configuration:
4S- 3-3.5 inch Freestyle FPV Drone
4S- 2.5 inch Whoop FPV Drone
4S- 4 inch Long Range FPV Drone
Compatible for : DarwinFPV BabyApe Ⅱ 4S/ CineApe25 4S
