Happymodel EX0802 19000KV 1S Unibell Brushless Motor 1.0mm Shalf for Mobula6 HD M6HD0802-19CW

RM35.00

8 in stock

SKU: M6HD0802-19CW Categories: ,

Happymodel EX0802 19000KV 1S Unibell Brushless Motor 1.0mm Shalf for Mobula6 HD M6HD0802-19CW



The Happymodel Unibell EX0802 Motor is one of the lightest 0802 brushless motors in the world weighing in at only 1.7g.





Features
One of the lightest 0802 brushless motors weighing only 1.7g.
One-piece bell design, more durable.
Double E-Clip Design, prevent motor bell from flying off.
Good dynamic balance.





Specification
Brand Name: Happymodel
Model: EX0802 Unibell 19000KV Motor CW
Input Voltage: 1S Lipo Only
Shaft Diameter: 1.0m
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm

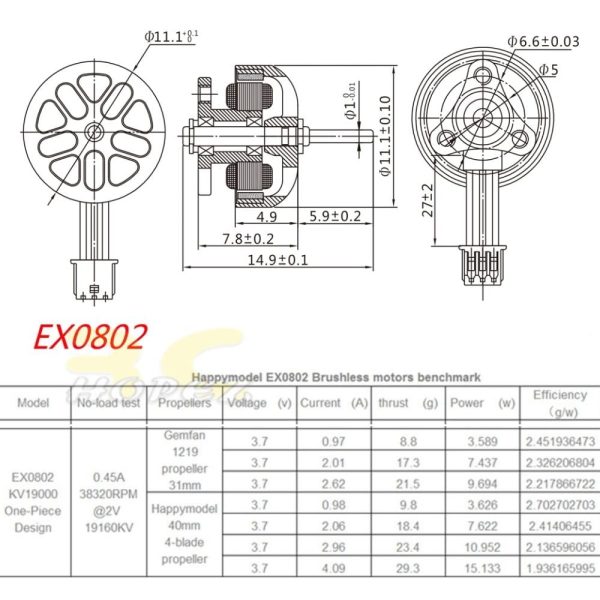

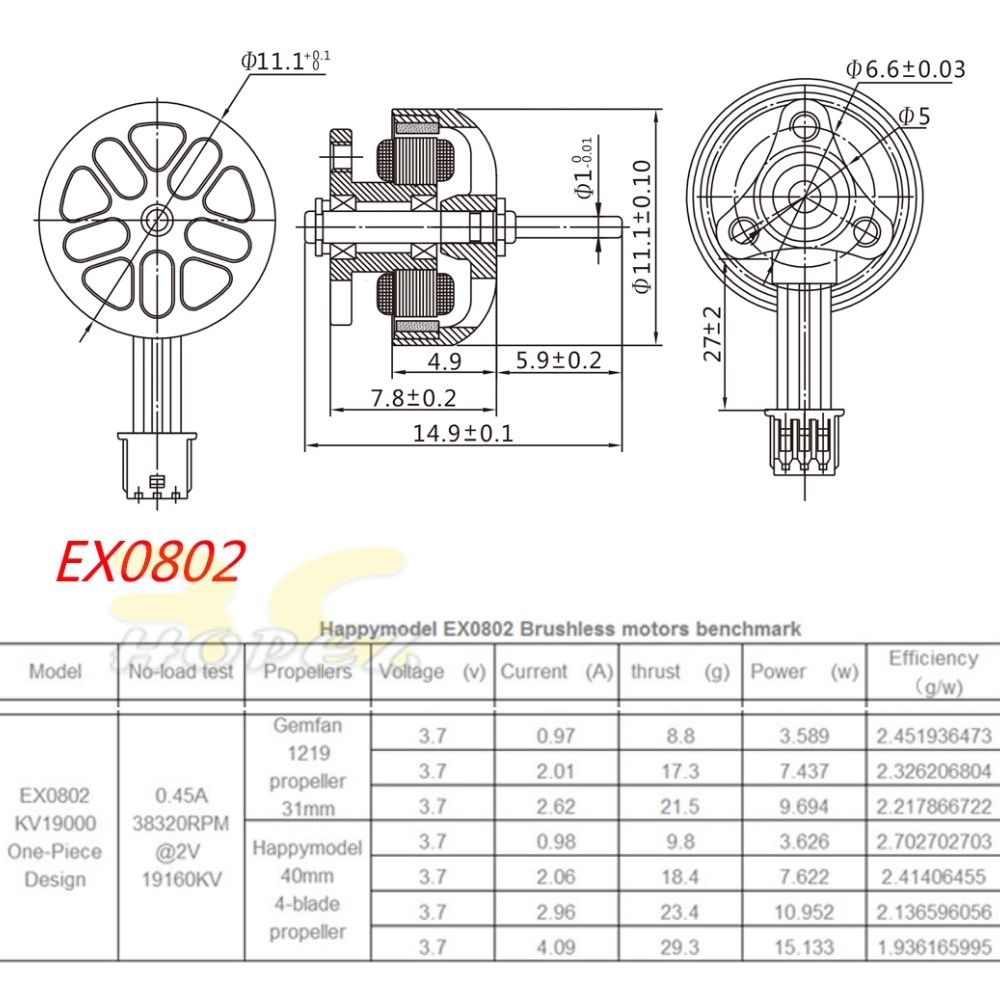

Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
Terminals: JST1.25mm
Wire length:19000kv 27mm
Weight: 1.7g
Application: Compatible with 65-85mm Brushless Whoop FPV Racing Drone





Notice: CANNOT mixed use with SE0802 Motor together in a drone.





Includes
1 x Happymodel Unibell EX0802 Motor – 19000KV CW
1 x Screw Set







Weight 0.05 kg
Dimensions 10 × 10 × 10 cm
