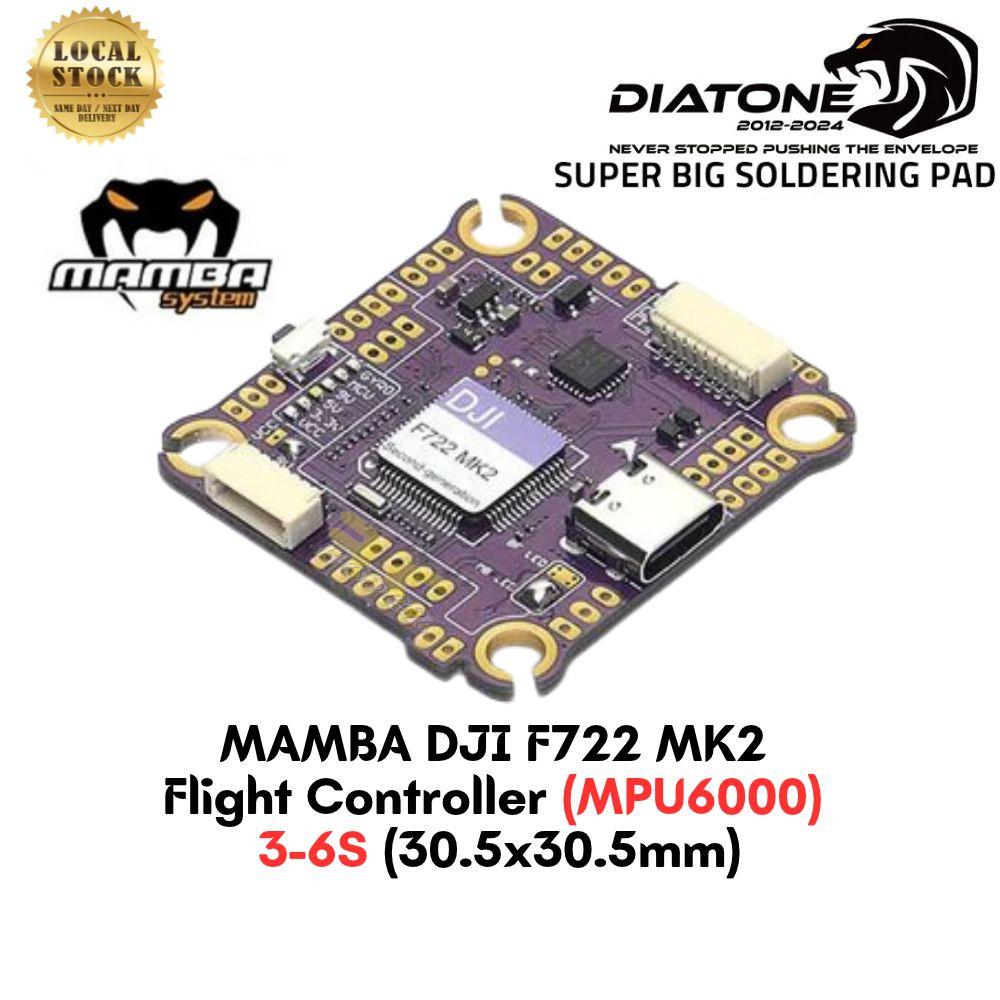

Diatone MAMBA DJI F722 MK2 Flight Controller (MPU6000) 3-6S 30.5×30.5mm M-DJI F722 MK2

Diatone MAMBA DJI F722 MK2 Flight Controller (MPU6000) 3-6S 30.5×30.5mm M-DJI F722 MK2

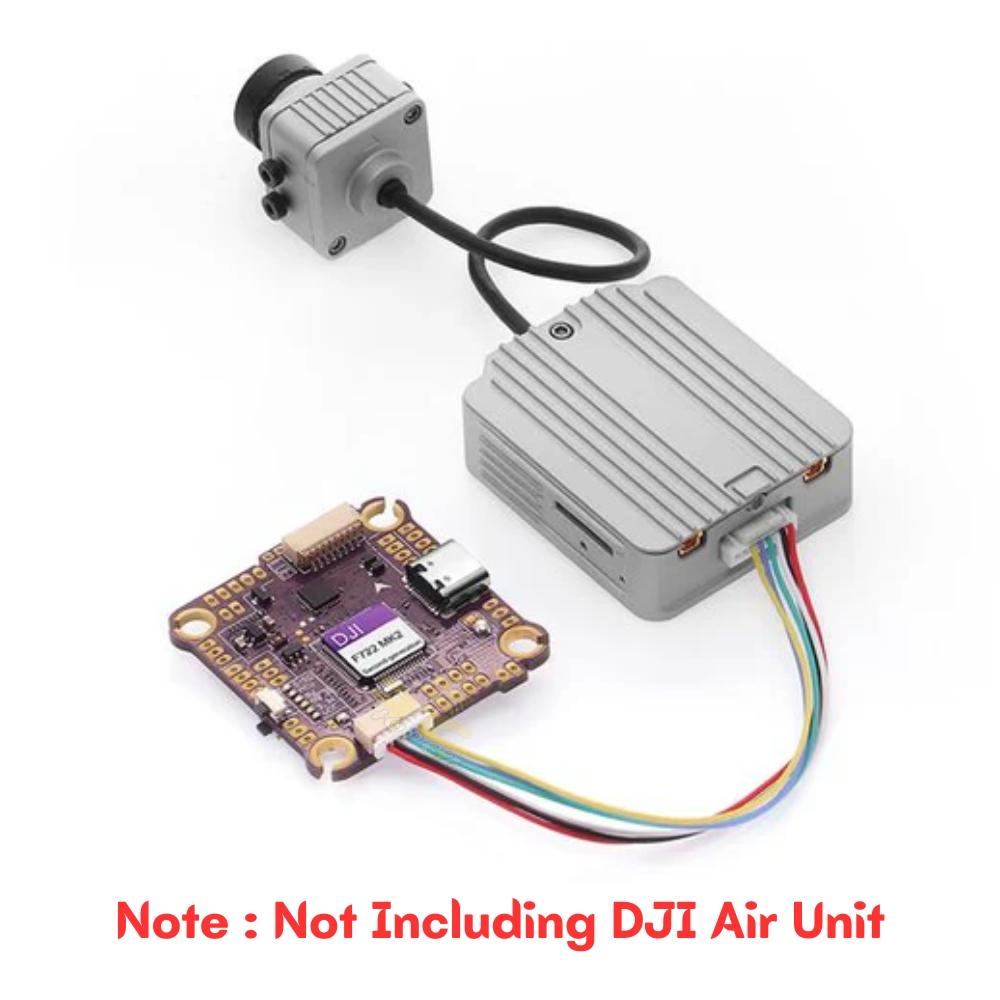

The Diatone Mamba DJI F722 MK2 Flight Controller is a powerful FC that is suitable with the DJI FPV System and is equipped with 216MHz STM32F722RET6 MCU, 6 UARTS, MPU6000, Dshot300/600/1200, BEC, and other cool features!

Note: To prevent the FC from overheating due to the STM32F722, please allow at least 5mm space on both sides of the FC (with nothing covered) to allow good air circulation.

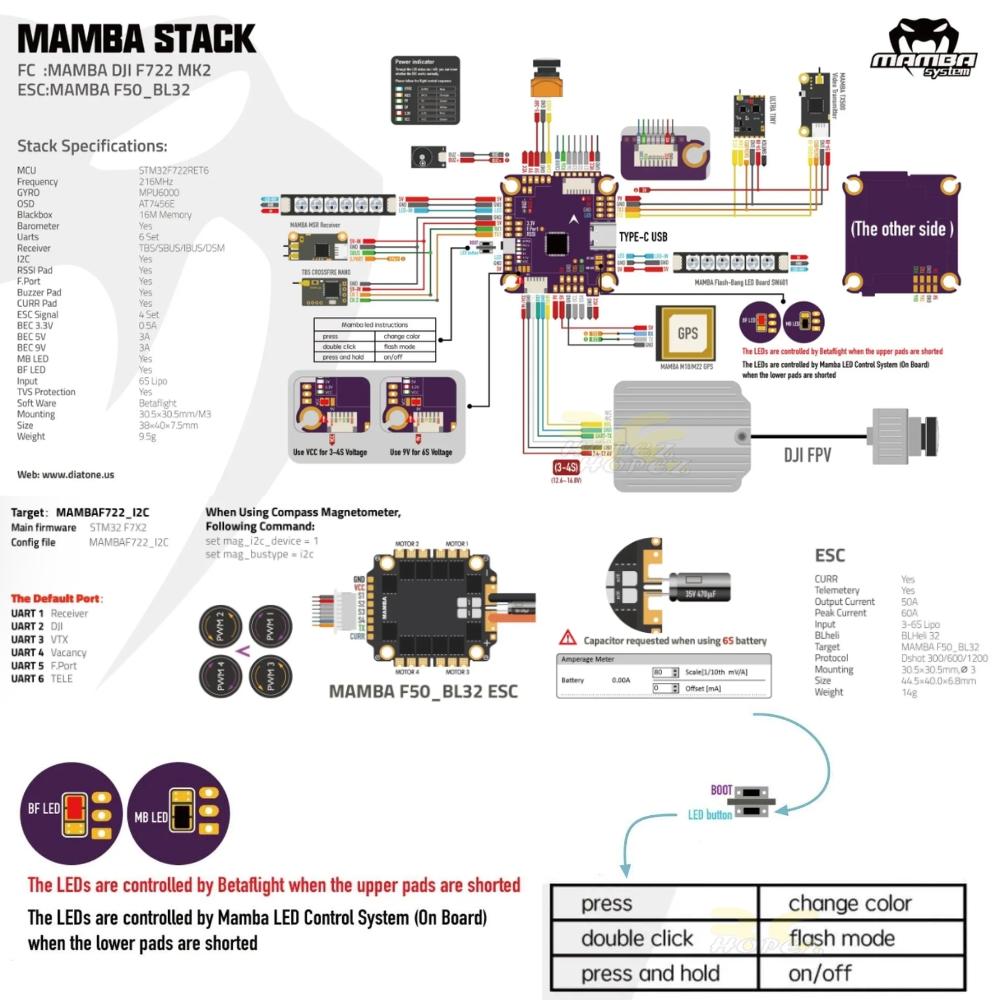

Specifications:
MCU: 216MHz STM32F722RET6
IMU (GYRO): MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
UARTS: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
F.Port: Yes
RSSI: Yes
Buzz: Yes
Input Voltage: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A & (DJI) 9V 3A
Mounting 30.5×30.5mm, M3 holes with rubber grommets
Weight: 9.5g
Dimension: 38x40x7.5mm

Betaflight firmware target: DIAT/MAMBAF722_I2C (STM32F7X2)
Loaded firmware version: 4.2.4

Package Included:
1 x Diatone Mamba DJI F722 MK2 Flight Controller
1 x MAMBA MK4 H743 V2 FC
1 x 8Pin sh1.0
1 x AIR UNIT sh1.0
1 x Silicone Standoff Set
