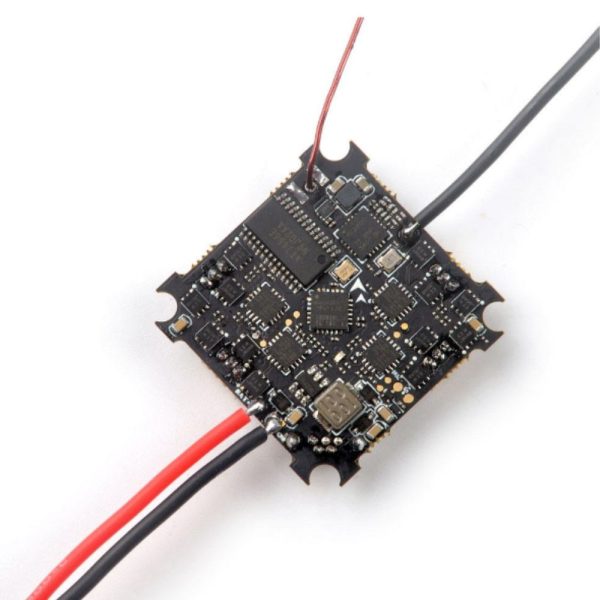

Happymodel Mobula6 Crazybee F4 Lite 1S Flight Controller AIO 5A BLheli_S ESC & 25mW VTX – FrSky Receiver Mobula6-FR

Happymodel Mobula6 Crazybee F4 Lite 1S Flight Controller AIO 5A BLheli_S ESC & 25mW VTX – FrSky Receiver Mobula6-FR

Specification:
Brand Name: Happymodel
Item Name: Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver & 25mW VTX
Version: Frsky Receiver (Compatible with ACCST D8 / D16, Recommend D8 mode)

Flight controller:
(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI connection)
Board size: 28.5 * 28.5MM

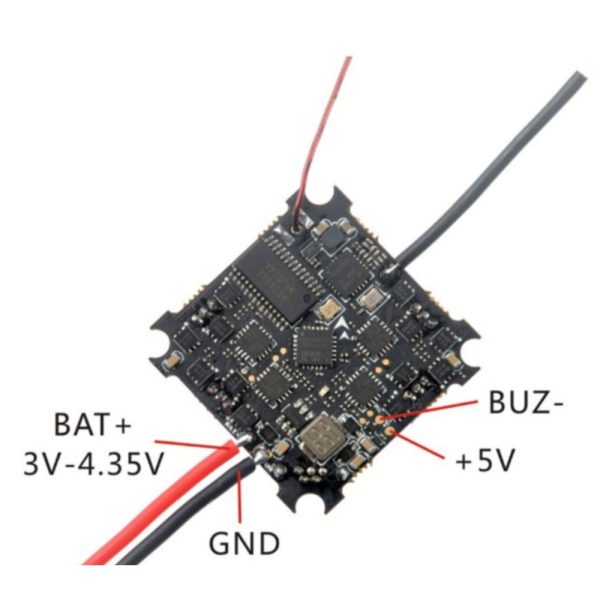

Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A (each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD (SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky / Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC：
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version：
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8g VTX：
Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Package Included:
1x Crazybee F4 Lite Flight Controller
4x Anti-Vibration Ball
4x Screws





Note : FC only, NOT including runcam camera



Notes:



R1(RX1) Pad is used for IBUS/DSM2/DSMX signal input



IR1(IRX1) Pad is used for SBUS signal input (Already inverted)



R1 and IR1 Cannot be used simultaneously
