iFlight SucceX Whoop F4 V2 AIO 1S AIO Board 25.5*25.5mm with Built-in D8 Receiver SX0634-D85A

iFlight SucceX Whoop F4 V2 AIO 1S AIO Board 25.5*25.5mm with Built-in D8 Receiver SX0634-D85A

PRODUCT DESCRIPTION

TOP FEATURES:

Power supply: 1S
Super light only 4.8g

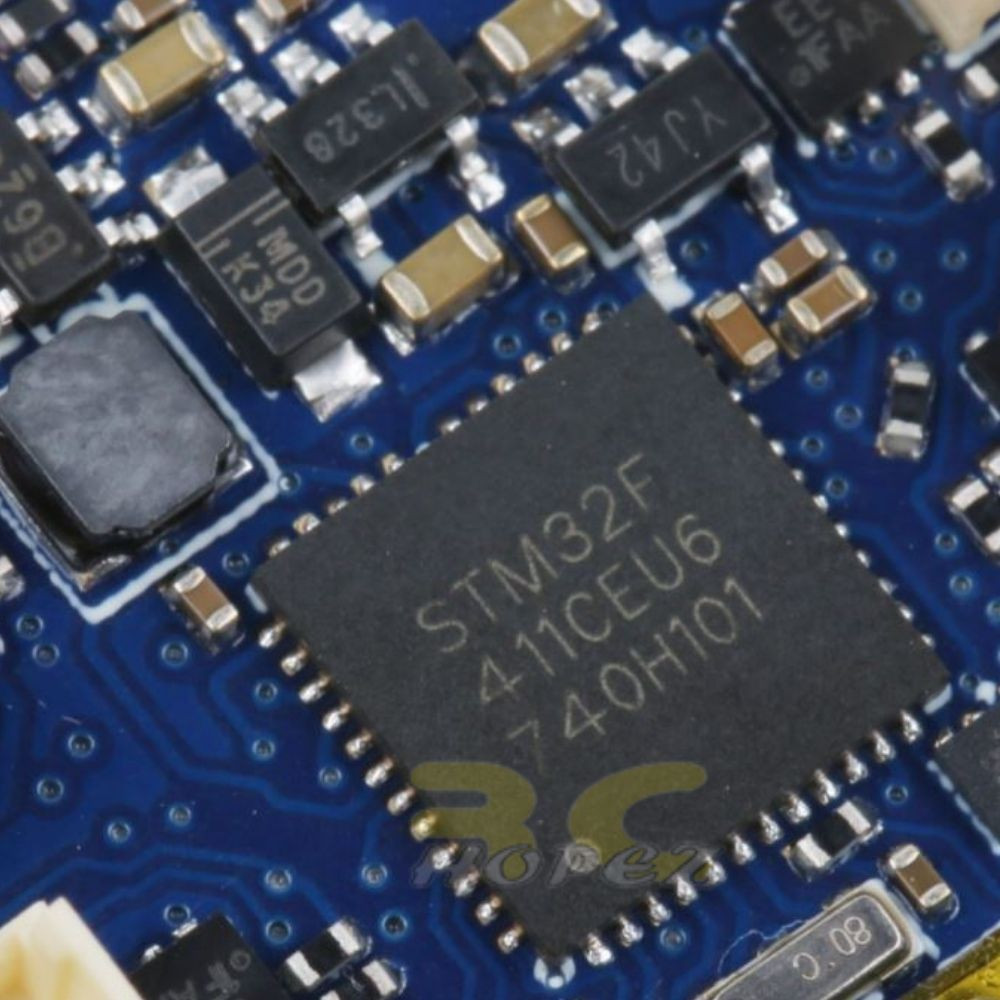

MCU：STM32F411
Gyro: MPU6000
Support BLHeliSuite programmable
5A continuous  current
Built-in VTX
Built-in D8 Receiver

FC // SucceX-1S Whoop AIO Board
Size：29*29mm
Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
Connector：Micro-USB

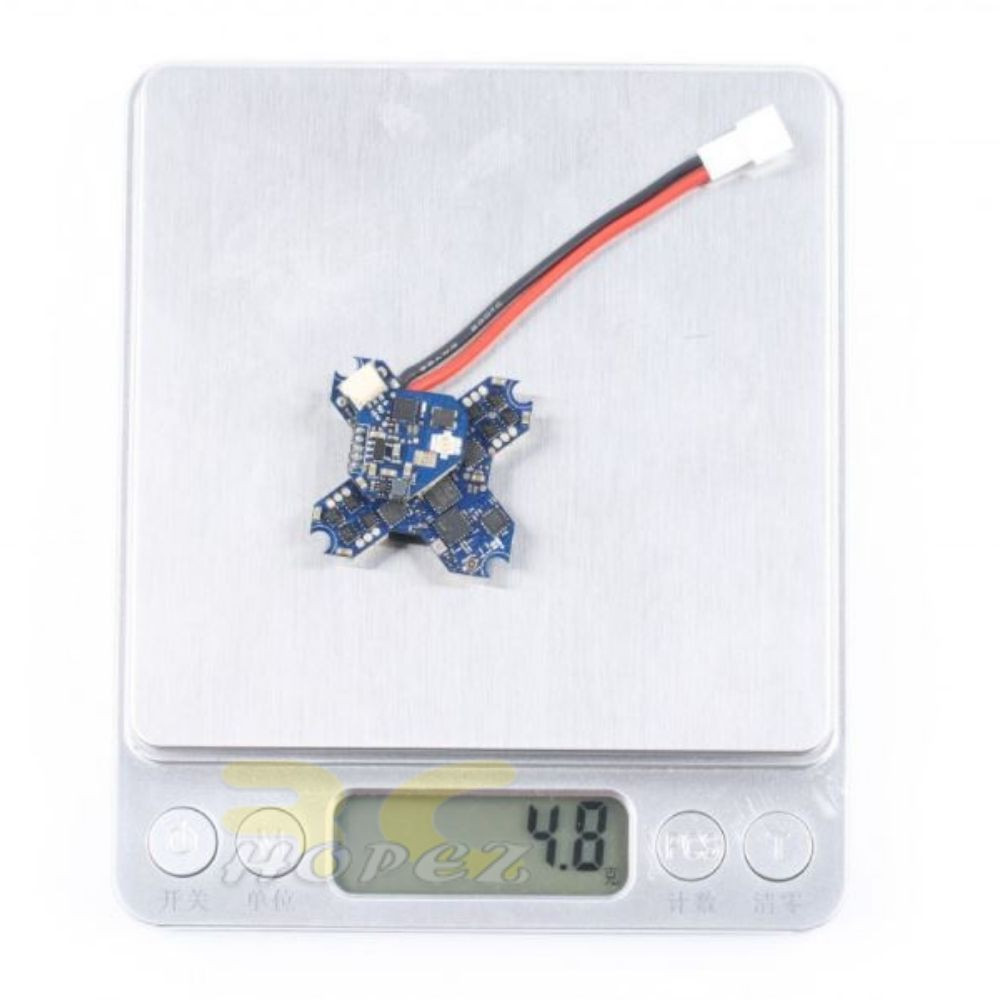

Weight: 4.8g (with power cable, vtx, and vtx antenna)
MCU：STM32F411
Gyro：MPU6000
Blackbox：no
BEC output：5V 1.2A
INA pad：n uart2
Barometer：no
FC Firmware：MatekF411RX

NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A
Current: 5A continuous and peak 6A
Current scale: 400
Input：1S
Signal Support: Dshot，Oneshot，Multishot
Current sensor：yes
BLHeli：BLHeli-S
ESC Telemetry：no
ESC Firmware：O_H_05 16.8

VTX：
Input voltage: 5V
Channels: 48CH
Power: PIT/25/50mW
Connector:UFL/IPEX
Protocol: Smartaudio

Package Includes:
1 x SucceX F4 V2 1S 5A Whoop F4 AIO Board V2 (MPU6000)
1x Whip antenna
