Happymodel DiamondF4 AIO 5-IN-1 Flight controller built-in VTX ESC OSD Receiver for Moblite6/7 -Frsky Moblite-FR

RM215.00

Out of stock

Happymodel DiamondF4 AIO 5-IN-1 Flight controller built-in VTX ESC OSD Receiver for Moblite6/7 -Frsky Moblite-FR

Introduction:

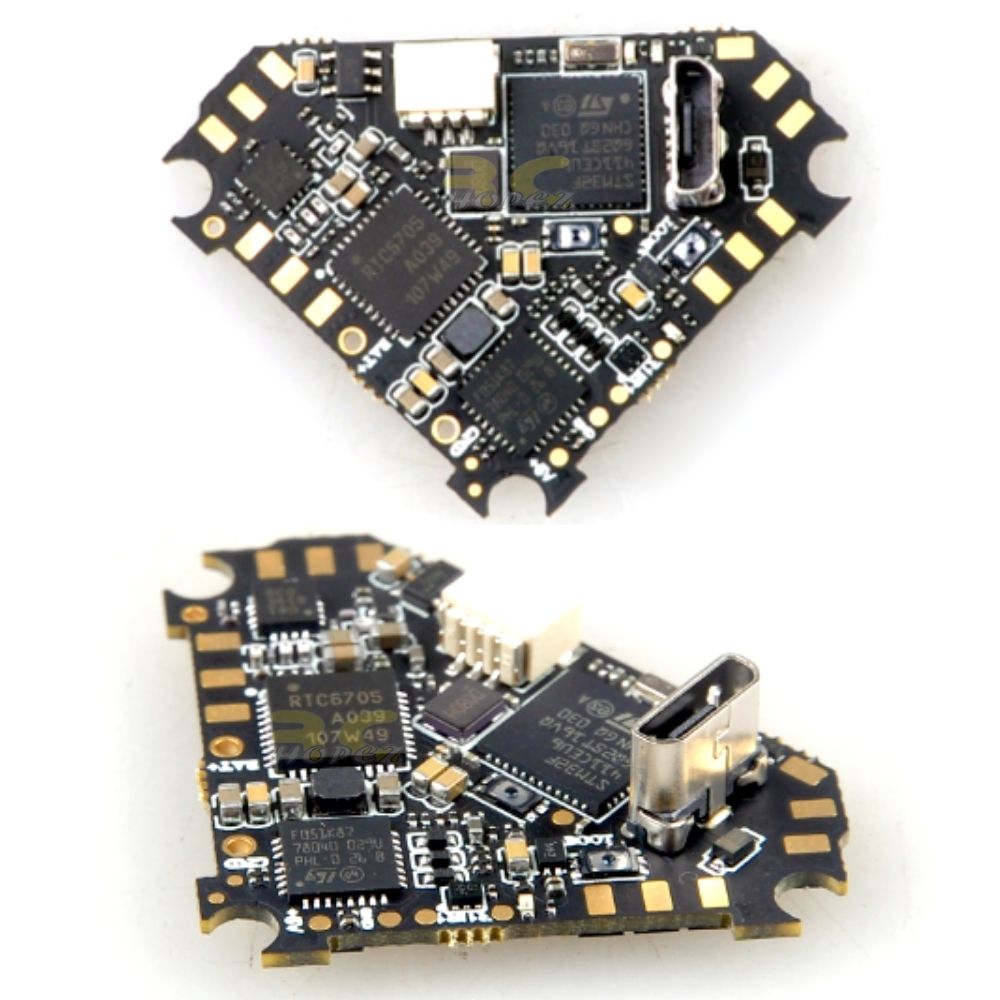

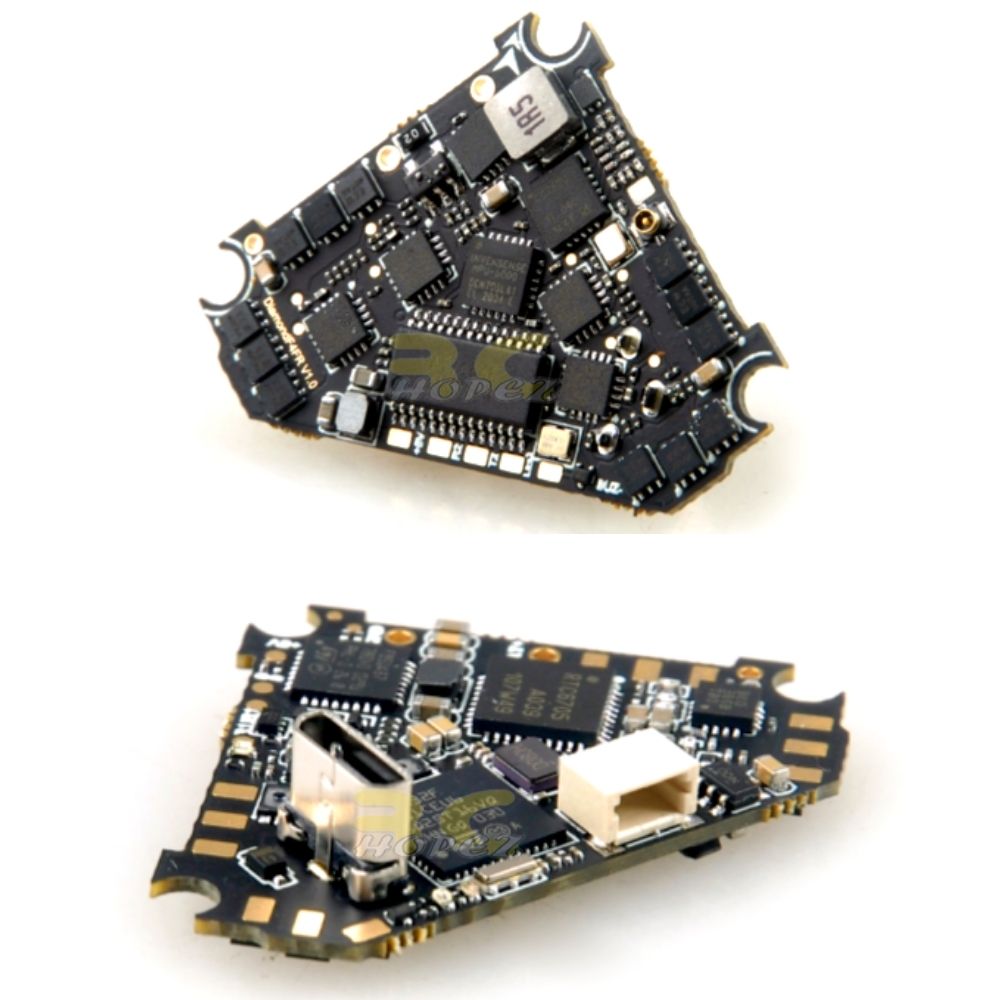

This is an ultra-light and highly integrated all-in-one brushless flight controller.

The motor connection uses the original welding method to be more reliable. It is the best choice for 1s brushless tiny whoop.

The 3 corners fit 25.5mm whoop mounting spacing.

Description:
Brand: Happymodel
Model: DiamondF4
Item Name: F4 1S Flight Controller AIO ESC VTX Receiver 5IN1 Board

Flight controller :
(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC :
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version :
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 modelChannels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8g VTX :
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready

Includes

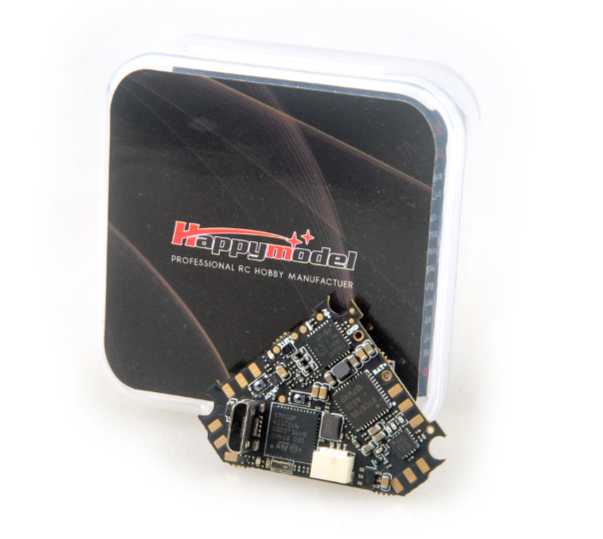

  • 1x HappyModel DiamondF4 FR AIO 5in1 Flight Controller – SPI Frsky
  • 2x Connecting Wire
  • 4x Damping Balls
  • 4x Screws
  • 1x Antenna

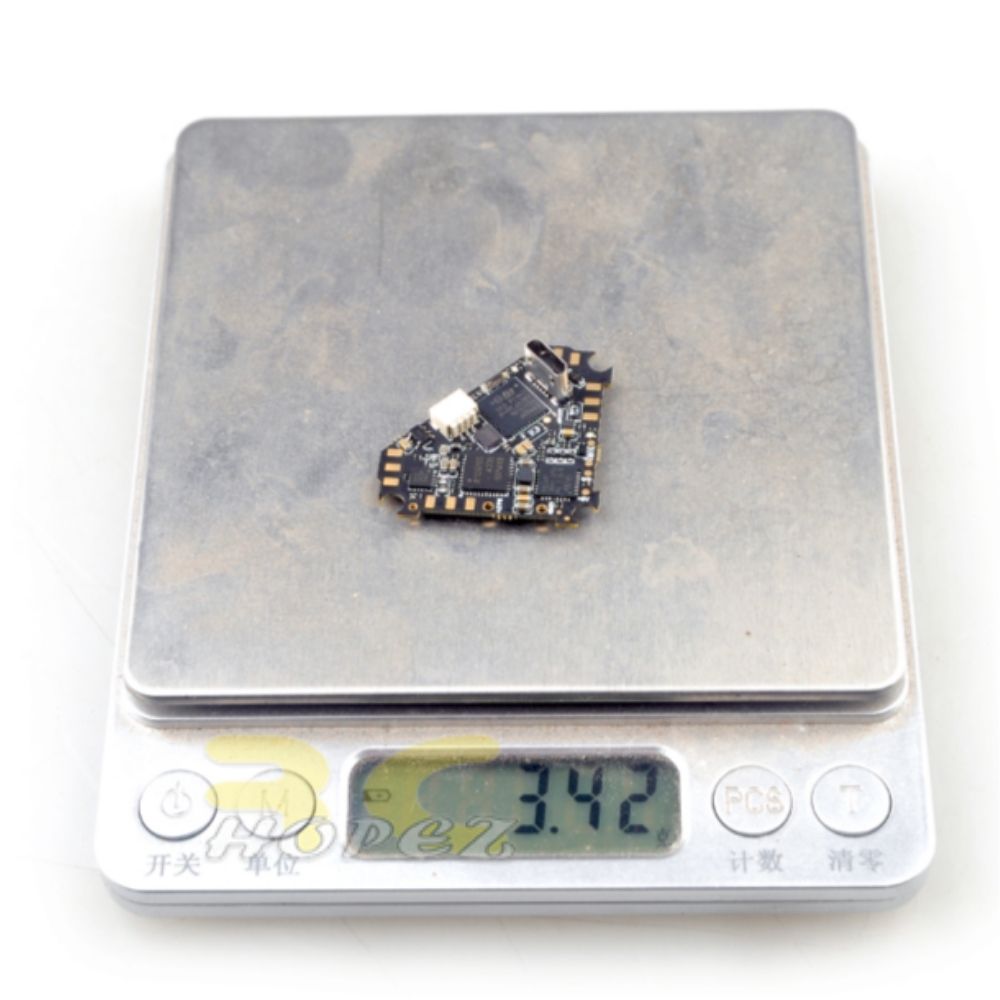

Weight 0.1 kg
Dimensions 10 × 10 × 10 cm
