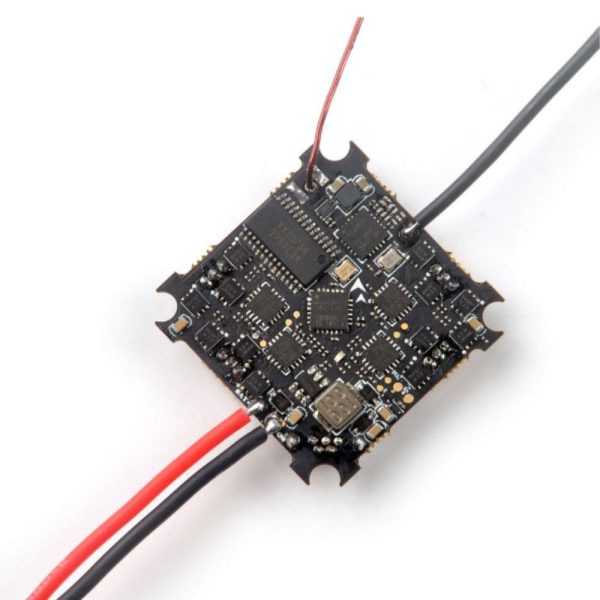

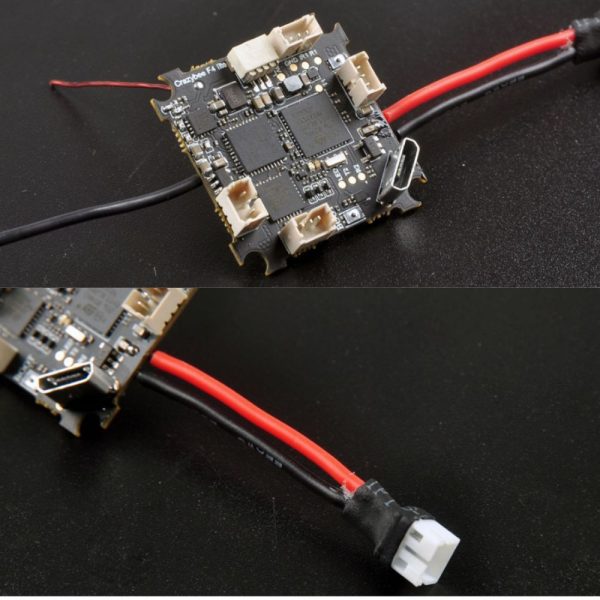

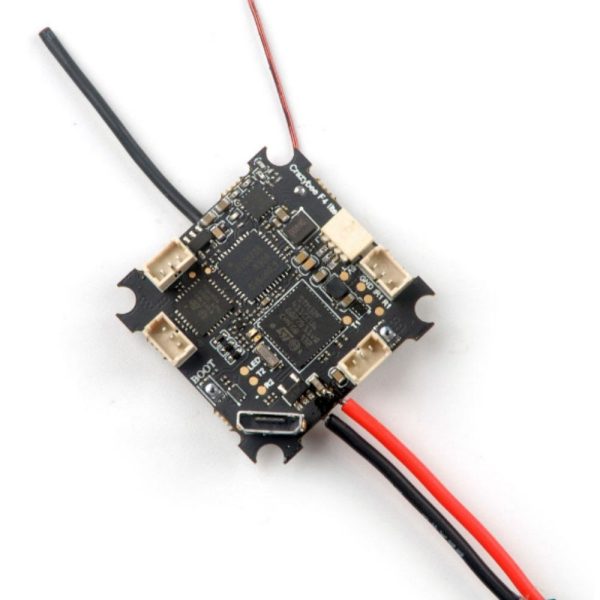

Happymodel Mobula6 Crazybee F4 Lite 1S Flight Controller AIO 5A BLheli_S ESC & 25mW VTX – Flysky Receiver Mobula6-FL

RM263.00

1 in stock

Happymodel Mobula6 Crazybee F4 Lite 1S Flight Controller AIO 5A BLheli_S ESC & 25mW VTX – Flysky Receiver Mobula6-FL



Specification:



Brand Name: Happymodel
Item Name: Crazybee F4 Lite 1S Flight Controller AIO ESC Receiver & 25mW VTX
Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)



Flight controller:
(Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI connection)
Board size: 28.5 * 28.5MM

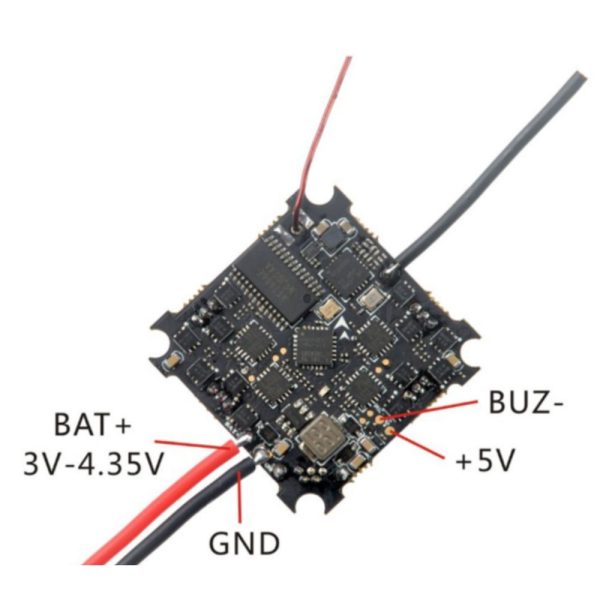

Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A (each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD (SPI Control)
Built-in 5.8G VTX
Built-in Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection



Onboard 4in1 ESC:
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600



Onboard Flysky SPI receiver Version:
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support



Onboard 5.8g VTX:
Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready



Package Included:
1x Crazybee F4 Lite Flight Controller
4x Anti-Vibration Ball
4x Screws

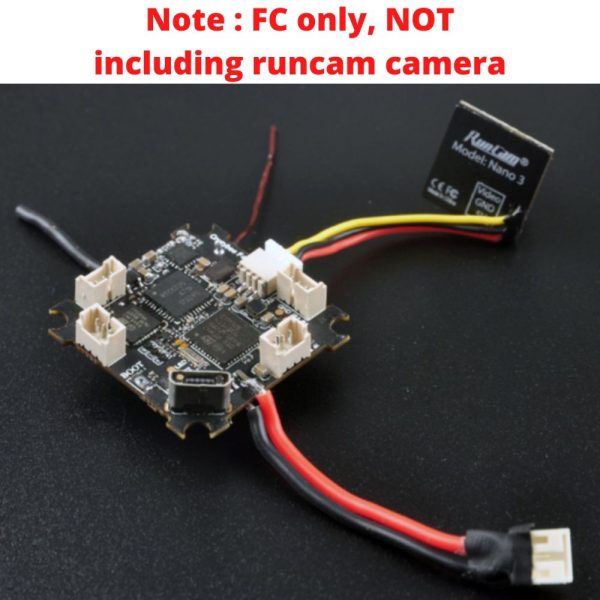

Note : FC only, NOT including runcam camera



Notes:



R1(RX1) Pad is used for IBUS/DSM2/DSMX signal input



IR1(IRX1) Pad is used for SBUS signal input (Already inverted)



R1 and IR1 Cannot be used simultaneously



Weight 0.08 kg
Dimensions 10 × 10 × 10 cm
