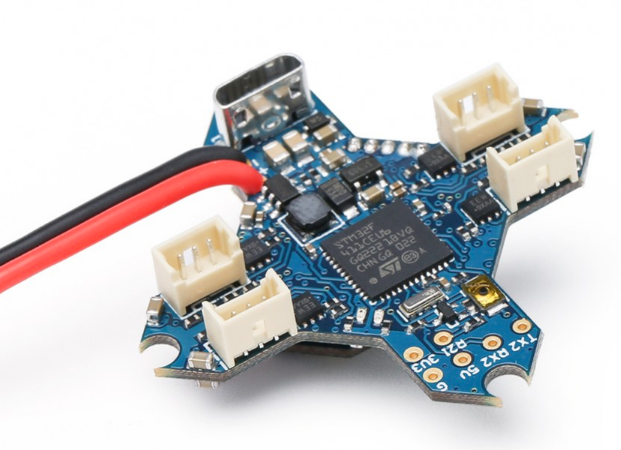

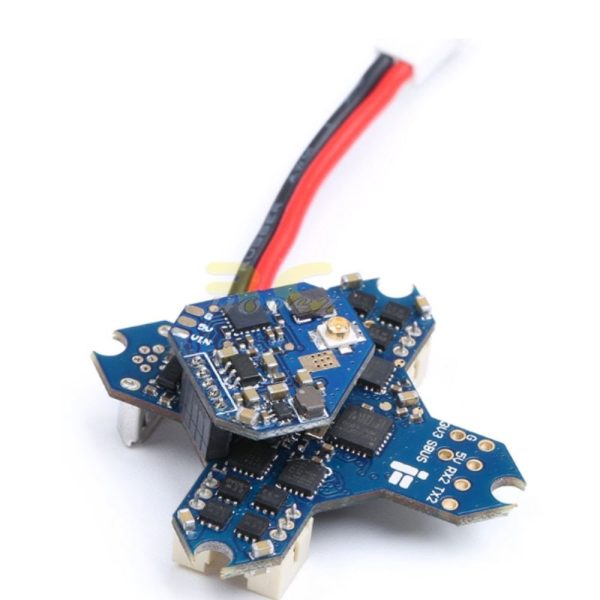

iFlight SucceX Whoop F4 AIO 1S AIO Board 25.5*25.5mm (MPU6000) with VTX for FPV Whoop iFlight Alpha A65 SX8832-5A

RM185.00

Out of stock

iFlight SucceX Whoop F4 AIO 1S AIO Board 25.5*25.5mm (MPU6000) with VTX for FPV Whoop iFlight Alpha A65 SX8832-5A

PRODUCT DESCRIPTION
TOP FEATURES:

Power supply: 1S
Super light only 5.4g
MCU:STM32F411
Gyro: MPU6000
Support BLHeliSuite programmable
5A continuous current

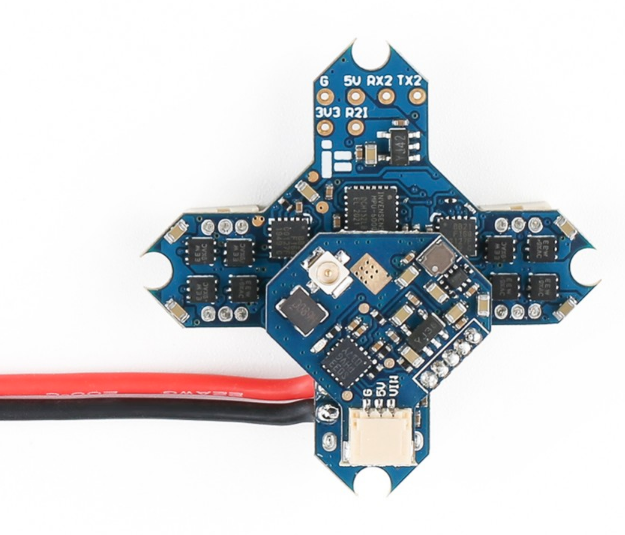

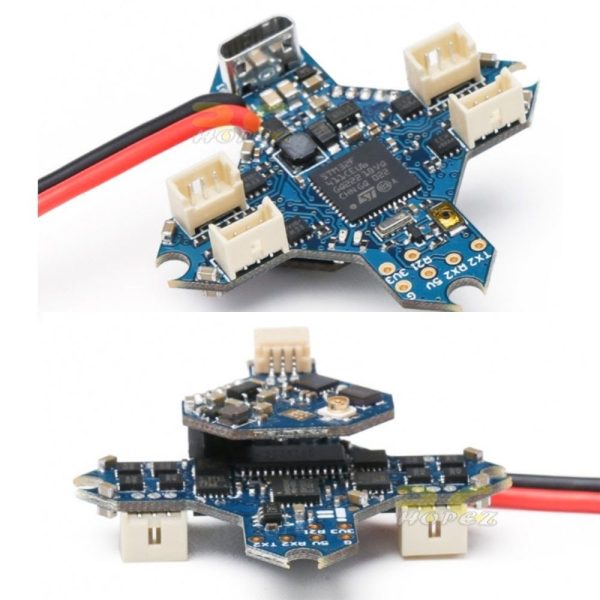

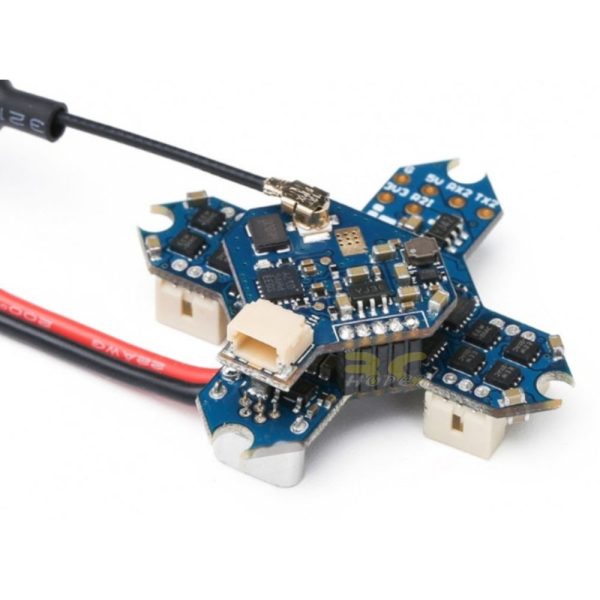

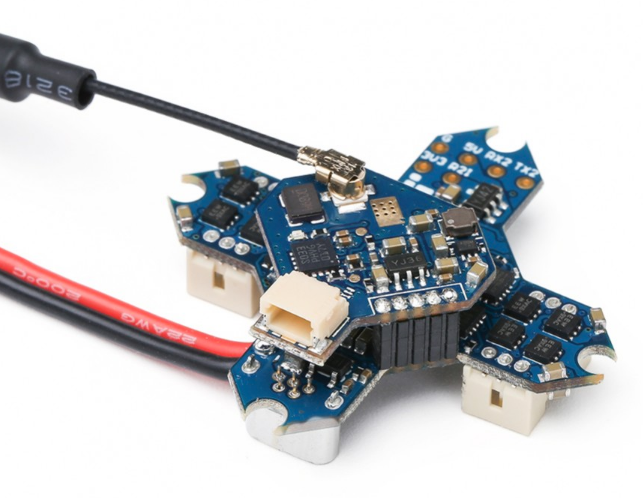

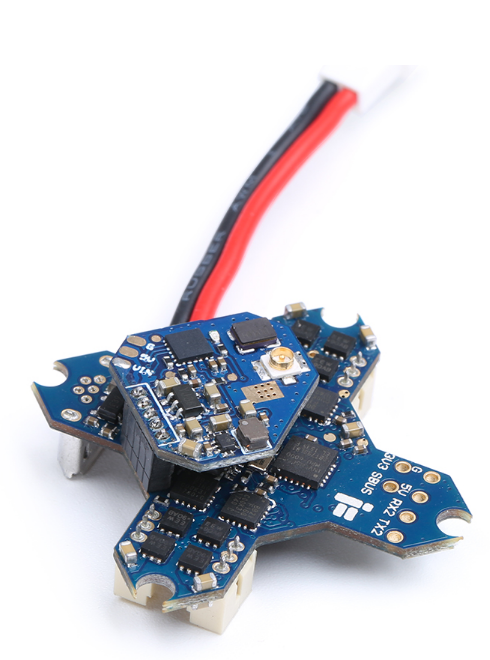

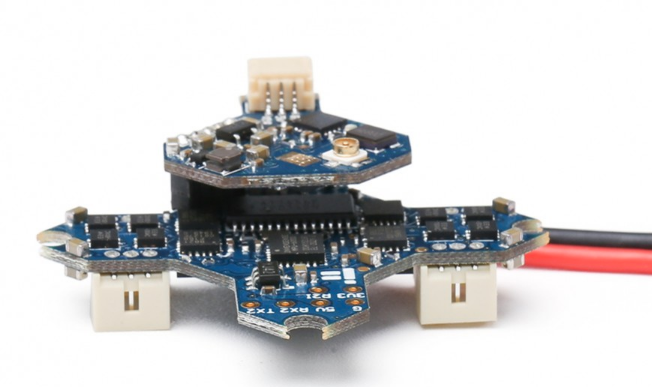

FC // SucceX-1S Whoop AIO Board

Size:29*29mm
Mounting pattern: 25.5*25.5mm/φ3mm (half-hole)
Connector:Micro-USB

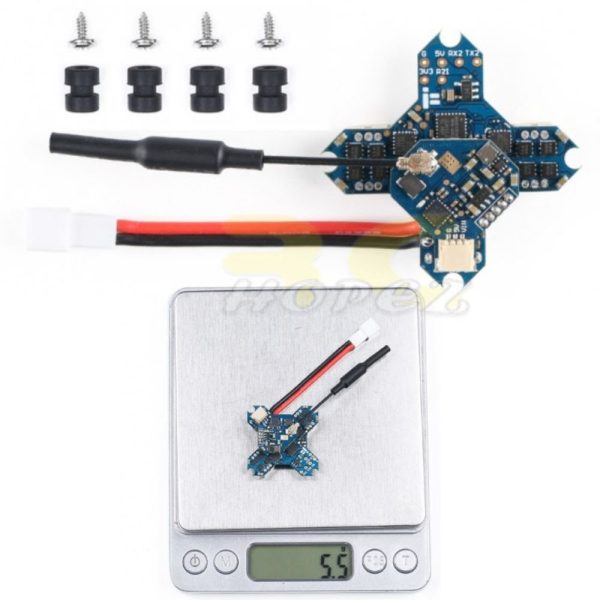

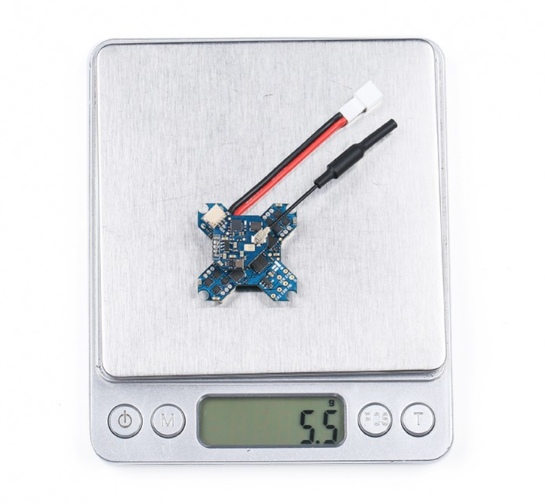

Weight: 5.4g (with power cable, vtx, and vtx antenna)
MCU:STM32F411
Gyro:MPU6000
Blackbox:no
BEC output:5V 1.2A
INA pad:n uart2
Barometer:no
FC Firmware:MatekF411RX
ESC Firmware:O_H_05 16.9

NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A

Current: 5A continuous and peak 6A
Current scale: 400
Input:1S
Signal Support: Dshot,Oneshot,Multishot
Current sensor:yes
BLHeli:BLHeli-S
ESC Telemetry:no

VTX:

Input voltage: 5V
Channels: 48CH
Power: PIT/25/50mW
Connector:UFL/IPEX

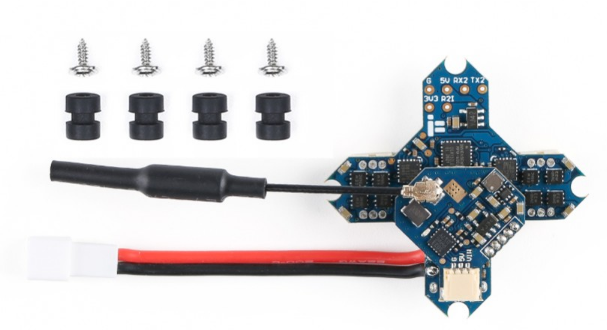

Package Includes:

1 x SucceX-1S 5A Whoop F4 AIO Board (MPU6000)
1x Whip antenna

Weight 0.15 kg
Dimensions 10 × 10 × 10 cm
