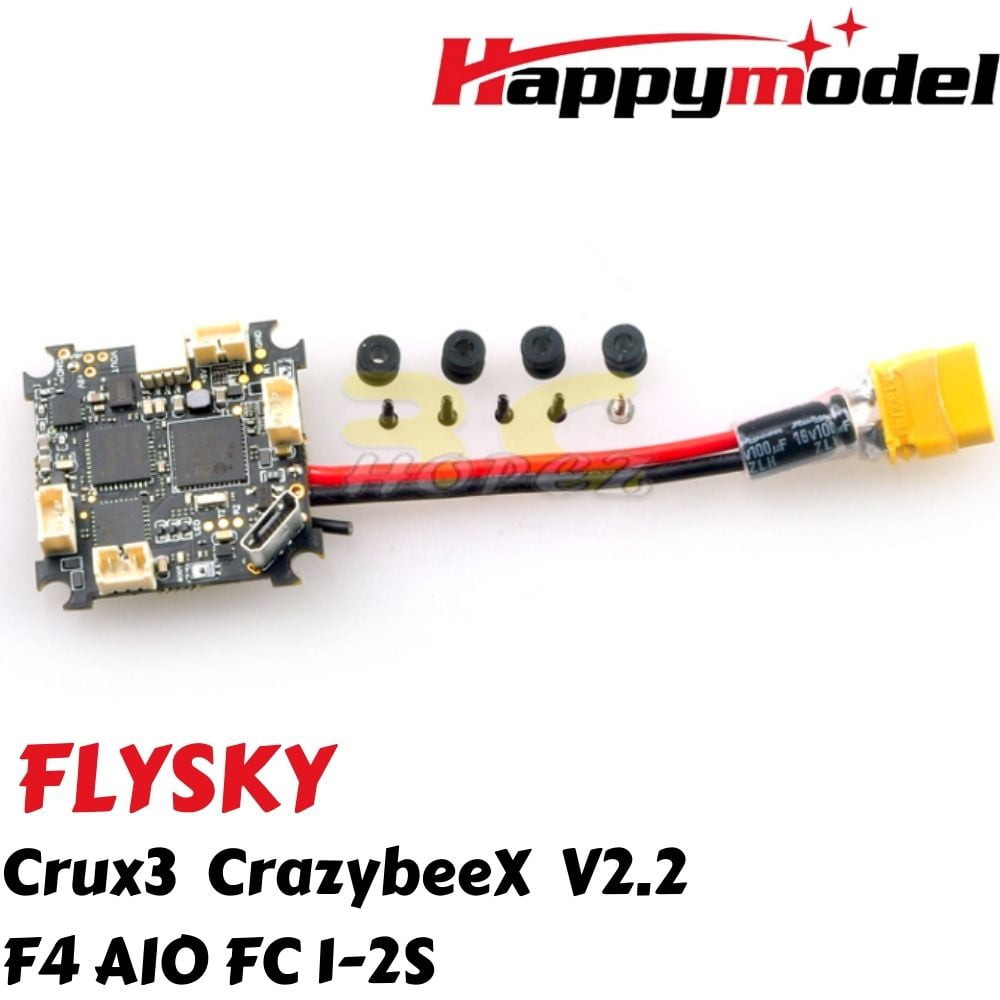

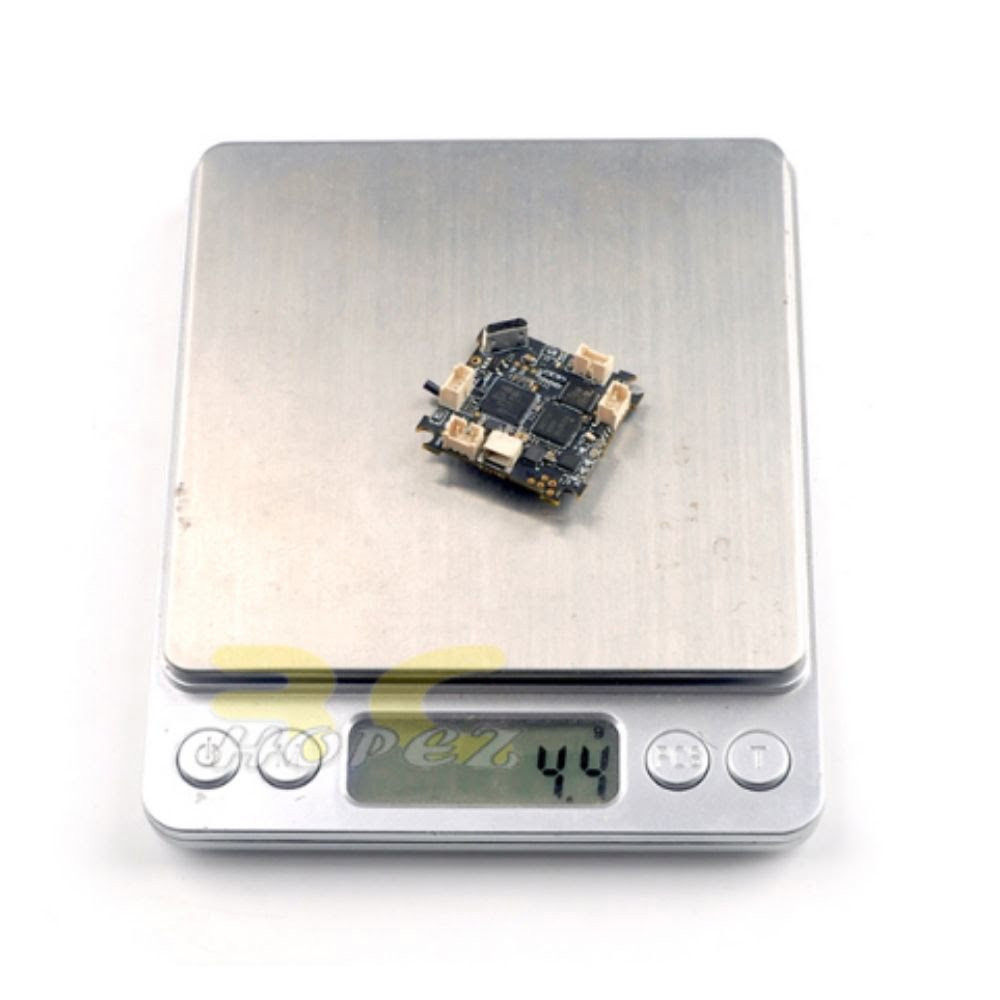

Happymodel CrazybeeX V2.2 F4 1-2S AIO (25.5×25.5) Flight Controller for Crux3 Toothpick Whoop – Flysky HPV22-FL

Happymodel CrazybeeX V2.2 F4 1-2S AIO (25.5×25.5) Flight Controller for Crux3 Toothpick Whoop – Flysky HPV22-FL

Introduction:
CrazybeeX series flight controller is the first 5in1 AIO flight controller which could handle 2s.
It's a better upgrade flight controller for your whoops.
– Use to build a 1-2S compatible lightest 65mm/75mm/85mm brushless whoop or  2-3 inch ultra light toothpick.

Specification:
Item Name: CrazybeeX FRSKY V2.2 Flight Controller 1-2s
Receiver：FLYSKY

Flight controller:
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S-2S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in 5V 1A BEC
Built-in voltage detection

Firmware target:
CrazybeeX FS version: Recommend Betaflight 3.5.7 target CRAZYBBEF4FS
Onboard 4in1 ESC:
EFM8BB21
Power supply: 1-2S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Default protocol: DSHOT600
(CrazybeeX FS V2.2 version) Onboard Flysky SPI receiver

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
Failsafe support
Onboard 5.8g VTX:
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Default vtx_power is 3
Should set vtx_low_power_disarm = ON to reduce the high temperature when test on the ground

Onboard Voltage and Current detector:
Voltage Meter scale “110”
Amperage Mete scale “1175”

CrazybeeX FS V2.2 Bind procedure:

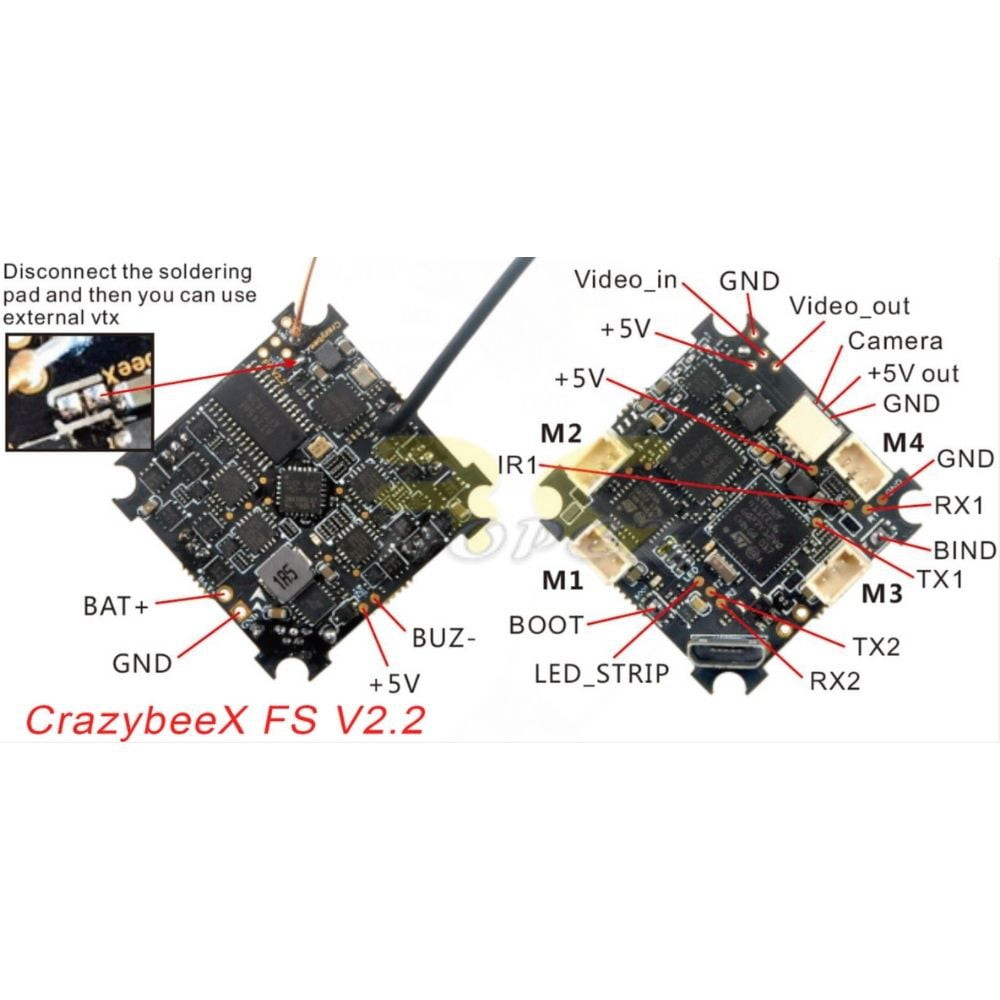

1. Make the on board receiver get into bind mode: For 3.5.7 version firmware Press and hold the bind button for 1 second ,then plug USB, the Red LED at the bottom of the flight controller will blinking fast , this indicate the receiver is in bind mode; For 4.0.x version firmware Plug USB and then connect betaflight configurator and then move to CLI tab , type “bind_rx_spi” ,the Red LED at the bottom of the flight controller will blinking fast , the onboard receiver is in bind mode; For 4.1.x or 4.2.x the bind code is “bind_rx”
2. Make your Flysky transmitter get into bind mode . If bind is successful the red led will getting to be solid.

SPI Receiver option:
A7105_FLYSKY_2A compatible with Flysky AFHDS-2A protocol
A7105_FLYSKY compatible with Flysky AFHDS protocol

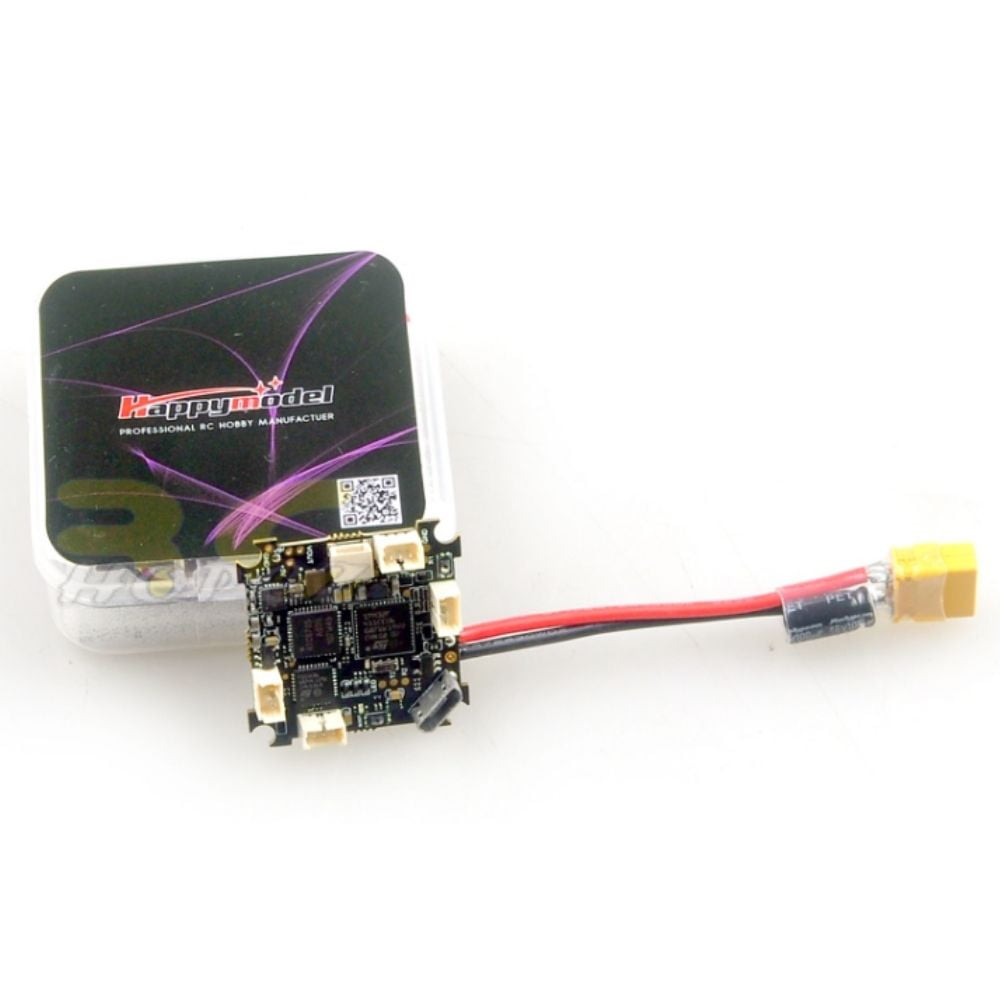

Package Included:
1x CrazybeeX FLYSKY V2.2 Flight Controller
4x Anti-Vibration Ball
4x Screws
