F3 AIO V1.1 Flight Controller with Integrated OSD Barometer Support SD Card XP045
Features:
-A new generation AIO Flight control for FPV
-Based on F303 MCU, using F3 MCU controls OSD over SPI bus in DMA mode
-OSD Configuration has been incl. in Betaflight GUI.
-Supports SD Card and LIPO direct input (2-4S)
-MPU6000 at SPI bus.
-4 in 1 Integraded ESC ports
Description:
Item: F3 FC
LiPo Input: 2-4S

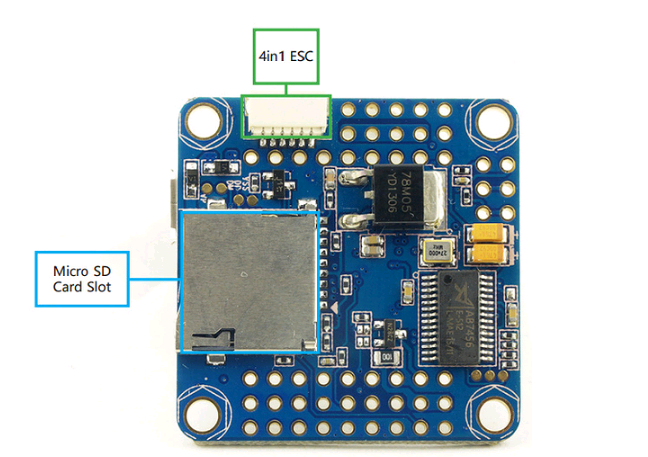

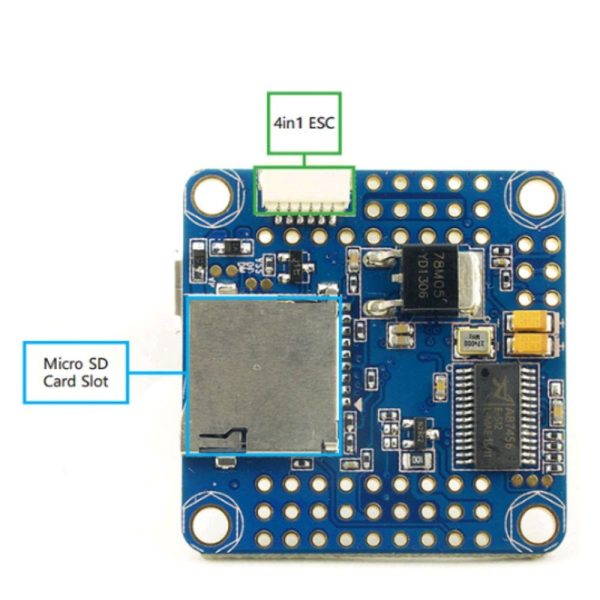

Support SD card
Size: 36x36mm
Mount Holes: 30.5×30.5mm
Specification:
STM32 F303 MCU, Runs Betaflight 3.0 firmware
SBUS/PPM input (Pin headers)
8PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pin headers)
128Mb Flash(16M Byte)
optional Barometer BMP280, you can close it by software.
SPI Sensor MPU6000
Package Included:
1 x F3 AIO V1.1 Flight Controller with Integrated OSD Barometer Support SD Card
