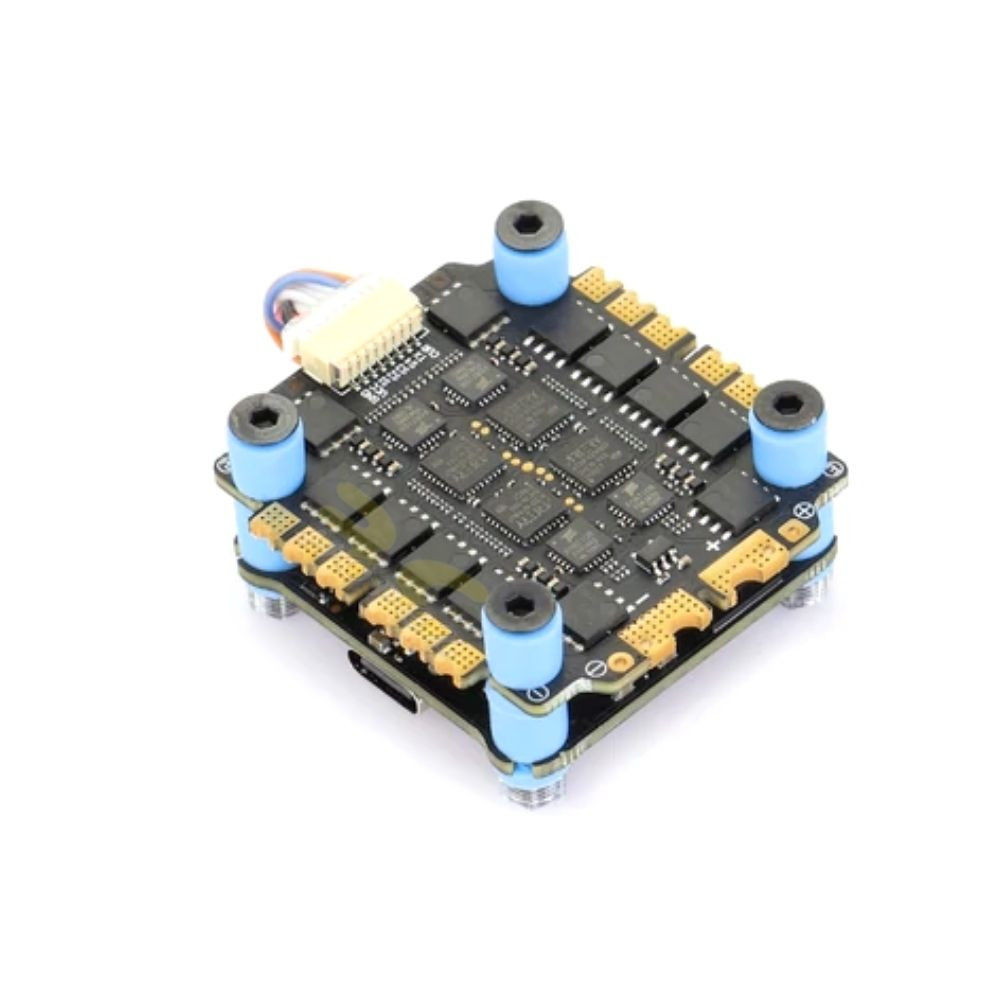

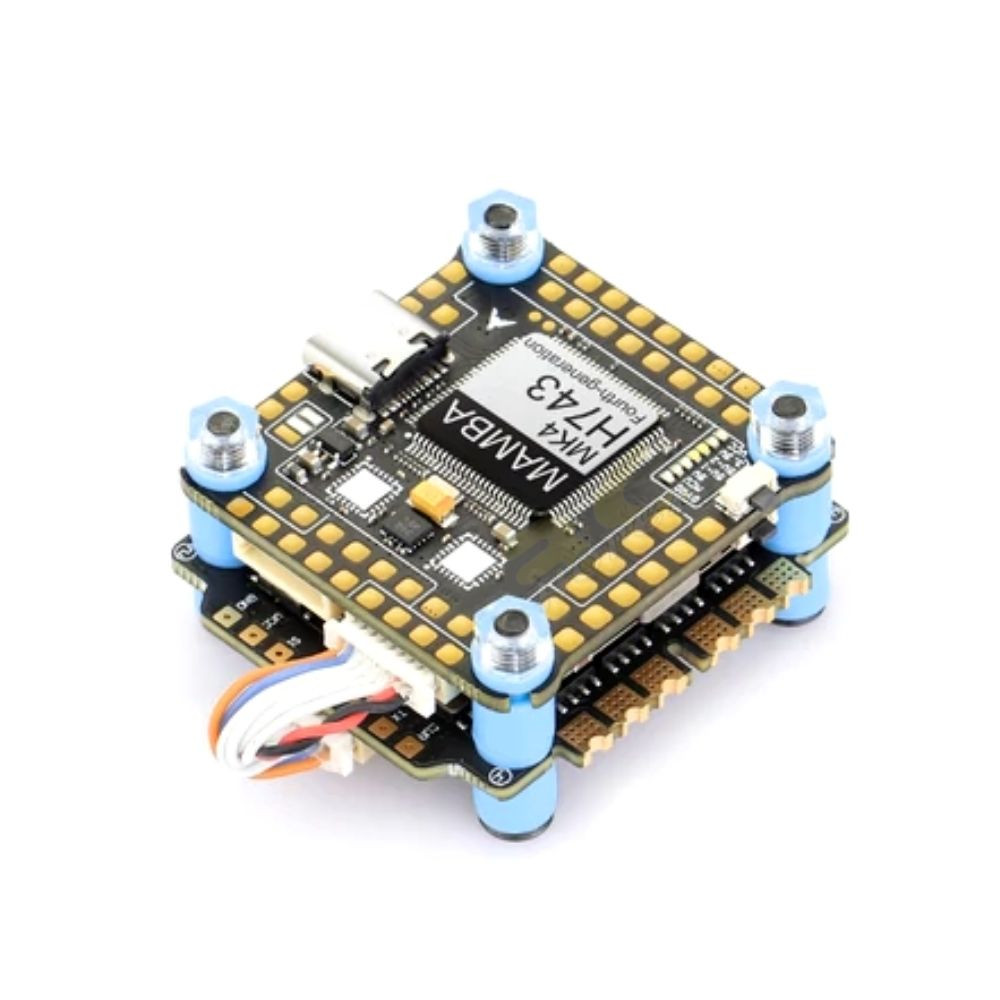

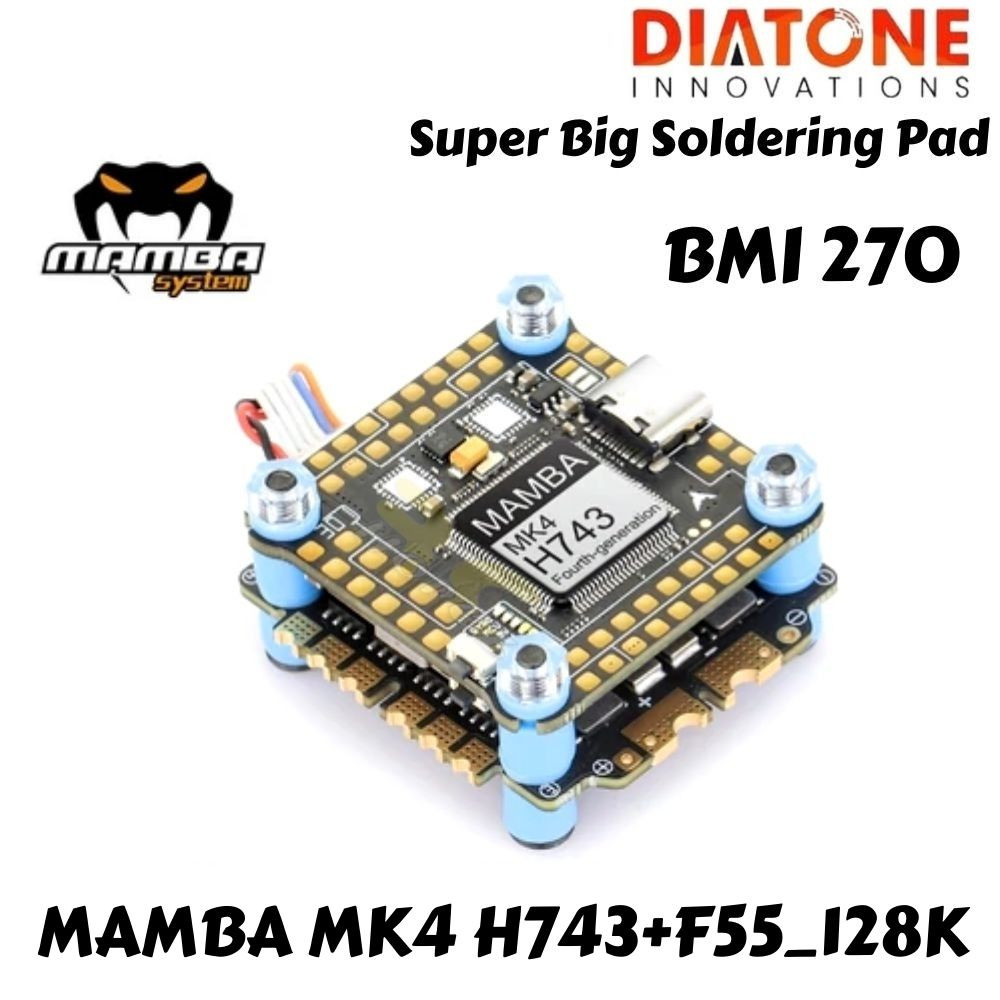

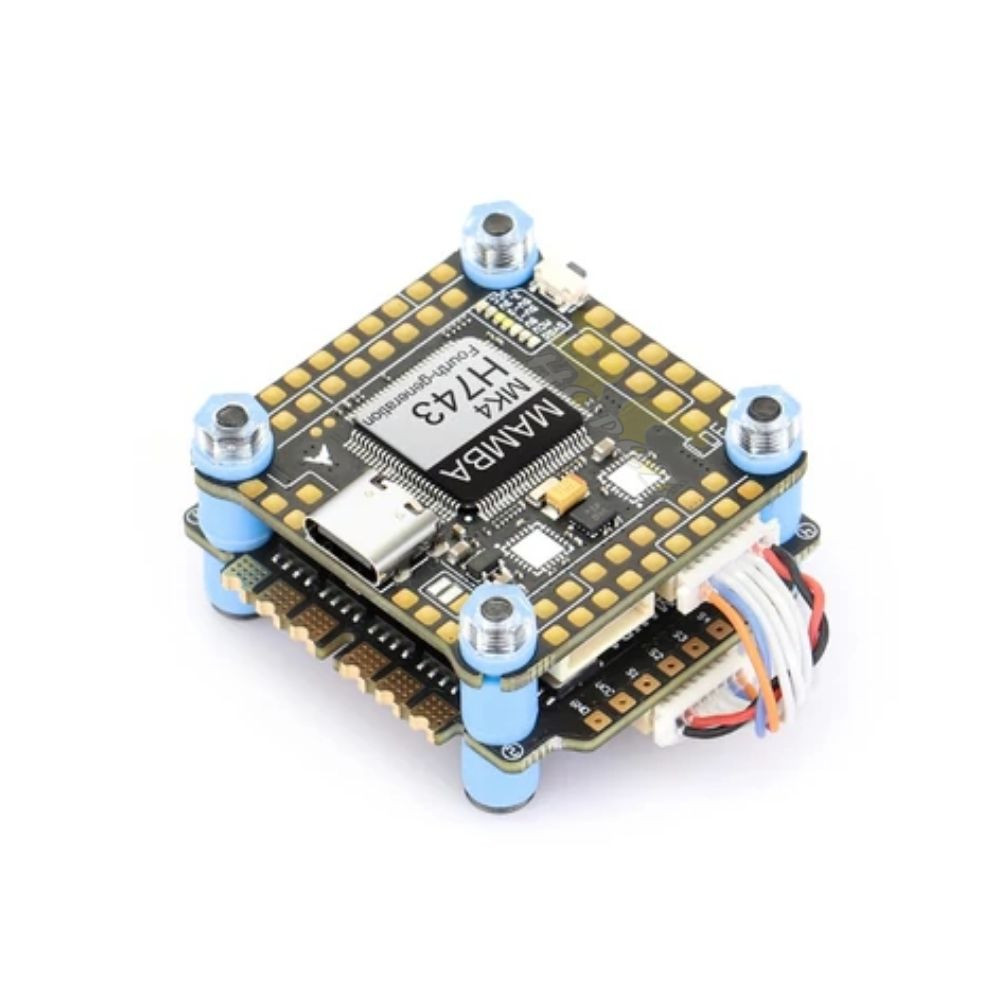

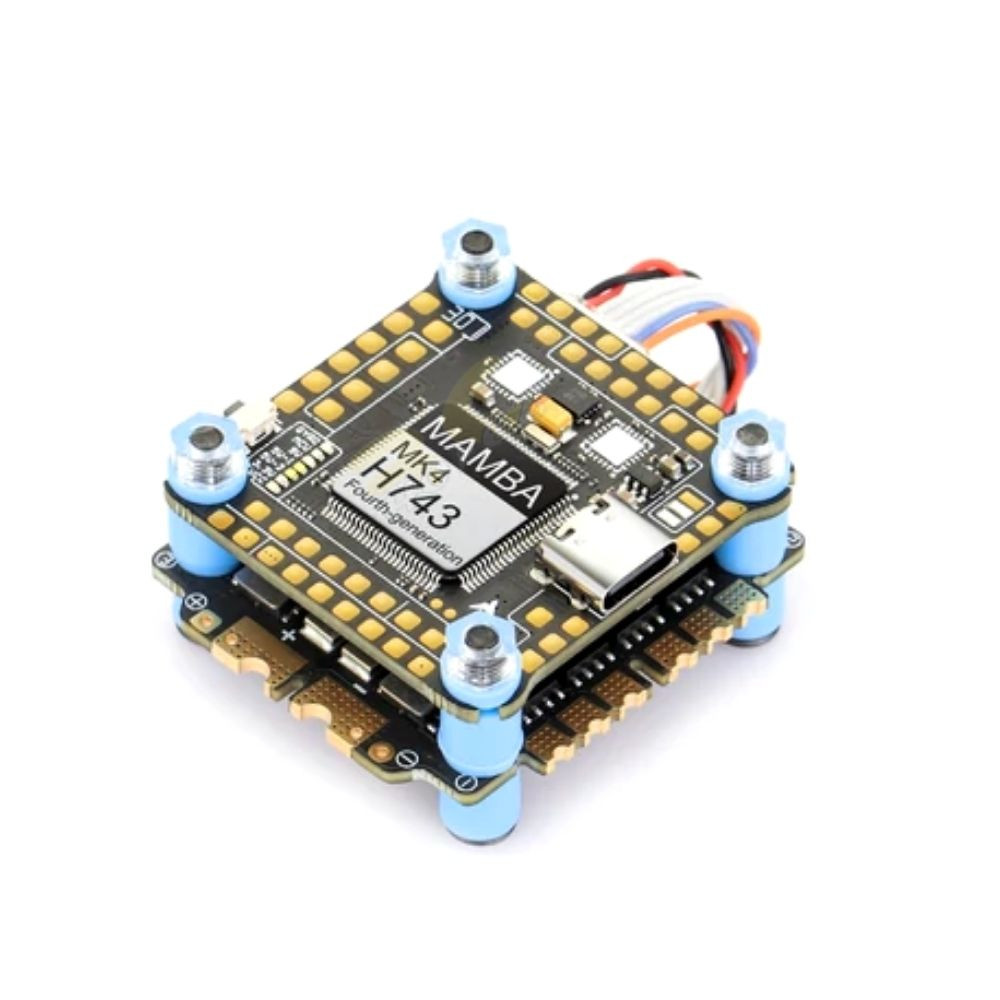

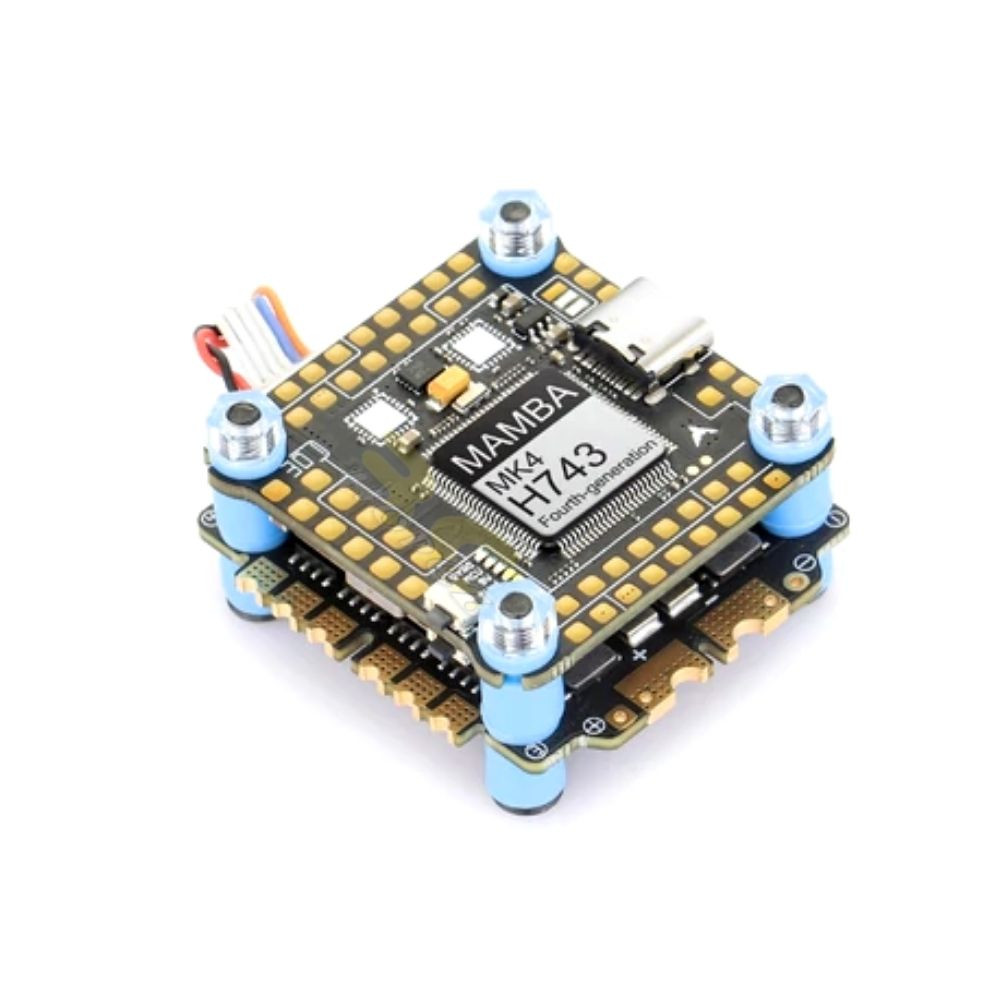

Diatone MAMBA (30.5×30.5) MK4 H743 BMI270 & 55A 128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-0807

RM459.00

1 in stock

SKU: M-0807 Categories: ,

Diatone MAMBA (30.5×30.5) MK4 H743 BMI270 & 55A 128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-0807

#All H7 uses Development version 4.3 Traget temporarily

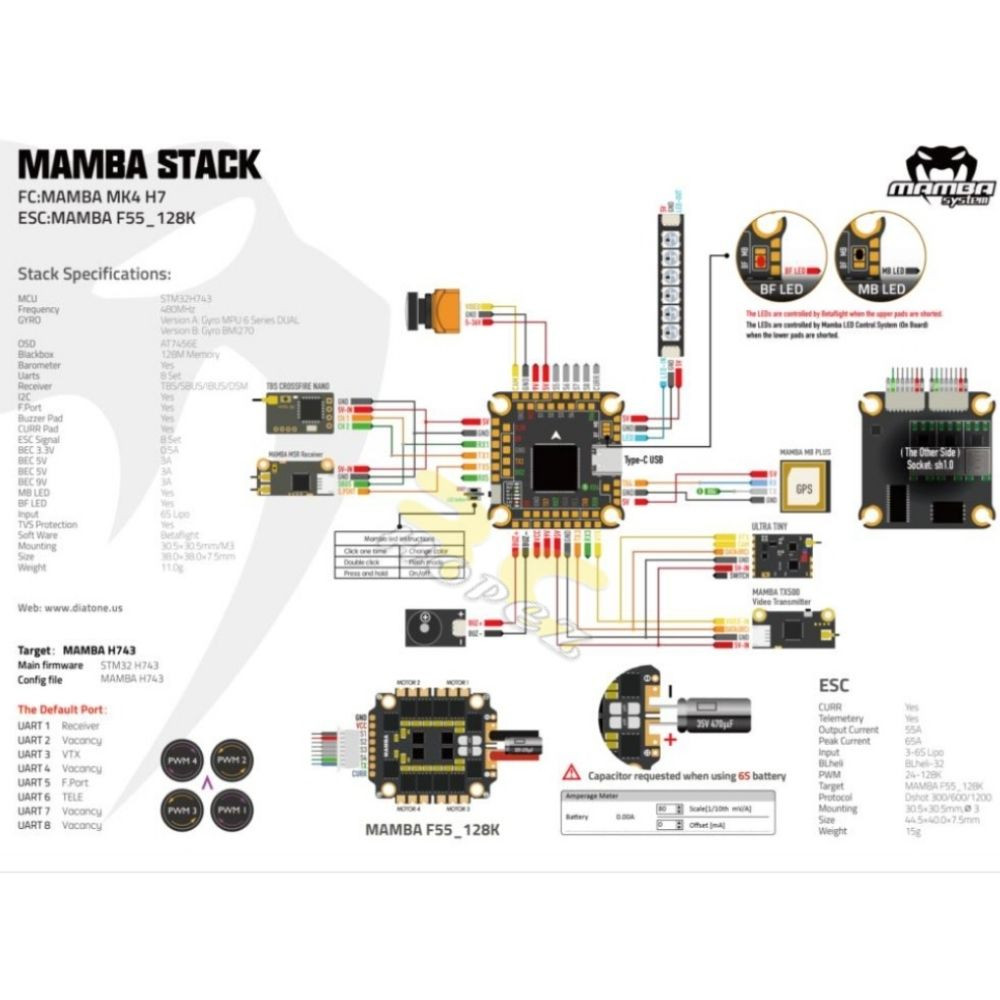

FC Specifications
MAMBA MK4 H743
MCU: 480MHz STM32H743

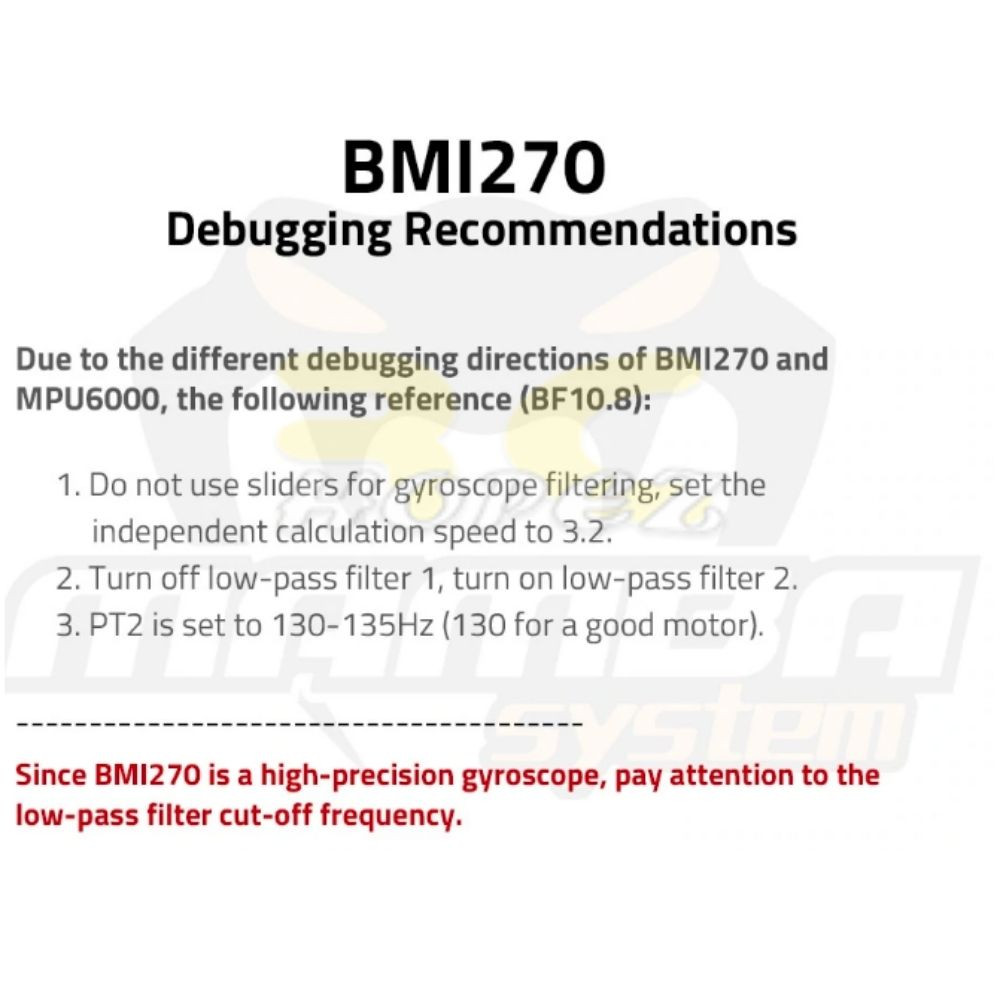

GYRO: BMI270
Barometer: Yes
OSD: Yes
Blacbox: 128M Flash Memory
Uarts: 8Set
ESC Signal:8Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED/MB LED(4 Set 2812 LED)
F.Port: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A (System Power)&
5V 3A(LED)& 9V 3A
MOUNTING: 30.5mm,M3

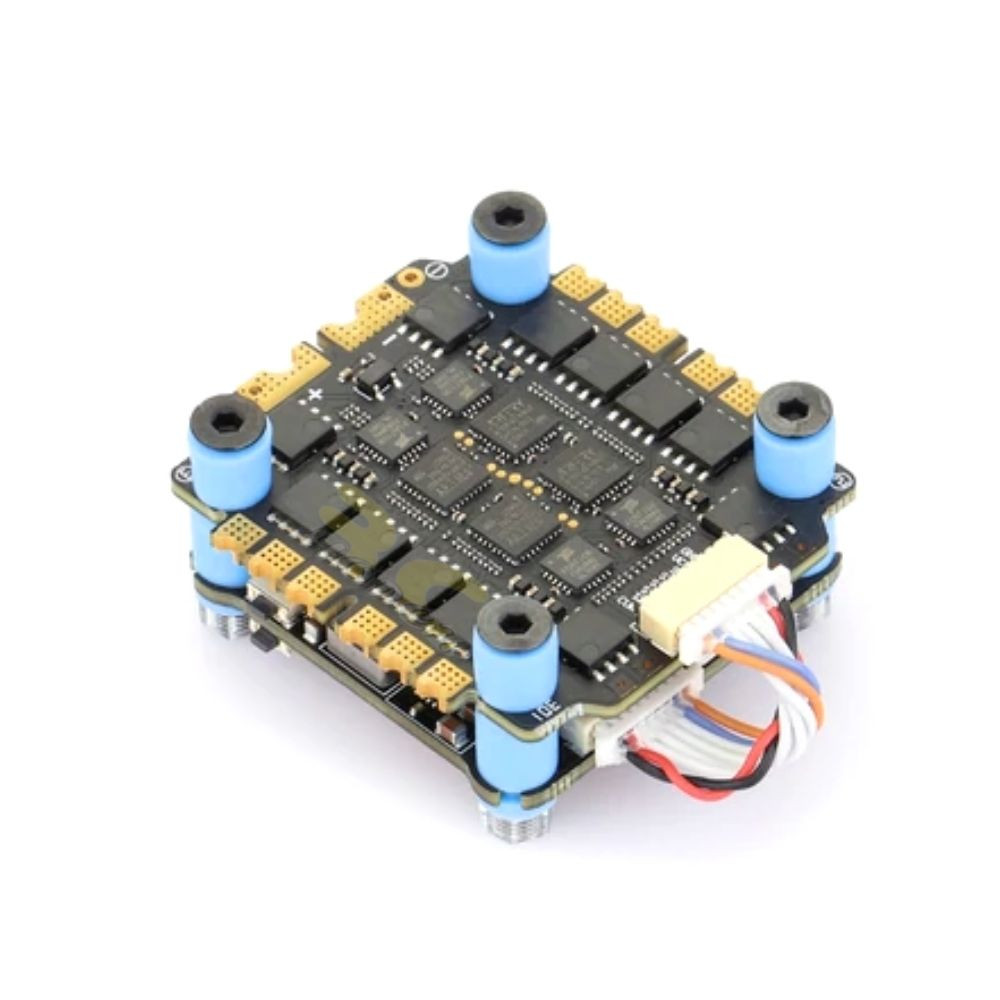

ESC Specifications
MAMBA F55_128K
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:55A×4
BURST CURRENT:65A (10S)
BEC: No
Target: BLHeli_32 MAMBA F55_128K
SOFT: Dshot300/600/1200
PWM: 24~128K
TVS Protection: Yes
MOUNTING: 30.5mm/M3

Package Included:
1x Mamba MK4 H743 BMI270 Flight controller
1x MAMBA 128K 55A ESC
1x High Frequency 470uF/35V
2x 8pin sh1.0
2x 12AWG 100mm
1x AMASS Original XT60









Weight 0.05 kg
Dimensions 5 × 5 × 4 cm
