Hobbywing Multifuntion LCD Program Box Pro for PLATINUM XERUN EZRUN Seaking Pro ESC For RC Car Boat Airplane Heli EM-010

Hobbywing Multifuntion LCD Program Box Pro for PLATINUM XERUN EZRUN Seaking Pro ESC For RC Car Boat Airplane Heli EM-010

Features
– As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
– Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.

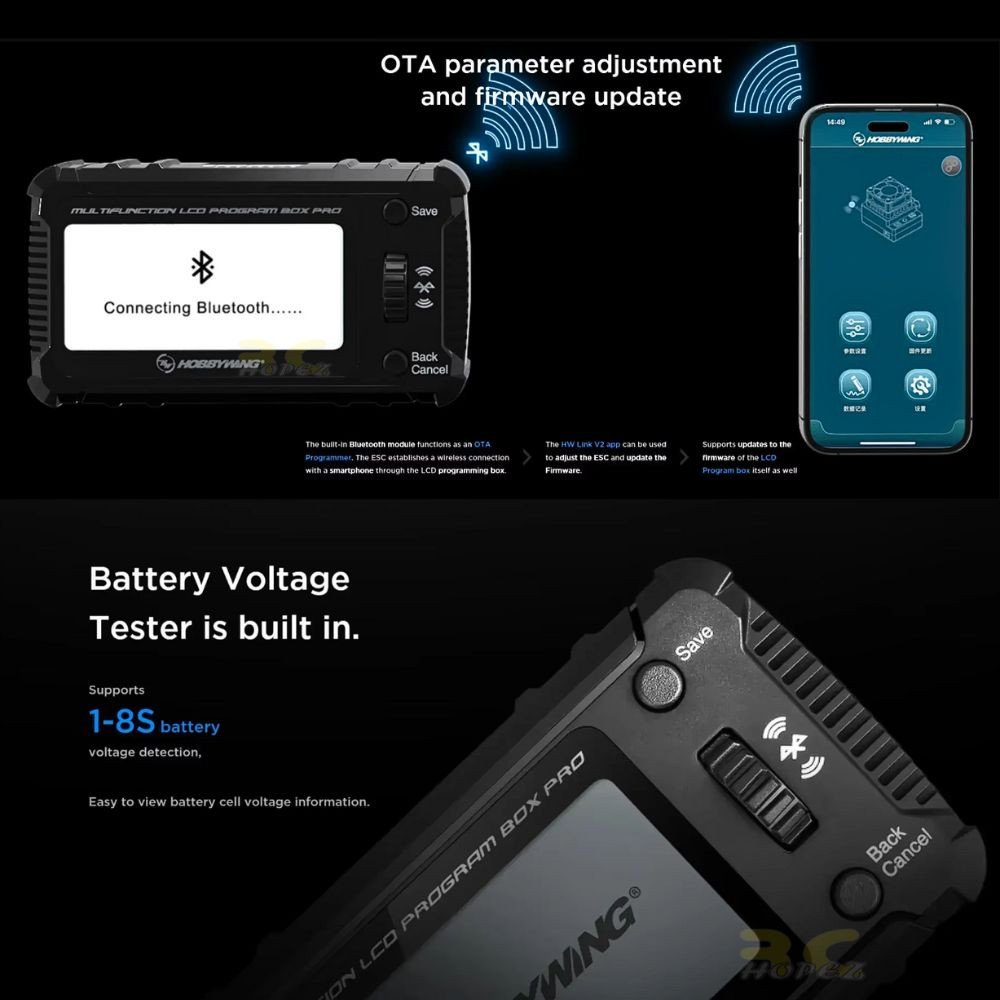

– The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.
– Detect the overall voltage of the lithium battery and the individual voltage of each cell.
– The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.

Note
A Separate battery is needed for powering this program box when ESC has no built-in/external BEC
The USB-C Software works for PC users only.

Features:
Built-in large 2.8" LCD screen to display, set, and share ESC parameters!
Built-in Bluetooth module
1-8S LiPo Battery voltage tester

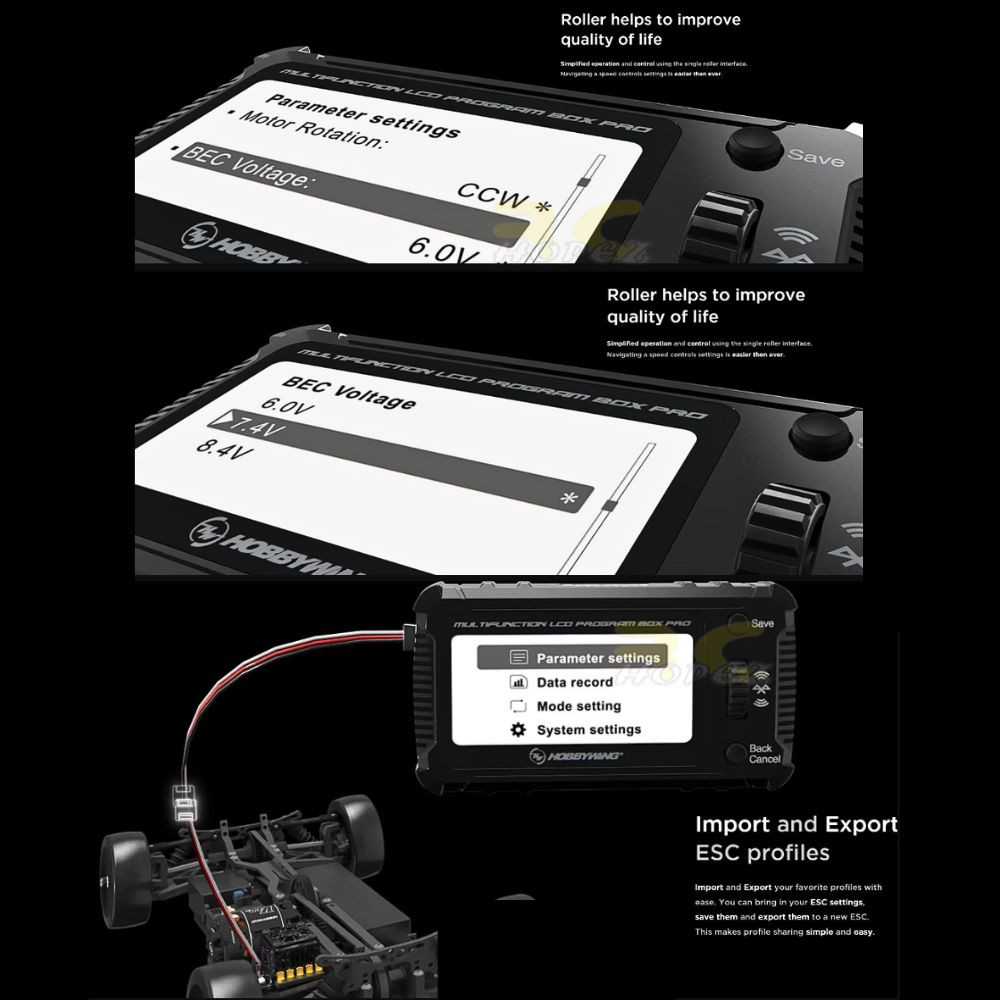

Import, export and save profiles with quickness and ease
Compatible with HW Link V2 App

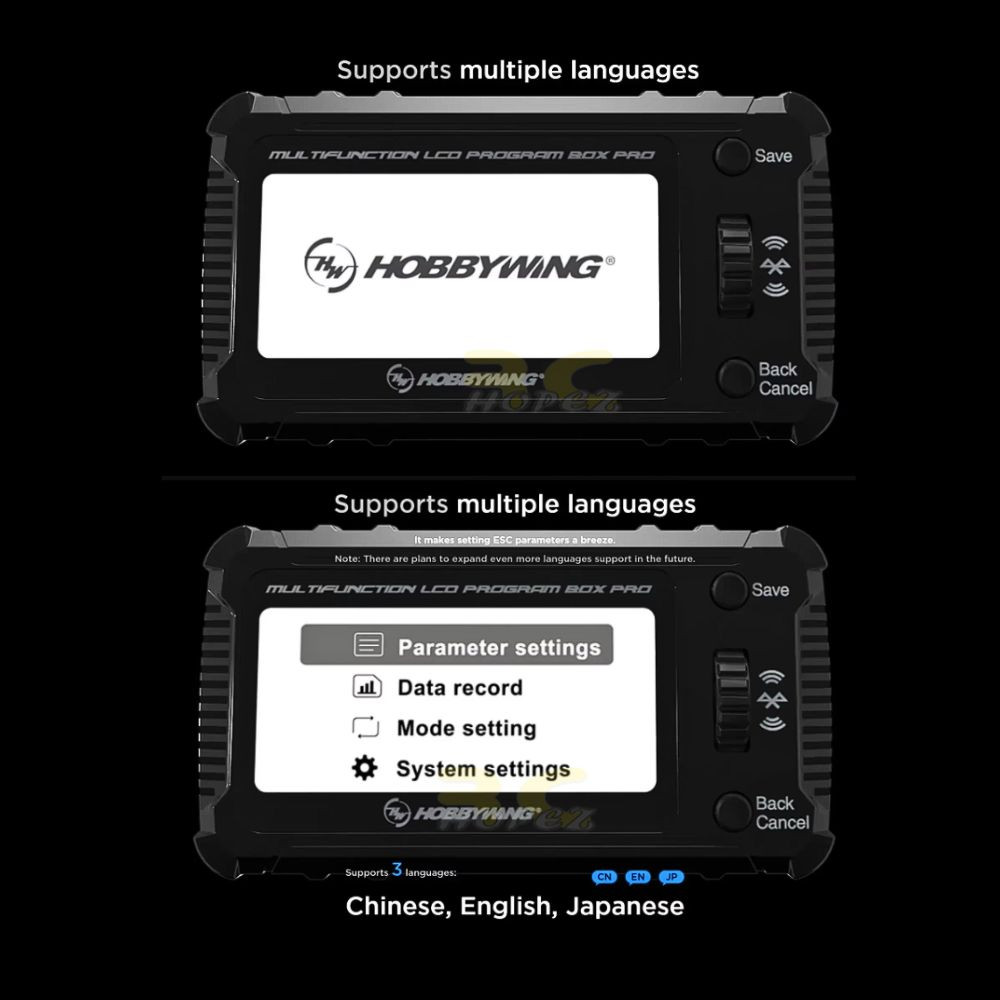

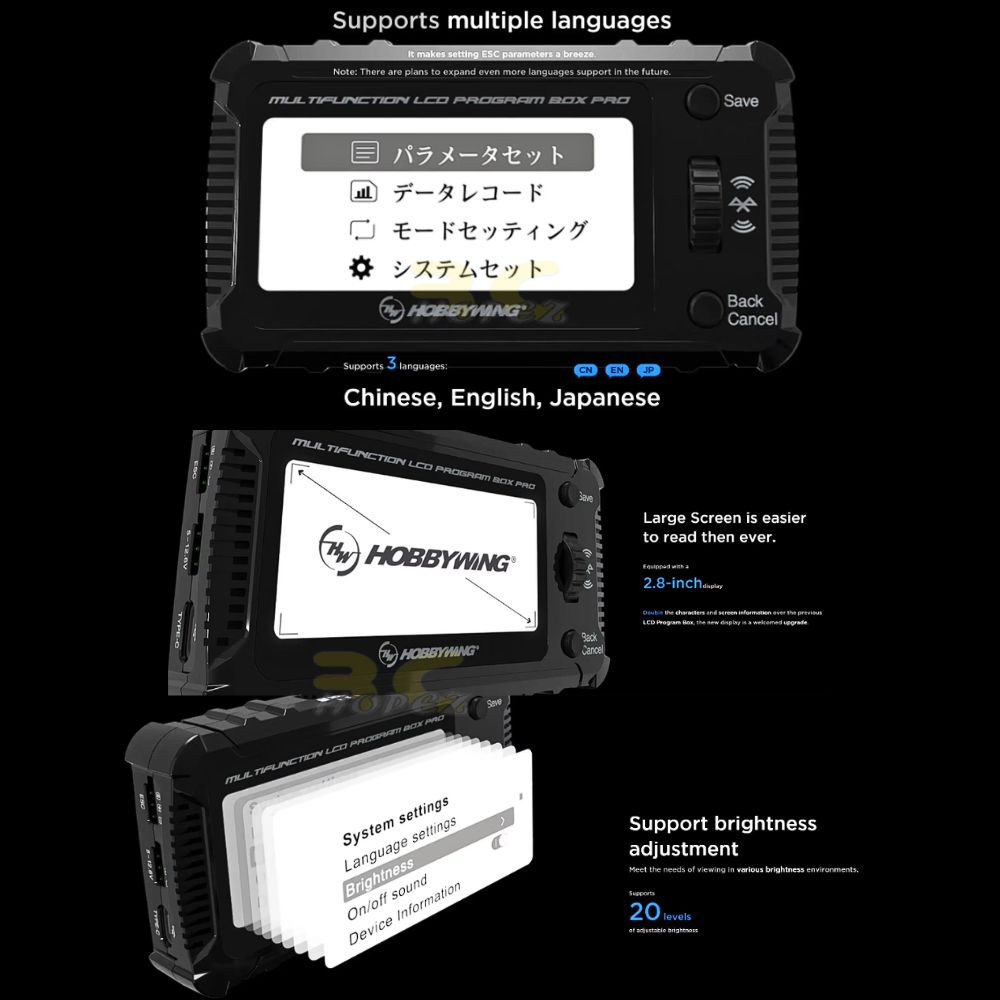

Supports multiple languages
User friendly and easy to navigate

Specifications:
Screen: 2.8" LCD
Input Voltage: 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)

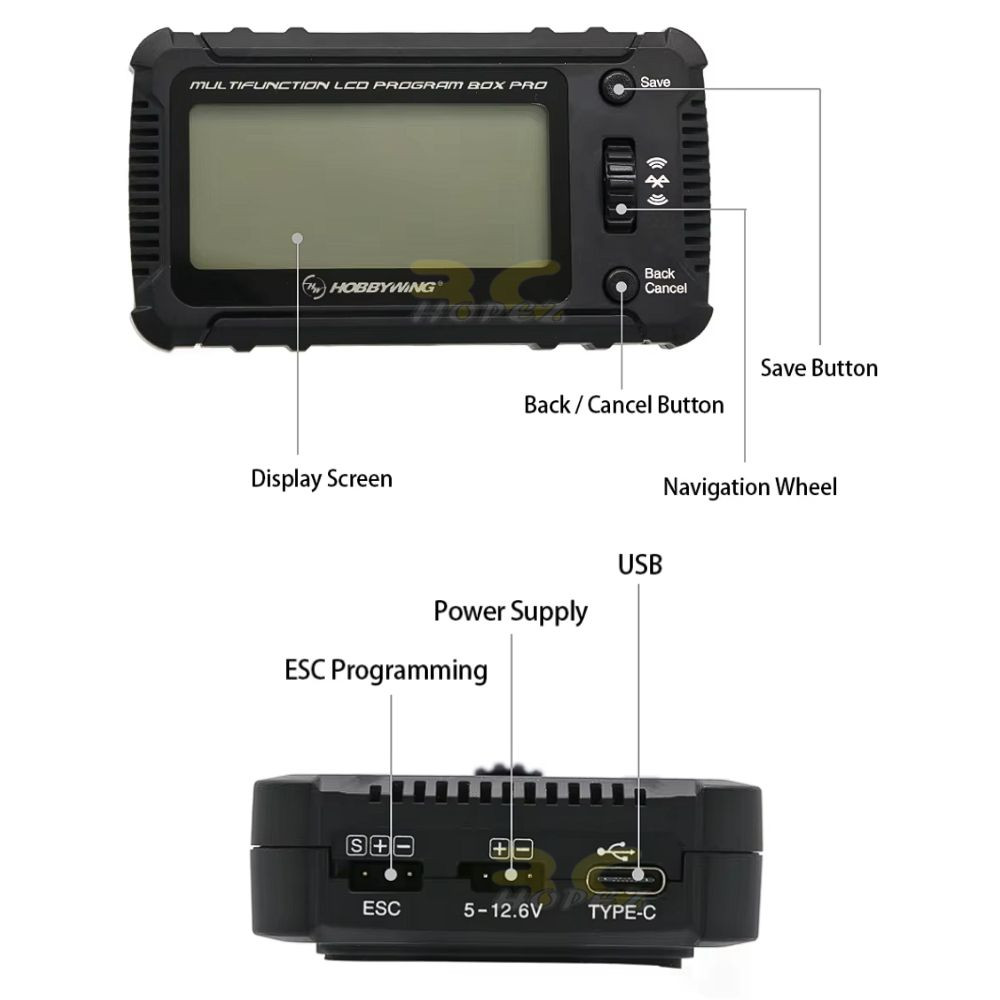

Interface: TYPE-C USB， ESC Interface(Futaba plug),Power Supply Interface（Futaba plug）
Display Screen: LCD

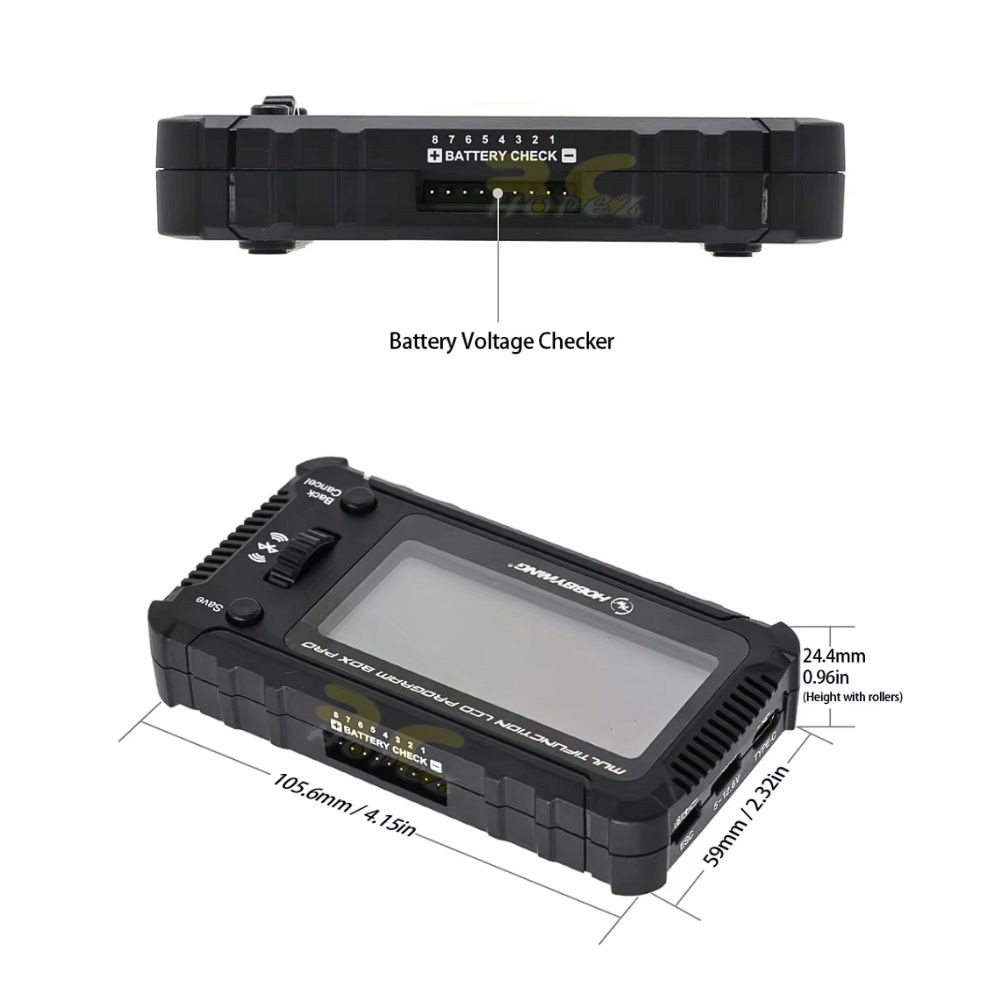

Dimensions (LxWxH): 105.6x59x24.4mm
Weight: 85g

Compatible ESCs List
XeRun and EzRun MAX series (V2.0 and later)
Platinum and Seeking PRO series
Some ESC of QuickRun series (Excluding 2 in 1 Systems)
Platinum series of brushless aircraft ESCs

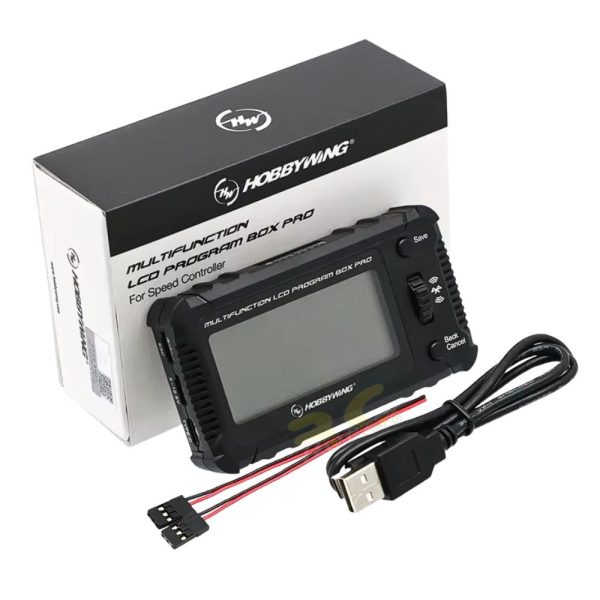

Includes :
1 x Hobbywing Multifuntion LCD Program Box Pro
1 x USB Type-C Cable
1 x JR Male to Male Cable
